12mm Oil Drain Valve With Adapter

Makes oil changes easy as "push-and-turn"
Mfg Part #
F109N
ECS Part #
ES#2209062
Brand
Fumoto
39.95
Free Shipping Free Shipping
on orders $49 and up
Availability: Ships by Feb 9, 2022
Auto Notify
Qty
Does this fit my vehicle?

Product Details

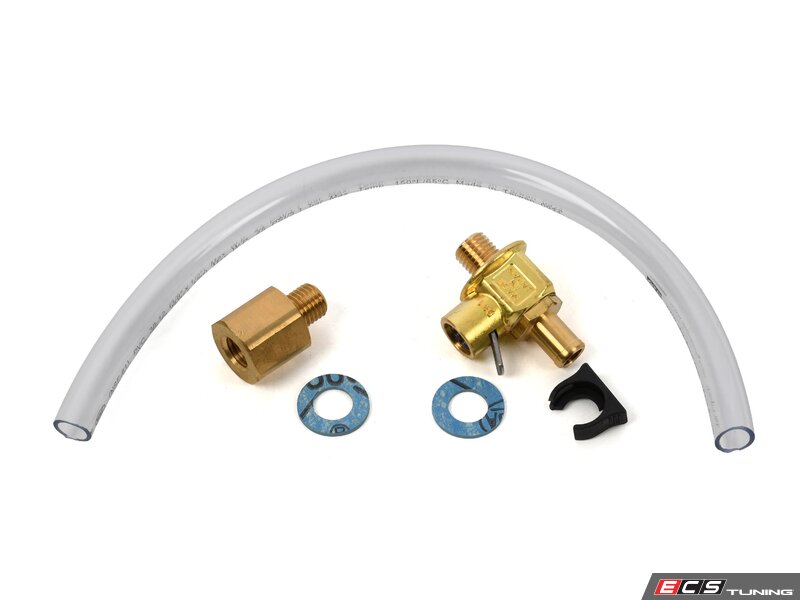

The Fumoto 12mm oil drain valve replaces your OE drain plug for fast, easy oil changes. Using it is simple.

  • Remove your old drain plug. Screw the brass-bodied Fumoto ball valve into the crankcase drain hole and torque it in place. When it's time for an oil change, pull down on the spring-loaded valve lever, turn it 90 degrees, and drain your oil.
  • Turn the lever back to the closed position when you're done, and refill the crankcase. No need to remove the valve between oil changes.

Includes a threaded brass extension for oil pans with recessed drain plugs.The Fumoto oil drain valve features a ball valve with tight tolerances to ensure it will not leak once lubricated. Initially, you may wish to use a pair of pliers or a glove to turn the valve, as the valve will be stiff until lubricated during the first oil change.

**Only tighten to a maximum of 22 lbs/ft upon installation**

This Part Fits the Following Vehicles

Make Model Submodel Engine
BMW E28 528e M20 2.7L
BMW E28 535i M30 3.4L
BMW E28 M5 S38 3.5L
BMW E30 318i M10 1.8L
BMW E30 318i M42 1.8L
BMW E30 318is M42 1.8L
BMW E30 325 M20 2.7L
BMW E30 325e M20 2.7L
BMW E30 325es M20 2.7L
BMW E30 325i M20 2.5L
BMW E30 325is M20 2.5L
BMW E30 325ix M20 2.5L
BMW E30 M3 S14 2.3L
BMW E31 840Ci M60 4.0L
BMW E31 840Ci M62 4.4L
BMW E31 850Ci M70 5.0L
BMW E31 850Ci M73 5.4L
BMW E31 850CSi S70 5.6L
BMW E32 730i M60 3.0L
BMW E32 735i M30 3.4L
BMW E32 735iL M30 3.4L
BMW E32 740i M60 4.0L
BMW E32 740iL M60 4.0L
BMW E32 750i M70 5.0L
BMW E32 750iL M70 5.0L
BMW E34 525i M20 2.5L
BMW E34 525i M50 2.5L
BMW E34 530i M60 3.0L
BMW E34 535i M30 3.4L
BMW E34 540i M60 4.0L
BMW E34 M5 S38 3.5L
BMW E36 318i M42 1.8L
BMW E36 318i M44 1.9L
BMW E36 318ic M42 1.8L
BMW E36 318ic M44 1.9L
BMW E36 318is M42 1.8L
BMW E36 318is M44 1.9L
BMW E36 318ti M42 1.8L
BMW E36 318ti M44 1.9L
BMW E36 320i M50 2.0L
BMW E36 323i M52 2.5L
BMW E36 323ic M52 2.5L
BMW E36 323is M52 2.5L
BMW E36 325i M50 2.5L
BMW E36 325ic M50 2.5L
BMW E36 325is M50 2.5L
BMW E36 328i M52 2.8L
BMW E36 328ic M52 2.8L
BMW E36 328is M52 2.8L
BMW E36 M3 S50 3.0L
BMW E36 M3 S52 3.2L
BMW E38 740i M60 4.0L
BMW E38 740i M62 4.4L
BMW E38 740iL M60 4.0L
BMW E38 740iL M62 4.4L
BMW E38 750i M73 5.4L
BMW E38 750iL M73 5.4L
BMW E39 525i M54 2.5L
BMW E39 528i M52 2.8L
BMW E39 530i M54 3.0L
BMW E39 540i M62 4.4L
BMW E39 M5 S62 5.0L
BMW E46 323Ci M52 2.5L
BMW E46 323i M52 2.5L
BMW E46 325Ci M54 2.5L
BMW E46 325i M54 2.5L
BMW E46 325xi M54 2.5L
BMW E46 328Ci M52 2.8L
BMW E46 328i M52 2.8L
BMW E46 330Ci M54 3.0L
BMW E46 330i M54 3.0L
BMW E46 330xi M54 3.0L
BMW E53 X5 M54 3.0L
BMW E53 X5 M62 4.4L
BMW E53 X5 M62 4.6L
BMW E60 525i M54 2.5L
BMW E60 530i M54 3.0L
BMW E60 525i N52 3.0L
BMW E60 525xi N52 3.0L
BMW E60 528i N52 3.0L
BMW E60 528xi N52 3.0L
BMW E60 530i N52 3.0L
BMW E60 530xi N52 3.0L
BMW E60 535i N54 3.0L
BMW E60 535xi N54 3.0L
BMW E60 535i N55 3.0L
BMW E82 1 M Coupe N54 3.0L
BMW E82 128i N52 3.0L
BMW E82 135i N54 3.0L
BMW E82 135i N55 3.0L
BMW E83 X3 M54 2.5L
BMW E83 X3 M54 3.0L
BMW E83 X3 N52 3.0L
BMW E88 128i N52 3.0L
BMW E88 135i N54 3.0L
BMW E88 135i N55 3.0L
BMW E90 325i N52 3.0L
BMW E90 325xi N52 3.0L
BMW E90 328i N52 3.0L
BMW E90 328xi N52 3.0L
BMW E90 330i N52 3.0L
BMW E90 330xi N52 3.0L
BMW E90 335i N54 3.0L
BMW E90 335xi N54 3.0L
BMW E90 335i N55 3.0L
BMW E90 335xi N55 3.0L
BMW E91 325i N52 3.0L
BMW E91 325xi N52 3.0L
BMW E91 328i N52 3.0L
BMW E91 328xi N52 3.0L
BMW E92 328i N52 3.0L
BMW E92 328xi N52 3.0L
BMW E92 335i N54 3.0L
BMW E92 335is N54 3.0L
BMW E92 335xi N54 3.0L
BMW E92 335i N55 3.0L
BMW E92 335xi N55 3.0L
BMW E93 328i N52 3.0L
BMW E93 335i N54 3.0L
BMW E93 335is N54 3.0L
BMW E93 335i N55 3.0L
BMW F30 320i N20 2.0L
BMW F30 320i xDrive N20 2.0L
BMW F30 328i N20 2.0L
BMW F30 328i xDrive N20 2.0L
BMW F30 335i N55 3.0L
BMW F30 335i xDrive N55 3.0L
BMW F30 ActiveHybrid 3 N55 3.0L
BMW F31 328i N20 2.0L
BMW F31 328i xDrive N20 2.0L
BMW F32 428i N20 2.0L
BMW F32 428i xDrive N20 2.0L
BMW F32 435i N55 3.0L
BMW F32 435i xDrive N55 3.0L
BMW F33 428i N20 2.0L
BMW F33 428i xDrive N20 2.0L
BMW F33 435i N55 3.0L
BMW F33 435i xDrive N55 3.0L
BMW F34 328i N20 2.0L
BMW F34 328i xDrive N20 2.0L
BMW F34 335i xDrive N55 3.0L
BMW F36 428i N20 2.0L
BMW F36 428i xDrive N20 2.0L
BMW F36 435i N55 3.0L
BMW F36 435i xDrive N55 3.0L
BMW Z3 1.9 M44 1.9L
BMW Z3 2.3 M52 2.5L
BMW Z3 2.5i M54 2.5L
BMW Z3 2.8 M52 2.8L
BMW Z3 3.0i M54 3.0L
BMW Z4 2.5i M54 2.5L
BMW Z4 3.0i M54 3.0L
BMW Z4 sDrive28i N20 2.0L
BMW Z4 3.0i N52 3.0L
BMW Z4 3.0Si N52 3.0L
BMW Z4 sDrive30i N52 3.0L
BMW Z4 sDrive35i N54 3.0L
BMW Z4 sDrive35is N54 3.0L
BMW Z4 2.5i M54 2.5L
BMW Z4 3.0i M54 3.0L
BMW Z4 3.0i N52 3.0L
*The above product applications have been written by ECS Tuning. All warranties, product application, fitment, and performance are the responsibility of ECS Tuning. For additional information see the terms of use.
