Charge Pipes - Hot Side & Cold Side

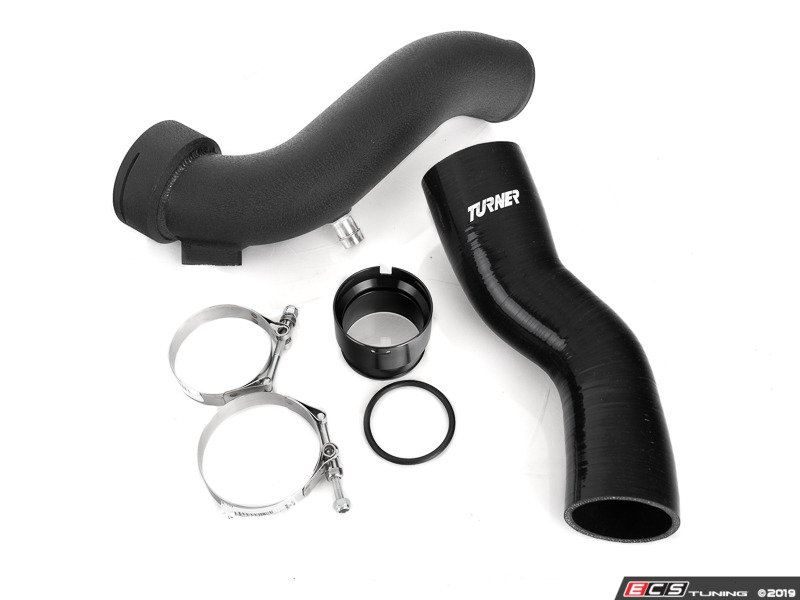

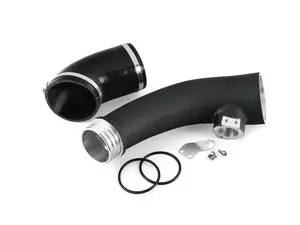

Complete kit to upgrade the brittle factory plastic to new Turner Aluminum with silicone hoses.
Mfg Part #
024592TMS09KT
ECS Part #
ES#3970934
Brand
Turner Motorsport
274.95
Free Shipping Free Shipping
on orders $49 and up
In Stock
Qty
Does this fit my vehicle?

Product Details

The N55 OE charge pipe is prone to failure; after constant heat cycling, the factory plastic becomes very brittle, leading to cracks and boost leaks, and ultimately entire part failures. The OE charge pipe has also been proven to break once under increased boost pressure. Replace the weak OE charge pipe with the Turner Motorsport N55 Charge pipe for increased air flow, and increased throttle response. You can also safely turn up the boost on your N55 once this kit is installed, and not worry about the problematic factory piece.

Whether you have a stock car and are looking for improved throttle response and peace of mind, or a high boost monster in search of reliability in your big horsepower build, this charge pipe is the solution you’ve been looking for!

Features:

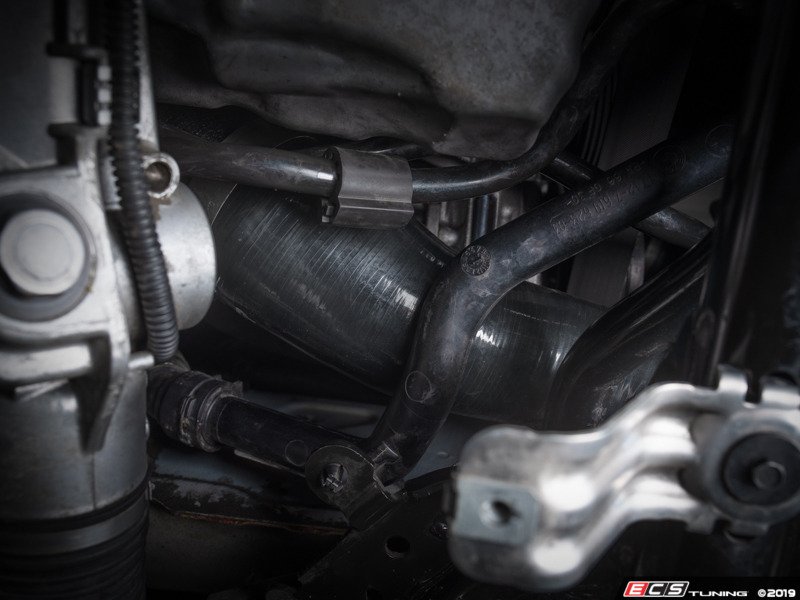

  • Cold Side Charge Pipe

    • 6061-T6 Aluminum construction for increased durability over the factory plastic charge pipe.  Can withstand higher boost pressures while offering OE-like fitment.

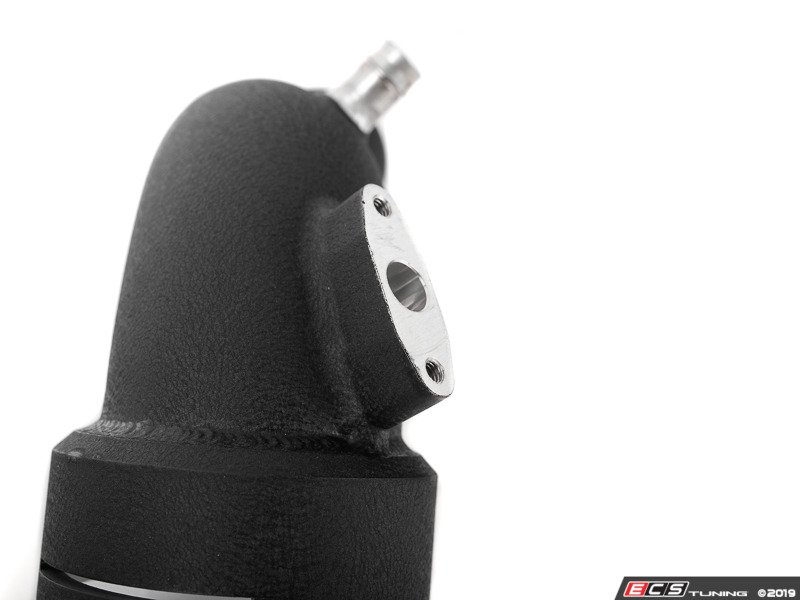

    • Billet CNC throttle body flange for OEM fitment

    • Mandrel bent 2.85” tubing (larger than stock) for improved airflow and increased performance.

    • Black powder coated for exceptional durability and corrosion resistance.

    • 4-ply reinforced silicone hose and 6061-T6 powder coated aluminum coupler to retain factory fitment to intercooler.

      • Silicone provides a smooth transition from intercooler outlet to throttle body diameter to maximize flow and volumetric efficiency

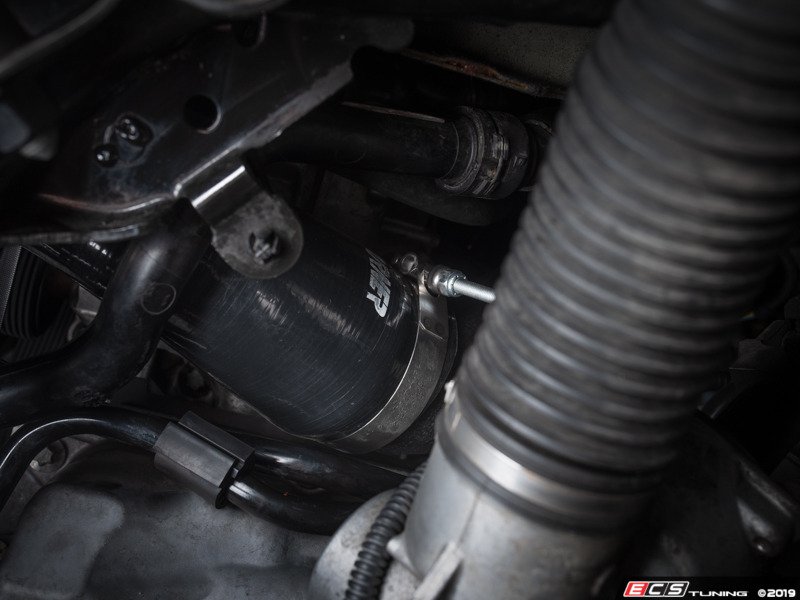

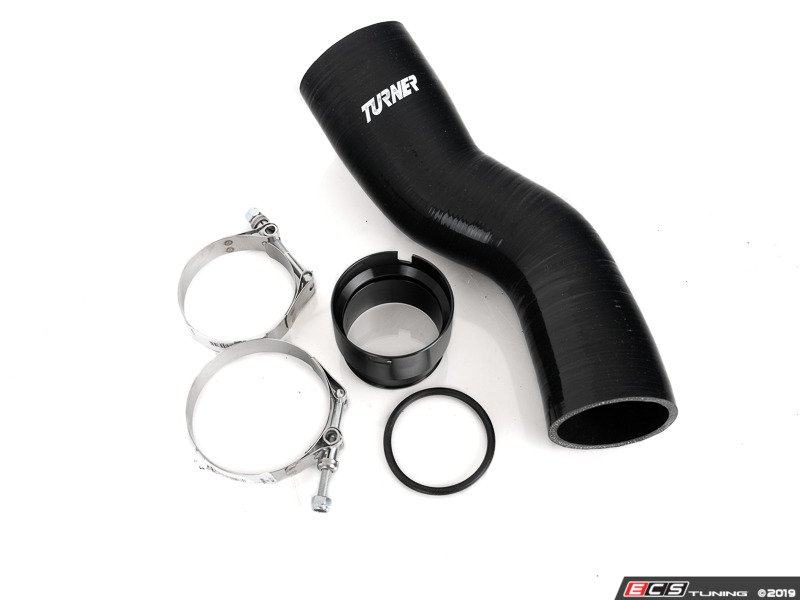

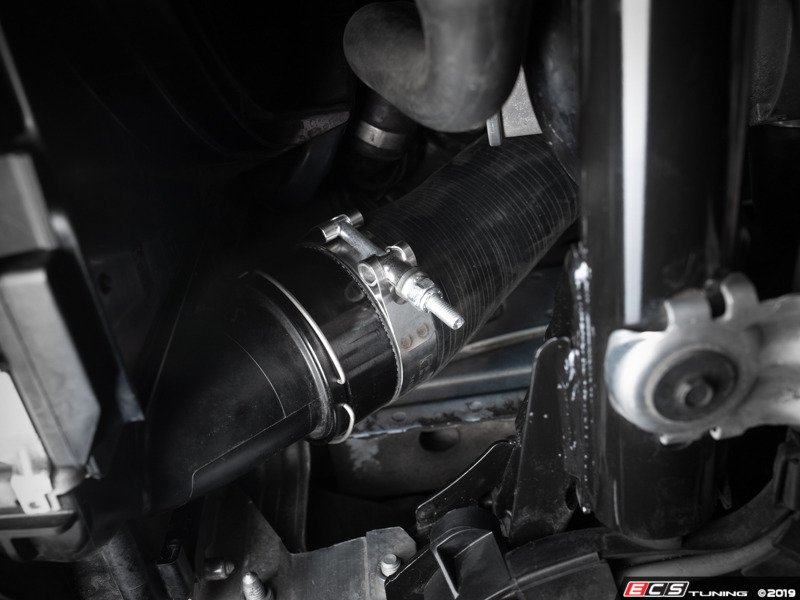

  • Hot Side Charge Pipe

    • 4-ply reinforced silicone for increased durability over the factory rubber hose.

    • 6061-T6 type II black anodized aluminum couplers retain the factory connection to the turbo and intercooler.

This Part Fits the Following Vehicles

Make Model Submodel Engine
BMW F22 M235i N55 3.0L
BMW F22 M235i xDrive N55 3.0L
BMW F30 335i N55 3.0L
BMW F30 335i xDrive N55 3.0L
BMW F32 435i N55 3.0L
BMW F32 435i xDrive N55 3.0L
BMW F33 435i N55 3.0L
BMW F33 435i xDrive N55 3.0L
BMW F34 335i xDrive N55 3.0L
BMW F36 435i N55 3.0L
BMW F36 435i xDrive N55 3.0L
BMW F87 M2 N55 3.0L
*The above product applications have been written by ECS Tuning. All warranties, product application, fitment, and performance are the responsibility of ECS Tuning. For additional information see the terms of use.

Kit Contents

Description Brand Qty
Clamp - Heavy Duty T-Bolt Clampco - Corporate Logo 2
Heavy Duty T-Bolt Clamp - Priced Each Clampco - Corporate Logo 1
Heavy Duty T-Bolt Clamp - Priced Each Clampco - Corporate Logo 1

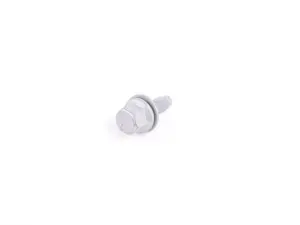

Class 8.8 Torx Button-Head Socket Cap Screw, Zinc-Coated Alloy Steel, M6 Size, 12 Mm Length ECS - Corporate Logo 2
O-Ring Kayser - Corporate Logo 1
Aluminum Tube Assembly Turner Motorsport - Corporate Logo 1

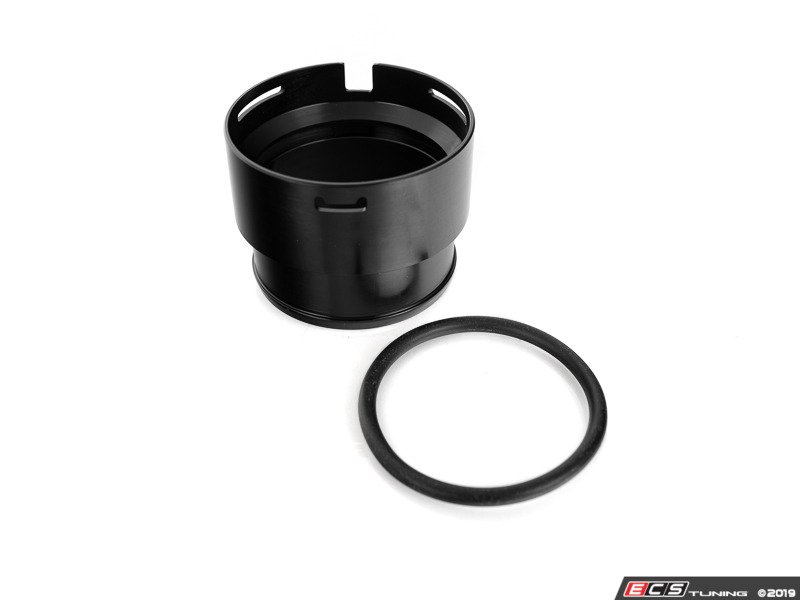

Charge Pipe Adapter - Intercooler Side Turner Motorsport - Corporate Logo 2
Charge Pipe Adapter - Turbo Side Turner Motorsport - Corporate Logo 1
Silicone Hose Assembly - Cold Side Turner Motorsport - Corporate Logo 1
Silicone Hose Assembly - Hot Side Turner Motorsport - Corporate Logo 1
