ECS Tuning Timing Belt Kit - Ultimate Plus
Volkswagen Jetta V TDI

This is the one of the most complete timing belt kits on the market for the BRM engine code TDI.

THE ULTIMATE TIMING BELT REPLACEMENT KIT! The experts at ECS Tuning have assembled this kit of all the necessities for your timing belt replacement. With everything that you need for job, it is guaranteed to go more smoothly.

Though not necessary according to VW, ECS Tuning has included a water pump and thermostat in this kit to make sure you will not have to open your timing belt cover later on to replace. Might as well do it all when it's apart, right?

ECS Tuning has also included the accessory drive belt. All these items included in the kit are reaching the end of their usable life. Best to do it now than later down the road.

Do you have all the tools you need to get the job done? Browse through our tool department to be sure you have everything you need to get your timing belt replacement done quickly and correctly.

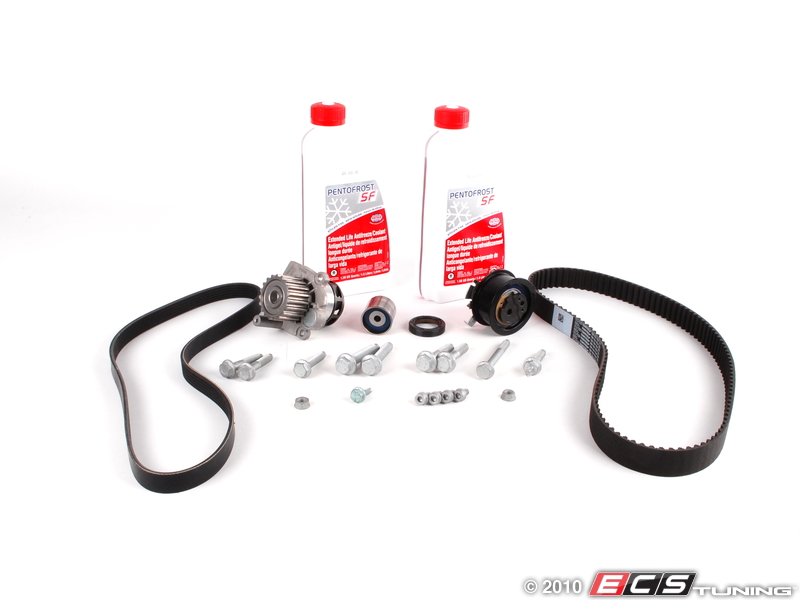

This kit includes

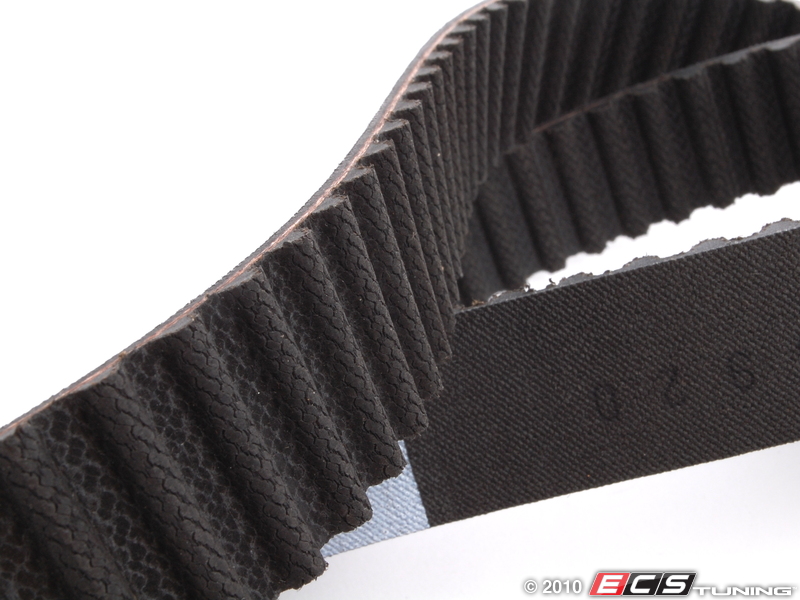

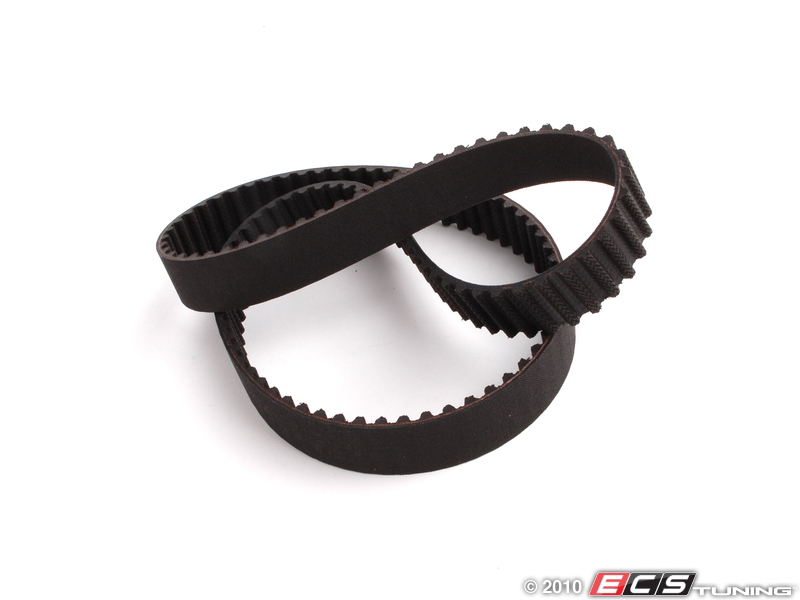

• 038 109 119P 100k Timing Belt

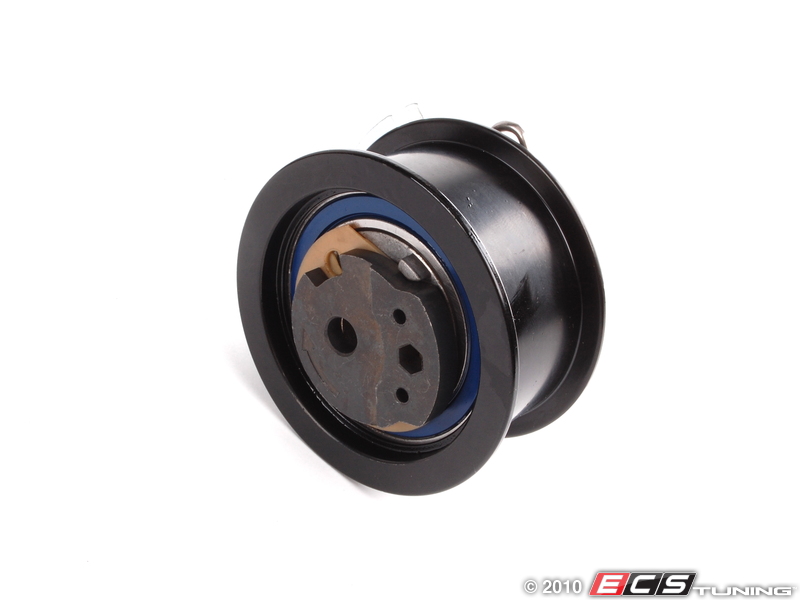

• 038 109 243M Timing Belt Tensioner

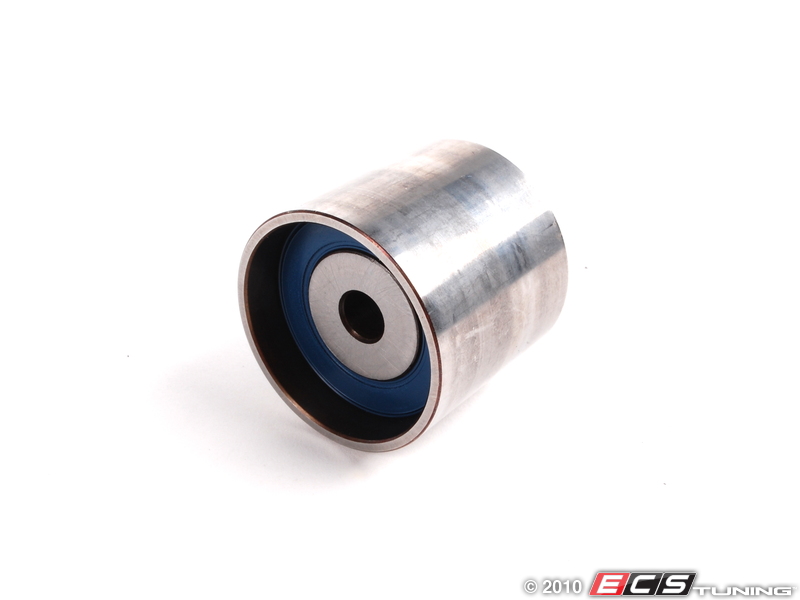

• 038 109 244J Timing Belt Idler/Relay Roller
• 038 109 454A Tensioner Nut
• N 015 083 11 Idler/Relay Roller Nut
• N 105 167 01 Small Motor Mount Bolt 10x55
• N 910 296 02 Motor Mount Bolt with Stud 10x55
• N 905 969 06 One-Time-Use Left Motor Mount Bolt 10x55 (x2)
• N 906 283 03 One-Time-Use Right Motor Mount Bolt at Block 10x95
• N 907 124 03 Motor Mount Bolt 10x85 (x2)
• N 103 280 02 Motor Mount Bolt 10x112
• N 019 502 4 Right Motor Mount Bolt 8x25
• N 102 096 05 Motor Mount Bolt 12x65 (x2)
• N 105 524 02 Motor Mount Bolt 12x70 (x2)
• N 103 036 03 Harmonic Balancer Bolts 8x16(x4)

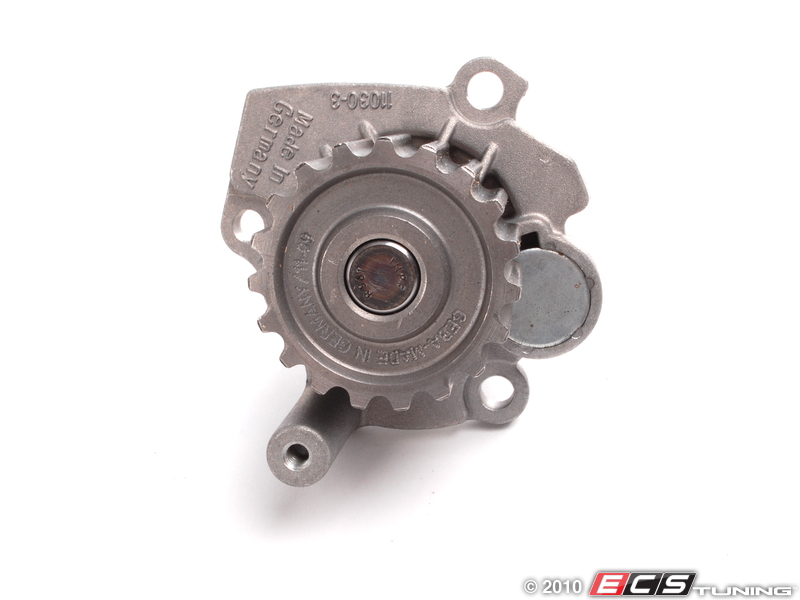

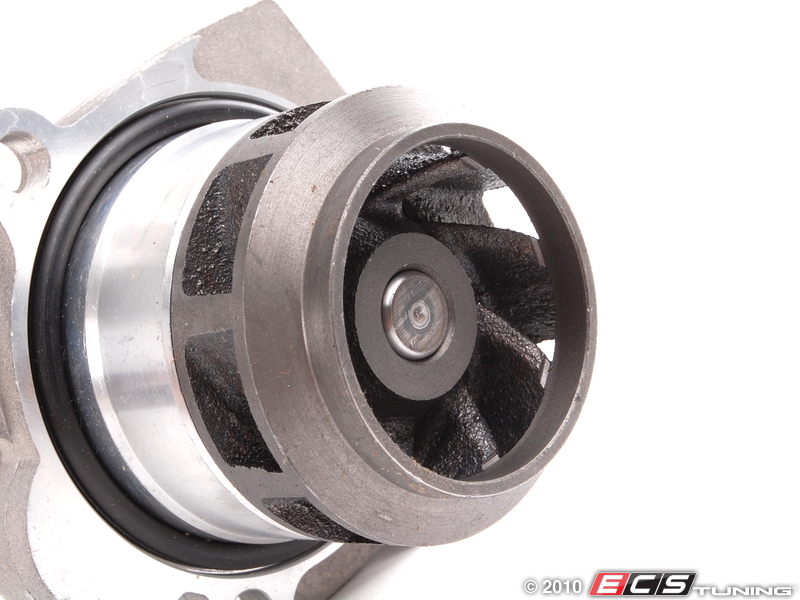

• Graf Water Pump with metal impeller

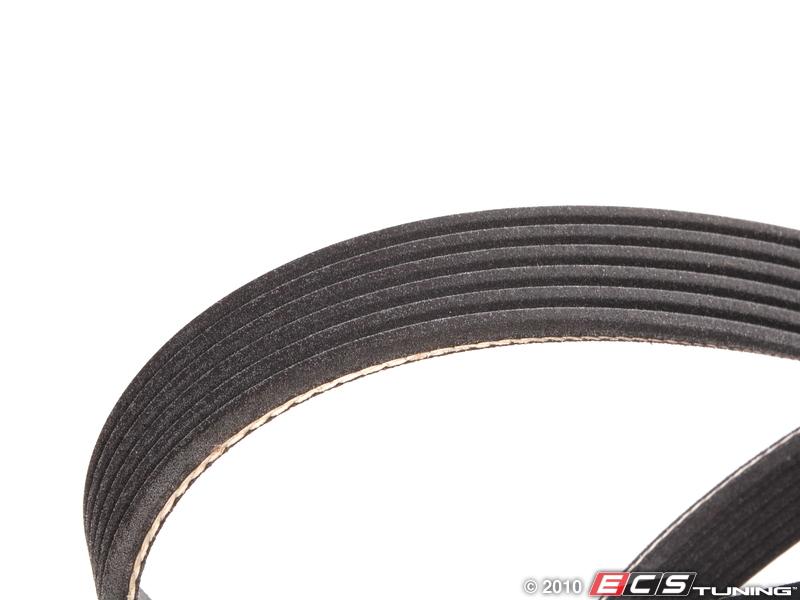

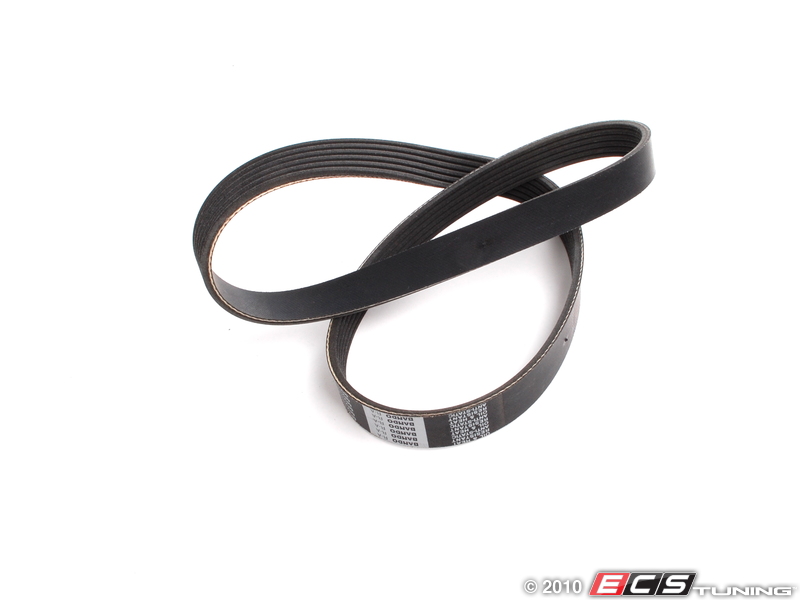

• Serpentine Belt
• Camshaft Seal

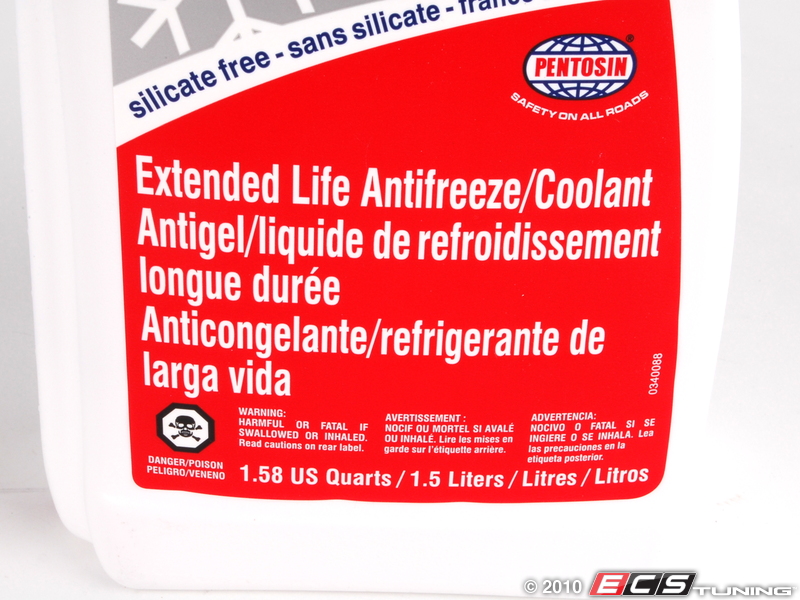

• 2 Bottles of G12 coolant
