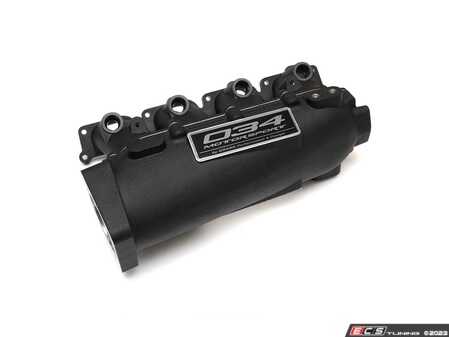

034Motorsport High Flow Intake Manifold - Black
- Mfg Part #
- 034-18T-MANIBLK
- ECS Part #
- ES#4418636
- Brand
-
Free Shipping
Product Details
034Motorsport's Transverse 1.8T High Flow Intake Manifold has finally arrived!
This manifold was designed to be a direct bolt-in replacement for the stock intake manifold, and features a modular design, with a rotatable plenum that allows for driver side or passenger side throttle body locations.
Featuring a 1.85L plenum, the 034Motorsport High Flow Intake Manifold was engineered not only for high-horsepower, big turbo builds, but also to offer noticeable improvements in low-end and midrange power, even on stock turbo configurations.
Features:
- Manufactured from A356 Using Low-Pressure Die Casting for Superior Quality and Surface Finish
- High Flow and High Velocity Tapered Runners
- Large Low-Profile Airhorns and Smooth Plenum Interior for Improved Airflow Characteristics
- Angled Runners and Indexed Throttle Body Position for Optimal Fitment and Intake Routing
- "Stealth" Mounting Bosses for Nitrous or Methanol Injection
- Provisions for Stock or 80mm Throttle Bodies
- Complete with Vacuum Provisions - No Extra Vacuum Manifold Needed!
- Available In Large Port and Small Port Configurations
- Developed in partnership with GRAMS Performance
What's Included:
- 034Motorsport Transverse 1.8T High Flow Intake Manifold
- Vacuum Port Fittings
- Vacuum Port Plugs
- Copper Sealing Washers
- Plenum-to-Runner Gasket
- Plenum-to-Runner Hardware
Please Note:
- Though this intake manifold is a direct fit to the 1.8T engine, some small modifications to covers and hose routing may be required, also throttle body position is slightly different than stock and may require a modification to the throttle body inlet hose to fit the stock or our 70mm upgrade.
- The small port is the exact same manifold as the large port, and can be bored out for large port applications if desired.
- The plenum-to-runner bolts should be torqued to 7nm or 62in lbs.
Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.
- 034-108-7001
- 034-108-7001-BLK
This Part Fits the Following Vehicles
| Make | Model | Submodel | Engine | Special Fitment Notes |
|---|---|---|---|---|
| Audi | TT MKI | FWD | 180HP | Use vehicle selector to confirm fitment |
| Audi | TT MKI | Quattro | 180HP | Use vehicle selector to confirm fitment |
| Audi | TT MKI | Quattro | 225HP | Use vehicle selector to confirm fitment |
| Volkswagen | 337/20AE | All | 1.8T | Use vehicle selector to confirm fitment |
| Volkswagen | Golf IV | All | 1.8T | Use vehicle selector to confirm fitment |
| Volkswagen | Jetta IV | All | 1.8T | Use vehicle selector to confirm fitment |
| Volkswagen | Jetta IV GLI | All | 1.8T | Use vehicle selector to confirm fitment |
| Volkswagen | New Beetle | All | 1.8T | Use vehicle selector to confirm fitment |
