BFI MK5/6 - Mount Spacer Kit - BFI Mounts - Manual

Tired of smashing those expensive oil pans? Looking to gain a bit of extra clearance, but don't want to raise your car up? BFI Mount Spacers are the solution!
Black Forest Industries
Mfg Part #
EBFI77-K5-SB3
ECS Part #
ES#4707628
Brand
Black Forest Industries

419.99
This product is lifetime replacement eligible Lifetime Replacement
This product is backed by our
Lifetime Replacement Program! Read more here
Availability:
Ships Directly From Supplier
Est. Ship Date:
on Oct 6, 2025
Qty
Does this fit my vehicle?

Product Details

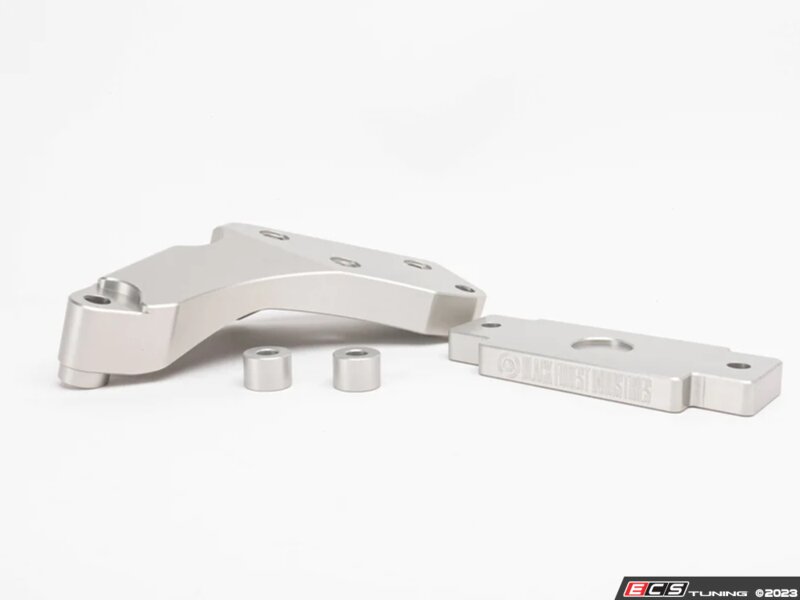

These engine mount spacers are the perfect option as they are a quick and simple install that give you an additional 17mm of clearance. Sold as a kit of 1 spacer plate, 1 replacement transmission mount boss, and 2 dogbone sleeves. These spacers install between your engine mounts and your engine mount brackets and are fastened with the included longer, and most importantly, upgraded 10.9 hardware. Additionally, these spacers are fully clear anodized for corrosion resistance and long lasting durability. These spacers will last a lifetime.

FEATURES:

  • Billet Construction
    • Unlike your factory transmission boss (console) which is cast, this engine mount spacer kit comes with a billet machined console, made from 6061-T6. Our billet lift spacers are many times stronger than their factory counterpart. Regardless of the situation, you can drive with the knowledge that these parts are strong enough to take whatever you throw at them.
  • Heli-Coil
    • If you have ever had the misfortune of taking your engine mounts on and off multiple times, you'll know that the factory aluminum threads aren't up to the task of repeated removal and torqueing. Over time, these formed aluminum threads weaken and often start to pull, damaging the threaded hole, or increasing the ease of a cross-thread install. To address this issue, we designed our lift spacers to include Heli-Coil stainless steel thread inserts, making the thread connection stronger and repeatedly removeable if necessary.

INCLUDES:

  • One 17mm spacer plate
  • One replacement Transmission Boss
  • Two 17mm dogbone spacer sleeves
  • Upgraded 10.9 hardness hardware

NOTES:

  • Upgraded motor mounts are highly recommended when uses these spacers.
  • In most applications the hood will close without modification but in some instances hood liner will need to be trimmed.
  • Vehicles that are significantly lower than stock may experience the axles hitting the frame when using these spacers. Frame notch may be required.
  • While these spacers will work with all factory and aftermarket engine and transmission mounts, we cannot guarantee the correct length of hardware for all non-BFI aftermarket mounts.

This Part Fits the Following Vehicles

Make Model Submodel Engine Special Fitment Notes
Audi 8J TTRS Quattro 2.5T Use vehicle selector to confirm fitment
Audi A3 8P FWD 2.0T For vehicles with manual transmission only
Audi TT MKII Quattro 3.2L Use vehicle selector to confirm fitment
Volkswagen Beetle All 1.8T Gen3 Use vehicle selector to confirm fitment
Volkswagen Beetle All 2.0T Use vehicle selector to confirm fitment
Volkswagen Beetle All 2.0T Gen3 Use vehicle selector to confirm fitment
Volkswagen Beetle All 2.5L Use vehicle selector to confirm fitment
Volkswagen Beetle All TDI Use vehicle selector to confirm fitment
Volkswagen CC FWD 2.0T Use vehicle selector to confirm fitment
Volkswagen EOS All 2.0T For vehicles with manual transmission only
Volkswagen Golf R All 2.0T Use vehicle selector to confirm fitment
Volkswagen Golf V All 2.0T Use vehicle selector to confirm fitment
Volkswagen Golf V All 2.5 Use vehicle selector to confirm fitment
Volkswagen Golf V All TDI Use vehicle selector to confirm fitment
Volkswagen Golf VI All 2.0T Use vehicle selector to confirm fitment
Volkswagen Golf VI All 2.5 Use vehicle selector to confirm fitment
Volkswagen Golf VI All TDI Use vehicle selector to confirm fitment
Volkswagen Jetta V All 2.0T Use vehicle selector to confirm fitment
Volkswagen Jetta V All 2.5 Use vehicle selector to confirm fitment
Volkswagen Jetta V All TDI Use vehicle selector to confirm fitment
Volkswagen Jetta VI Sedan 1.8T Gen3 For vehicles with manual transmission only
Volkswagen Jetta VI Sedan 2.0 For vehicles with manual transmission only
Volkswagen Jetta VI Sedan 2.0T Gen3 GLI For vehicles with manual transmission only
Volkswagen Jetta VI Sedan 2.5 For vehicles with manual transmission only
Volkswagen Jetta VI Sedan GLI For vehicles with manual transmission only
Volkswagen Jetta VI Sedan TDI For vehicles with manual transmission only
Volkswagen Jetta VI Sedan Facelift 1.4T For vehicles with manual transmission only
Volkswagen Jetta VI Sedan Facelift 1.8T Gen3 For vehicles with manual transmission only
Volkswagen Jetta VI Sedan Facelift 2.0L For vehicles with manual transmission only
Volkswagen Jetta VI Sedan Facelift 2.0T Gen3 GLI For vehicles with manual transmission only
Volkswagen Jetta VI Sedan Facelift TDI For vehicles with manual transmission only
Volkswagen Jetta VI Sportwagen 2.0T For vehicles with manual transmission only
Volkswagen Jetta VI Sportwagen 2.5 For vehicles with manual transmission only
Volkswagen Jetta VI Sportwagen TDI For vehicles with manual transmission only
Volkswagen Passat B6 FWD 2.0T Use vehicle selector to confirm fitment
Volkswagen Passat B7 FWD 1.8T Gen3 Use vehicle selector to confirm fitment
Volkswagen Passat B7 All 2.5L For vehicles with manual transmission only
Volkswagen Passat B7 All TDI For vehicles with manual transmission only
