BFI MK5/6 - Mount Spacer Kit - BFI Mounts - DSG/Automatic

Product Details

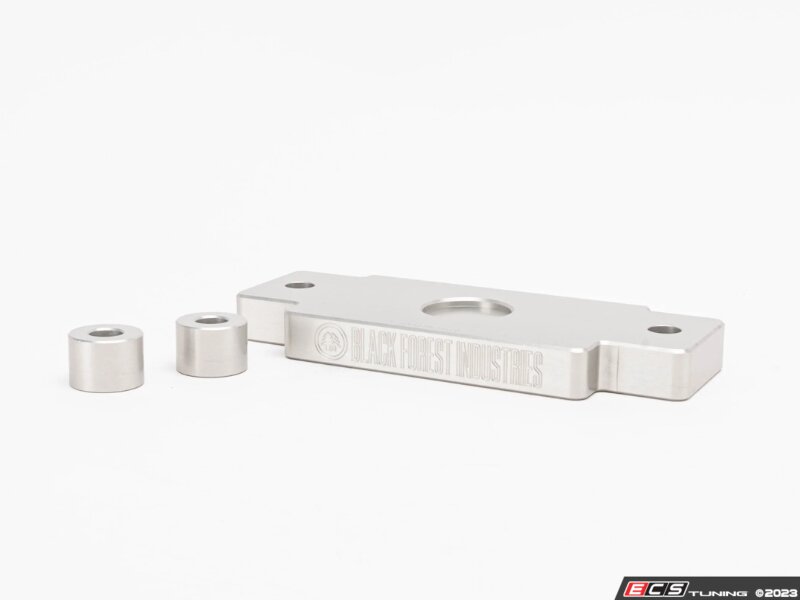

These engine mount spacers are the perfect option as they are a quick and simple install that give you an additional 17mm of clearance. Sold as a kit of 1 spacer plate, 1 replacement transmission mount boss, and 2 dogbone sleeves. These spacers install between your engine mounts and your engine mount brackets and are fastened with the included longer, and most importantly, upgraded 10.9 hardware. Additionally, these spacers are fully clear anodized for corrosion resistance and long lasting durability. These spacers will last a lifetime.
FEATURES:
- Billet Construction
- Unlike your factory transmission boss (console) which is cast, this engine mount spacer kit comes with a billet machined console, made from 6061-T6. Our billet lift spacers are many times stronger than their factory counterpart. Regardless of the situation, you can drive with the knowledge that these parts are strong enough to take whatever you throw at them.
- Heli-Coil
- If you have ever had the misfortune of taking your engine mounts on and off multiple times, you'll know that the factory aluminum threads aren't up to the task of repeated removal and torqueing. Over time, these formed aluminum threads weaken and often start to pull, damaging the threaded hole, or increasing the ease of a cross-thread install. To address this issue, we designed our lift spacers to include Heli-Coil stainless steel thread inserts, making the thread connection stronger and repeatedly removeable if necessary.
INCLUDES:
- One 17mm spacer plate
- One replacement Transmission Boss
- Two 17mm dogbone spacer sleeves
- Upgraded 10.9 hardness hardware
NOTES:
- Upgraded motor mounts are highly recommended when uses these spacers.
- In most applications the hood will close without modification but in some instances hood liner will need to be trimmed.
- Vehicles that are significantly lower than stock may experience the axles hitting the frame when using these spacers. Frame notch may be required.
- While these spacers will work with all factory and aftermarket engine and transmission mounts, we cannot guarantee the correct length of hardware for all non-BFI aftermarket mounts.
This Part Fits the Following Vehicles
Make | Model | Submodel | Engine | Special Fitment Notes |
---|---|---|---|---|
Audi | A3 8P | FWD | 2.0T | For vehicles with automatic transmission only |
Audi | A3 8P | FWD | TDI | Use vehicle selector to confirm fitment |
Audi | A3 8P | Quattro | 2.0T | Use vehicle selector to confirm fitment |
Audi | A3 8P | Quattro | 3.2L | Use vehicle selector to confirm fitment |
Audi | A3 8P | Quattro | V6 3.2L | Use vehicle selector to confirm fitment |
Audi | TT MKII | FWD | 2.0T | Use vehicle selector to confirm fitment |
Audi | TT MKII | Quattro | 2.0T | Use vehicle selector to confirm fitment |
Audi | TT MKII | Quattro | 3.2L | For vehicles with automatic transmission only |
Audi | TTS | MK2 (2006-2013) | 2.0T | Use vehicle selector to confirm fitment |
Volkswagen | Beetle | All | 1.8T Gen3 | Use vehicle selector to confirm fitment |
Volkswagen | Beetle | All | 2.0T | Use vehicle selector to confirm fitment |
Volkswagen | Beetle | All | 2.0T Gen3 | Use vehicle selector to confirm fitment |
Volkswagen | Beetle | All | 2.5L | Use vehicle selector to confirm fitment |
Volkswagen | Beetle | All | TDI | Use vehicle selector to confirm fitment |
Volkswagen | CC | 4Motion | VR6 | Use vehicle selector to confirm fitment |
Volkswagen | CC | FWD | 2.0T | For vehicles with automatic transmission only |
Volkswagen | CC | FWD | VR6 | Use vehicle selector to confirm fitment |
Volkswagen | EOS | All | 2.0T | For vehicles with automatic transmission only |
Volkswagen | EOS | All | 3.2L | Use vehicle selector to confirm fitment |
Volkswagen | Golf V | All | 2.0T | Use vehicle selector to confirm fitment |
Volkswagen | Golf V | All | 2.5 | Use vehicle selector to confirm fitment |
Volkswagen | Golf V | All | TDI | Use vehicle selector to confirm fitment |
Volkswagen | Golf VI | All | 2.0T | Use vehicle selector to confirm fitment |
Volkswagen | Golf VI | All | 2.5 | Use vehicle selector to confirm fitment |
Volkswagen | Golf VI | All | TDI | Use vehicle selector to confirm fitment |
Volkswagen | Jetta V | All | 2.0T | Use vehicle selector to confirm fitment |
Volkswagen | Jetta V | All | 2.5 | Use vehicle selector to confirm fitment |
Volkswagen | Jetta V | All | TDI | Use vehicle selector to confirm fitment |
Volkswagen | Jetta VI | Sedan | 1.4T Hybrid | Use vehicle selector to confirm fitment |
Volkswagen | Jetta VI | Sedan | 1.8T Gen3 | For vehicles with automatic transmission only |
Volkswagen | Jetta VI | Sedan | 2.0 | For vehicles with automatic transmission only |
Volkswagen | Jetta VI | Sedan | 2.0T Gen3 GLI | For vehicles with automatic transmission only |
Volkswagen | Jetta VI | Sedan | 2.5 | For vehicles with automatic transmission only |
Volkswagen | Jetta VI | Sedan | GLI | For vehicles with automatic transmission only |
Volkswagen | Jetta VI | Sedan | TDI | For vehicles with automatic transmission only |
Volkswagen | Jetta VI | Sedan Facelift | 1.4T | For vehicles with automatic transmission only |
Volkswagen | Jetta VI | Sedan Facelift | 1.4T Hybrid | Use vehicle selector to confirm fitment |
Volkswagen | Jetta VI | Sedan Facelift | 1.8T Gen3 | For vehicles with automatic transmission only |
Volkswagen | Jetta VI | Sedan Facelift | 2.0L | For vehicles with automatic transmission only |
Volkswagen | Jetta VI | Sedan Facelift | 2.0T Gen3 GLI | For vehicles with automatic transmission only |
Volkswagen | Jetta VI | Sedan Facelift | TDI | For vehicles with automatic transmission only |
Volkswagen | Jetta VI | Sportwagen | 2.5 | For vehicles with automatic transmission only |
Volkswagen | Jetta VI | Sportwagen | TDI | For vehicles with automatic transmission only |
Volkswagen | Passat B6 | 4 Motion | 3.6L | Use vehicle selector to confirm fitment |
Volkswagen | Passat B6 | FWD | 2.0T | For vehicles with automatic transmission only |
Volkswagen | Passat B6 | FWD | 3.6L | Use vehicle selector to confirm fitment |
Volkswagen | Passat B7 | All | 2.5L | For vehicles with automatic transmission only |
Volkswagen | Passat B7 | All | TDI | For vehicles with automatic transmission only |
Volkswagen | Passat B7 | All | V6 | Use vehicle selector to confirm fitment |
Volkswagen | Passat B7 | FWD | 1.8T Gen3 | For vehicles with automatic transmission only |
Volkswagen | Passat B7 | FWD | 2.0T Gen3 | Use vehicle selector to confirm fitment |
Volkswagen | Passat B7.5 | FWD | 2.0T Gen3 | Use vehicle selector to confirm fitment |
Volkswagen | R32 MKV | All | 3.2 | Use vehicle selector to confirm fitment |
