2.0T FSI High Flow Turbo Outlet Pipe Kit
- Mfg Part #
- 023480ECS01KT
- ECS Part #
- ES#4368713
- Brand
-
This product was last offered at the strikethrough price on
08-09-2025
Free Shipping
Product Details
The factory charge pipes and rubber couplers on your 2.0T FSI engine were never designed to handle the stress and abuse of higher boost levels much beyond stock. When combined with power-robbing abrupt and sharp bends, inferior rubber material, and small diameter tubing, it's easy to see why your intercooler pipes and couplers should be replaced, even on stock engines.
Our in-house designed and engineered High Flow Turbo Outlet Pipe Kit features mandrel bent, bead rolled, powdercoated aluminum plumbing from the outlet of the compressor housing directly to the intercooler inlet, along with smoother flowing silicone couplers, stainless steel T-Bolt clamps and all new installation accessories for an easy, direct bolt on installation.
PART DESIGN
Turbo Muffler Delete Pipe - creates a smooth connection from the compressor outlet, directly to our silicone outlet elbow. In addition to smoother airflow it increases turbocharger working sound for glorious turbo noises!

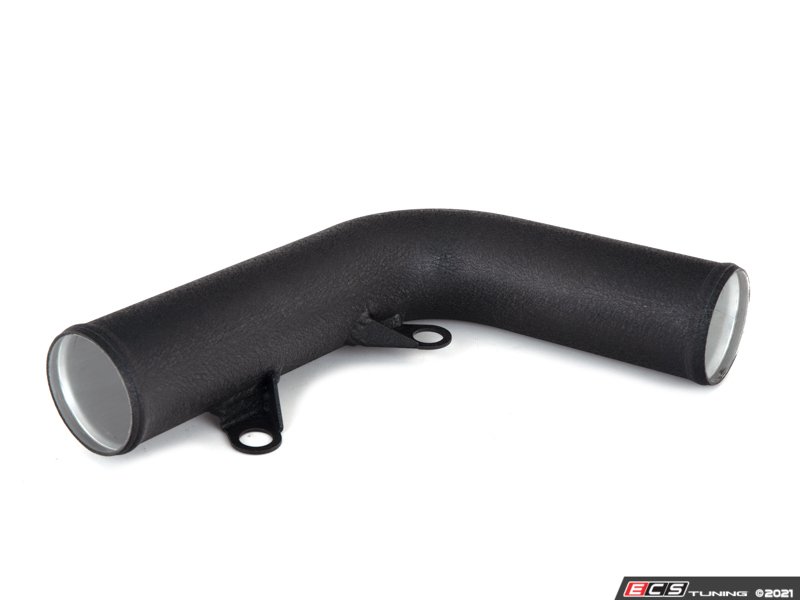

Tubing - 2.50" OD CNC-mandrel bent aluminum with bead rolled ends and Tig-welded factory-location mounting bracketry. Finished in a durable black powdercoat for long lasting great looks.
Couplers - Fiberglass-reinforced silicone hoses provide the necessary connections while optimizing airflow. Rated to withstand up to 250° F. and 45psi of boost pressure.
Hose Clamps - T-bolt hose clamps provide a strong, secure connection to prevent hose couplers from blowing off.

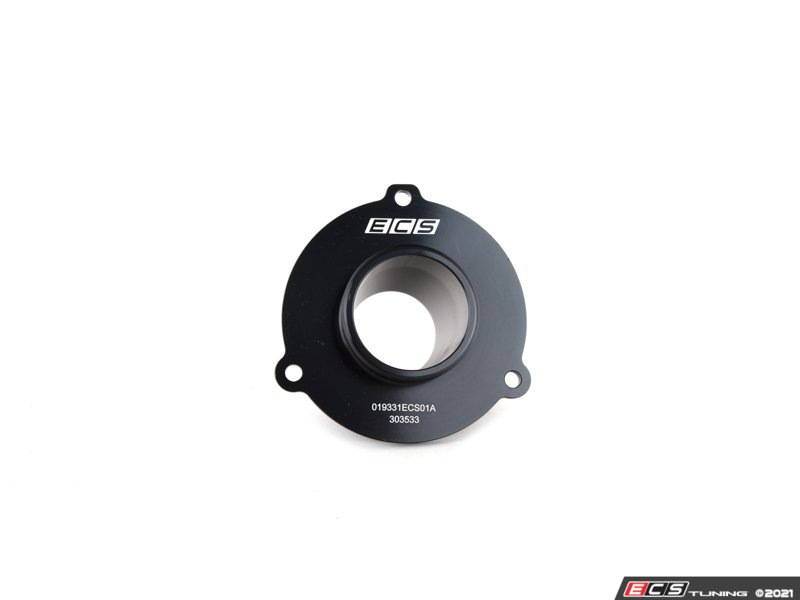

Intercooler Adapter - Precision CNC-machined aluminum intercooler adapter provides the connection from our silicone coupler to the OEM intercooler "quick-clip" fitting.

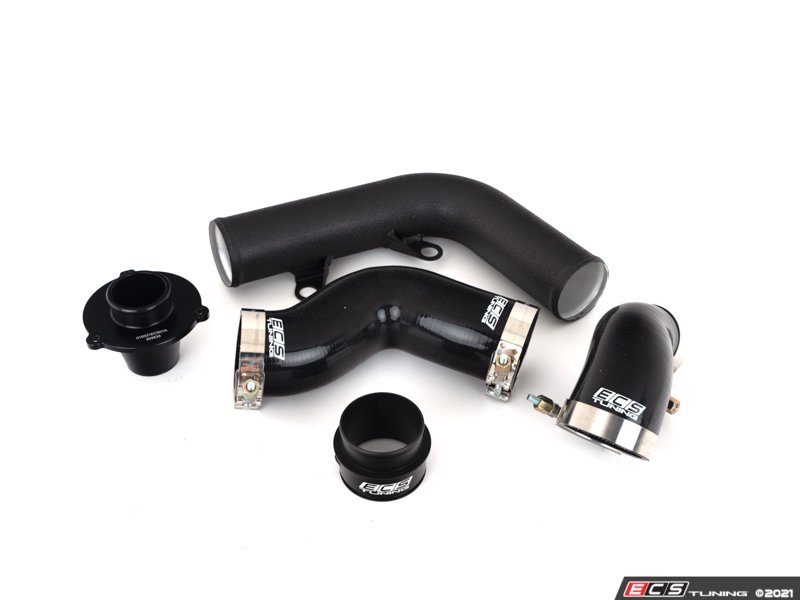

KIT CONTENTS
- Turbo Muffler Delete Pipe
- Silicone Turbo Outlet Hose Coupler w/ T-bolt Clamps
- Turbo Outlet Pipe Assembly
- Silicone Intercooler Inlet Hose Coupler w/ T-bolt Clamps
- Intercooler Inlet Adapter
PERFORMANCE FEATURES

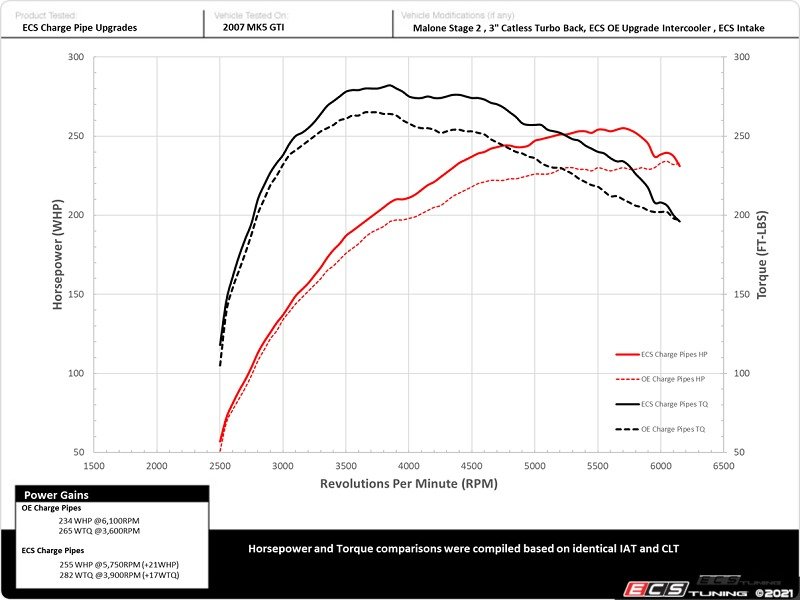

Dyno tested on our in-ground Mustang "AWD 500 SE" Dyno on a MK5 GTI 2.0T FSI comparing ECS Turbo Outlet and Throttle Body charge pipes against OEM charge pipes. Our test vehicle was equipped with our ECS Kohlefaser Luft-Technik Intake, ECS OE-upgrade Cast Intercooler, 3.0" High Flow Downpipe and Malone Stage 2 ECU Software.
OEM Charge Pipes - 234 WHP @ 6,100 RPM & 265 WTQ @ 3,600 RPM
ECS Charge Pipe Kit - 255 WHP @ 5,750 RPM (+21 WHP) & 282 WTQ @ 3,900 RPM (+17 WTQ)
PRODUCT DEVELOPMENT
Our ECS 2.0T FSI High Flow Turbo Outlet Pipe Kit was designed, engineered, tested and quality inspected by our Research and Development team in our Wadsworth, Ohio facility. We strive for the highest level of precision and quality through leading-edge product development technology including FARO laser scanning for reverse engineering and quality inspection, SolidWorks 3D CAD modeling, rapid prototyping utilizing our in-house 3D printer, and rigorous long term product testing.
Performance data metrics are collected utilizing our in-house Mustang AWD 500 SE in ground dyno.
INSTALLATION AND SUPPORT
Need installation tips? We put together a full installation tutorial from start to finish including how to remove your OEM parts in detail! See our Installation PDF under the INSTALLATION Tab for more information.
Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.
This Part Fits the Following Vehicles
| Make | Model | Submodel | Engine | Special Fitment Notes |
|---|---|---|---|---|
| Audi | A3 8P | FWD | 2.0T | For vehicles with FSI engine only |
| Volkswagen | Golf V | All | 2.0T | For vehicles with FSI engine only |
| Volkswagen | Jetta V | All | 2.0T | For vehicles with FSI engine only |
Kit Contents
| Description | Brand | Qty | Lifetime | |
|---|---|---|---|---|
| Intercooler Hose Adapter - Each |
|
1 | YES | |
| Turbo Muffler Delete Pipe |
|
1 | YES | |
| Turbo Outlet Pipe |
|
1 | YES | |
| Turbo Outlet Coupler |
|
1 | YES | |
| Intercooler Inlet Coupler |
|
1 | YES |
