performance Lightweight Flywheel Kit - Stage 1
- Mfg Part #
- 003485ECS01AKT2
- ECS Part #
- ES#2771111
- Brand
-
This product was last offered at the strikethrough price on
08-09-2025
Free Shipping
Product Details
Give your B8 2.0T a flywheel and clutch kit combination capable of handling the added power in your vehicle. This kit includes the new ECS Tuning Single Mass Lightweight Flywheel with the Spec Stage 1 clutch kit, rated at holding up to 315ft/lbs of torque.

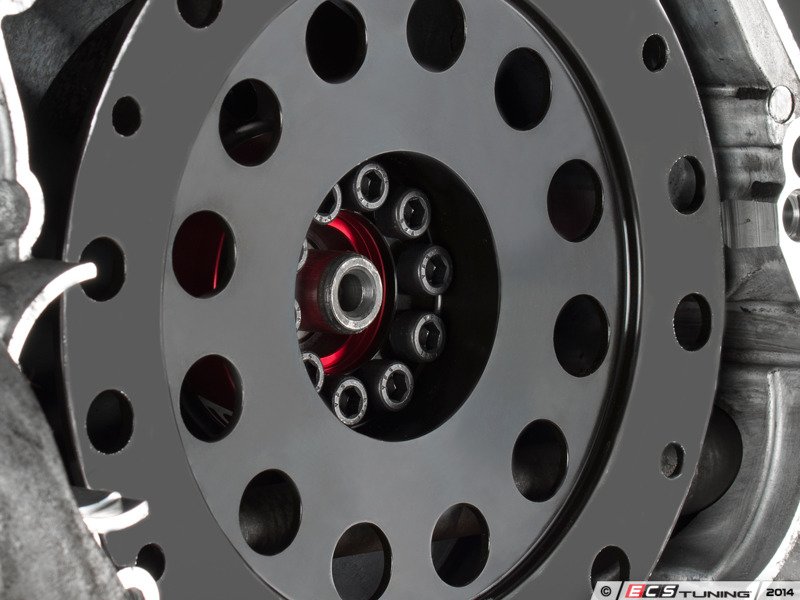

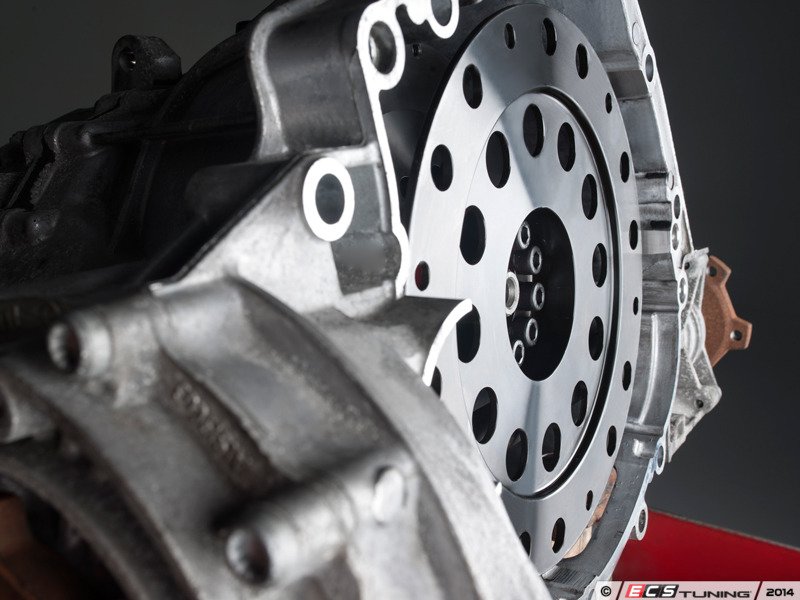

Introducing the ECS Tuning Single Mass Lightweight Flywheel, engineered in the U.S. by our leading R&D team for increased power transfer, faster revs, and improved acceleration. A decreased mass means a lower moment of inertia and, weighing in at only 17.8lbs, the ECS Single Mass Flywheel spins up faster and easier than the heavy 26.5lb unit installed from the factory. That's 8.7lbs of weight savings!
Light doesn't mean wimpy. Our precision CNC machined single mass flywheel is amazingly strong, durable, and resilient to failure when compared to the OEM multi piece moveable unit. Designed to accommodate all conditions: from Sunday drives through the country, to the abuse of the track.
Key Features:
- Billet Chromoly 4140 steel & 6061-T6 aluminum for superior strength and durability
- Heat treated for wear resistance
- Black zinc plated for corrosion resistance
- Weighs in at only 17.8 lbs!
- 8.7 lbs lighter than stock!
- SFI 1.1 tested and certified to ensure safe operation*
- Performance Benefits
- Faster revs
- Improved throttle response
- Smooth and easy stock-like engagement
- Improved acceleration
- Sportier driving experience
- Utilizes the Spec Stage 1 clutch kit, rated at 315ft/lbs of torque
The ECS Tuning Lightweight Flywheel is designed for use with B8 2.0T pressure plates and clutch discs for an OE-type fit and is precision balanced to provide a smooth running and idle quality. Stronger and tougher than the original, if performance is job one on your to-do list ECS Tuning flywheel kits deliver.
Kit includes:
- ECS Single Mass Lightweight Flywheel
- Spec Stage 1 Clutch Kit
- Pilot Bearing
- Clutch Alignment Tool
- Flywheel Securing Hardware
- Bell Housing Hardware (required to be replaced in early production vehicles, per Audi instruction)
- Replacement Driveshaft Boot Clamp (required for vehicles with a splined driveshaft)
*Why is SFI testing and certification important?
The SFI Foundation, Inc. (SFI) is a non-profit organization established to issue and administer standards for the quality assurance of specialty performance and racing equipment. SFI certification indicates a flywheel has been certified using industry-standard SFI Spec 1.1 standards by an independent testing body to ensure quality of both design and materials for flywheels utilized in competitive motorsports. This testing requires that the flywheel must hold at 10,500RPM over an extended period of time for validation of durability, design, and construction.
Having successfully passed SFI certification, this flywheel has an individual SFI serial number found in a laser etching, and on an affixed sticker. This certification means our ECS-engineered flywheel is safe and reliable during the rigors of competitive racing; it's also safe and reliable for years and years of street use.
**On our development vehicle equipped with a poly ECS Transmission Mount insert, very slight audible chatter was noticed. Accompanying modifications can also increase or decrease the amount of "NVH" or "chatter" in the drivetrain. Please contact our sales team with any questions.**
This Part Fits the Following Vehicles
| Make | Model | Submodel | Engine | Special Fitment Notes |
|---|---|---|---|---|
| Audi | B8 A4 | FWD | 2.0T | Use vehicle selector to confirm fitment |
| Audi | B8 A4 | Quattro | 2.0T | Use vehicle selector to confirm fitment |
| Audi | B8 A5 | Quattro | 2.0T | Use vehicle selector to confirm fitment |
Kit Contents
| Description | Brand | Qty | Lifetime | |
|---|---|---|---|---|

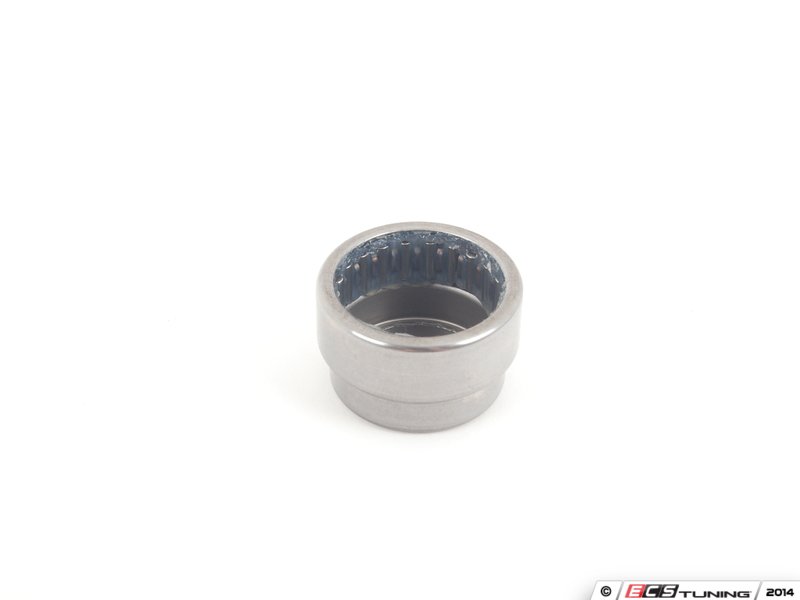

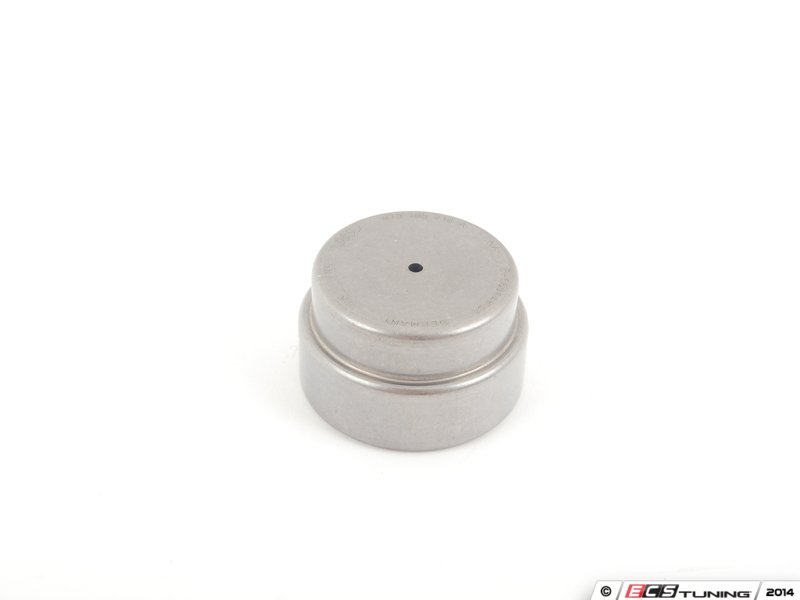

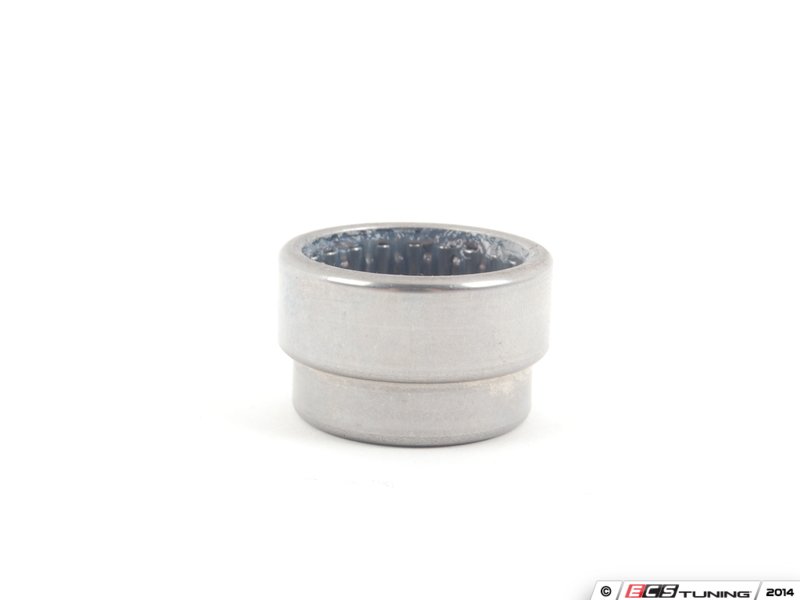

| Pilot bearing |
|
1 | YES | |

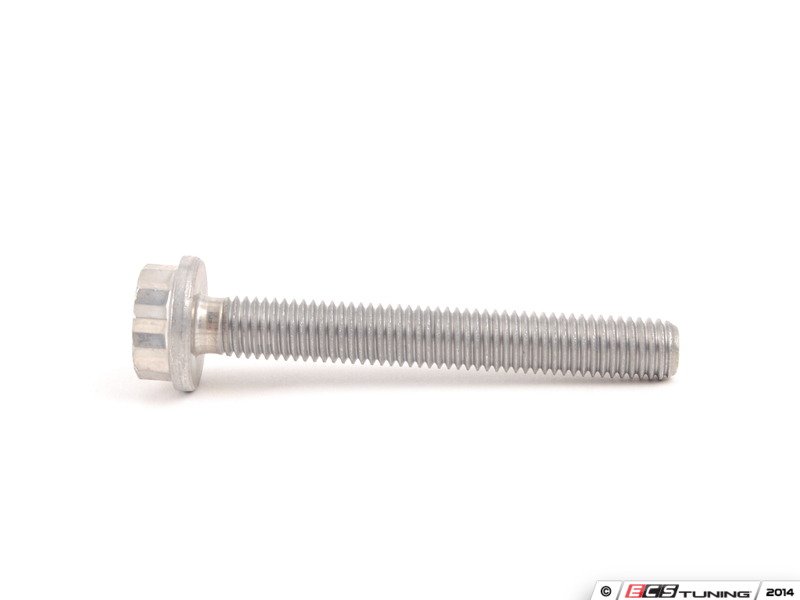

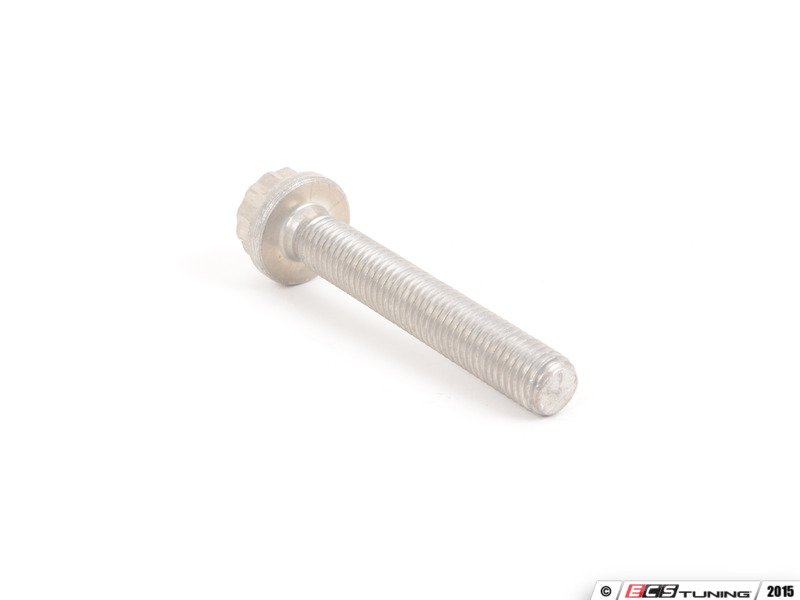

| Transmission Case Bolt (M10x75) - Priced Each |
|
3 | YES | |

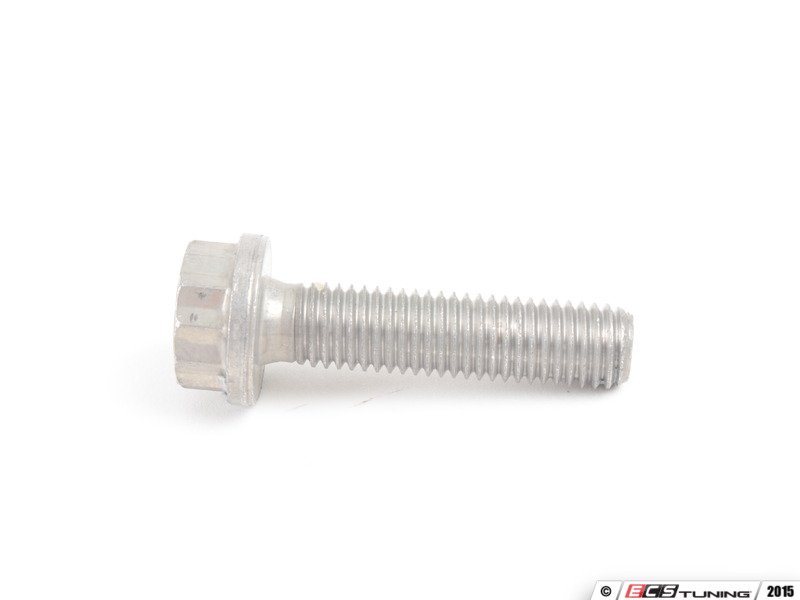

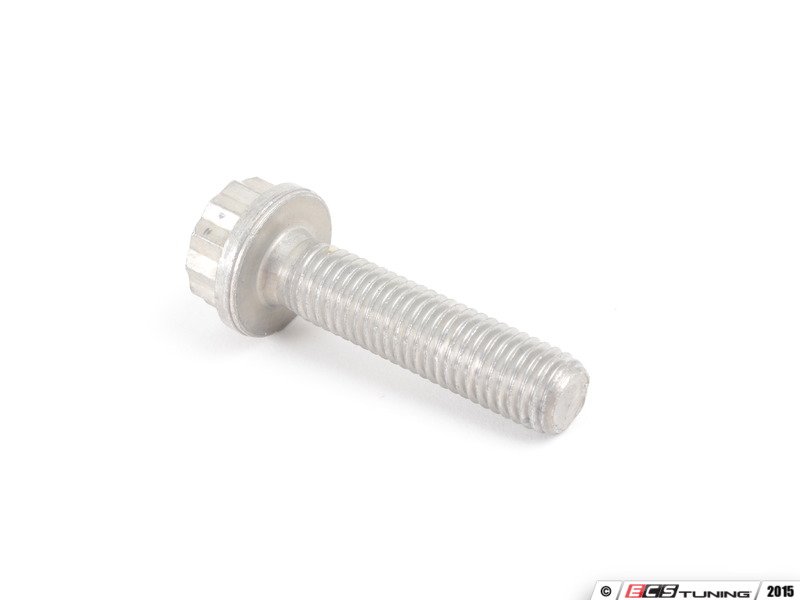

| Transmission Case Bolt (M12x50) - Priced Each |
|
1 | YES | |

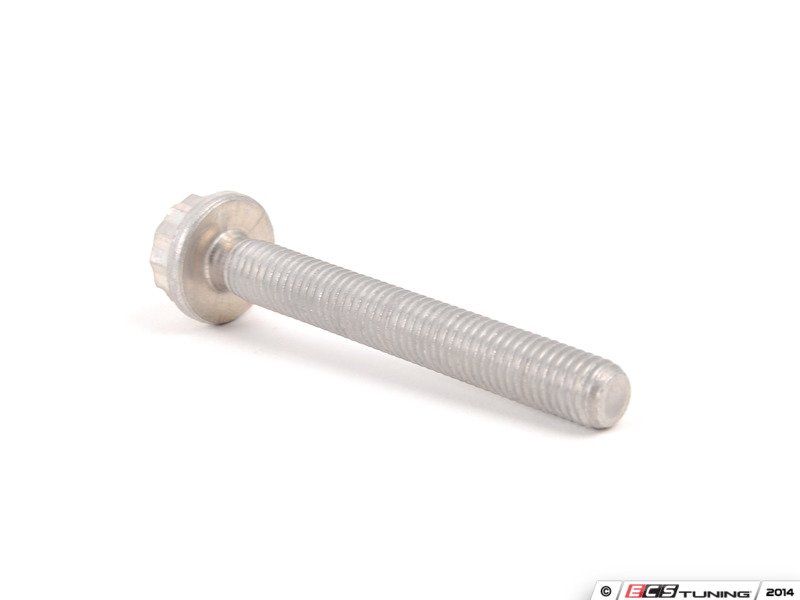

| Transmission Case Bolt (M12x75) - Priced Each |
|
2 | YES | |
| Bolt - Priced Each |
|
2 | YES | |
| Transmission Case Bolt (M12x120) - Priced Each |
|
2 | YES | |

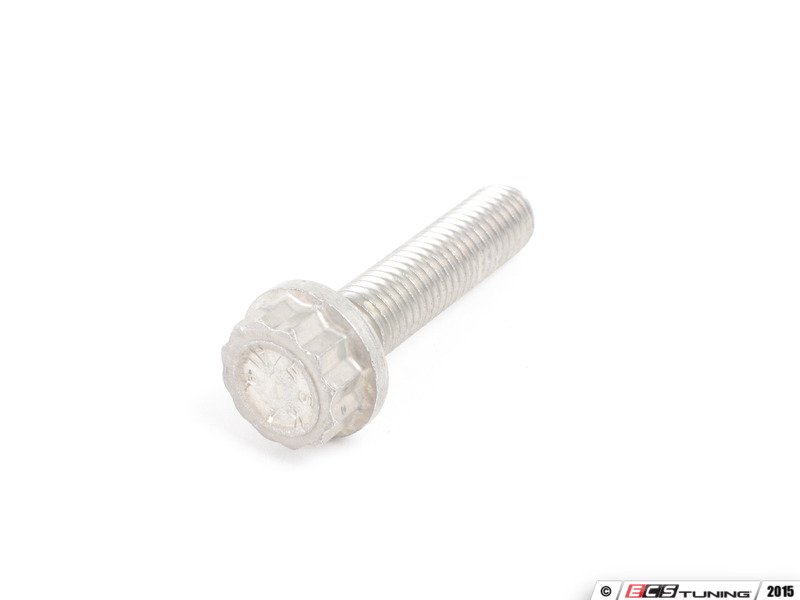

| Bolt (M8x14) - Priced Each |
|
6 | YES | |
| driveshaft boot clamp |
|
1 | YES | |

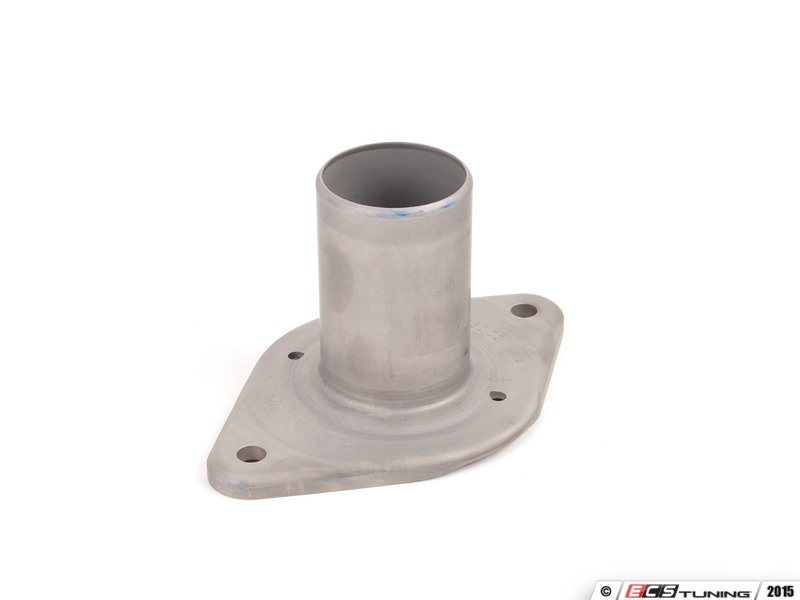

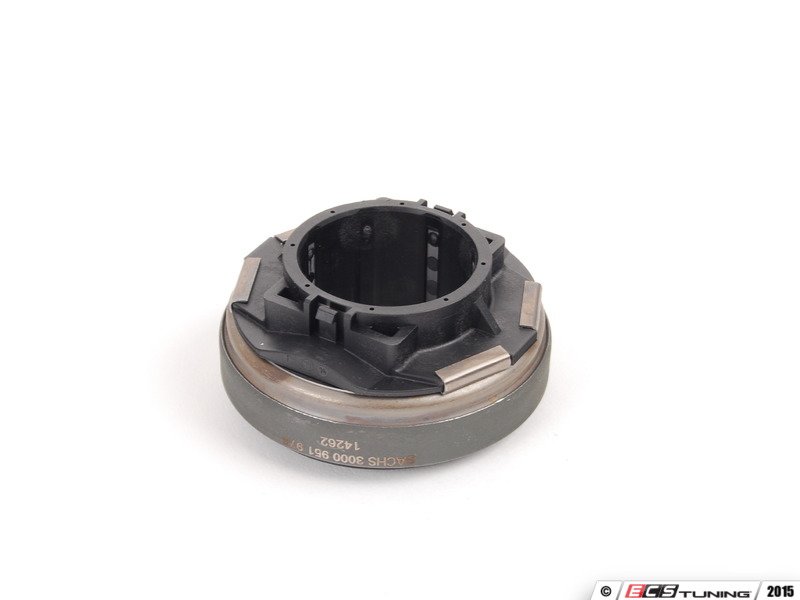

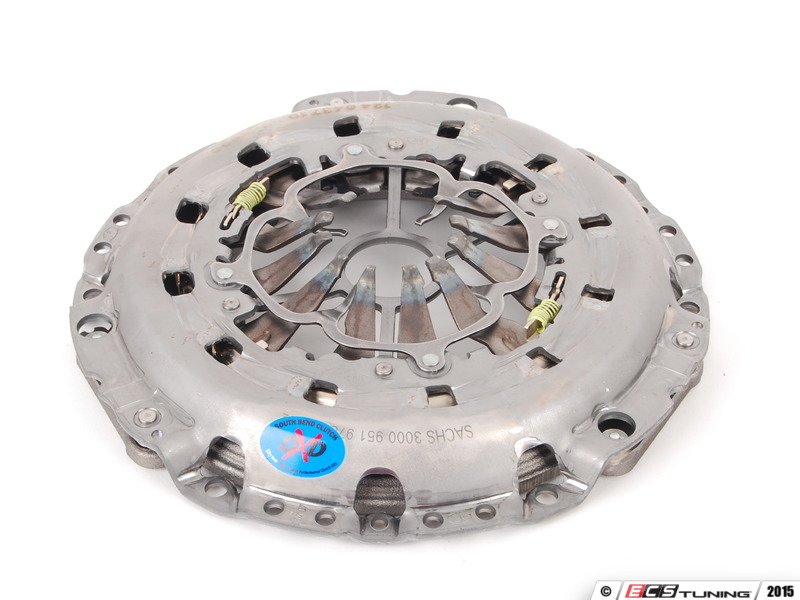

| Stage 1 Clutch Kit |
|
1 | YES | |
| SFI Special Care - Note Pack List And Order With SFI Serial Number |
Shipping
|
1 | YES | |

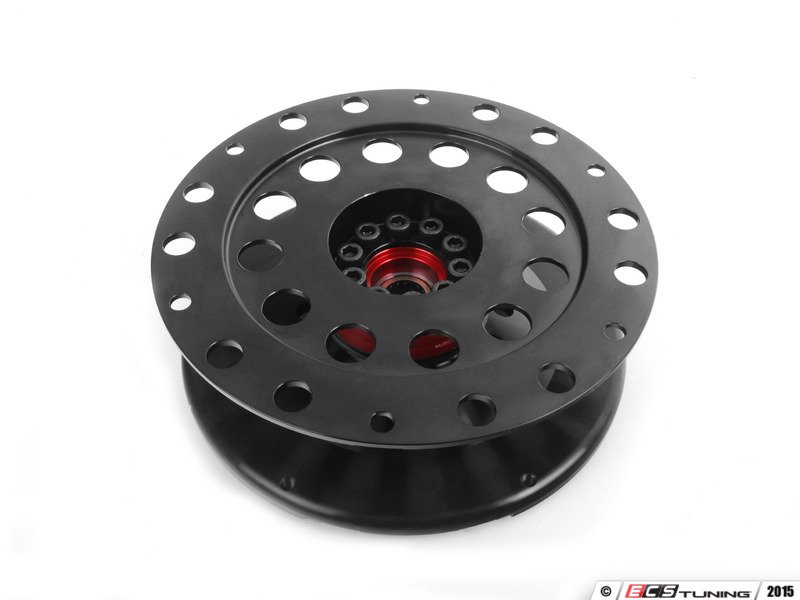

| B8 2.0T Flywheel Assembly |
|
1 | YES |
