MK4 High Flow Cooling Fan Conversion Kit & Performance Aluminum Radiator Kit
This product was last offered at the strikethrough price on
08-09-2025
Product Details
MK4 HIGH FLOW COOLING FAN UPGRADE

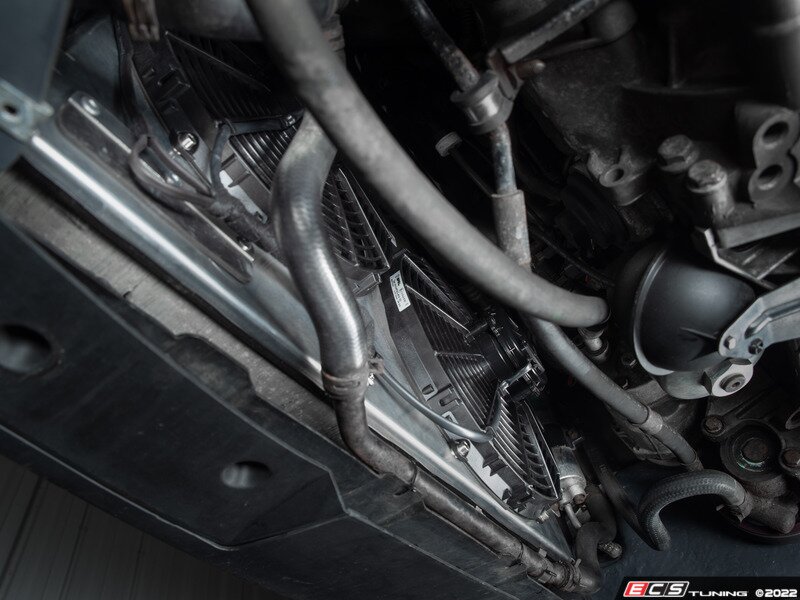

MK4 VW owners know the unreliability of the OEM fans all too well. The factory fan control module is prone to failure, which can lead to overheating that will leave you stranded and potentially damage your engine. The ECS Tuning MK4 High Flow Cooling Fan Kit remedies these issues. Our in-house designed aluminum fan shroud and plug-and-play harness paired with Spall fans improves reliability, and flow and eliminates the ugly plastic OEM fan shroud.
If you are still running your factory cooling fans, what are you doing? By now your cooling fans are worn out, underperforming, and not to mention extremely bulky. Upgrading to the new ECS High Flow cooling system gives you peace of mind and a clean bill of health for your cooling system.
When upgrading to our new fan shroud with fresh, cool flowing fans be sure to check the rest of your cooling system! Our ECS Performance radiator is a direct fit radiator with a 26% increase in cooling capacity and will help ensure the health of your engine.
PART DESIGN

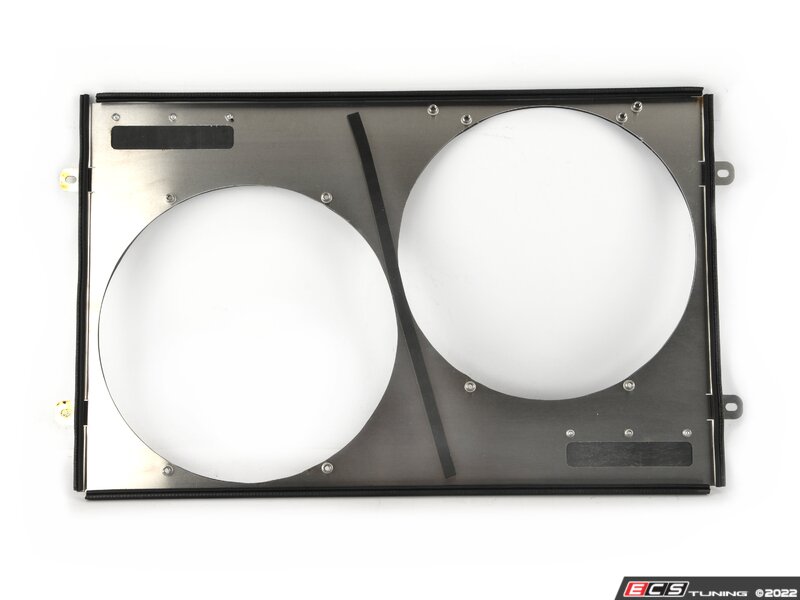

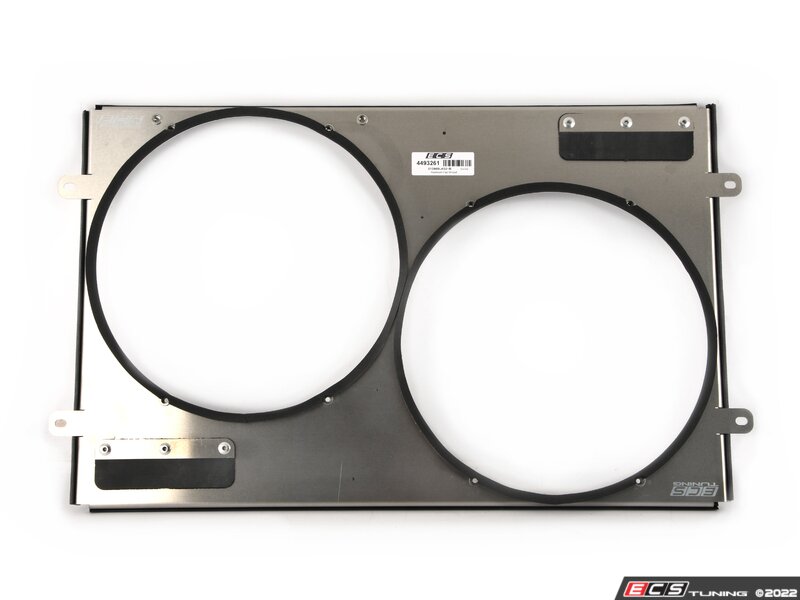

- Aluminum Fan Shroud
- In-house designed and engineered using FARO ARM laser scanning technology for precise fitment
- CNC press brake bent 14GA 5052 aluminum for precise fitment

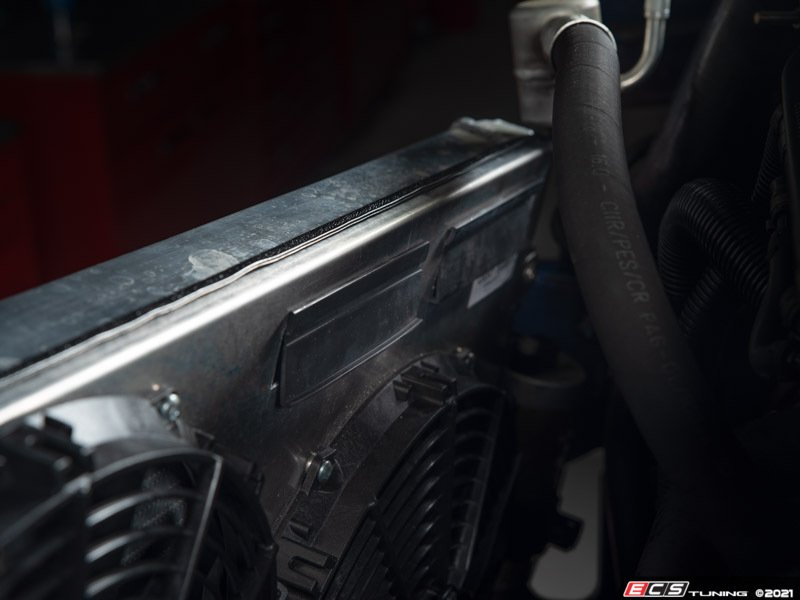

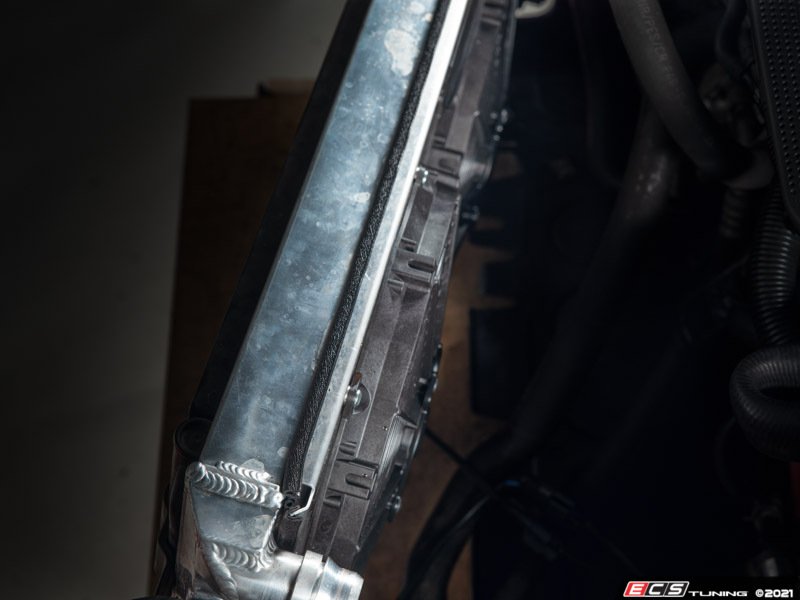

- Water and weather resistant seal around all edges for a precise seal between the shroud and the radiator and to eliminate vibration
- Heavy duty EPDM foam around the fan mounting flanges for a precise seal between the fans and the shroud

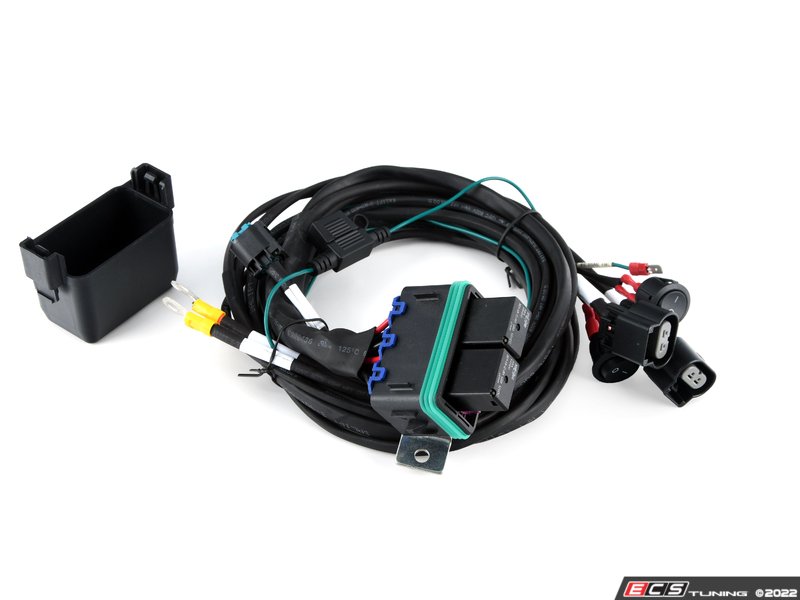

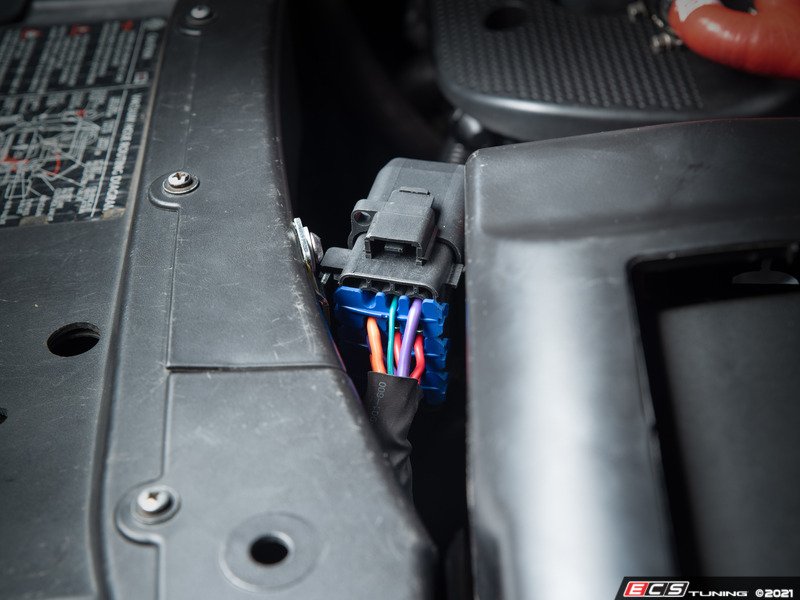

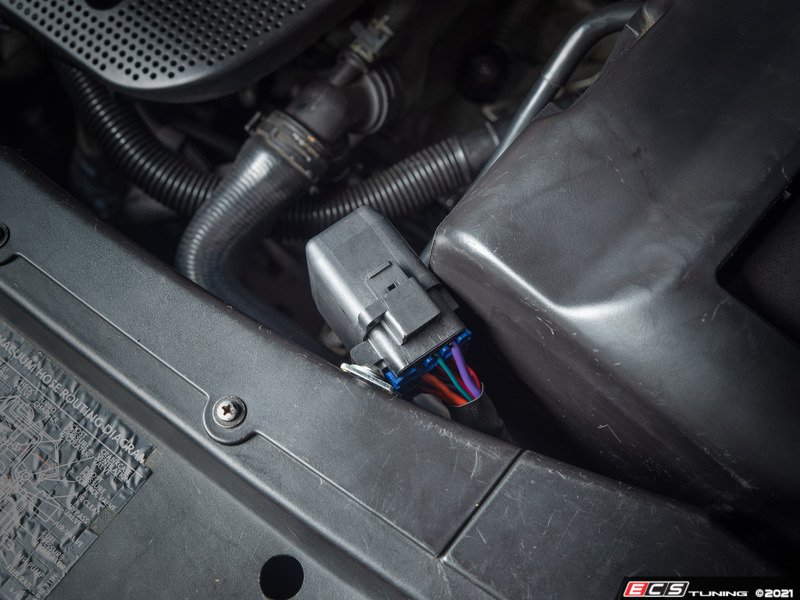

- Plug and Play Wiring Harness
- Direct plug-and-play solution with all connectors, relays, fuses, and switches necessary for install
- Two override rocker switches

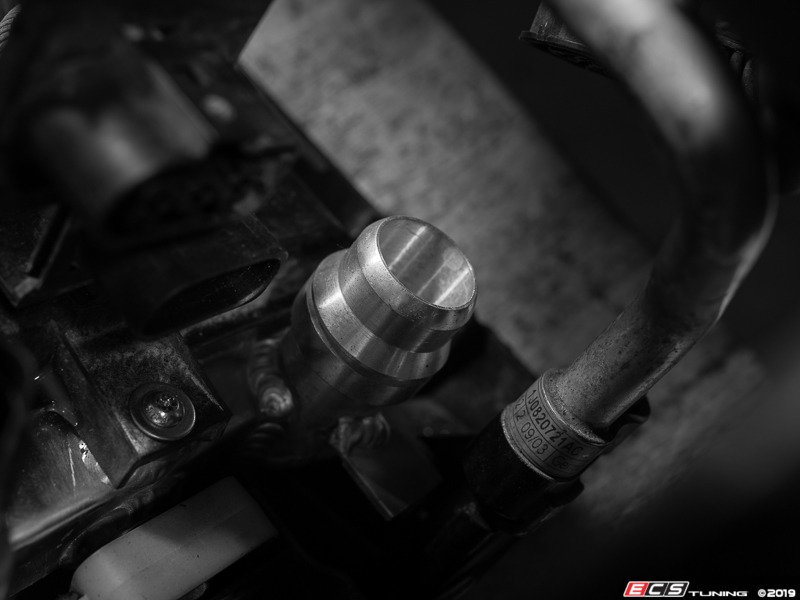

- Coolant Temperature Sensor Adapter
- Made of billet 6061 aluminum
- Anodized black finish
KIT CONTENTS

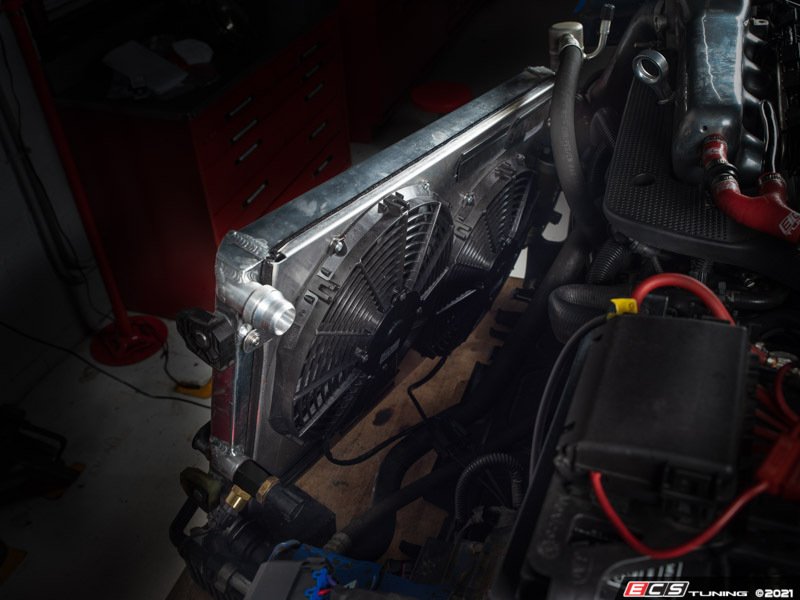

- High Flow Aluminum Fan Shroud and Cooling Fan Installation Kit
- ECS Tuning Aluminum Fan Shroud
- Coolant Temperature Sensor Adapter
- Coolant Temperature Sensor
- All necessary installation hardware
- Cooling Fans

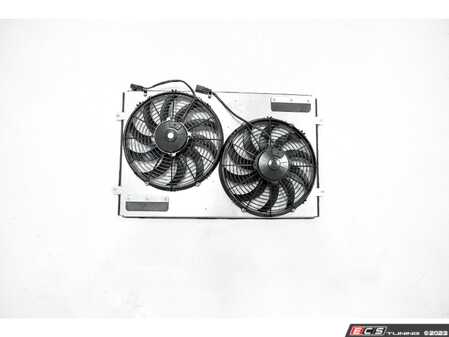

- Spal 861 and 1,328 CFM Cooling Fans With Plug and Play Harness
- Plug and play fan controller wiring hardness
- 1x Spal 12" 861 CFM cooling fan repined for direct fit with wiring harness - Spal reference number - 30100375
- 1x Spal 12" 1,328 CFM cooling fan repined for direct fit with wiring harness - Spal reference number - 30102029
- Spal 861 and 1,328 CFM Cooling Fans With Plug and Play Harness
MK4 PERFORMANCE ALUMINUM RADIATOR

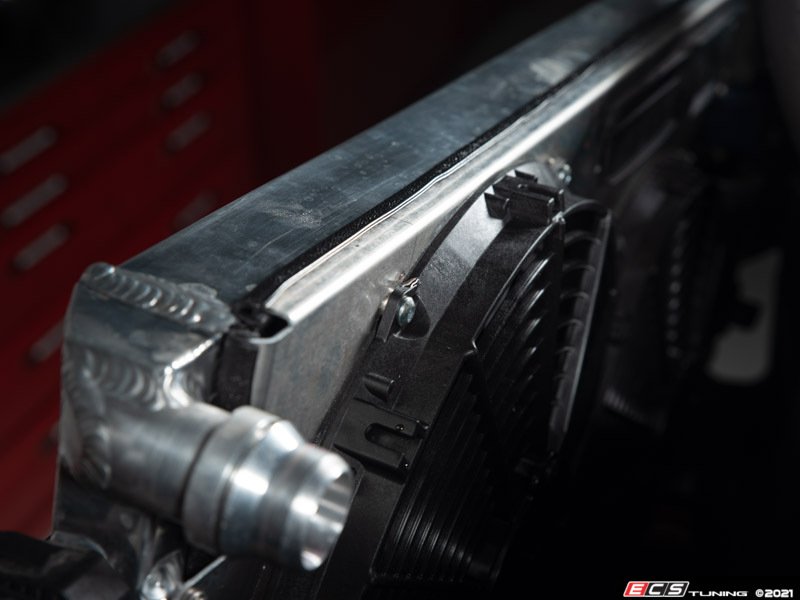

The factory radiator in the VW MK4 Golf/Jetta was engineered to only support stock power outputs and last within a set service life. All too often the MK4 radiators leak out of the end tanks due to corrosion or failed epoxy and suffer from heat soak when more additional power is added. The ECS Tuning in-house engineered Performance Aluminum Radiator solves both issues by utilizing a larger volume, dual row, dual-pass aluminum heat exchanger, hand TIG-welded to 5052 aluminum end tanks and polished to perfection. Featuring a 26% increase in overall volume compared to stock, this is a direct replacement radiator that will outperform and outlast the OE unit!
PART DESIGN

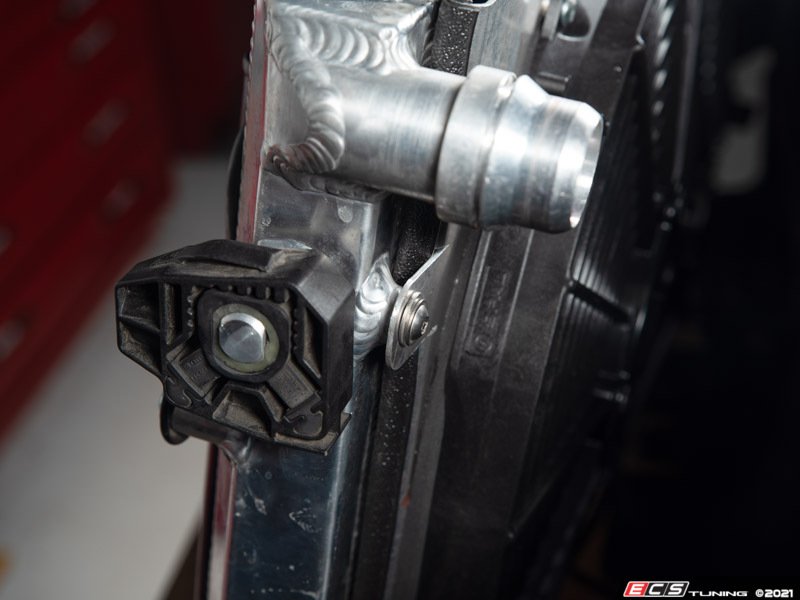

Our radiator utilizes all factory mounts, fan shroud, fan switch and radiator hoses for a direct OE upgrade WITHOUT modifications to any other components

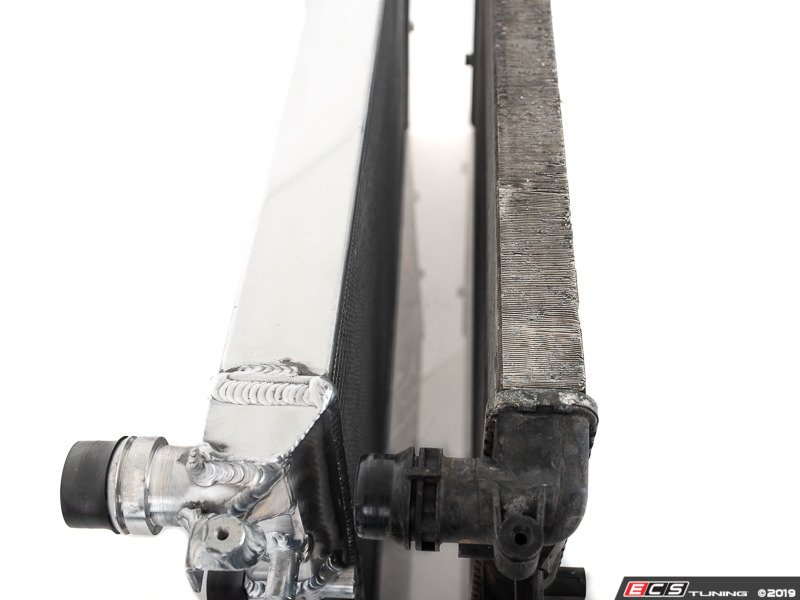

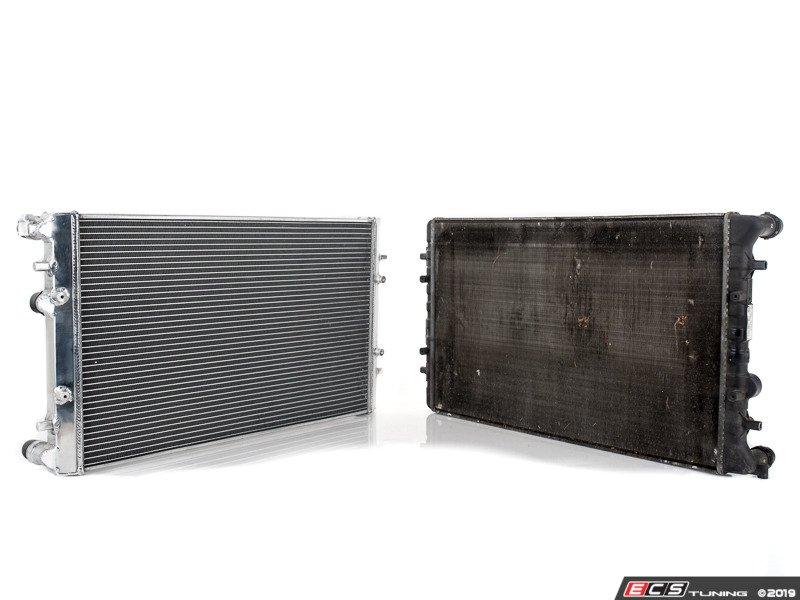

Increase in +26% volume over the stock radiator. ECS Radiator measures 2.125 Liters internal volume compared to the OEM Radiator at 1.560 Liters
Larger volume, dual row, dual-pass aluminum heat exchanger
Pressure tested to 1.5 bar at 0% leak down to ensure quality and leak-proof manufacturing
Fabricated 5052 aluminum end tanks

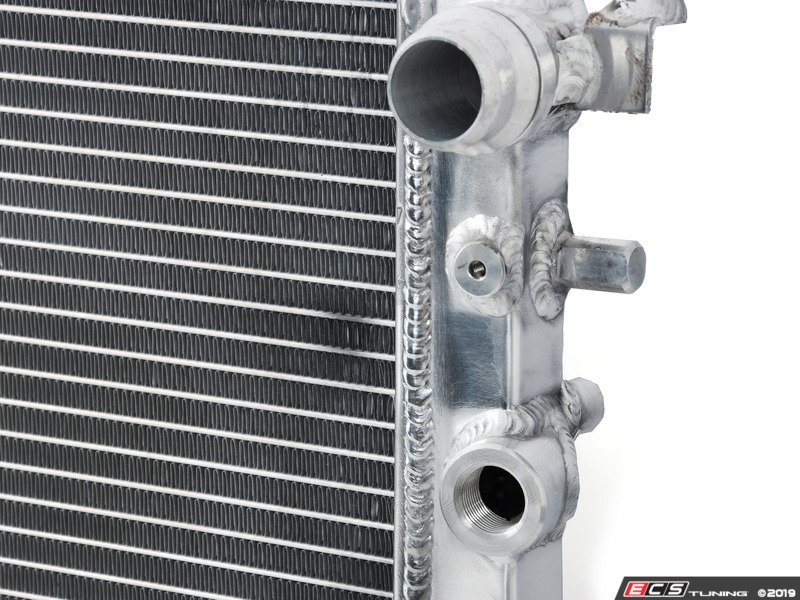

Fully TIG welded, featuring a polished finish
KIT CONTENTS
Aluminum Radiator
Radiator Fan Shroud mounting screws and washers - QTY 4
A/C Condenser mounting screws and washers - QTY 4
Lower A/C Line mounting screw and washer - QTY 1
Medium Strength, Blue Threadlock
PERFORMANCE FEATURES
+26% increase in cooling system capacity (+0.565 Liters)
100% aluminum construction, TIG welded and pressure checked, for enhanced durability
This Part Fits the Following Vehicles
Make | Model | Submodel | Engine | Special Fitment Notes |
---|---|---|---|---|
Volkswagen | 337/20AE | All | 1.8T | Use vehicle selector to confirm fitment |
Volkswagen | Golf IV | All | 1.8T | Use vehicle selector to confirm fitment |
Volkswagen | Golf IV | All | 2.0 | Use vehicle selector to confirm fitment |
Volkswagen | Golf IV | All | TDI | Use vehicle selector to confirm fitment |
Volkswagen | Golf IV | All | VR6 12v | Use vehicle selector to confirm fitment |
Volkswagen | Golf IV | All | VR6 24v | Use vehicle selector to confirm fitment |
Volkswagen | Jetta IV | All | 1.8T | Use vehicle selector to confirm fitment |
Volkswagen | Jetta IV | All | 2.0 | Use vehicle selector to confirm fitment |
Volkswagen | Jetta IV | All | TDI | Use vehicle selector to confirm fitment |
Volkswagen | Jetta IV | All | VR6 12v | Use vehicle selector to confirm fitment |
Volkswagen | Jetta IV | All | VR6 24v | Use vehicle selector to confirm fitment |
Volkswagen | Jetta IV GLI | All | 1.8T | Use vehicle selector to confirm fitment |
Volkswagen | R32 MKIV | All | 3.2 | Use vehicle selector to confirm fitment |
Kit Contents
Description | Brand | Qty | Lifetime | |
---|---|---|---|---|
Coolant Temperature Sensor |
![]() |
1 | YES | |
Alloy Steel Torx Rounded Head Screws, M5 X 0.8 Mm Thread, 10 Mm Long |
![]() |
9 | YES | |
Zinc-Plated Steel Oversized Washer For M5 Screw Size, 5.3 Mm ID, 15 Mm OD |
![]() |
9 | YES | |
Performance Aluminum Radiator |
![]() |
1 | YES | |
Loctite 242 Threadlocker Blue - .02oz single use capsule |
![]() |
1 | YES | |
Coolant Temp. Sensor Adapter |
![]() |
1 | YES | |
Spal 861 and 1,328 CFM Cooling Fans With Plug and Play Harness |
![]() |
1 | YES | |
Aluminum Fan Shroud |
![]() |
1 | YES | |
M14 14.2mm ID 17.9mm OD - Aluminum |
![]() |
1 | YES | |
Metal Sealing Washer |
![]() |
2 | YES | |
Vibration-Damping Loop Clamp |
![]() |
2 | YES |
