New ECS Stainless Steel High Capacity Oil Pan - Evo4

Protect your oiling system with confidence with our ECS Stainless Steel Oil Pan! Able to handle more abuse than the original pan while retaining major ground clearance and increasing oil capacity simultaneously. If you've ever worried about rocks or debris in the road compromising your oil pan, this is MUST HAVE PROTECTION!

Not just another aluminum pan susceptible to cracking, our pan is beefy! Made from 11 gauge (1/8") T304 stainless steel and then 100% TIG welded and pressure checked for a perfect seal. To further ensure optimum sealing capacity, the mounting flange is thick, laser cut from 3/16" thick T304 stainless and then post machined and checked for flatness to our tight tolerances.

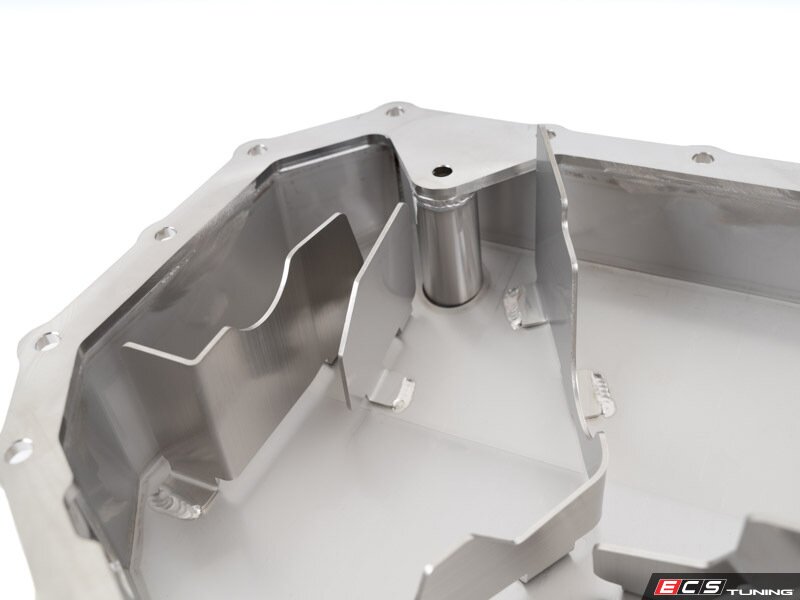

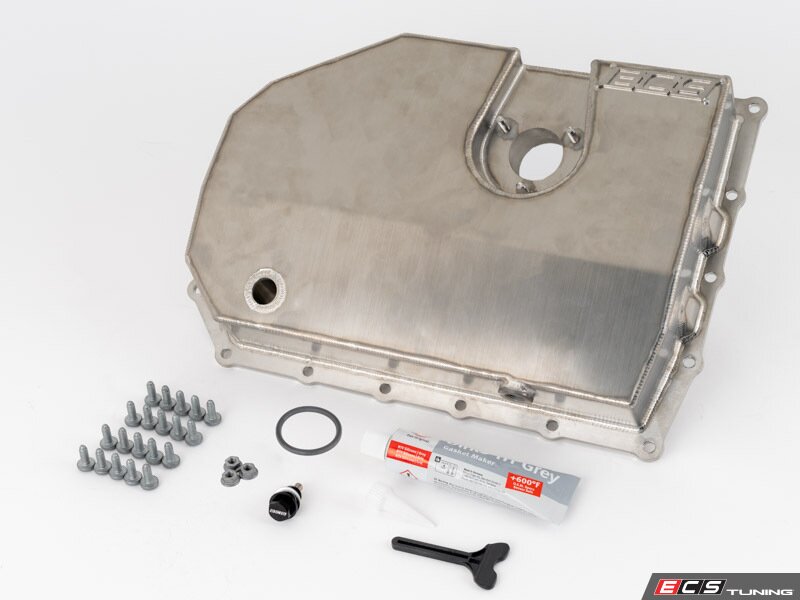

Added strength and modularity is added into our design with six sturdy side gussets that are welded to the side walls and mounting flange surface. A welded-on M14x1.5mm bung converts your Evo4 engine to a standard, easy to use drain plug with our included ECS Magnetic Drain Plug. Factory provisions for the OEM oil level sensor are retained for direct, plug and play functionality. Topping off our pan is a laser cut "ECS" logo in the front corner for a subtle finishing touch.

Increasing oil capacity and ensuring oil temps stay in the safe zone were incorporated into our design. By bringing the sump further forward we were able to utilize more volume, approximately 1.0 - 1.5 Liters of added oil capacity, which helps extend oil service intervals and maintains more consistent operating temperatures.
