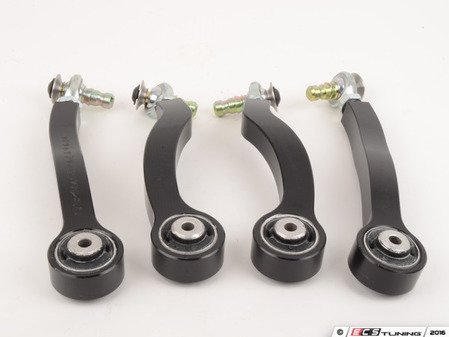

Density Line Adjustable Upper Control Arm Kit - Track Spec

Track Spec: Perfect for those who are low, and looking for even more negative camber for better track performance.
Mfg Part #
ECS Part #
Free Shipping Free Shipping
Direct Ship
Does this fit my vehicle?

Product Details

Fully adjustable upper control arms are available in both Camber Correcting and Track Spec varieties.

Camber Correcting: Perfect for those who have lowered their car from OEM ride height and are looking to correct camber to factory specs and reduce excessive inside tire wear.


  • CNC Machined Billet 6061 Construction, Black Anodized Finish
  • 034Motorsport Density Inner Bushings
  • Aurora Spherical Bearings Featuring Teflon Race Lining
  • Built in Safety Washer to eliminate any chance of the spherical ever separating
  • Arm sets ship set to factory OEM length
  • Track Spec: Already 1/8" shorter than stock, these offer an additional 5/8" of inward adjustability from stock length, adjustable in 1/36" increments, each 1/36 adjustment is approximately .1 degrees for highly accurate adjustments.
  • No tightening creep like you get with a turn buckle.
  • Adjustments can be easily made by threading out an M6 head allen bolt, the pinch pin stays installed in the upright.  A jam nut keeps everything tight once adjusted.
  • Dust boots are now included with all adjustable upper control arms. We ship the boots uninstalled; once you have the alignment set, install the dust boots before final installation.

Note - Do not run the heims with less than 8 threads in the control arm itself, less threads can cause failure of the part and 034Motorsport will not be responsible for installation errors.  If your alignment requires that you must have less than 8 threads engaged then contact us, but do not run the car with less than 8 threads engaged!  Tighten M10 pan head allen bolt to 45 ft/lbs with blue loctite.

*Track Spec: Perfect for those who have lowered their car from OEM ride height and are looking to have even more negative camber for better track performance.*

This Part Fits the Following Vehicles

Make Model Submodel Engine
Audi A7 C7 3.0 TDI
Audi A7 C7 3.0T
Audi All Road All 2.0T
Audi B8 A4 FWD 2.0T
Audi B8 A4 Quattro 2.0T
Audi B8 A4 Quattro V6 3.2L
Audi B8 A5 Quattro 2.0T
Audi B8 A5 Quattro V6 3.2L
Audi B8 RS5 All 4.2L
Audi B8 S4 Quattro 3.0T
Audi B8 S5 Quattro 3.0T Cabriolet
Audi B8 S5 Quattro 3.0T Coupe
Audi B8 S5 Quattro V8 4.2L
Audi C7 A6 FWD 2.0T
Audi C7 A6 FWD V6 3.0T
Audi C7 A6 Quattro 2.0T
Audi C7 A6 Quattro 3.0 TDI
Audi C7 A6 Quattro V6 3.0T
Audi C7 S6 Quattro 4.0T
Audi C7 S7 Quattro 4.0T
Audi Q5 GTI 3.0T
Audi Q5 Quattro 2.0T
Audi Q5 Quattro 3.0 TDI
Audi Q5 Quattro 3.2L
Audi SQ5 GTI 3.0T
*The above product applications have been written by ECS Tuning. All warranties, product application, fitment, and performance are the responsibility of ECS Tuning. For additional information see the terms of use.
