Street Density Line Motor Mount Kit - 50 Durometer
- Mfg Part #
- 034-509-5036
- ECS Part #
- ES#4491679
- Brand
-
Free Shipping
Product Details

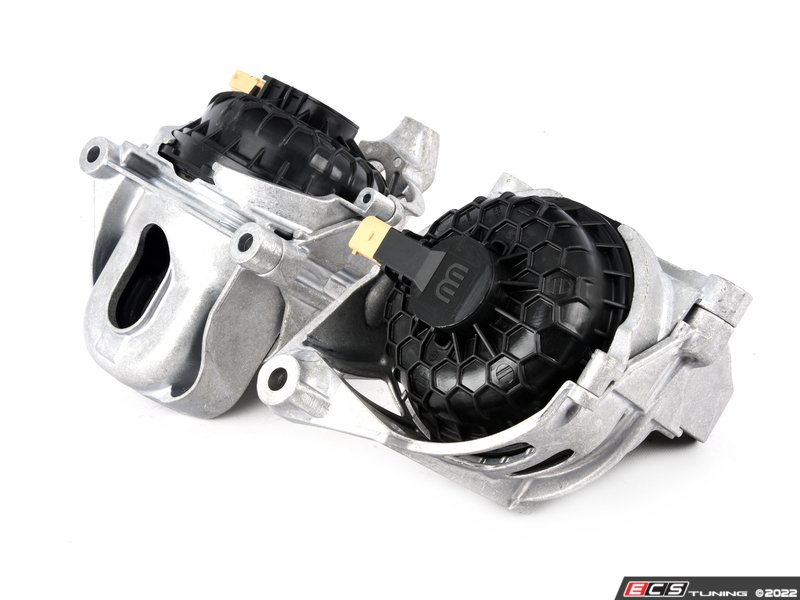

034Motorsport Street Density Motor Mounts for the B9/B9.5 Audi A4/A5 2.0 TFSI are a performance upgrade over the factory mounts, and are a suitable OE replacement for B9/B9.5 Audi S4/S5/SQ5 3.0 TFSI and B9/B9.5 Audi RS5 2.9 TFSI. Street Density Motor Mounts are manufactured with 50 durometer rubber to limit unwanted noise and vibration transfer into the cabin. Street Density Motor Mounts are optimized void-free and fluid-free, eliminating the slop and excess movement associated with the factory mounts, resulting in improved shifting feel and driving dynamics while greatly improving long term durability and longevity.
034Motorsport Street Density Motor Mounts are the new standard in comfort and performance. These mounts are redesigned with performance in mind, and manufactured from high-durometer rubber for increased performance and durability, without sacrificing comfort. Street Density Motor Mounts are optimized void-free and fluid-free, eliminating the slop and the possibility of leakage and collapse associated with the factory mounts. The mount bodies are made from high-quality cast aluminum using OEM production techniques and employ emulators to replicate the electronics of the factory motor mounts for plug-and-play installation. This ensures MIL-free operation for cars equipped with active motor mounts.
Street Density Motor Mounts are manufactured from high-durometer rubber instead of polyurethane for a number of reasons. While vulcanized rubber mounts are more expensive to prototype due to the complexity of manufacturing and high initial tooling costs, rubber is inherently better than polyurethane as a damping medium for mounts and bushings. Rubber is able to deal with stress under both tension and compression, while polyurethane mounts rely on the damping medium to be effective only under compression. Rubber is also excellent in shear, where polyurethane is ineffective, making it ideal for applications that apply a shear force to the bushing during articulation. Rubber does not pack and wear like polyurethane does, which ultimately results in a long-lasting part with consistent performance and comfort.
The 034Motorsport Street Density Motor Mounts are designed to be an OE replacement for B9/B9.5 Audi S4/S5/SQ5 3.0 TFSI and B9/B9.5 Audi RS5 2.9 TFSI. These mounts offer the same performance and deflection as the stock S/RS Audi motor mounts, but without the failure-prone liquid-filled design. They are a heavier duty, longer lasting option that factory and OE replacement mounts on the market, they will offer the same factory performance in a much more durable package.
FEATURES:
- Manufactured from 50 Durometer Rubber with Optimized Void-Free Construction
- Street Density for B9/B9.5 Audi A4/A5 2.0T TFSI
- OE Replacement for B9/B9.5 Audi S4/S5/SQ5 3.0 TFSI and B9/B9.5 Audi RS5 2.9 TFSI
- Reduced Drivetrain Slop
- Decreased Engine Movement Under Load
- More Direct Power Transfer
- Improved Shifting Feel
- Complete Drop-In Replacement of Factory Motor Mounts
- Improved Long Term Durability and Longevity
- Sold in Pairs
WHAT'S INCLUDED:
- Driver Side Density Mount
- Passenger Side Density Mount
Note: This mount has two different applications that are based on engine size (Street Density for 4-cyl 2.0T FSI and OE Replacement for 6-cyl 3.0T TFSI or 2.9 TFSI). Please see the Fitment Guide for application information.
OE PART INTERCHANGE:
- Driver Side:
- 8W0 199 371 BD
- 8W0 199 371 BH
- 8W0 199 371 FC
- 8W0 199 371 CQ
- 8W0 199 371 CP
- 8W0 199 372 CR
- 4M0 199 371 FG
- Passenger Side:
- 8W0 199 372 AB
- 8W0 199 372 CN
- 8W0 199 372 FC
- 8W0 199 372 CQ
- 8W0 199 372 CP
- 8W0 199 372 CR
- 4M0 199 372 FG
This Part Fits the Following Vehicles
| Make | Model | Submodel | Engine | Special Fitment Notes |
|---|---|---|---|---|
| Audi | B9 A4 | FWD | 2.0T | Use vehicle selector to confirm fitment |
| Audi | B9 A4 | Quattro | 2.0T | Use vehicle selector to confirm fitment |
| Audi | B9 A5 | Quattro | 2.0T | Use vehicle selector to confirm fitment |
| Audi | B9 A5 | All | 2.0T | Use vehicle selector to confirm fitment |
| Audi | B9 A5 | Quattro | 2.0T Sportback | Use vehicle selector to confirm fitment |
| Audi | B9 Allroad | Quattro | 2.0T | Use vehicle selector to confirm fitment |
| Audi | B9 Q5 | Quattro | 2.0T | Use vehicle selector to confirm fitment |
| Audi | B9 Q5 Sportback | Quattro | 2.0T | Use vehicle selector to confirm fitment |
| Audi | B9 RS5 | Quattro | 2.9T | Use vehicle selector to confirm fitment |
| Audi | B9 S4 | Quattro | 3.0T | Use vehicle selector to confirm fitment |
| Audi | B9 S5 | Quattro | 3.0T | Use vehicle selector to confirm fitment |
| Audi | B9 S5 | Quattro | 3.0T Sportback | Use vehicle selector to confirm fitment |
| Audi | B9 S5 | Quattro | 3.0T Cabriolet | Use vehicle selector to confirm fitment |
| Audi | B9 SQ5 | Quattro | 3.0T | Use vehicle selector to confirm fitment |
| Audi | B9 SQ5 Sportback | Quattro | 3.0T | Use vehicle selector to confirm fitment |
