SuperDuper S34 Insuction Bundle

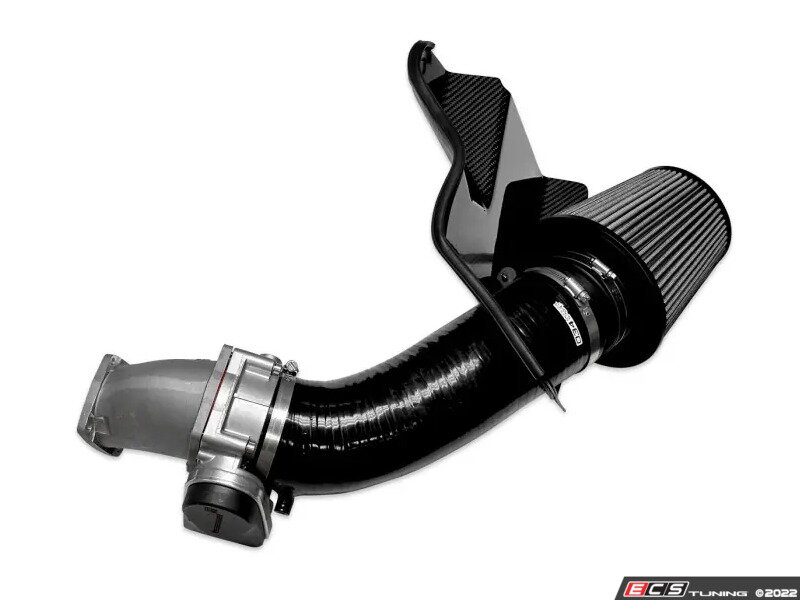

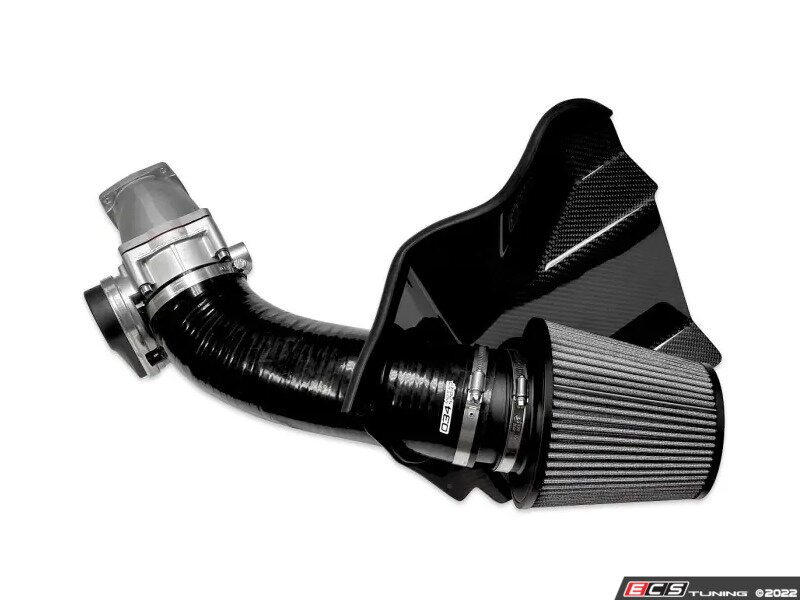

The SuperDuper S34 Insuction Bundle for the B8/B8.5 Audi Q5/SQ5 includes all of the best 034Motorsport products required to upgrade your intake system in one comprehensive and convenient package. Included with this kit are the SuperDuper 84mm Throttle Body System and S34 Carbon Fiber Intake.

034Motorsport Dynamic+ Tuning is required to safely run this SuperDuper S34 Insuction Bundle. Files to support this upgraded hardware are included with the 034Motorsport Stage 2+ 91, 93, 100, 104, & E40 octane options free of charge. Simply select the file designated with SuperDuper and you’re good to go! NOTE: This is only for Stage 2+ files. 034 does not have Stage 1 or Stage 2 files for the SuperDuper Charger.

Filter Shrouding

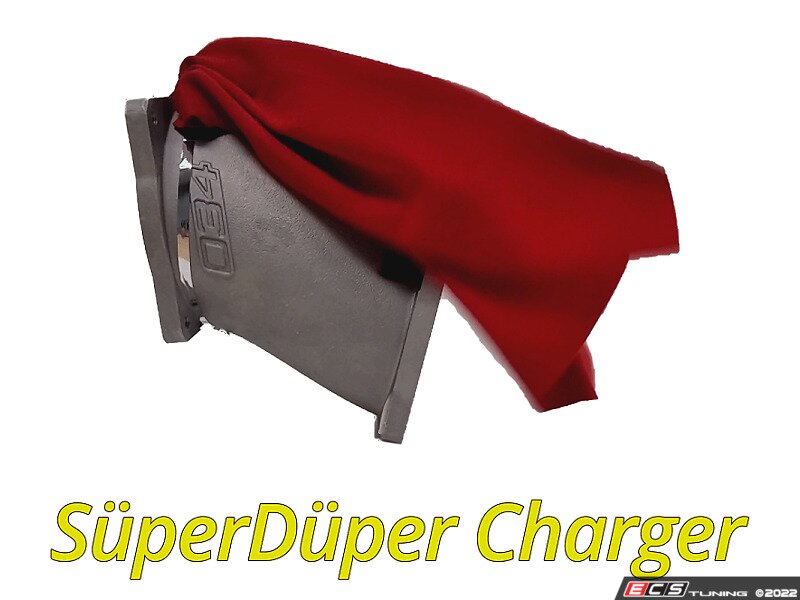

• The 034Motorsport SuperDuper Charger utilizes a VDO 84mm throttle body mated to a cast and machined aluminum throttle body adapter, offering a smooth transition between the larger throttle body to the supercharger inlet. This results in a 20% increase in flow over the OE throttle body right out of the box. Additionally, the throttle body adapter and gasket can be port matched to the supercharger during supercharger porting, allowing for increased airflow.

Throttle Body/Adapter Features:

• Cast and Machined A356 Aluminum Throttle Body Adapter
• Upgrades to a VDO 84mm Throttle Body
• Improved Flow Where the Stock Throttle Body Becomes Restrictive
• 20% Increase in Flow Over the OE Throttle Body
• Stock 70mm Throttle Body & Intake : 380 CFM
• 034Motorsport 84mm SuperDuper S34 Insuction Bundle: 457 CFM
• OEM BMW V8 Throttle Body for Reliability and Long Lasting Performance
• Smooth Transition from the Large Throttle Body to the Supercharger Inlet
• Throttle Body Adapter and Gasket Can be Port Matched to the Supercharger During Supercharger Porting, Allowing Even More Flow
• Wire-Reinforced Multi-Ply Silicone Hose
• Maintains Smooth Inside Surface for Optimum Flow
• Nylon Breather Tube Connection Nipple
• S34 Intake

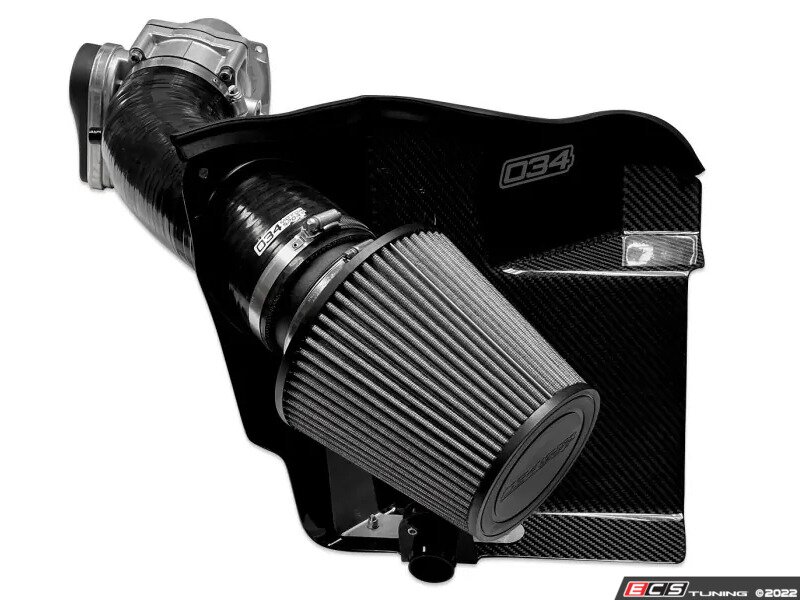

Throughout the development process, multiple designs were modeled, prototyped, and tested - all to ensure that the S34 Carbon Fiber Intake delivers measurable performance benefits and superb fitment. The result is an optimized open-airbox design that utilizes the factory fresh air duct inlet to channel cool outside air to the filter. This large airbox design allows for a massive 4" inlet conical air filter, free of restrictive shrouding, and channels air through a CFD-optimized 4-ply silicone inlet hose that smoothly increases air velocity to the throttle body.

Carbon Fiber Intake Features:

• Developed In-House by 034Motorsport's Engineering Team
• Fits Both Left and Right Hand Drive Configurations
• High-Quality Carbon Fiber Air Block-off Shield
• High-Gloss Epoxy Finish
• 4-Ply Gloss Black Silicone Intake Tube
• OEM+ Fit and Finish
• No Rubbing or Excessive Movement
• Dyno-Proven Horsepower Torque Gains
• Improved Airflow from Factory Airbox and Intake Tube
• Enhanced Engine Induction Sounds
• Improved Throttle Response
• Large 4" Inlet Conical Pleated Cotton Air Filter
• Reduced Intake Air Temperature
• Securely Installs Using Factory Mounting Grommets
• Simple, Straightforward Installation Instructions

Minimizing Unnecessary Filter Shrouding

• 034Motorsport focuses on optimizing every aspect of the intake system across a broad range of variables and compromises. A critical component of a high-flowing performance intake is the ability for air to flow around and into the filter. If the air cannot flow freely around the filter, it will be restricted from getting into it. Many aftermarket kits fit too large of a filter in an enclosure that cannot accommodate its size, thus choking the filter and reducing its overall flow. This often happens when a product is engineered for one variable at the expense of others. 034Motorsport conducted extensive tests and refined its development of the intake design to allow for maximum airflow surrounding the air filter, allowing for optimal airflow to, and through, the filter. The final result is the right size filter in the right size filter housing, creating maximum airflow and performance with OEM level filtering; the ultimate goal of any intake system. Be cautious of any intake that brags only of the air filter size, without taking into account the detrimental effects of shrouding the filter.

Maximizing Airflow

• 034Motorsport engineers first created a CFD-optimized 4-Ply silicone intake tube, which is a direct, high-performance replacement for the plastic factory accordion/sound deadening hose.
• Using CAD software and 3D scanning technology, 034Motorsport was able to optimize the cross-sectional area of the intake tube while being mindful of space constraints. The resulting part is a functional work of art - maximizing performance given the factory space constraints and featuring smooth transitions that ensure optimal airflow to the throttle body.

Performance Air Filter

• The X34 Carbon Fiber Intake houses a high-flow conical air filter with a double-layer pleated cotton filtration medium, capable of trapping particles as small as 5 Microns. This air filter design offers increased flow through an enlarged filtration surface while ensuring superior filtration. 034 has tested this air filter in applications over 800HP with minimal restriction, and superior OEM quality air filtration.
• While many intake kits leave the air filter unsupported and ”flopping” around, 034Motorsport engineers designed a clever air filter support that not only prevents unwanted movement but also allows compliance to accommodate engine movement under varying load conditions. An added benefit is an air shroud that doesn’t move and rub on other engine compartment components like many other designs on the market do.

What’s Included:

• Carbon Fiber Heat Shield
• 4" Inlet Conical Pleated Cotton Air Filter
• 4" Aluminum Filter Coupler
• SAI Adapter and Filter
• 84mm VDO Throttle Body
• SuperDuper Throttle Body Adapter
• 4-ply Reinforced Silicone Hose
• Wiring Harness Adapter
• Adapter to Supercharger Gasket
• All Necessary Hardware

Replaces OE Part Numbers:

• 06E 133 062 H
• 06E 133 062 G
• 06E 133 062 C

*Note: The upper plastic engine cover must be trimmed to be re-installed with the SuperDuper Throttle Body.

Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.
