Universal Oil Pressure Relocation Kit

Perfect option if you want to add an oil pressure gauge to your car.
Mfg Part #
ECS Part #
42 Draft Designs
Free Shipping Free Shipping
on orders $49 and up
Back Ordered, Contact Us
Auto Notify
Does this fit my vehicle?

Product Details

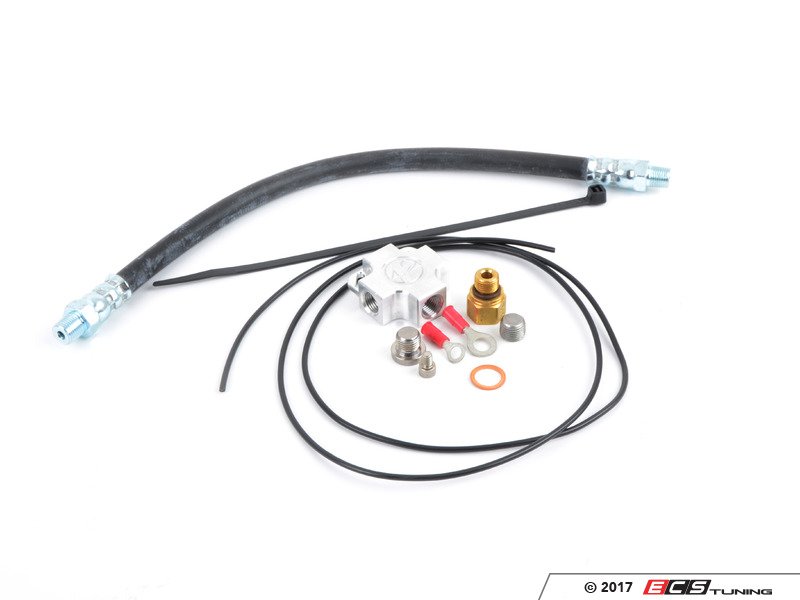

42 Draft Design oil pressure relocation kit allows you to remotely install two oil pressure sending units in one port. Remote installation offers many advantages over T-fittings and permanent modifications. Fitment of bulky aftermarket senders is effortless especially where space is limited. Mounting off the engine eliminates vibrations allowing for significantly longer sender life and no leaks. Installation is simplified and the senders are easily serviced.

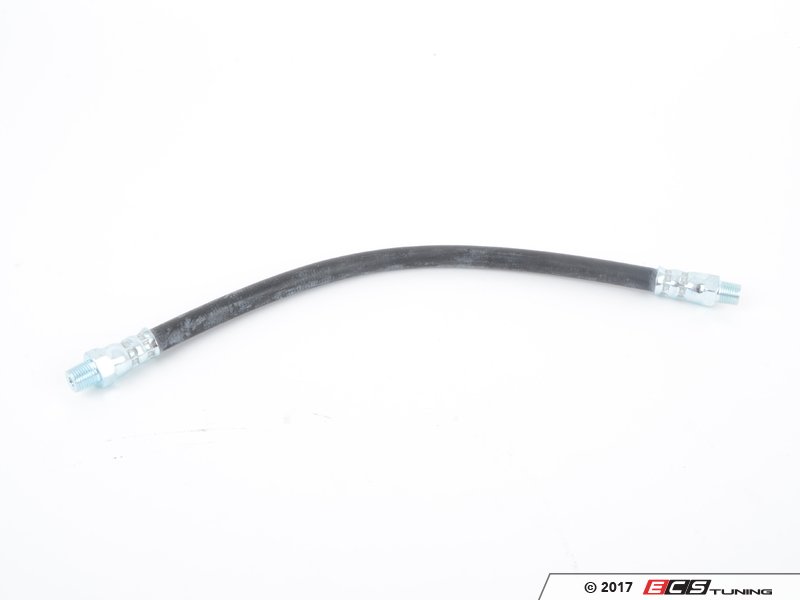

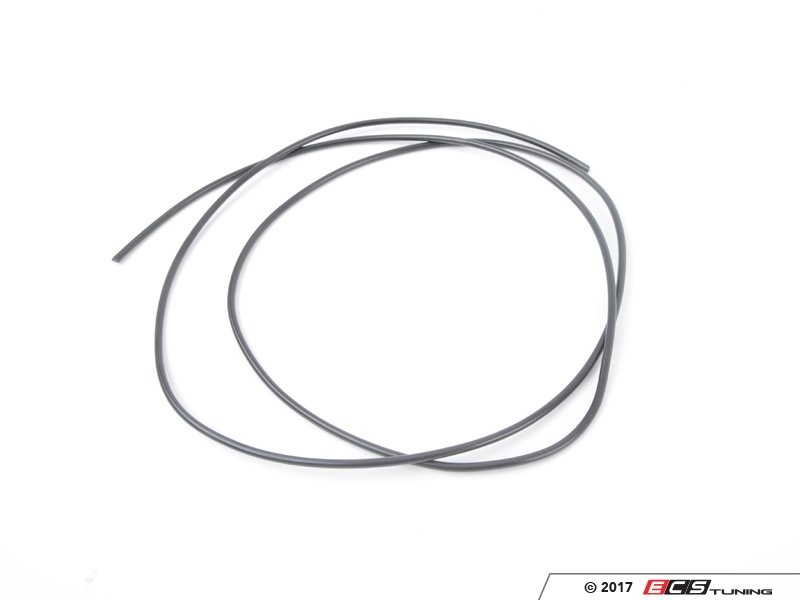

Their kit uses a 12" hydraulic hose and M10x1 adaptor to properly tap into the VW oil filter flange. The included hose is a stainless steel inner braid hydraulic hose capable of holding 10,000 psi and any heat the engine bay can deliver. Sending units are mounted on our custom CNC machined relocation block. This block is a simple cross, threaded to accept the 1/8" NPT hose, stock M10x1 sending unit, and your choice of M10x1 or 1/8 NPT aftermarket sending units. Plugs are included to plug the spare port. A built-in stainless steel ground screw assures the sending units are properly grounded. A machined slot allows for solid mounting using a heavy duty zip-tie. Ground wire and terminal connectors are included.

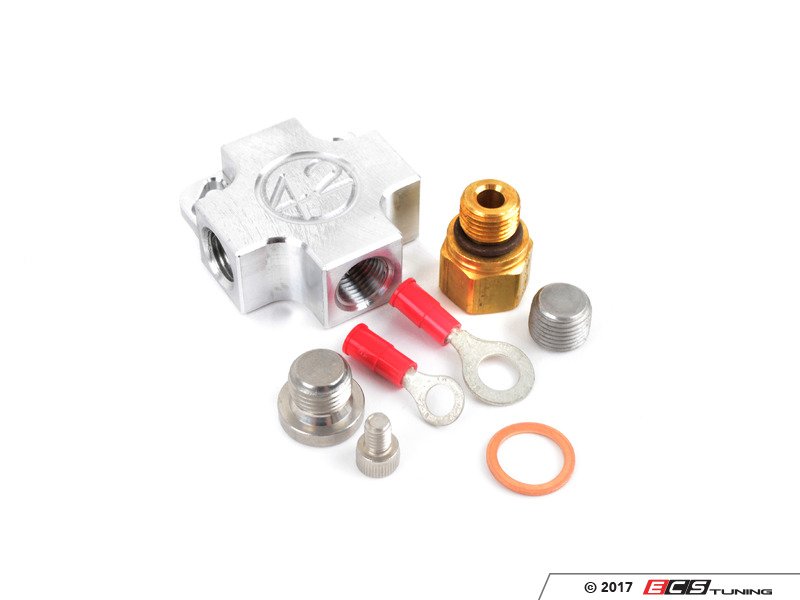

Relocation Block Details

Port 1 - 1/8" NPT threads (relocation hose)
Port 2 - M10x1 threads (stock VW sending unit)
Port 3 - M10x1 threads (aftermarket sending unit or plug)
Port 4 1/8 NPT threads (aftermarket sending unit or plug)
All thread sizes clearly marked by engraving
Ground Screw - #8-32 threads, stainless steel socket cap screw

This Part Fits the Following Vehicles

Make Model Submodel Engine
Audi All All All
Volkswagen All All All
