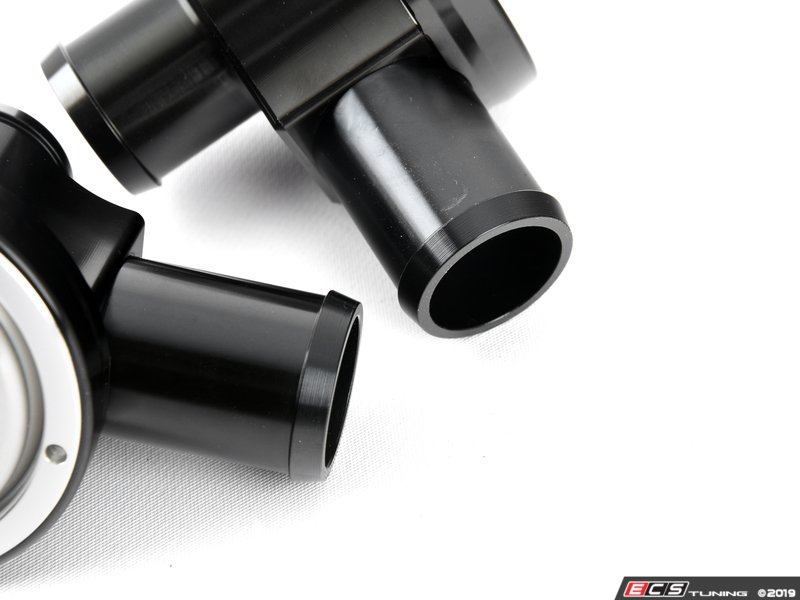

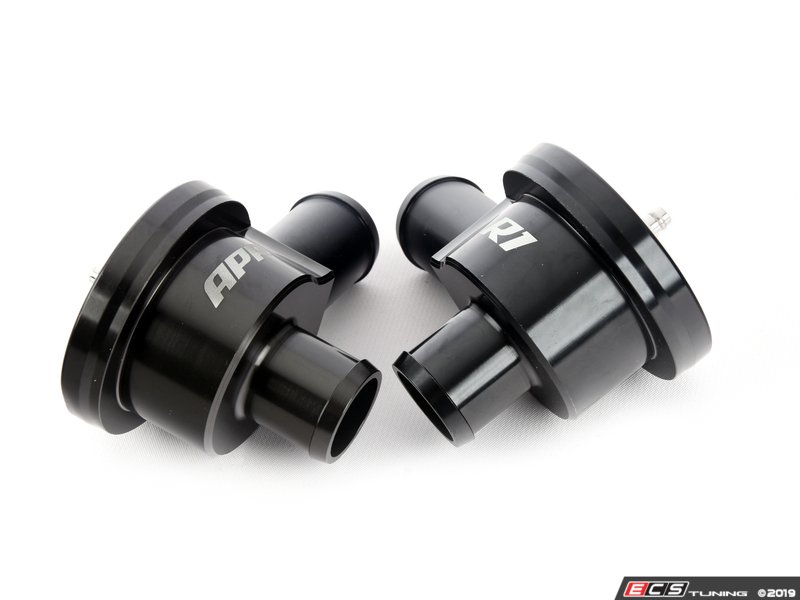

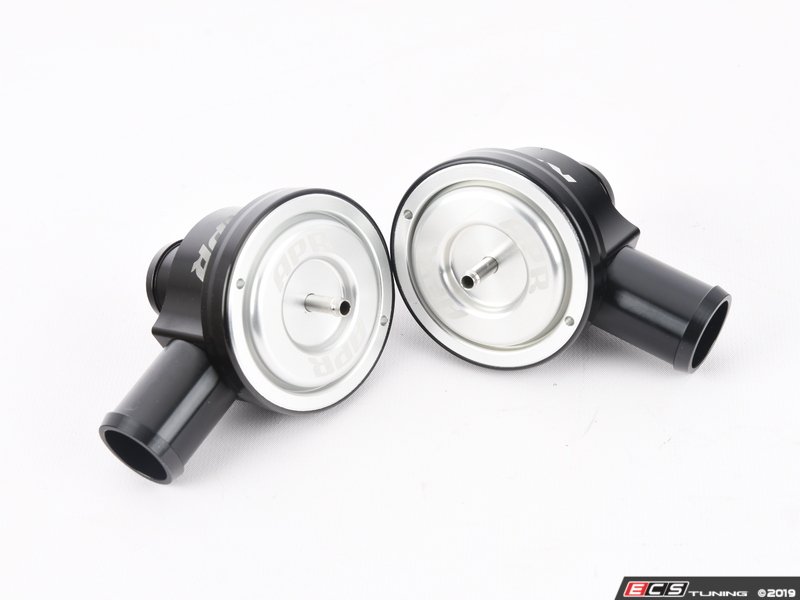

Billet R1 Diverter Valve - Pair

Less maintenance, more boost. Kit includes two valves for twin-turbo applications.
Mfg Part #
DV100001KT
ECS Part #
ES#4039652
Brand
APR
355.90
Free Shipping Free Shipping
Availability: In Stock
Qty
Does this fit my vehicle?

Product Details

The APR R1 diverter valve was designed to be the ultimate solution to the problem of unreliable factory and aftermarket diverter valves and to be the leader in performance. Although most are of good design, factory diverter valves are built in a very conscious manner and the materials and overall life and reliability suffer. For the performance enthusiast, the diverter valve is an important component whose proper operation is paramount to optimal engine operation.

Enter the R1: APR's R1 diverter valve addresses all of the reliability problems of the factory-supplied diverter valves and aftermarket replacements and takes performance to the next level. The R1 is a diaphragm-based valve. A diaphragm is the best option for a diverter valve for several reasons. First off, a diaphragm has negligible friction. Piston-based valves have considerable friction from the piston, o-ring, and bore assembly. The lower friction R1 diaphragm equates to faster response and better overall performance. Secondly, diaphragms do not require the periodic greasing that piston-based valves do. Piston-based valves must be greased periodically (usually every year or sooner), requiring removing the valve from the car, disassembling and reassembling the valve. The APR R1 was designed to be maintenance free for the life of the product. Thirdly, a diaphragm based valve will never have a stuck piston. Piston-based valves periodically incur stuck pistons (especially if the required maintenance schedules are not followed.) Due to the lack of a piston, the APR R1 solves this problem.

The R1 is designed for optimal performance. The main body of the valve is billet aluminum. As such, the APR R1 has much better flow characteristics than other diverter valves. Combined with the low friction diaphragm assembly, this equates to a valve that is truly a performance leader.

The materials used in the R1 are standard setting. The diaphragm is created out of high temperature material and incorporates a Nomex fabric reinforcement layer for enhanced durability and a diaphragm that will never tear. The alloy main body is finish machined at APR and receives a multilayer corrosion resistant and cosmetic enhancing finish. All machining and final assembly takes place at APR headquarters in the United States for optimal quality control and consistency.

Highlights of the APR R1 Diverter Valve Include:

  • Diaphragm-Based Valve
    • High-Temperature, Nomex-Reinforced Material for Extreme Durability
    • Zero-Friction
    • No Sticky O-Rings to Maintain and Grease
    • No Pistons to get Stuck
    • Consistent Performance Year Round
  • Flow-Optimized, Billet Aluminum Housing
  • Stainless Steel Vacuum Fitting
  • Zero-Maintenance Design
  • Built with Finest Materials and Surface Treatments
  • Fully Machined and Assembled at APR Headquarters in the United States for Optimal Quality Control
  • The yellow spring included with the R1 DV is rated for 15-23 PSI
  • Optional blue spring required for 23-30 PSI.  (Blue springs are only needed for Stage 3 or higher.)

This Part Fits the Following Vehicles

Make Model Submodel Engine
Audi B5 S4 All 2.7T
Audi C5 A6 Quattro 2.7T
Audi RS6 All 4.2T
Porsche 911 Carrera H6 3.0L
Porsche 911 Carrera 4 H6 3.0L
Porsche 911 Carrera 4 GTS H6 3.0L
Porsche 911 Carrera 4S H6 3.0L
Porsche 911 Carrera GTS H6 3.0L
Porsche 911 Carrera S H6 3.0L
Porsche 911 Carrera T H6 3.0L
Porsche 911 GT2 H6 3.6L
Porsche 911 GT2 RS H6 3.6L M97.70
Porsche 911 GT2 RS H6 3.8L
Porsche 911 Targa 4 H6 3.0L
Porsche 911 Targa 4 GTS H6 3.0L
Porsche 911 Targa 4S H6 3.0L
Porsche 911 Targa S H6 3.0L
Porsche 911 Turbo H6 3.6L
Porsche 911 Turbo H6 3.8L
Porsche 911 Turbo H6 3.8L MA1.70
Porsche 911 Turbo H6 3.8L MA1.71
Porsche 911 Turbo S H6 3.6L
Porsche 911 Turbo S H6 3.8L
Porsche 911 Turbo S H6 3.8L MA1.70
Porsche 911 Turbo S H6 3.8L MA1.71
Porsche 911 Turbo S Exclusive Series H6 3.8L
Porsche Cayenne GTS V6 3.6L
Porsche Cayenne GTS V6 3.6L MCX.ZA
Porsche Cayenne S V6 3.6L
Porsche Cayenne S V6 Turbo 3.6L MCU.RA
Porsche Cayenne Turbo V8 4.5L
Porsche Cayenne Turbo V8 4.8L
Porsche Cayenne Turbo V8 4.8L M48.51
Porsche Cayenne Turbo V8 4.8L M48.52
Porsche Cayenne Turbo V8 4.8L MCF.TB
Porsche Cayenne Turbo S V8 4.5L
Porsche Cayenne Turbo S V8 4.8L
Porsche Cayenne Turbo S V8 4.8L M48.51
Porsche Cayenne Turbo S V8 4.8L M48.52
Porsche Macan GTS V6 3.0L
Porsche Macan S V6 3.0L
Porsche Macan S V6 3.0L MCT.MA
Porsche Macan Turbo V6 3.6L
Porsche Macan Turbo V6 3.6L MCT.LA
Porsche Panamera 4S V6 3.0L
Porsche Panamera 4S Executive V6 3.0L
Porsche Panamera S V6 3.0L
Porsche Panamera S V6 3.0L MCW.DA
Porsche Panamera S Executive V6 3.0L MCW.DA
Porsche Panamera Turbo V8 4.8L
Porsche Panamera Turbo V8 4.8L M48.70
Porsche Panamera Turbo V8 4.8L MCW.BA
Porsche Panamera Turbo Executive V8 4.8L
Porsche Panamera Turbo Executive V8 4.8L MCW.BA
Porsche Panamera Turbo S V8 4.8L
Porsche Panamera Turbo S V8 4.8L M48.70
Porsche Panamera Turbo S V8 4.8L MCW.CA
Porsche Panamera Turbo S Executive V8 4.8L
Porsche Panamera Turbo S Executive V8 4.8L MCW.CA
*The above product applications have been written by ECS Tuning. All warranties, product application, fitment, and performance are the responsibility of ECS Tuning. For additional information see the terms of use.
