High Pressure Fuel Pumps
- Mfg Part #
- MS100076 MS100076
- ECS Part #
- ES#3984501
- Brand
-
This product was last offered at the strikethrough price on
07-31-2026
Free Shipping
Product Details
The key to APR’s reliability comes in part by use of extremely high grade materials and manufacturing techniques. The most critical components within each HPFP are the enlarged plungers and barrels. Each matched set is created using medical grade precision machining techniques deeply quality controlled all within the USA with dimensional tolerances as tight as .0001” and geometric tolerances as tight as .00009”. The plungers and barrels are created from certified and heat-treated bearing-grade stainless steel and undergo a special diamond like coating process for exceptional surfaces hardness and ultra reliable operation. The seals used in each pump are made of a high-performance filled polymer with a high modulus spring to retain the seal forces throughout the life of the product. The cross section of the seal is also of a proprietary design to maintain integrity over many years of use. Finally, to prevent float associated with altering the plungers mass, APR supplies each unit with a properly spec’d spring.
Ultimate reliability of this critical component is not easily created using inferior materials and manufacturing techniques. Across all direct injection markets, the community has come to see time after time, cheaper alternatives were met with sometimes irreversible engine damage. Leaking seals result in gasoline entering the engine’s oiling system and seized pistons due to weak tolerances and wear can result in increased wear or destruction of the engine’s camshaft and connected components.
All APR HPFPs are assembled in house under strict assembly guidelines to ensure ultimate reliability and accountability. After construction, the APR fuel pump tester plays a critical role in the APR’s track record of success. The test stand allows each pump to undergo a critical initial break-in period after creation without risking first operation on a live engine. The stand simulates real world operating conditions while APR’s production teams inspect the pump for leaks. Solenoid operation is verified while ensuring the pump is operating within its design specifications. Each pump is then serialized and shipped in a highly protective box to ensure safety during shipping.

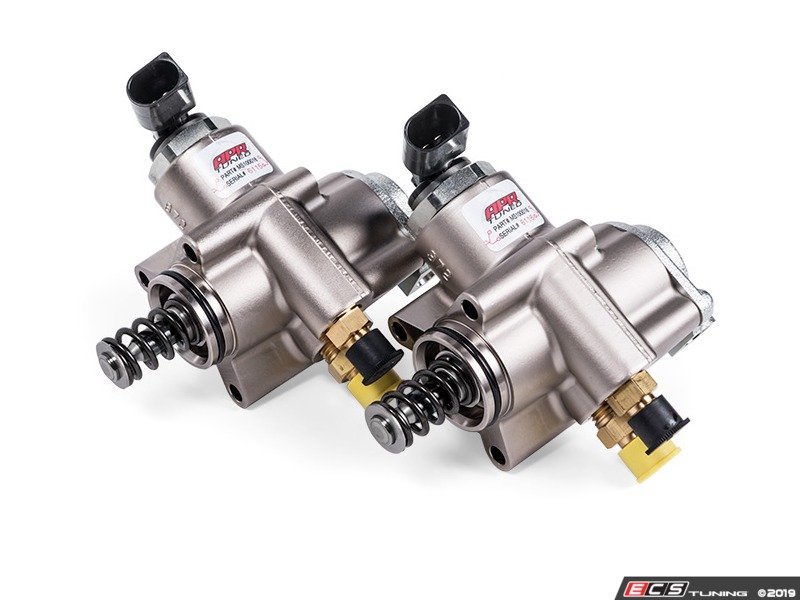

APR offers the 4.2L FSI V8 High Pressure Fuel Pumps in two forms. Brand new pumps may be purchased or the engine’s existing pumps may be rebuilt at APR. Each rebuilt pump undergoes the same treatment as if it were new. The pumps are fragile so ensure both are packaged properly. Turnaround time is quick and can easily be checked and verified by calling APR.
This Part Fits the Following Vehicles
| Make | Model | Submodel | Engine | Special Fitment Notes |
|---|---|---|---|---|
| Audi | B8 S5 | Quattro | V8 4.2L | Use vehicle selector to confirm fitment |
