Bottom End Hardware Set
- Mfg Part #
- N91118902KT
- ECS Part #
- ES#5481594
- Brand
-
Free Shipping
Product Details
Genuine VW/Audi Lower Block Assembly Hardware Set
- Bottom-End Rebuild: Complete collection of critical fasteners required when splitting or refreshing your engine block's bottom end.
- Torque-to-Yield: Every bolt in this set is a stretch fastener designed for single-use clamping accuracy.
- Zero Risk: Never reuse old bottom-end hardware; stretched bolts lose their tensile strength and risk catastrophic backing out or snapping.
- Factory Spec: Sourced as direct OEM replacements to guarantee exact thread pitch, length, and tensile strength under extreme engine loads.
Primary Vertical Main Bearing Cap Bolt (N91118902)
- Core Clamping: Secures the main bearing caps directly to the engine block to cradle your crankshaft.
- High Strength: M10x80mm multi-tooth construction engineered to withstand extreme rotational combustion forces.
- Must Replace: Stretches permanently upon installation to deliver maximum, uniform bearing crush.
Horizontal Cross-Girdle Main Cap Bolt (N91187501)
- Block Rigidity: Threads horizontally through the side of the engine block directly into the sides of the main caps.
- Stop Distortion: Prevents main cap "walk" and block twisting during high-RPM, high-boost operations.
- Triple Square: Precision M8x50mm triple-square drive head prevents stripping during high-torque assembly.
Long Accessory Bracket Mounting Bolt (N10765501)
- Heavy Duty: Anchors the heavy-duty alternator and A/C compressor accessory bracket to the engine casing.
- Vibration Resistant: Long M8x85mm shaft distributes accessory drive torque and dampens belt vibrations.
- Perfect Alignment: Ensures accessories remain perfectly parallel to the crank pulley to prevent belt throw.
Accessory Tensioner / Pan Perimeter Bolt (N10766301)
- Tensioner Anchor: Secures the accessory belt tensioner assembly or upper oil pan perimeter to the block structure.
- Clean Seal: Provides the exact, uniform clamping force needed to compress structural block seals without stripping.
- Direct Fit: Premium M8x20mm Torx fastener matches factory thread depths perfectly.
This Part Fits the Following Vehicles
| Make | Model | Submodel | Engine | Special Fitment Notes |
|---|---|---|---|---|
| Audi | B9 Q5 | Quattro | 2.0T | Use vehicle selector to confirm fitment |
| Audi | B9 Q5 | Quattro | 2.0T e-tron | Use vehicle selector to confirm fitment |
| Volkswagen | Alltrack | All | 1.8T Gen3 | Use vehicle selector to confirm fitment |
| Volkswagen | Atlas | 4Motion | 2.0T Gen3 | Use vehicle selector to confirm fitment |
| Volkswagen | Atlas | FWD | 2.0T Gen3 | Use vehicle selector to confirm fitment |
| Volkswagen | Beetle | All | 1.8T Gen3 | Use vehicle selector to confirm fitment |
| Volkswagen | Beetle | All | 2.0T Gen3 | Use vehicle selector to confirm fitment |
| Volkswagen | Golf VII | Hatchback | 1.8T Gen3 | Use vehicle selector to confirm fitment |
| Volkswagen | Golf VII | Sportwagen | 1.8T Gen3 | Use vehicle selector to confirm fitment |
| Volkswagen | Golf VII | Hatchback | 2.0T Gen3 | Use vehicle selector to confirm fitment |
| Volkswagen | Golf VII | All | 2.0T Gen3 | Use vehicle selector to confirm fitment |
| Volkswagen | Golf VII Facelift | FWD | 1.8T Gen3 | Use vehicle selector to confirm fitment |
| Volkswagen | Golf VII Facelift | FWD | 2.0T Gen3 | Use vehicle selector to confirm fitment |
| Volkswagen | Golf VII R | 4Motion | 2.0T Gen3 | Use vehicle selector to confirm fitment |
| Volkswagen | Golf VII R Facelift | 4Motion | 2.0T Gen3 | Use vehicle selector to confirm fitment |
| Volkswagen | Golf VII SportWagen Facelift | 4Motion | 1.8T Gen3 | Use vehicle selector to confirm fitment |
| Volkswagen | Golf VII SportWagen Facelift | FWD | 1.8T Gen3 | Use vehicle selector to confirm fitment |
| Volkswagen | Jetta VI | Sedan | 1.8T Gen3 | Use vehicle selector to confirm fitment |
| Volkswagen | Jetta VI | Sedan Facelift | 1.8T Gen3 | Use vehicle selector to confirm fitment |
| Volkswagen | Jetta VI | Sedan | 2.0T Gen3 GLI | Use vehicle selector to confirm fitment |
| Volkswagen | Jetta VI | Sedan Facelift | 2.0T Gen3 GLI | Use vehicle selector to confirm fitment |
| Volkswagen | Jetta VII | GLI | 2.0T Gen3 | Use vehicle selector to confirm fitment |
| Volkswagen | Jetta VII | GLI Facelift | 2.0T Gen3 | Use vehicle selector to confirm fitment |
| Volkswagen | Passat B7 | FWD | 1.8T Gen3 | Use vehicle selector to confirm fitment |
| Volkswagen | Tiguan MQB | 4Motion | 2.0T Gen3 | Use vehicle selector to confirm fitment |
| Volkswagen | Tiguan MQB | FWD | 2.0T Gen3 | Use vehicle selector to confirm fitment |

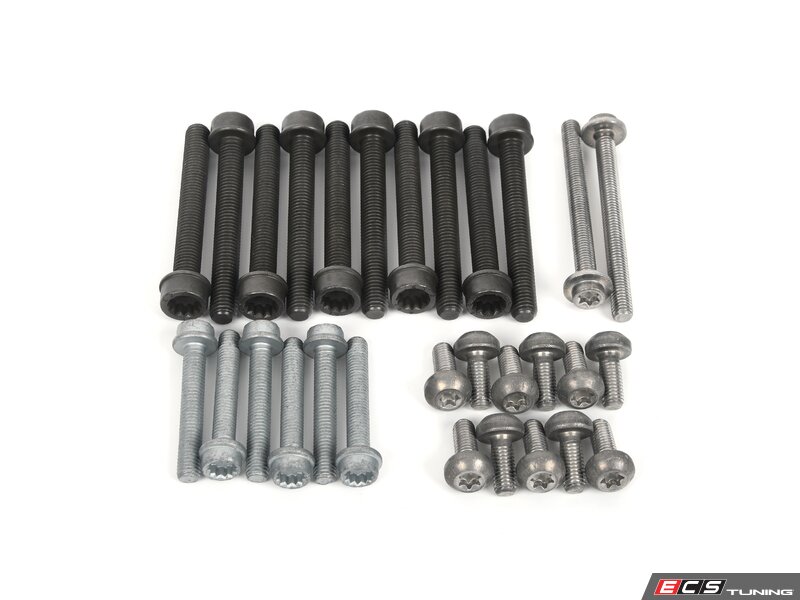

Kit Contents
| Description | Brand | Qty | Lifetime | |
|---|---|---|---|---|
| Bolt - Price Each |
|
10 | YES | |
| Bolt - Priced Each |
|
6 | YES | |
| Bolt - priced each |
|
11 | YES | |
| Torx Bolt - Priced Each |
|
2 | YES |
