Comprehensive E46 Rear Subframe/Chassis Reinforcement Kit
- Mfg Part #
- TDR4675412FOAMKT
- ECS Part #
- ES#3108211
- Brand
-
Product Details
The E46 subframe has come to be known as a problem child. With failures showing in all mileage ranges of cars, ECS and Turner come together to give you the most comprehensive fix available. As with any problem, the important part becomes finding the cause. When BMW designed the rear suspension they placed a cross member on the front two mounting points of the subframe, which keeps the front mounting points from having problems by placing the bushing and the stud in double-sheer. The result is reduced twisting action on the sheet metal. However, this also causes the load to be transmitted to the left rear of the subframe, which has become a common failure point. There are two common fixes for this issue.
Option 1: Structural Foam. BMW realized this issue shortly after the release of the E46. Their solution was structural foam to fill the void between the underside of the chassis and the top of the trunk. Though this addresses the failures in the subframe, it is not a complete fix. The key component missed is the failure of the spot welds in the sheet metal.
Option 2: Turner Motorsport Reinforcement Kit. Though structural foam helps, it does not completely address the issue. Turner Motorsport has also developed a solution to address subframe issues. This is accomplished by installing reinforcement plates at the subframe mounting points, which thicken the metal and distribute the load over a larger area.
ECS Tuning has come up with what we believe to be the best possible solution. With this comprehensive kit, you get the best of both worlds. Turner's subframe reinforcement kit paired with structural foam to assist in load dispersal and prevent new cracks from forming by limiting sub frame mount movement. The most comprehensive kit to keep your E46 on the road for many years to come.
- 83190007361
This Part Fits the Following Vehicles
| Make | Model | Submodel | Engine | Special Fitment Notes |
|---|---|---|---|---|
| BMW | E46 | 323Ci | M52 2.5L | Use vehicle selector to confirm fitment |
| BMW | E46 | 323i | M52 2.5L | Use vehicle selector to confirm fitment |
| BMW | E46 | 325Ci | M54 2.5L | Use vehicle selector to confirm fitment |
| BMW | E46 | 325i | M54 2.5L | Use vehicle selector to confirm fitment |
| BMW | E46 | 325i | M54 3.0L | Use vehicle selector to confirm fitment |
| BMW | E46 | 325xi | M54 2.5L | Use vehicle selector to confirm fitment |
| BMW | E46 | 328Ci | M52 2.8L | Use vehicle selector to confirm fitment |
| BMW | E46 | 328i | M52 2.8L | Use vehicle selector to confirm fitment |
| BMW | E46 | 330Ci | M54 3.0L | Use vehicle selector to confirm fitment |
| BMW | E46 | 330i | M54 3.0L | Use vehicle selector to confirm fitment |
| BMW | E46 | 330xi | M54 3.0L | Use vehicle selector to confirm fitment |
| BMW | E46 | M3 | S54 3.2L | Use vehicle selector to confirm fitment |

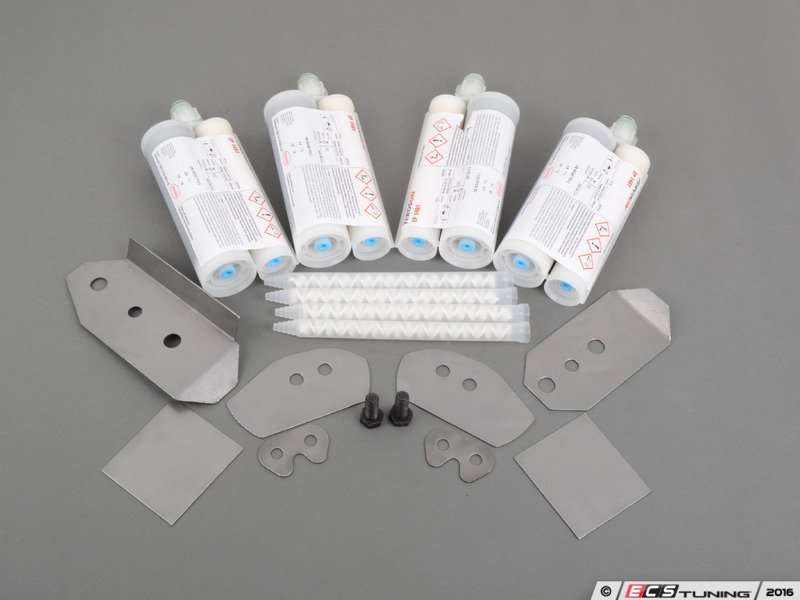

Kit Contents
| Description | Brand | Qty | Lifetime | |
|---|---|---|---|---|

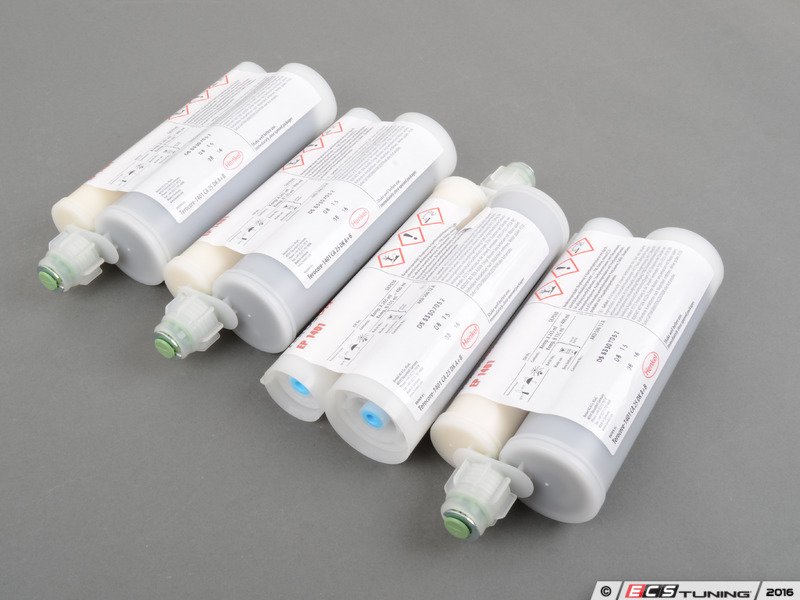

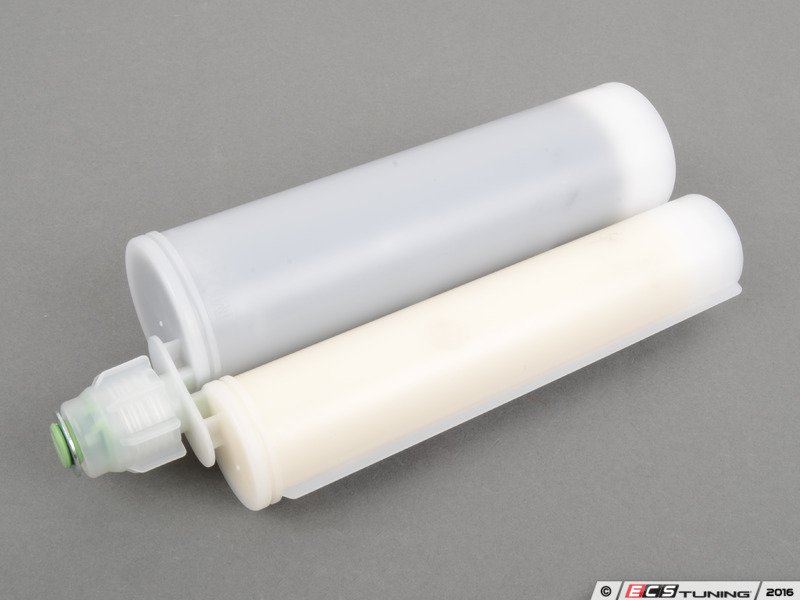

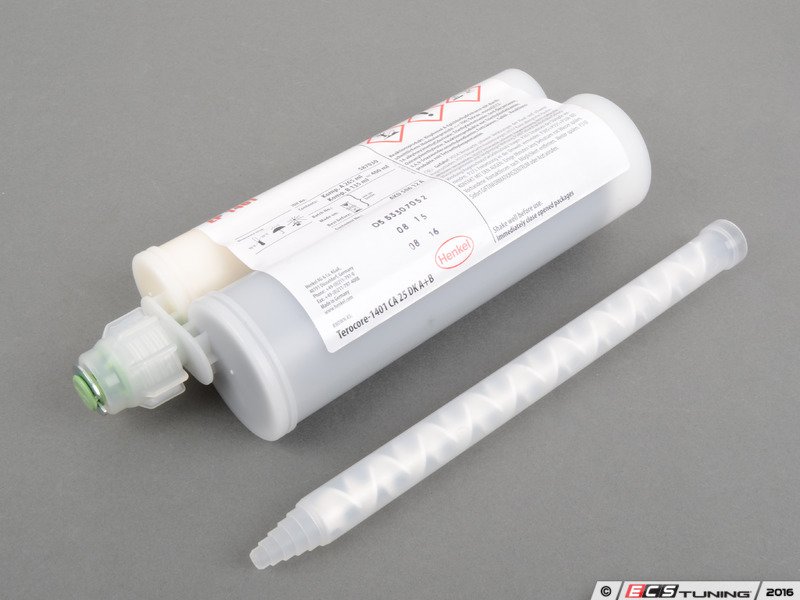

| Structural foam - priced each - (NO LONGER AVAILABLE) |
|
4 | NO | |

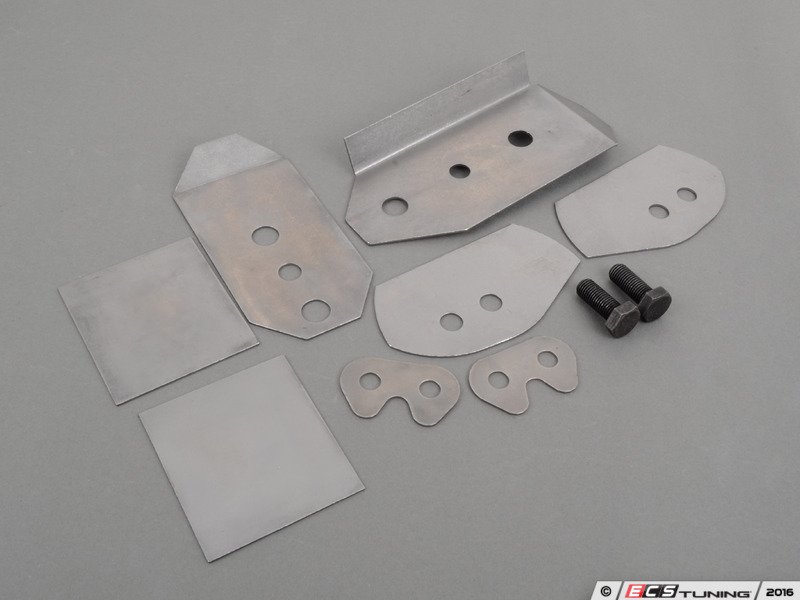

| Rear Subframe/Chassis Reinforcement Kit - E46 |
|
1 | YES |
Some kit components are covered by our Lifetime Replacement Program
