ES#3691501 - 1K0411303KT3 - Front Sway Bar Installation Kit - All of the necessary one-time use hardware for front sway bar installation featuring standard replacement front sway bar end links - Assembled By ECS - Volkswagen

Front Sway Bar Installation Kit

All of the necessary one-time use hardware for front sway bar installation featuring standard replacement front sway bar end links
Mfg Part #
1K0411303KT3
ECS Part #
ES#3691501
Brand
Assembled By ECS
143.77
$151.34 (Sale - Save 5%)
Free Shipping Free Shipping
on orders $49 and up
Availability: In Stock
Qty
Does this fit my vehicle?

Product Details

Trying to source all the hardware to the job the right way can be frustrating. At ECS Tuning have numerous kits to make the job go easier.



In this front sway bar installation kit we have included every bolt and nut required by VW to properly remove and reinstall your front subframe and sway bar.

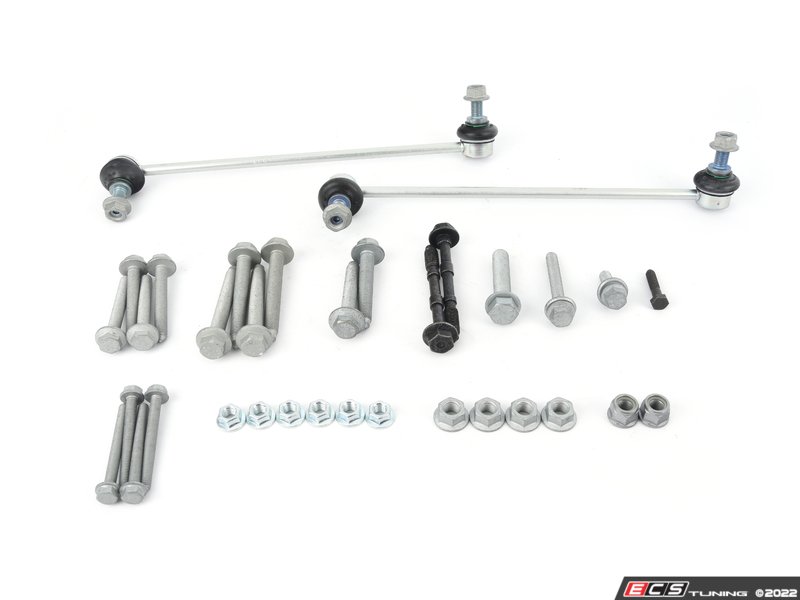

Included in the kit are:

All subframe to body bolts (Torque to 70 Nm + 90° turn)
Stabilizer bar to coupling rod nuts (Torque to 65 Nm)
Tie rod end to wheel bearing housing nuts (Torque to 20 Nm + 90° turn)
Ball joint to control arm nuts (Torque to 60 Nm for Steel Control arms -or- Torque to 100 Nm for Aluminum Control Arms)
Universal joint to steering gear (Torque to 30 Nm)
Pendulum support to transmission bolts (Torque to 50 Nm + 90° turn for both bolts with class 10.9 hardware)
Sway Bar Connecting links
Take the guesswork out with a complete hardware kit and spend less time trying to find what you need and spend more time getting the work done!

This Part Fits the Following Vehicles

Make Model Submodel Engine
Volkswagen Tiguan 1 4 Motion 2.0T
Volkswagen Tiguan 1 FWD 2.0T
Volkswagen Tiguan 2 4 Motion 2.0T
Volkswagen Tiguan 2 FWD 2.0T
*The above product applications have been written by ECS Tuning. All warranties, product application, fitment, and performance are the responsibility of ECS Tuning. For additional information see the terms of use.
