Single Vanos Ultimate Rebuild Kit
- Mfg Part #
- 012016ECSKT
- ECS Part #
- ES#4866097
- Brand
-
This product was last offered at the strikethrough price on
05-02-2026
Free Shipping
Product Details
Some rebuild kits come with VANOS gaskets and seals but forget that you will need a new valve cover gasket set. You will also need special tools to disassemble your VANOS unit and align everything when you're done. This kit features all the tools, necessary gaskets, and seals to get the job done without a trip to the store.
The VANOS system found in BMW engines is a great feature, keeping your power curve smooth and responsive especially in lower to mid RPM range. What usually goes unnoticed is the gradual loss of power within this range as the vehicles age due to slowly failing seals within the VANOS unit. The way the VANOS system works is based on oil pressure triggered by a solenoid that allows for a small range of timing degree adjustment, this is where the power curve is affected. When the seals begin to fail (all of them do) there is less pressure to advance the timing reducing the power in that low to mid range. Because this happens slowly it's very hard to notice a difference until you refresh your VANOS unit, then you easily realize the response you've been missing.
The main reason all of the VANOS units will eventually fail is because the material used for the sealing rings from the factory is not designed for that type of environment. When this happens the only option that BMW leaves you with is buying a new and expensive VANOS unit with the same sealing rings that failed in your original unit.
There are a number of symptoms that will plague your car as a result of these failing seals such as erratic idle, engine hesitation, stalling, and increased fuel consumption to name a few. If you've been chasing down any of these symptoms with no fix then this could be your issue.
While you 're replacing the seals in your VANOS unit it a good time to install anti-rattle spacers to tighten up the gaps in your stock assembly and get rid of that noisy VANOS clatter.

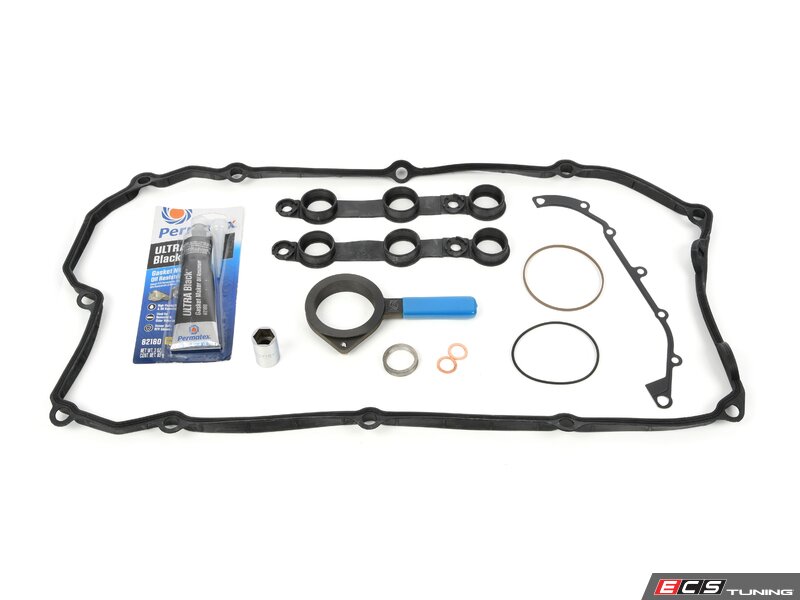

Kit contents:
- VANOS Sealing Gasket
- Anti-Rattle Spacer Ring
- Teflon Vanos Sealing ring
- Viton Vanos O-ring
- 2 vanos line copper crush washers
- Valve Cover Gasket Set
- 18mm modified socket for disassembling VANOS unit
- Vanos Adjustment Wrench
- Ultra Black Gasket Maker
This Part Fits the Following Vehicles
| Make | Model | Submodel | Engine | Special Fitment Notes |
|---|---|---|---|---|
| BMW | E36 | 323ic | M52 2.5L | Use vehicle selector to confirm fitment |
| BMW | E36 | 323is | M52 2.5L | Use vehicle selector to confirm fitment |
| BMW | E36 | 328i | M52 2.8L | Use vehicle selector to confirm fitment |
| BMW | E36 | 328ic | M52 2.8L | Use vehicle selector to confirm fitment |
| BMW | E36 | 328is | M52 2.8L | Use vehicle selector to confirm fitment |
| BMW | E36 | M3 | S52 3.2L | Use vehicle selector to confirm fitment |
| BMW | E39 | 528i | M52 2.8L | Use vehicle selector to confirm fitment |
| BMW | Z3 | 2.3 | M52 2.5L | Use vehicle selector to confirm fitment |
| BMW | Z3 | 2.5 | M52 2.5L | Use vehicle selector to confirm fitment |
| BMW | Z3 | M Coupe | S52 3.2L | Use vehicle selector to confirm fitment |
| BMW | Z3 | M Roadster | S52 3.2L | Use vehicle selector to confirm fitment |
Kit Contents
| Description | Brand | Qty | Lifetime | |
|---|---|---|---|---|
| VANOS Sealing Gasket |
|
1 | YES | |
| Ultra Black Maximum Oil Resistance RTV Silicone Gasket Maker |
|
1 | NO | |
| Valve Cover Gasket Set |
|
1 | YES | |
| Copper Drain Plug Washer - Priced Each |
|
2 | YES | |
| Anti-Rattle Spacer Ring |
|
1 | YES | |
| Teflon Sealing Ring |
|
1 | YES | |
| 1/2-inch Drive Flush-Cut 18mm Socket For VANOS |
|
1 | YES | |
| 77mm ID X 2.6mm C/S Viton 75a O-Ring |
|
1 | YES | |
| Schwaben BMW VANOS Adjustment Wrench |
|
1 | YES |
