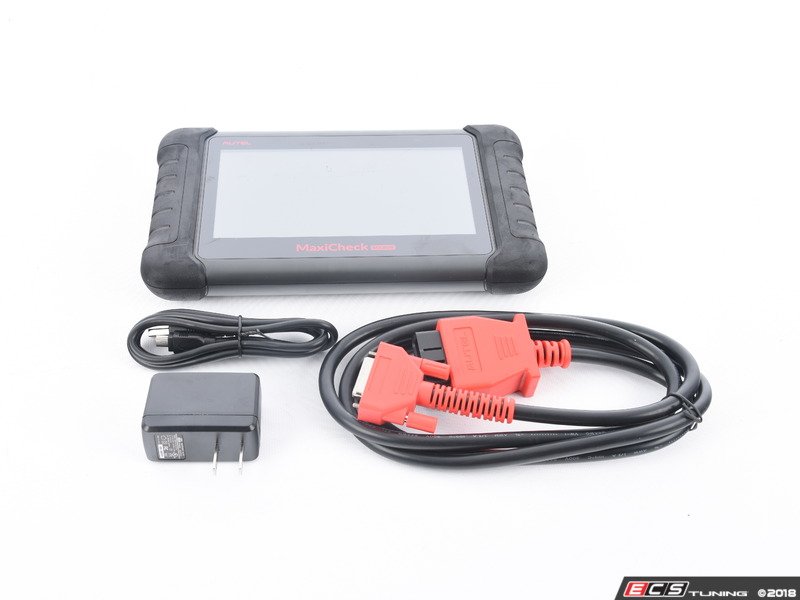

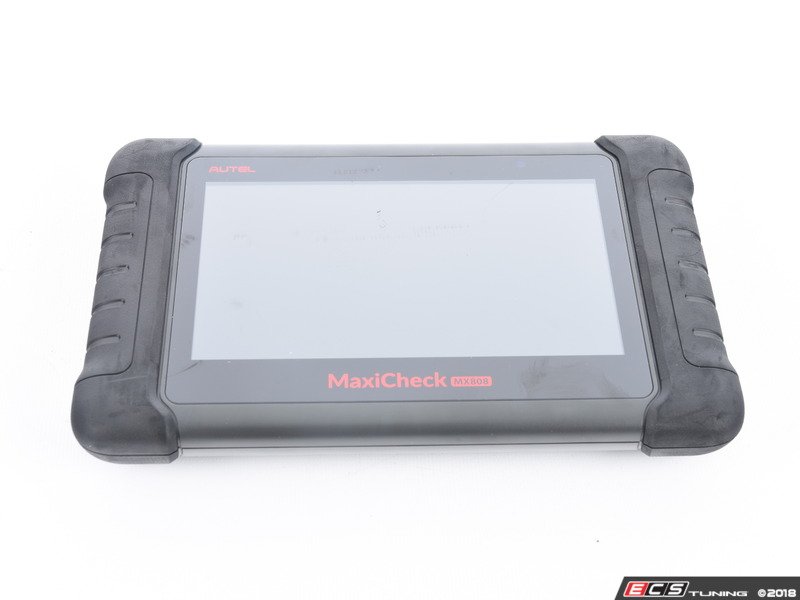

Autel MaxiCheck MX808 Diagnostic Tool

Features a 7 inch touch screen and a fast quad-core processor
Mfg Part #
AUL-MX808
ECS Part #
ES#3617872
Brand
Autel
Does this fit my vehicle?

Product Details

When it comes to ultra-portability, MaxiCheck MX808 is your perfect companion. Installed with a fast quad-core processor, MX808 offers maximum convenience and swift diagnosis. The intuitive user interface makes using the device effortless through a 7-inch LCD touch screen that displays at 1024x600 quality.

Features:

  • Read/clear codes for all available systems
  • Display live data in text, graph & analog for easy data review
  • Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time
  • Relearn parking brake pad after replacement
  • Support IMMO functions
  • Support forced DPF regeneration and adjusting injectors
  • Reset Steering Angle Sensor (SAS)
  • Reset service mileage and service intervals
  • Support TPMS sensor relearn
  • Support battery registration and reset

Specifications:

  • Operating System: Android™ 4.4.4
  • Processor: Cortex-A9 processor (1.5 GHz)
  • Memory: 32GB
  • Display: 7-inch LCD capacitive touch screen with 1024x600 resolution

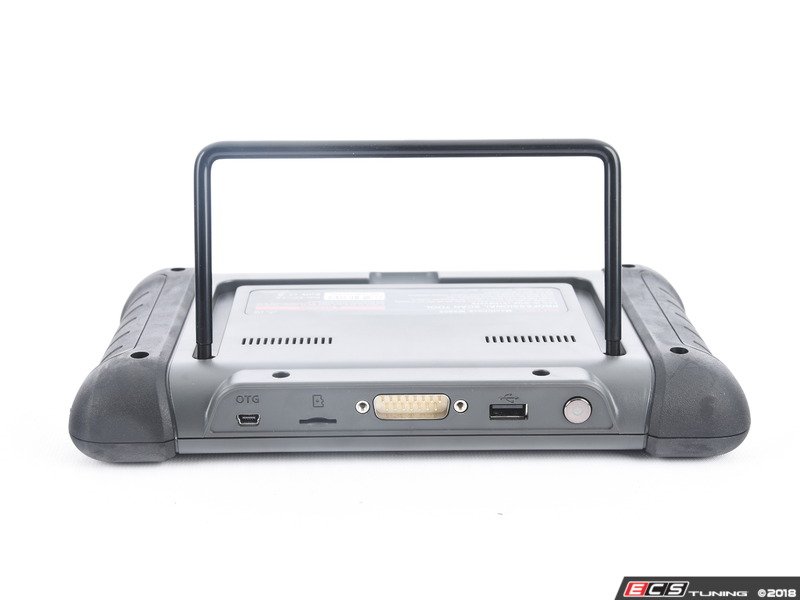

  • Connectivity: Mini USB 2.0, USB 2.0, Wi-Fi, Micro SD card (supports up to 32GB)
  • Sensors: Ambient light sensor for brightness auto changing
  • Audio Input/Output: Input: N/A, Output: buzzer

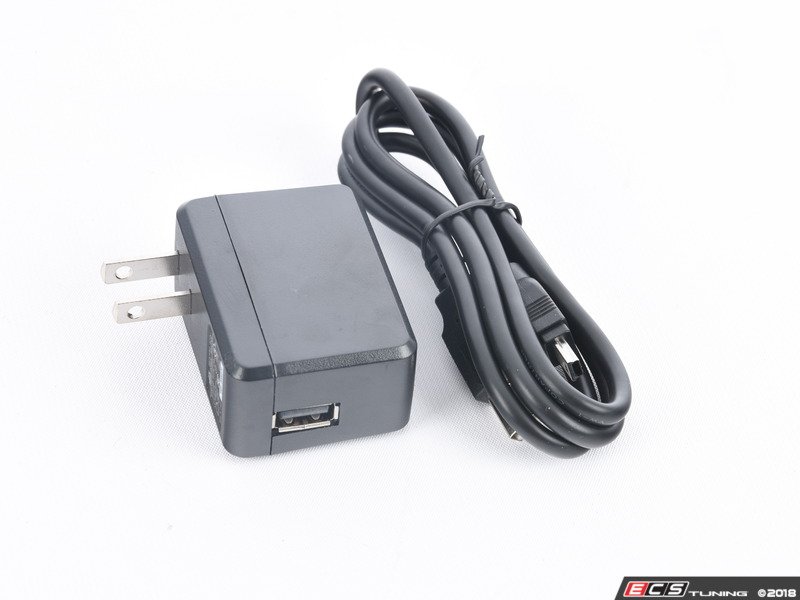

  • Power and Battery: 3.7 V/3200 mAh lithium-polymer battery, Charges via 5 VDC power supply
  • Tested Battery Life: Around 4.5 hours of continuous use
  • Battery Charging Input: 5 V/1.5 A
  • Power Consumption: 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
  • Operating Temp:. -10 to 60°C(14 to 140°F)
  • Storage Temp.: -20 to 70°C (-4 to 158°F)
  • Operating Humidity: 5% - 95% non-condensing
  • Dimensions: (W x H x D) 237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”)
  • Net Weight: 788 g (2.42 lb.)
  • Supported Automotive Protocols: ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

This Part Fits the Following Vehicles

Make Model Submodel Engine
Audi All All All
BMW All All All
Mercedes Benz All All All
MINI All All All
Porsche All All All
Volkswagen All All All
