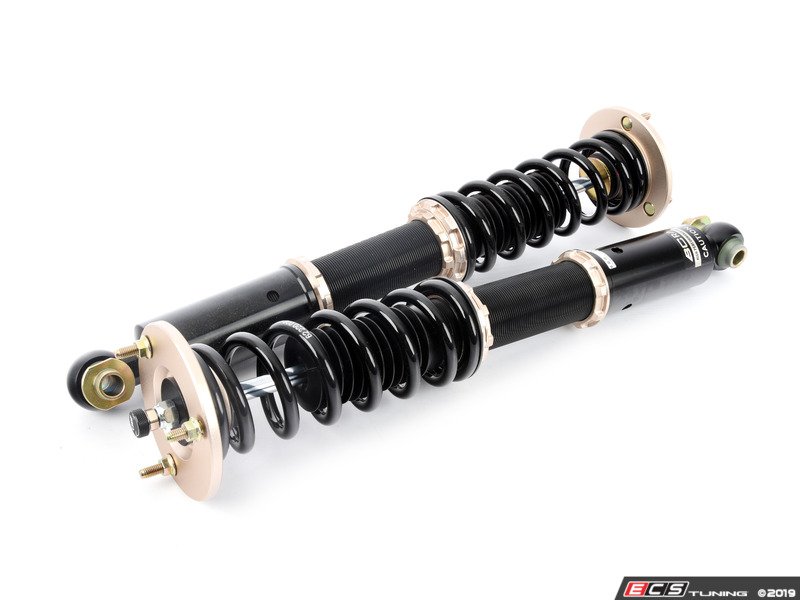

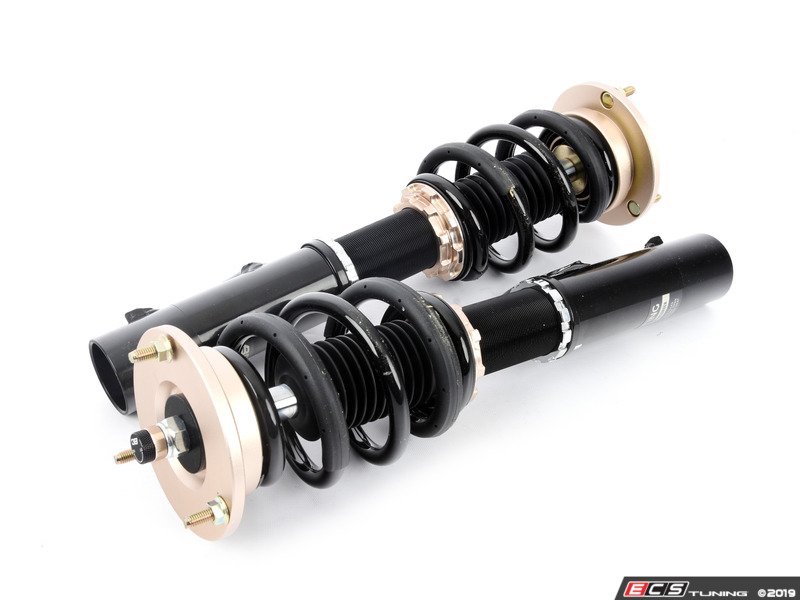

BR Series Coilover Suspension Kit
- Mfg Part #
- I-86-BR
- ECS Part #
- ES#3509462
- Brand
-
Free Shipping
Product Details
BC Racing has made a name for themselves in the automotive enthusiast communities by developing adjustable, street-and-track capable coilover kits for over a decade that are not only extremely effective, but also don't brake the bank!
The BR Series coilover suspension kit features mounting points and brackets that are completely compatible with all stock mounting locations and components. It is their most popular and versatile suspension setup, offering linear springs (where possible), 30 levels of dampening adjustment including simultaneous compression and rebound control, and a 2 inch minimum ride height drop. All BR Series kits are Dyno tested in order to determine the best valving and spring rates for each chassis and are tested for a minimum of 6 months before being released to the public to ensure ride quality and reliability.
All upper shock and strut mounts are all constructed of 6061-T6 Aluminum to ensure a lightweight and incredibly strong design. Front design options include: Caster/Camber Plates, Camber plates, and Rubber Mount Plates. See below for the option fitted to your chassis's BR Series Kit. The adjustable plate designs allow for up to 3 degrees of camber adjustment. The Rubber Mount Plates are better for preventing unwanted NVH.
Lower shock mounts are either made of 6061-T6 Aluminum just like the top mounts (Fork or Bolt Eye Style Mount) that have been milled from a single piece of material, or high quality STKM13C steel with all brackets welded robotically. Both style are then powder coated for corrosion protection and styling.
All springs used, linear, S-barrel, and v-barrel, are made of SAE9254 steel and utilize a Zinc coating under a powder coating finish to ensure rust cannot penetrate the metal of the spring and compromise performance or reliability. Liner springs are used in in places possible unless otherwise limited by the OE design of the vehicle which does not allow it. In that case, S-Barrel or V-Barrel springs are used to match OE shape/style specifications and the spring's rate is then matched to the linear rate.
BC Racing creates their kits utilizing a wide variety of shock types, lengths and diameters. Each vehicle depending on their data from R&D, and accounting for the OEM suspension design will utilize a different style of shock. Each shock is hand assembled in their factory and dyno tested before use in their kits. Shocks are paired together by their compression and rebound numbers after dyno testing for even and precise quality and performance. Each shock body used in their system is 53mm for added strength, performance, and increased fluid capacity (unless limited spacing will not allow). The shocks are then coated in black chrome for a clean, cohesive appearance and corrosion resistance.
Specs and Features:
- 8k Front & 5k Rear Spring Rate
- S-Barrel front & Linear rear springs
- Valved specifically to spring style and rate
- Aluminum and Rubber Front Mounts
- Rear Rubber Mounts
- Black Powder Coated Components
- All OE style brackets and mounting for perfect fit
- 30 Levels of Simultaneous Compression and Rebound Dampening
- 2 inch minimum and 3+ Inches of total potential drop
- Great for Track, Street, and any other conditions
- I86BR
- I-86-BR
This Part Fits the Following Vehicles
| Make | Model | Submodel | Engine | Special Fitment Notes |
|---|---|---|---|---|
| BMW | E60 | 525xi | N52 3.0L | Use vehicle selector to confirm fitment |
| BMW | E60 | 528xi | N52 3.0L | Use vehicle selector to confirm fitment |
| BMW | E60 | 530xi | N52 3.0L | Use vehicle selector to confirm fitment |
| BMW | E60 | 535xi | N54 3.0L | Use vehicle selector to confirm fitment |
This Product Is Covered By Our Lifetime Replacement Program
Products protected by our Lifetime Replacement Program are covered for as long as you own the product, no need to worry about an expiration date. Purchase your products and enjoy some worry-free motoring, knowing we've got you covered.
If you have any questions, would like to learn more or are ready to place a replacement claim, click here!
Return and Exchanges
Need to set up a return? Click here to begin: Return Process
All you need is your order number and email address.
New/Unused Product Returns
ECS Tuning will accept returns for unused products within 90 days of the ship date for a refund to the original payment method used. The customer is responsible for the return shipping costs and fees. If selecting to use a prepaid shipping label, the shipping cost will be deducted from the total refunded amount. All new/unused products must be new, unused and must be in the original packaging, including labeling, manuals, hardware, etc. Special order parts are non-refundable.
In the event that we find an error on our website or on behalf of an ECS Tuning Representative, we will provide a return shipping label from the original delivery location.
Refused Packages
Any domestic orders that are returned to ECS Tuning as refused by receiver or non-deliverable will be subject to a return handling fee and will be processed as a return in compliance with our standard return policy, including a 15% restocking fee.
Any international orders that are refused at the time of delivery will be subject to carrier abandonment of the package, at which time the ordered products would be discarded by the carrier. The customer will not be refunded for the value of the order and the discarded products are no longer retrievable.
Return Process
ECS Tuning now offers an online returns solution! To get started, simply log into your ECS Tuning account, Click the "View Orders" button on the My Account home page and select the order that you wish to make a return on to begin. If you have any questions, feel free to reach out to our Customer Service Team for assistance!
Please note: Refunds will be processed to the original payment method used on the order or to an in store credit, respective to the type of return that is made as well as any pre-existing arrangements with an ECS Tuning Customer Service Representative. In the event that multiple forms of payment were used, we will refund the value to an in store credit. In the event that a return label is provided, these charges may be deducted from the total refund you receive.
Original shipping costs are non-refundable and the buyer is responsible for return shipping charges. ECS Tuning will not accept COD deliveries.
All in store credit balances will expire after one year from the original purchase date.
Shipping Policy
Free Shipping On Orders $49 & Up
Items marked with a 'Free Shipping On Orders $49 and Up' logo may qualify for free standard economy ground shipping to the contiguous United States (48 states) for most orders with a value greater or equal to $49.00 USD. Oversized products and direct ship products are excluded from this offer unless otherwise noted.
Free Shipping
Items marked as 'Free Shipping' may qualify for free standard economy ground shipping to the contiguous United States (48 states). Oversized products and direct ship products are excluded from this offer unless otherwise noted.
The policies listed above are subject to change at any time without notice.
Lifetime Replacement
Want to know more about our Lifetime Replacement program?
Click here to learn more.
Why You Should Shop From ECS Tuning
ECS Tuning stands out as more than an automotive parts supplier-it's a vibrant community fueled by a shared passion for cars. Born from the enthusiasm of car lovers, we offer an unmatched understanding and commitment to the automotive world, providing high-quality parts and accessories sourced from our own experiences. Our selection is meticulously crafted to meet the highest standards of performance, quality, and design, catering to both the latest trends and classic styles.
Our distinct advantage lies in our passionate team and comprehensive support, offering expert advice and seamless service from selection to installation. Shopping with ECS brings exclusive perks, including our Lifetime Replacement Guarantee and free shipping on orders over $49, enhancing the value of every purchase. As a central hub for car enthusiasts, ECS Tuning fosters a rich community where ideas and experiences flourish, transforming us from a mere supplier into a platform where automotive dreams come to life.
Cancellation Policy
At ECS Tuning, we understand that plans can change. That's why we offer a flexible cancellation policy for our customers. You may cancel your order at any time before you receive the shipment confirmation. This policy is designed to provide you with peace of mind and the flexibility to make adjustments to your purchases as needed. Should you decide to cancel your order, simply reach out to our customer service team, and we will assist you with the process swiftly and efficiently.
Hurry, limited stock available!
Prop 65 Warning
Frequently Purchased Together
-

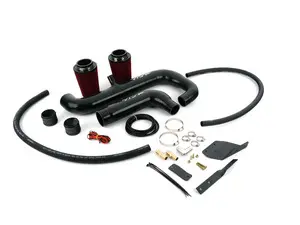

VRSF Relocated Silicone High Flow Inlet Intake Kit
