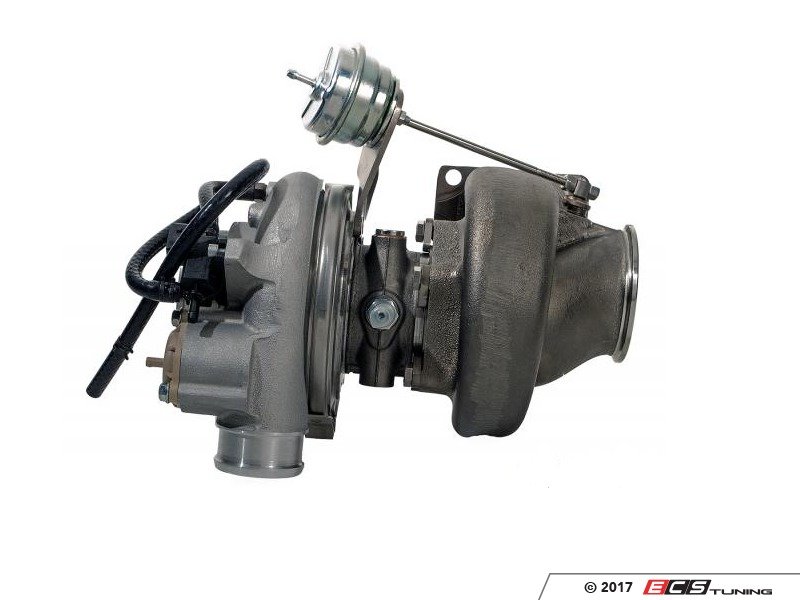

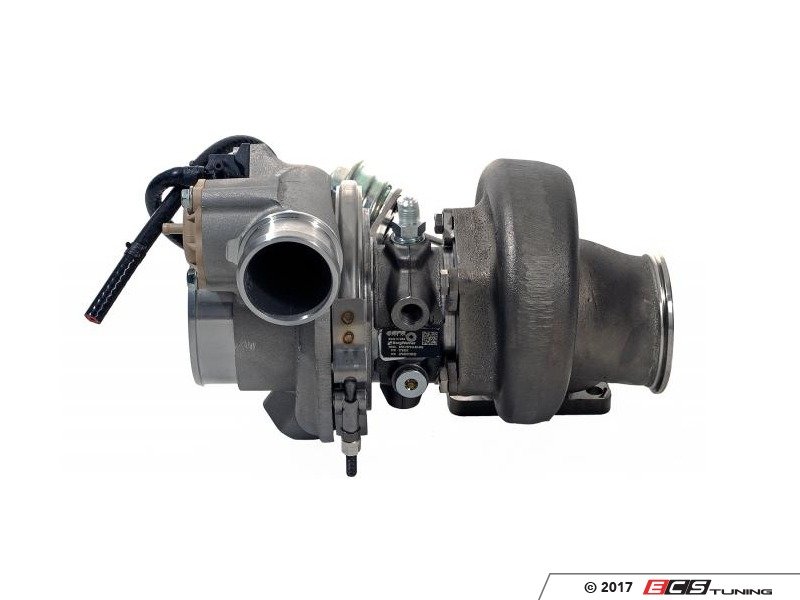

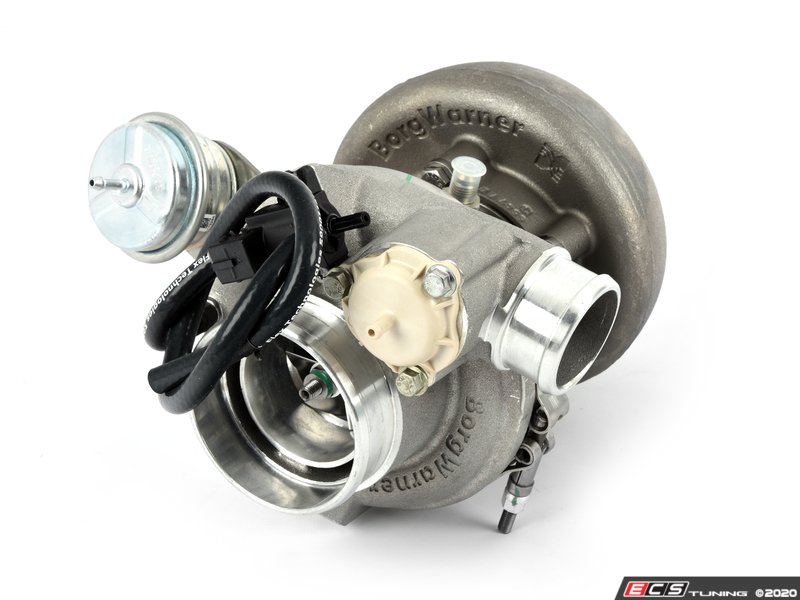

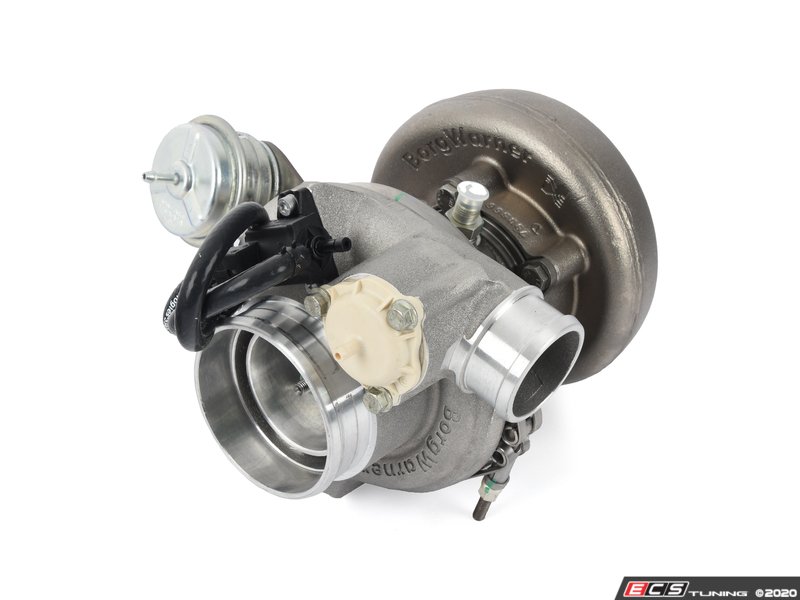

Borg Warner EFR 7670 Turbocharger

0.83 A/R T3 Single Scroll (Internal Wastegate) - 375hp-650hp capabilities
*To be used with custom turbocharger applications only - IE T3 flange manifold, custom fueling, tuning/software, and internals necessary*
Mfg Part #
ECS Part #
Ships in 8 Business Days
Does this fit my vehicle?

Product Details

*To be used with custom turbocharger applications only - IE T3 flange manifold, custom fueling, tuning/software, and internals necessary*

So, you’re probably wondering, “What does a new product line of high-performance turbochargers have to do with commercial applications?” The answer lies in the fact that commercial/industrial turbo products have extreme requirements for durability, reliability, and aerodynamic performance. Since modern passenger car applications use turbos smaller than 55mm in turbine wheel diameter, it’s the aerodynamic development from the commercial side of the business (i.e. everything larger) that feeds into the performance enthusiast’s desire for big power production.

Boost pressures of 45-50 psi (3 bar+) are the norm, not the exception. Also required is resistance to abusive thrust loads, high vibrations, and robustness for a wide range of lubrication conditions. Additionally, our commercial product validation standards are among the highest in the engine boosting industry – all good things that also benefit the performance enthusiast or racer. Those are the commonalities, but there are also differences. Unlike commercial applications, high performance users want lightweight, compact, versatile designs. They also deliver the turbocharger very high exhaust gas temperatures with high expectations for fast response. Cosmetic appearance is also valued as are integrated features that aid the installation process and remove the need for other turbo related accessories. Those performance and packaging requirements are quite common among the modern aftermarket passenger car turbo customer.

So, what happens when you combine all of those necessities and put them in front of passionate car people looking to advance the pace of aftermarket boosting solutions? You discover that something new is required to meet the demands of the next generation turbo consumer. There is a fierce desire to take engine boosting to the next level. It was this need for big power that led to EFR.

EFR 7670 Series Features:

  • 375-650HP

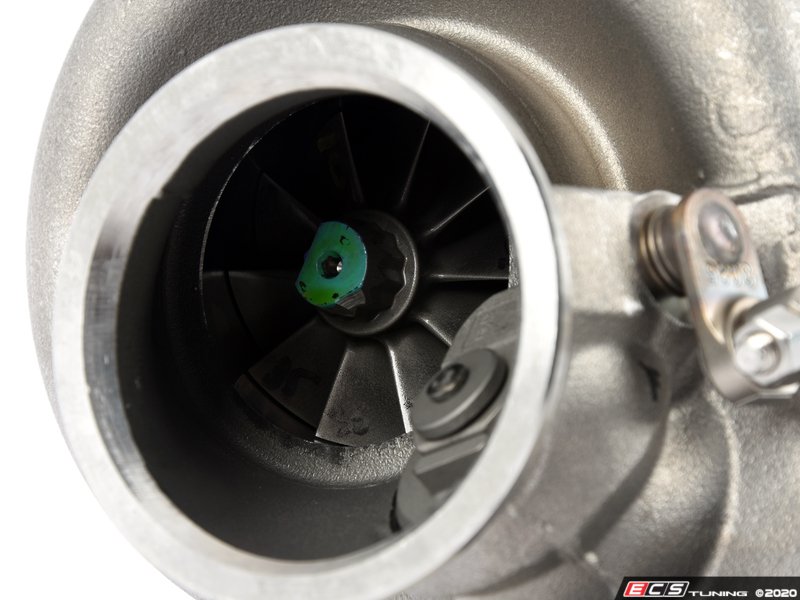

  • Low-weight Gamma-Ti turbine wheels and shaft assemblies for quick boost response

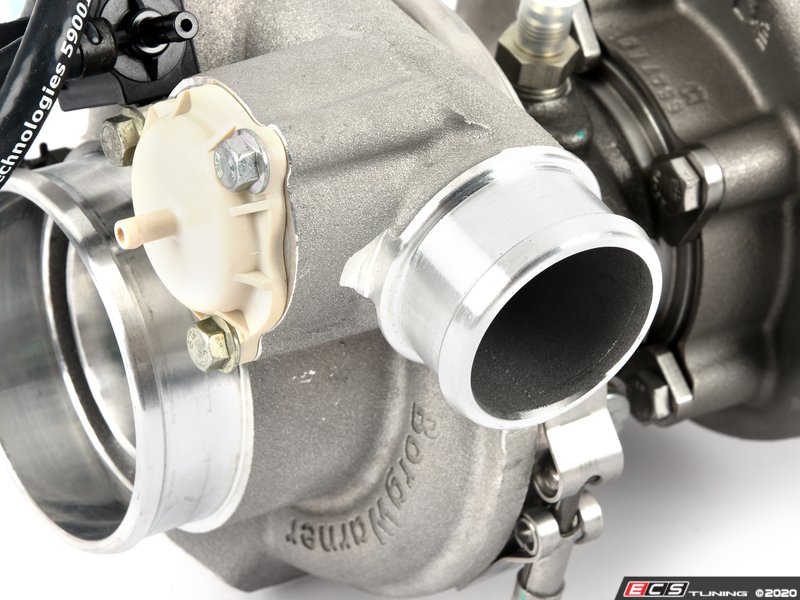

  • Integrated Compressor Recirculation Valve (CRV)
  • Patent-pending dual ceramic ball bearing cartridges for more thrust capacity, durability and turbine efficiency at low expansion ratios
  • Boost Control Solenoid Valve (BCSV)
  • Forged Milled Compressor Wheel (FMW)
  • Stainless steel turbine housing for increased efficiency, improved durability and corrosion resistance
  • Extended tip technology
  • Compressor cover with speed sensor mounting provisions

*Specific Turbocharger Specs:

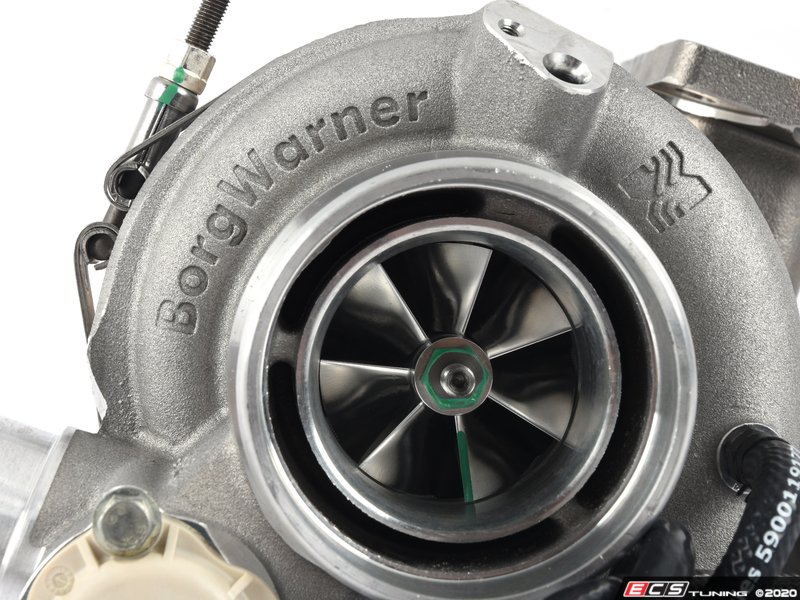

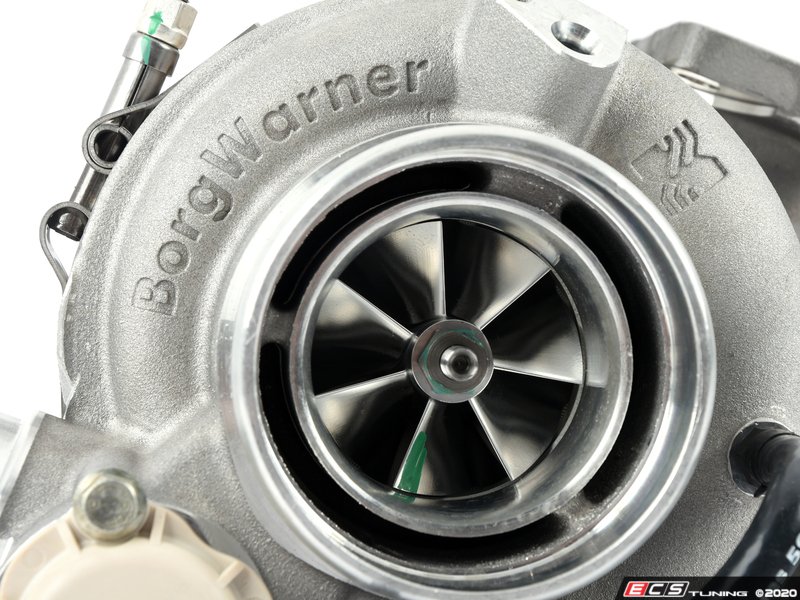

  • Comp Wheel Inducer (mm): 57
  • Comp Wheel OD (mm): 76
  • HP Range: 375-650
  • Bearing Housing Material: Cast Iron
  • Scroll: Single
  • Turbine Housing A/R: 0.83

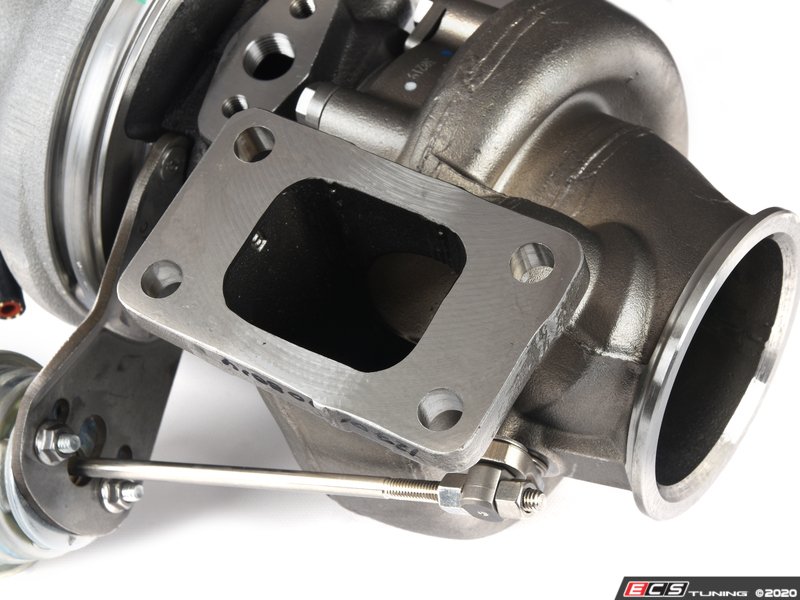

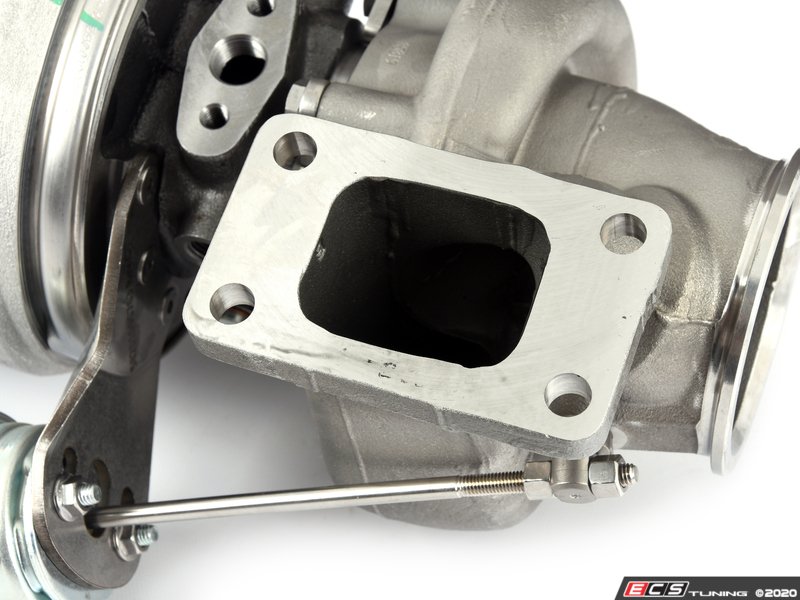

  • Turbine Housing Inlet: T3
  • Turbine Wheel OD (mm): 70
  • Turbo Frame Size: B2

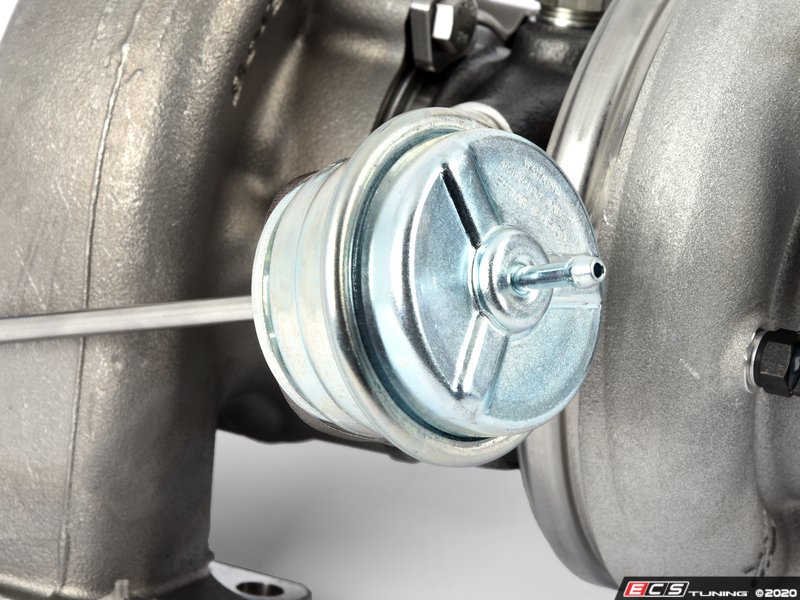

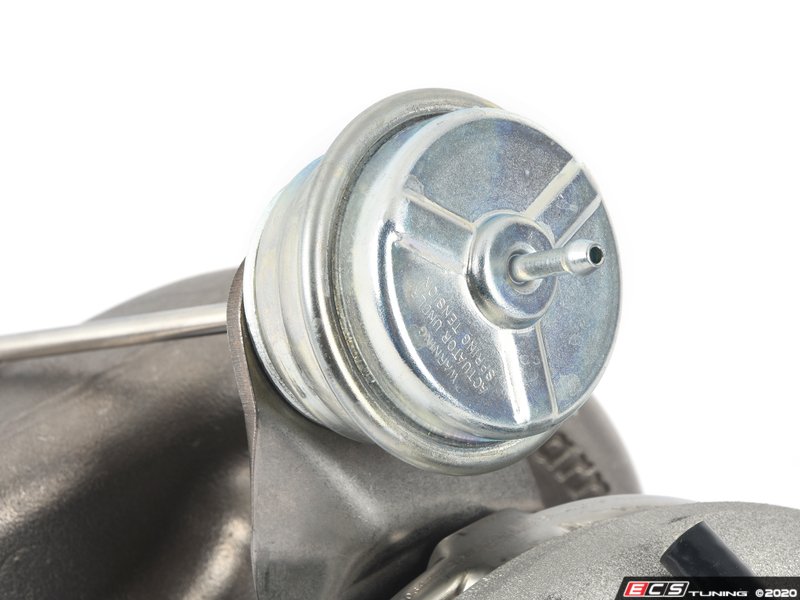

  • Wastegate: Yes

**To be used with custom turbocharger applications - T3 flange manifold, custom fueling, tuning/software, and internals necessary**

*For turbocharger frame dimensions, please see info sheet PDF under the 'installation' tab*


This Part Fits the Following Vehicles

Make Model Submodel Engine
Audi B5 A4 FWD 1.8T
Audi B5 A4 Quattro 1.8T
Audi B6 A4 FWD 1.8T
Audi B6 A4 Quattro 1.8T
Audi TT MKI Quattro 180HP
Audi TT MKI Quattro 225HP
Volkswagen 337/20AE All 1.8T
Volkswagen Golf IV All 1.8T
Volkswagen Jetta IV All 1.8T
Volkswagen Jetta IV GLI All 1.8T
Volkswagen Passat B5 4 Motion 1.8T
Volkswagen Passat B5 FWD 1.8T
*The above product applications have been written by ECS Tuning. All warranties, product application, fitment, and performance are the responsibility of ECS Tuning. For additional information see the terms of use.

ECS Tuning is not affiliated with any automobile manufacturers.
Manufacturer names and/or part numbers are used only for identification purposes.
