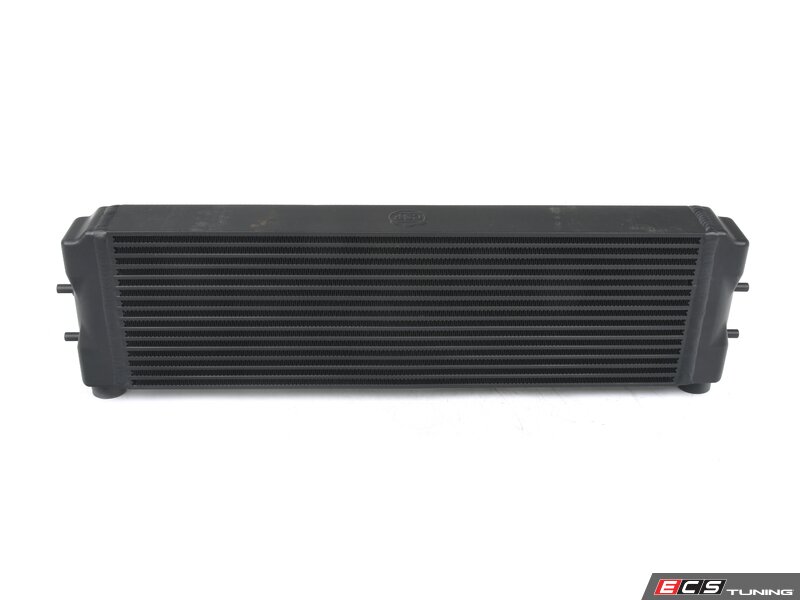

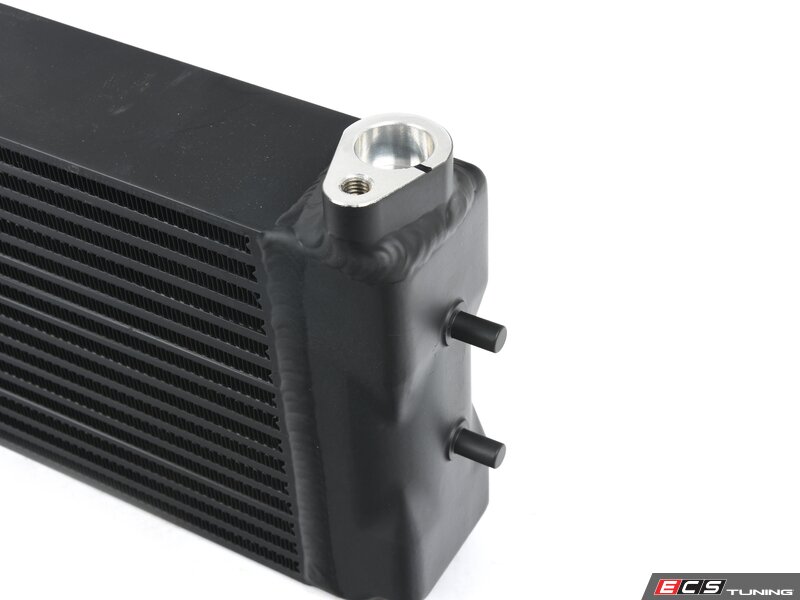

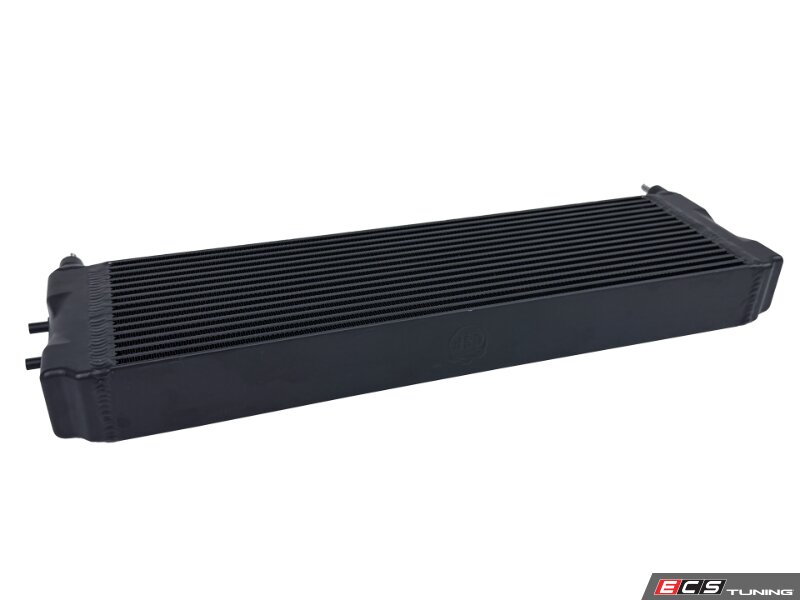

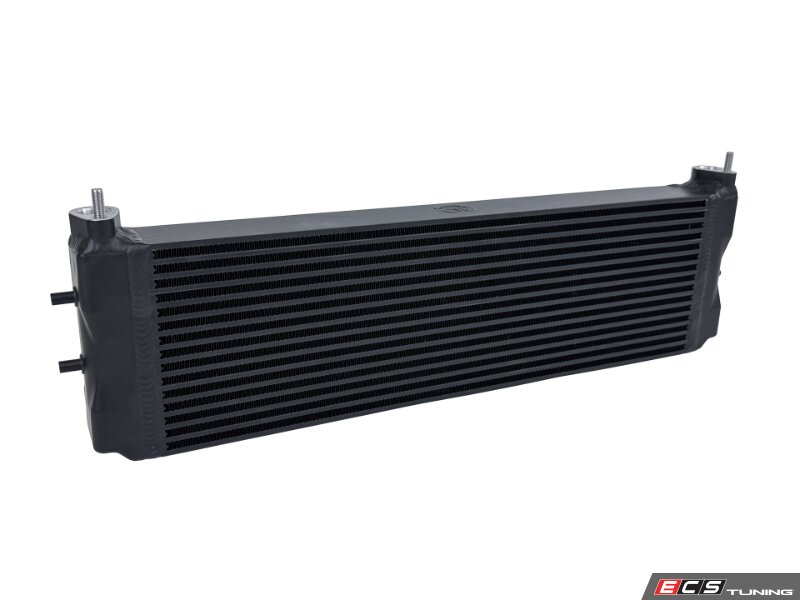

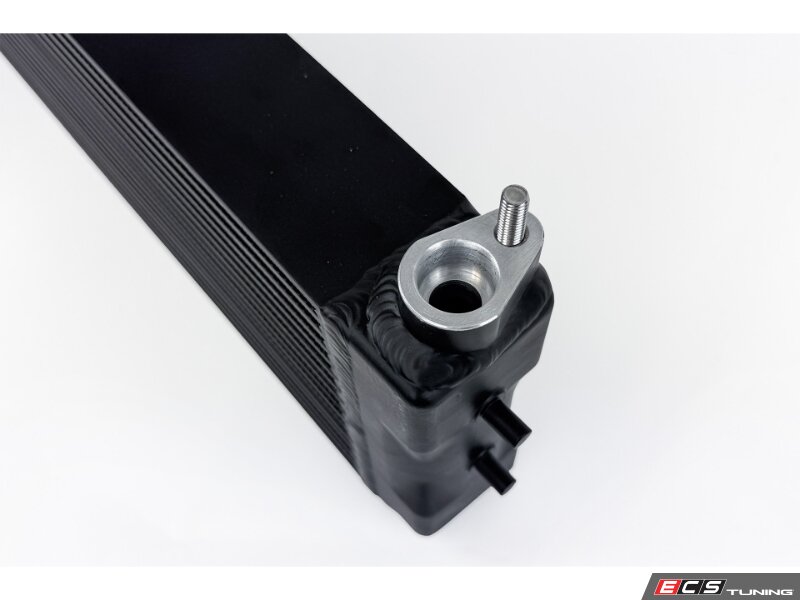

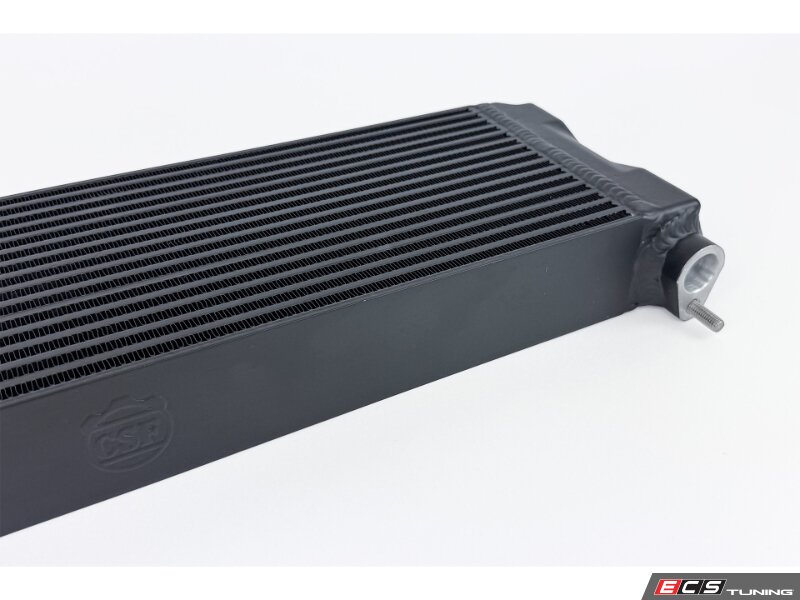

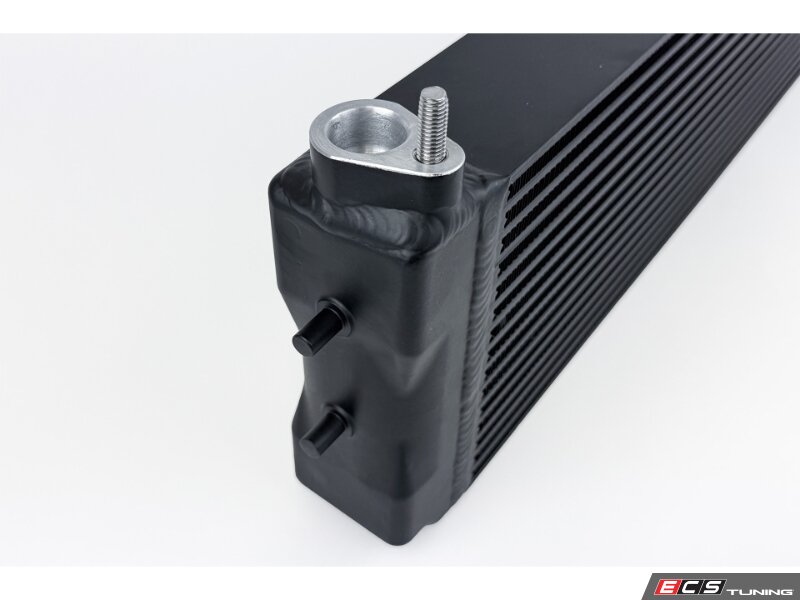

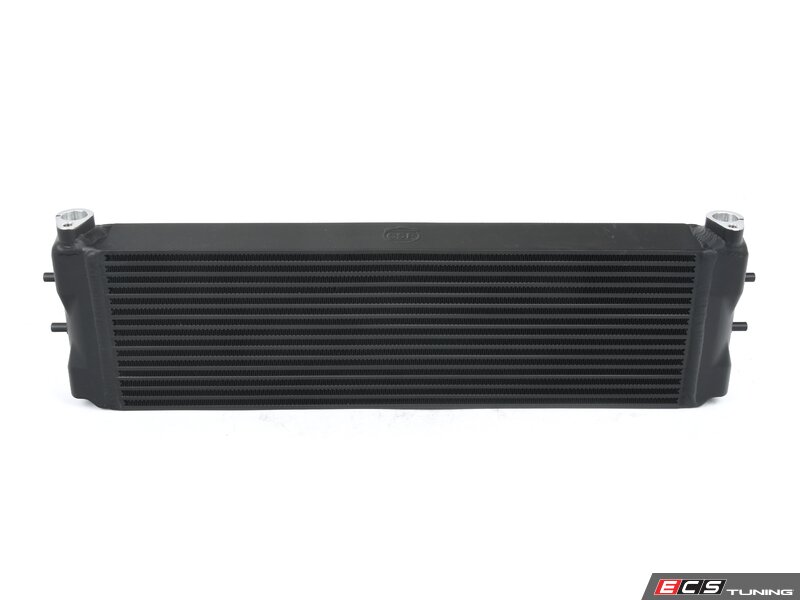

High Performance Engine Oil Cooler
- Mfg Part #
- 8317
- ECS Part #
- ES#4883104
- Brand
-
Free Shipping
Product Details
CSF has been a key player in pushing the power limits of the S63 with its Twin Charge Air Coolers. Today, many M5s, M6s, and M8s are producing well over 1000HP, but with increased power comes increased heat. As power levels climb, so do oil temperatures, with some owners reporting temperatures exceeding 240°F (115°C) on hot track days. With power limits being pushed further than ever and many of these M cars aging, factory cooling systems struggle to keep up.
CSF collaborated with the team at Carbahn to create a drop-in solution for both platforms. Designed specifically to handle the extra heat of their new S63 Stroker Kit, this oil cooler is built for ultimate performance and power.
However, performance isn’t the only reason to upgrade. Many F1X & F9X owners have been forced to replace their oil coolers due to leaks and damage, largely because of their vulnerable mounting position; a problem that worsens with lowered suspension setups. A stronger, more robust design was needed to solve these issues.
Whether your M5, M6, or M8 is a daily driver, weekend cruiser, or dedicated track car, upgrading the oil cooler is a smart investment. Tuned S63s, especially those with upgraded turbos, generate significantly more heat, making efficient cooling even more critical.
Excessive oil temperatures can quickly trigger limp mode and, in extreme cases, lead to catastrophic engine failure. CSF’s new High-Performance Engine Oil Cooler isn’t just about maximizing performance; it is also a preventative upgrade that helps avoid costly repairs and extends the longevity of your engine.
Features:
- High Efficiency & Rugged Durability Bar/Plate Design
- Cast End Tanks with 100% TIG-Welded Construction
- Developed with CarBahn Autoworks to handle the heat of their S63 Stroker Kit
- CNC Machined Mounting Brackets and OEM Style Inlet/Outlet Connection
- Individually Leak and Pressure Tested
- True Plug-and-Play “Drop-in Fit” Installation. It is recommended to trim the OE Ducting and Lower Radiator Cradle for better fitment.
- Satin Black Finish
- 2-Year Limited Warranty
CSF VS OE BMW
- Feature CSF OEM
- # Cooling Tubes 14 11
- # Cooling Fin Rows 15 12
- Fin Height/Width 6.5mm 8mm
- Core Thickness 60mm 45mm
- Core Material Aluminum Aluminum
- Core Construction Bar & Plate Tube & Fin
- Tank Material Aluminum Aluminum
- Construction TIG Welded Brazed
- 17212284260
- 17228746756
This Part Fits the Following Vehicles
| Make | Model | Submodel | Engine | Special Fitment Notes |
|---|---|---|---|---|
| BMW | F06 | M6 Gran Coupe | S63 4.4L | Use vehicle selector to confirm fitment |
| BMW | F10 | M5 | S63 4.4L | Use vehicle selector to confirm fitment |
| BMW | F12 | M6 | S63 4.4L | Use vehicle selector to confirm fitment |
| BMW | F13 | M6 | S63 4.4L | Use vehicle selector to confirm fitment |
| BMW | F90 | M5 | S63 4.4L | Use vehicle selector to confirm fitment |
| BMW | F91 | M8 | S63 4.4L | Use vehicle selector to confirm fitment |
| BMW | F91 | M8 Competition | S63 4.4L | Use vehicle selector to confirm fitment |
| BMW | F92 | M8 | S63 4.4L | Use vehicle selector to confirm fitment |
| BMW | F92 | M8 Competition | S63 4.4L | Use vehicle selector to confirm fitment |
| BMW | F93 | M8 | S63 4.4L | Use vehicle selector to confirm fitment |
| BMW | F93 | M8 Competition | S63 4.4L | Use vehicle selector to confirm fitment |
| BMW | G90 | M5 | S68 4.4L | Use vehicle selector to confirm fitment |
| BMW | G99 | M5 | S68 4.4L | Use vehicle selector to confirm fitment |
