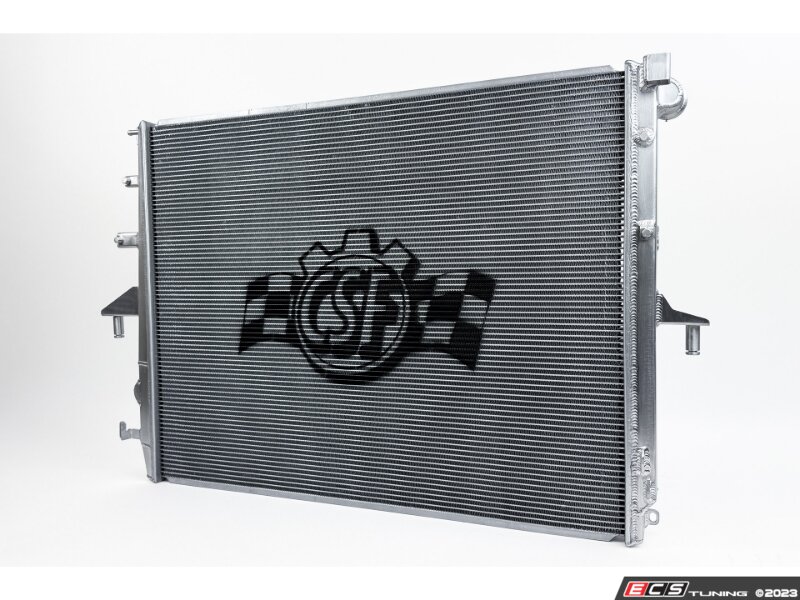

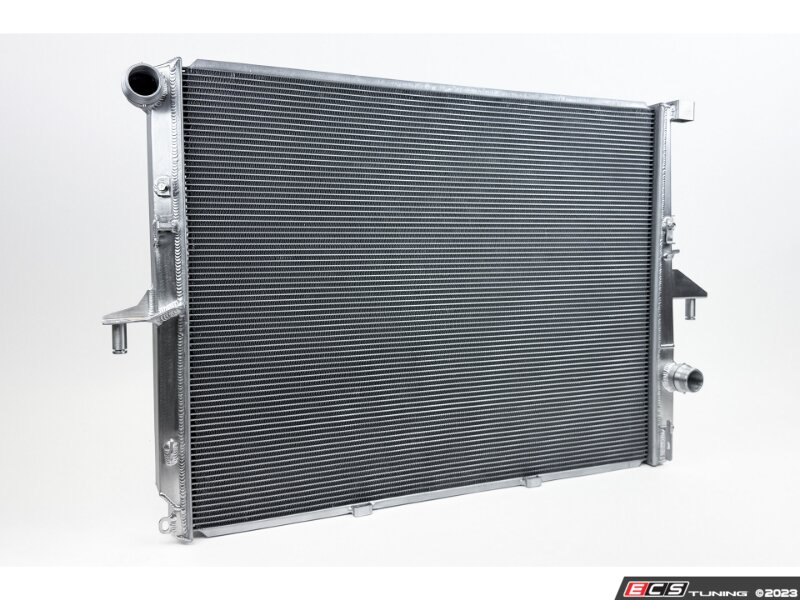

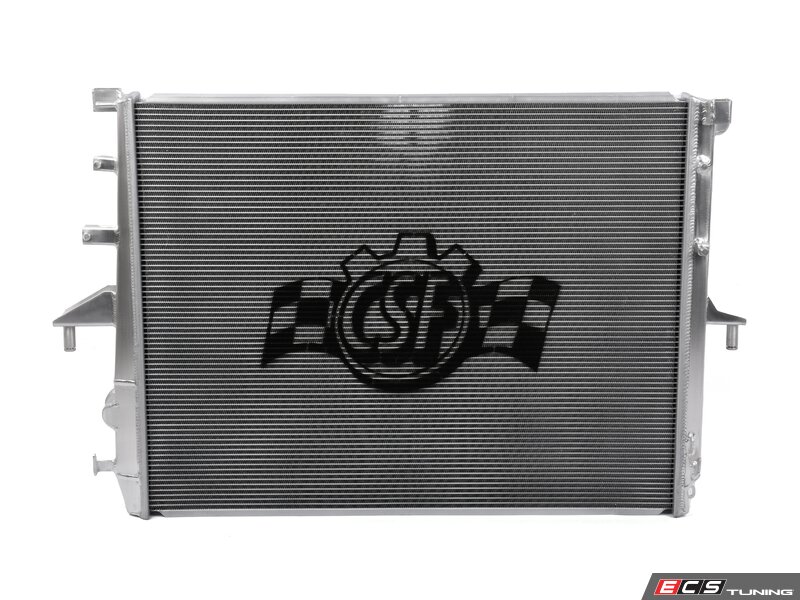

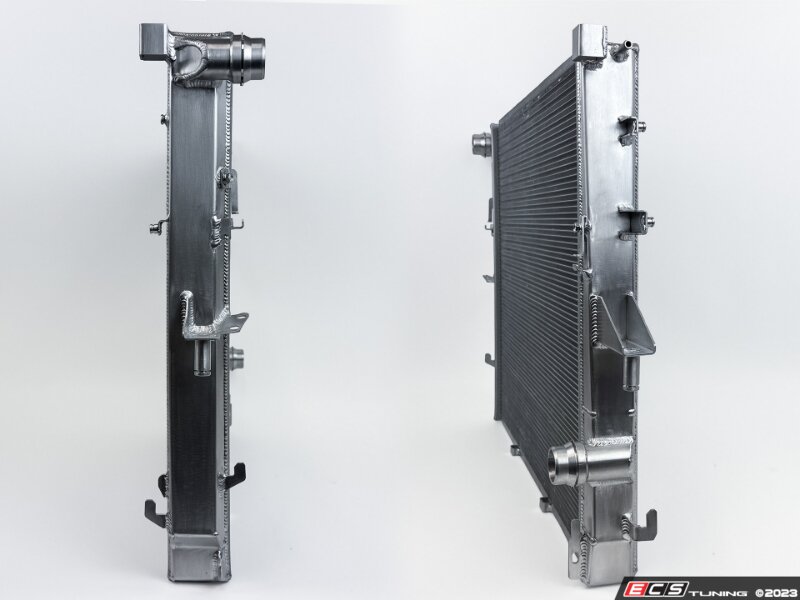

Porsche 955/957 Cayenne Heavy-Duty Performance Radiator
Product Details
All of the 955/957 Cayenne engine options are more than capable of getting you around on or off-road. However, the Cayenne wasn’t well prepared from the factory with proper cooling to deal with the rigors of demanding driving. Berg Peaks Off-Road is very familiar with VAG rigs and teamed up with CSF to help develop a solution for their Cayenne builds. The goal was to design a radiator that could offer sufficient cooling for off-road, overlanding, trail running, hot climates, and towing/hauling. After almost a full year of design work and testing, CSF is pleased to announce the Porsche 955/957 Cayenne High-Performance Radiator.
The original OE radiator from Porsche is a plastic tank radiator with a single row aluminum core design. While this is generally accepted as good quality and durable, it just isn’t enough for the Cayenne. The 955/957 is notorious for having cooling issues. Just driving down the road on a hot day can overheat the engine and off-roading and towing/hauling is much harder on the cooling system. On top of that, these SUVs are 15-20 years old now. Those still running the original radiator have definitely lost some cooling efficiency due to bend/damaged fins and tube clogging. Needless to say, CSF had a lot of issues to address while designing this new radiator.
The CSF radiator features the latest 5mm fin technology. The smaller fin height significantly increases the heat exchange surface area improving overall cooling efficiency and recovery. A larger 2-Row 42mm aluminum core increases the fluid capacity of the radiator, and improves the cores ability to dissipate heat. CSF’s Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the ultra-efficient multi-louvered fins maximize airflow through the core for the best possible performance.
Features:
- 2-Row, 42mm Ultra-High-Performance Core
- Cooling Tubes with CSF’s Exclusive B-Tube Technology
- New 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact

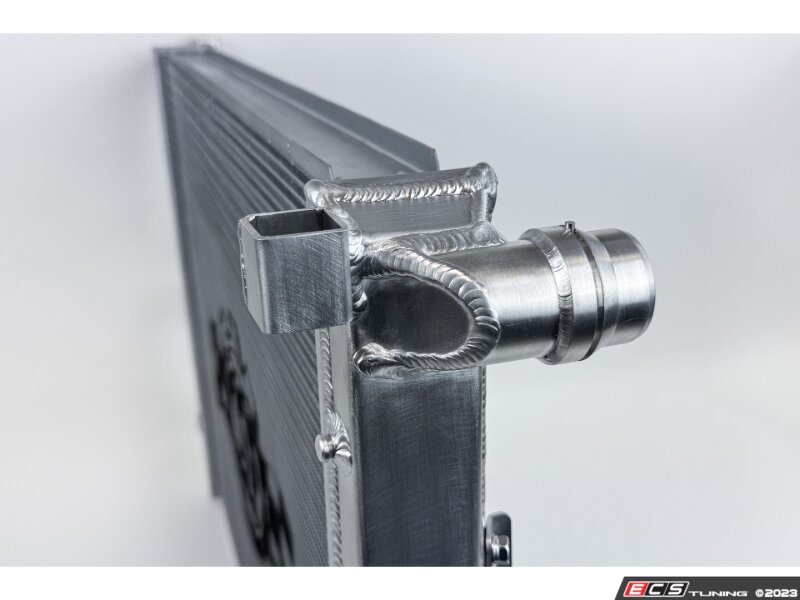

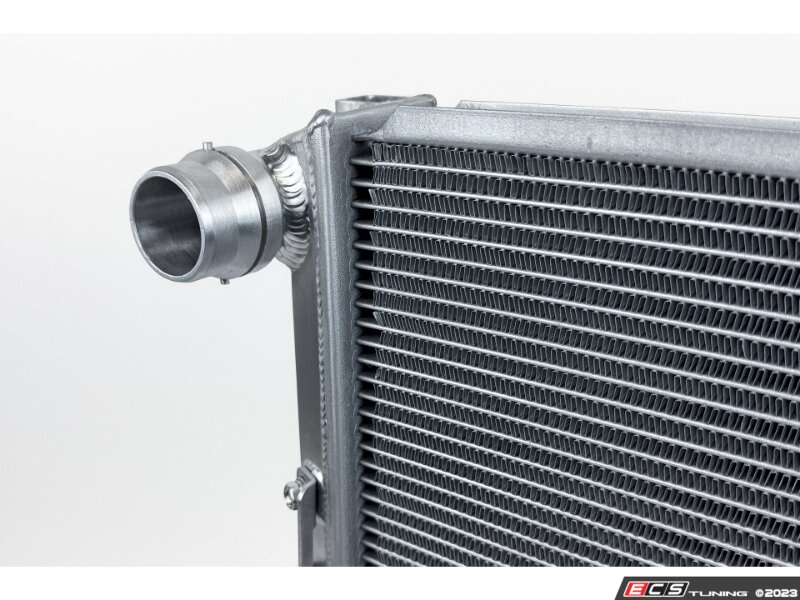

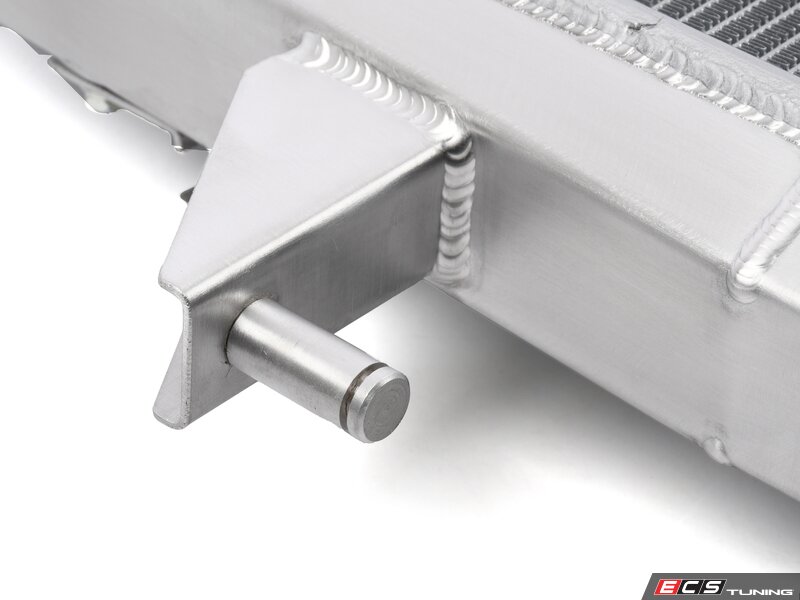

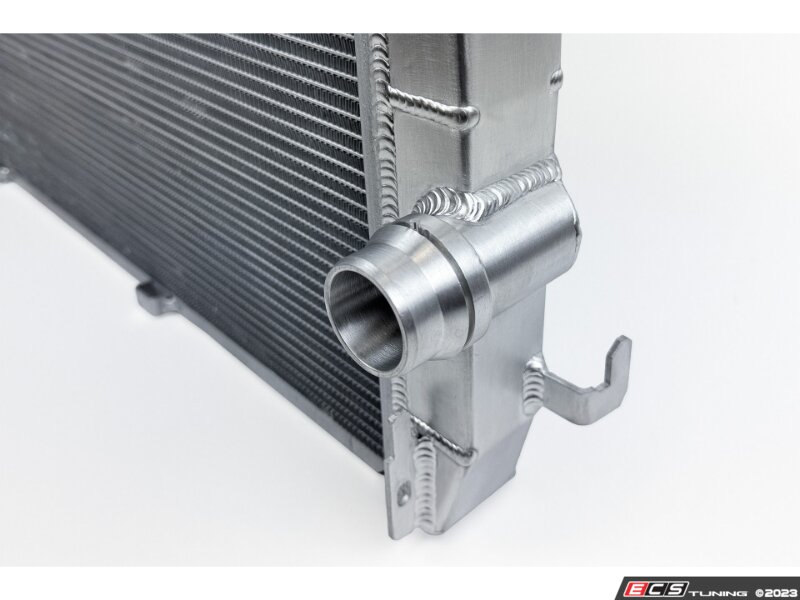

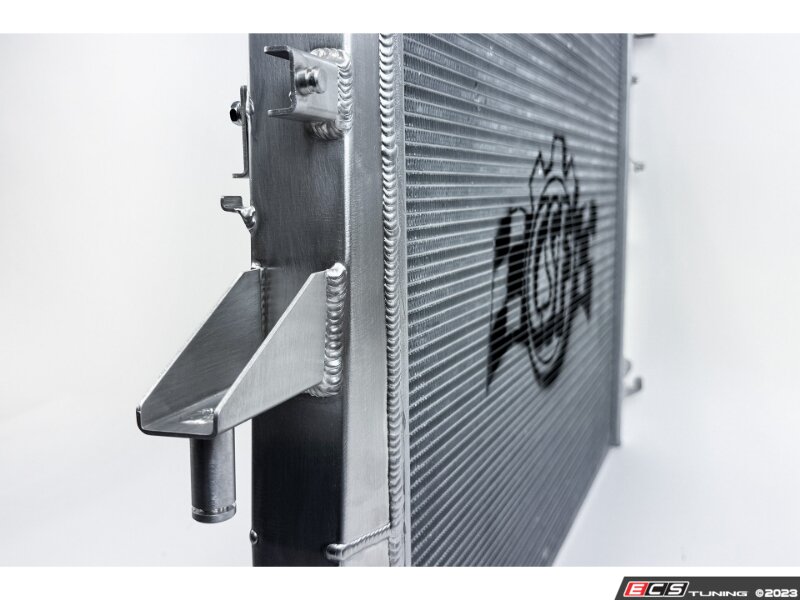

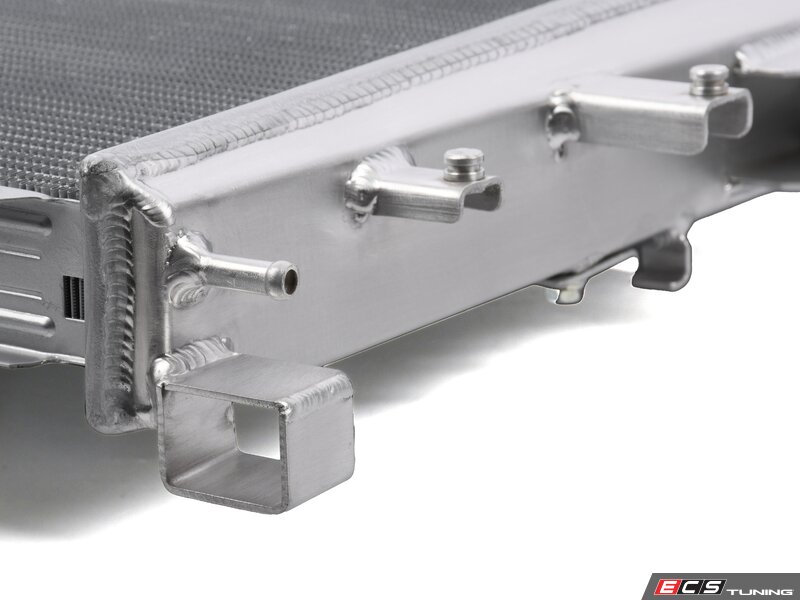

- CNC Machined Mounting Brackets and OEM Style Inlet/Outlet

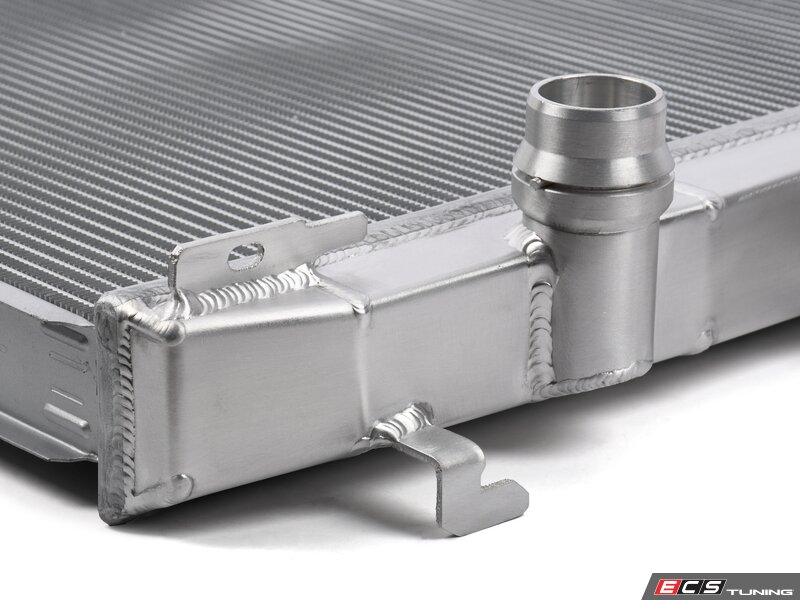

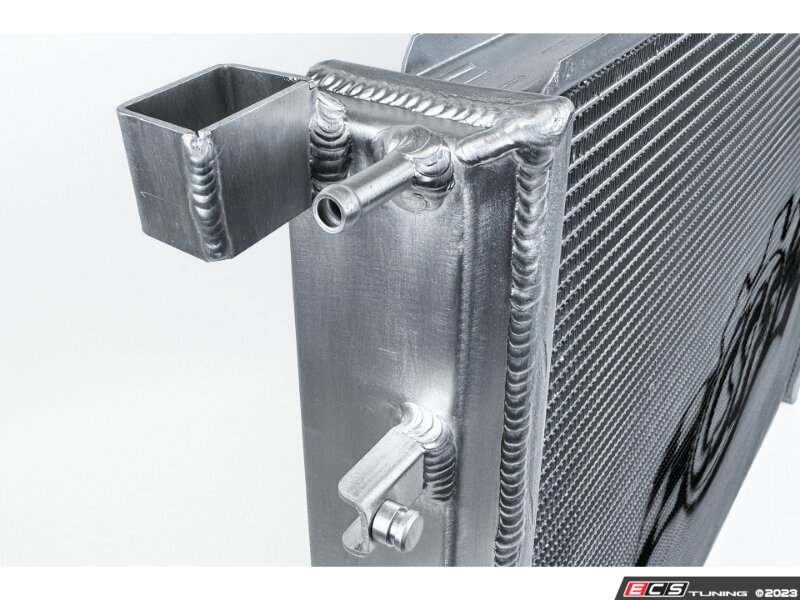

- 100% All Aluminum TIG-Welded Construction
- Hand Brushed Satin Finish
- True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
- Individually Leak and Pressure Tested
- 2-Year Limited Warranty
- 95510614200
- 95510614201
- 7L0 121 253 A
- 7L0121253A
- 955 106 142 00
- CSF 7227
- 7L0121253
This Part Fits the Following Vehicles
| Make | Model | Submodel | Engine | Special Fitment Notes |
|---|---|---|---|---|
| Audi | Q7 | All | 3.0T | Use vehicle selector to confirm fitment |
| Audi | Q7 | All | TDI | Use vehicle selector to confirm fitment |
| Audi | Q7 | All | V6 | Use vehicle selector to confirm fitment |
| Audi | Q7 | All | V8 | Use vehicle selector to confirm fitment |
| Porsche | Cayenne | Base | V6 3.2L | Use vehicle selector to confirm fitment |
| Porsche | Cayenne | All | V6 3.2L | Use vehicle selector to confirm fitment |
| Porsche | Cayenne | Base | V6 3.6L M55.01 | Use vehicle selector to confirm fitment |
| Porsche | Cayenne | All | V6 3.6L M55.01 | Use vehicle selector to confirm fitment |
| Porsche | Cayenne | S | V8 4.5L | Use vehicle selector to confirm fitment |
| Porsche | Cayenne | Turbo | V8 4.5L | Use vehicle selector to confirm fitment |
| Porsche | Cayenne | Turbo S | V8 4.5L | Use vehicle selector to confirm fitment |
| Porsche | Cayenne | All | V8 4.5L | Use vehicle selector to confirm fitment |
| Porsche | Cayenne | GTS | V8 4.8L M48.01 | Use vehicle selector to confirm fitment |
| Porsche | Cayenne | S | V8 4.8L M48.01 | Use vehicle selector to confirm fitment |
| Porsche | Cayenne | Turbo | V8 4.8L M48.01 | Use vehicle selector to confirm fitment |
| Porsche | Cayenne | Turbo S | V8 4.8L M48.01 | Use vehicle selector to confirm fitment |
| Porsche | Cayenne | All | V8 4.8L M48.01 | Use vehicle selector to confirm fitment |
| Porsche | Cayenne | GTS | V8 4.8L M48.51 | Use vehicle selector to confirm fitment |
| Porsche | Cayenne | S | V8 4.8L M48.51 | Use vehicle selector to confirm fitment |
| Porsche | Cayenne | Turbo | V8 4.8L M48.51 | Use vehicle selector to confirm fitment |
| Porsche | Cayenne | Turbo S | V8 4.8L M48.51 | Use vehicle selector to confirm fitment |
| Porsche | Cayenne | All | V8 4.8L M48.51 | Use vehicle selector to confirm fitment |
| Volkswagen | Touareg 1 | All | TDI | Use vehicle selector to confirm fitment |
| Volkswagen | Touareg 1 | All | V6 | Use vehicle selector to confirm fitment |
| Volkswagen | Touareg 1 | All | V8 | Use vehicle selector to confirm fitment |
| Volkswagen | Touareg 2 | All | TDI | Use vehicle selector to confirm fitment |
| Volkswagen | Touareg 2 | All | V10 TDI | Use vehicle selector to confirm fitment |
| Volkswagen | Touareg 2 | All | V6 | Use vehicle selector to confirm fitment |
| Volkswagen | Touareg 2 | All | V6 TDI | Use vehicle selector to confirm fitment |
| Volkswagen | Touareg 2 | All | V8 | Use vehicle selector to confirm fitment |
