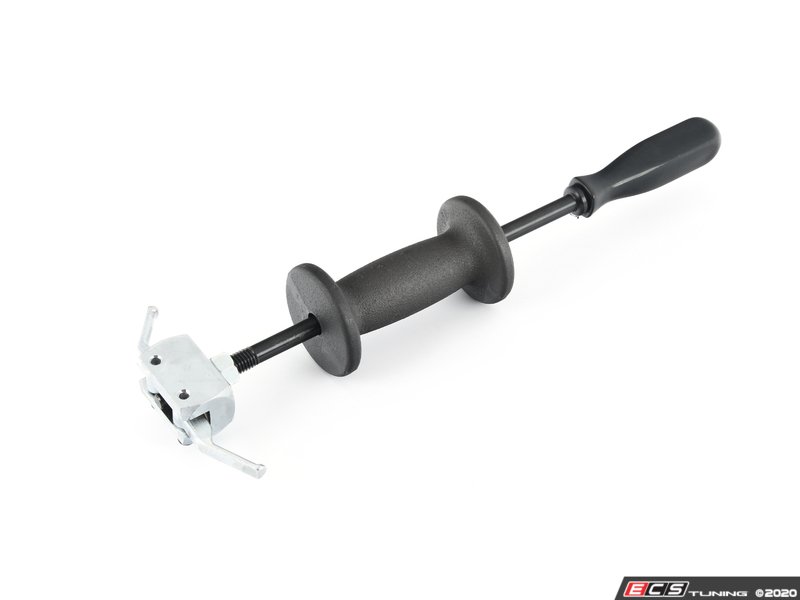

Slide Hammer Pilot Bearing Puller

For inside pulling jobs such as pilot and other bearings.
Mfg Part #
CTA8075
ECS Part #
ES#3674268
Brand
CTA Tools
37.67
$57.95 (35% off MSRP)
Free Shipping Free Shipping
on orders $49 and up
Availability: In Stock
Qty
Does this fit my vehicle?

Product Details



  • For inside pulling jobs, jaws will remove flywheel pilot and other bearings
  • Range: 1/2" to 1-1/2" (13mm to 38mm)
  • Replacement Jaws:
    • 8070x06 - Standard Range - 1/2 to 1-1/2" (13 to 38mm I.D.)
    • 8070x07 - Small Range - 3/8/ to 1-3/8" (9.5mm to 35mm I.D.)

INSTRUCTIONS:

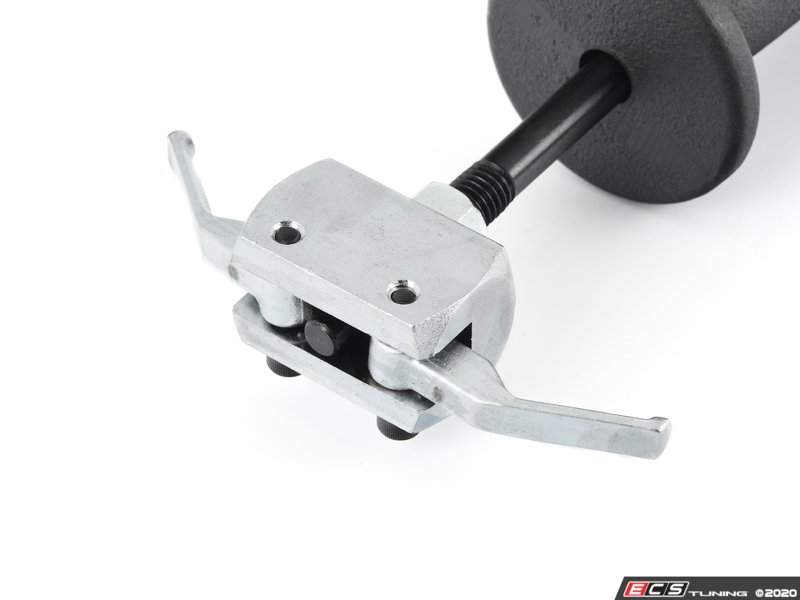

Outside Pulling:

Using the nuts and bolts provided, assemble the jaws to the yoke with the jaw notches toward each other. Thread the adjusting cone on the puller rod concave side first so that the external taper is toward each other. Thread the yoke on the rod, then install and tighten the large nut. Place the jaws evenly around the component to be pulled, then turn the adjusting cone so its taper forces the jaws tightly against the component. Slide the hammer against its stop repeatedly until the component is removed.

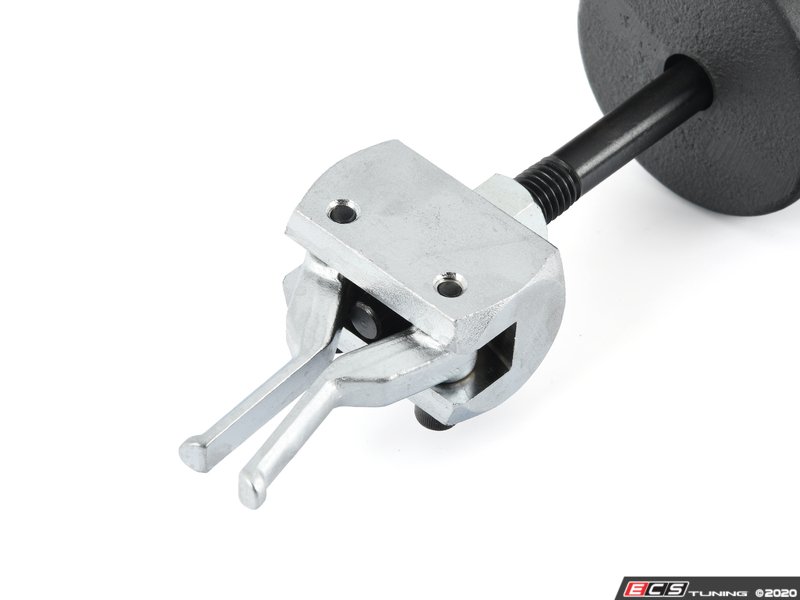

Inside Pulling:

Using the nuts and bolts provided, assemble the jaws to the yoke with the jaw notches facing outward. Thread the adjusting cone on the puller rod convex side first so that the internal taper is toward each other. Thread the yoke on the rod, then install and tighten the large nut. Place the jaws inside the component to be pulled, then turn the adjusting cone so its taper forces the jaws tightly against the inside diameter of the component. Slide the hammer against its stop repeatedly until the component is removed.



This Part Fits the Following Vehicles

Make Model Submodel Engine
Audi All All All
BMW All All All
Mercedes Benz All All All
MINI All All All
Porsche All All All
Volkswagen All All All
*The above product applications have been written by ECS Tuning. All warranties, product application, fitment, and performance are the responsibility of ECS Tuning. For additional information see the terms of use.

ECS Tuning is not affiliated with any automobile manufacturers.
Manufacturer names and/or part numbers are used only for identification purposes.
