1.8T/2.0T Gen3 HPFP Upgrade Kit

Unlock Higher Horsepower and Ethanol Capabilities
10X Entries Into Our F80 M3 Sweepstakes
ECS
Mfg Part #
023340LA05 023340LA05
ECS Part #
ES#5516078
Brand
ECS

419.99
Free Shipping Free Shipping
on orders $49 and up
Availability:
In Stock
Est. Ship Date:
Today
Qty
Does this fit my vehicle?

Product Details

10X Entries Into Our F80 M3 Sweepstakes

When pushing your 1.8T or 2.0T Gen3 TSI engine past factory limits, the OEM direct injection fuel system quickly becomes the primary bottleneck. Stock high-pressure fuel pumps simply cannot move enough volume to sustain high-boost tunes or high-blend ethanol fuels (E85).

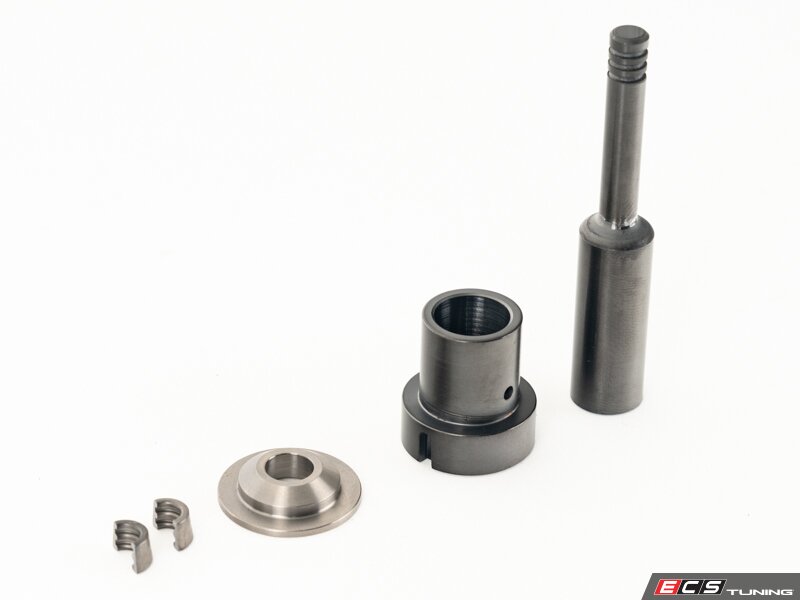

The ECS Tuning High Pressure Fuel Pump Upgrade Kit solves this limitation at the source. By stepping up from the factory 10.0mm piston to an oversized 11.7mm bore, this drop-in piston assembly drastically increases stroke displacement—delivering significantly more fuel flow and pressure headroom across the entire RPM range.

Engineered for strict tolerance and durability, every critical surface is precision-ground for exact clearance. To withstand the continuous friction and punishing operating pressures of high-output applications, the piston features a Diamond-Like Carbon (DLC) coating. This ultra-hard coating drastically reduces friction, prevents galling, and guarantees maximum wear resistance for long-term reliability.

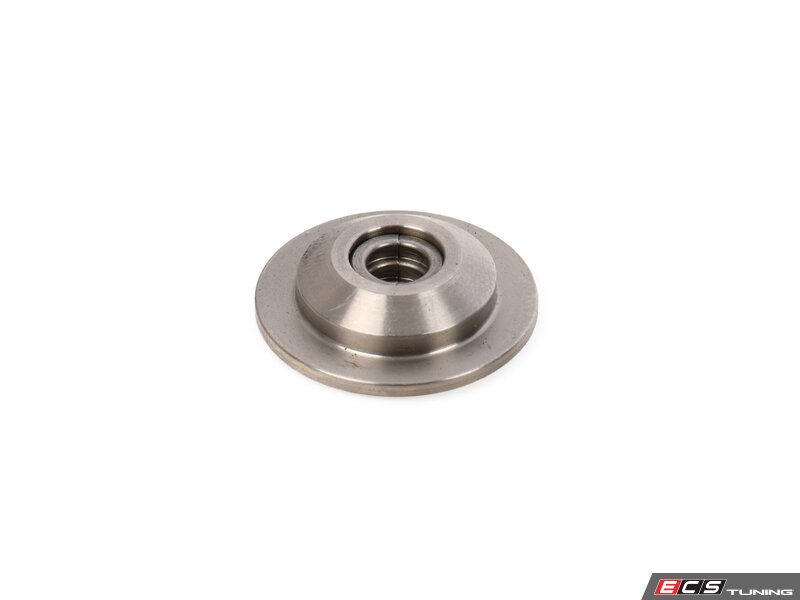

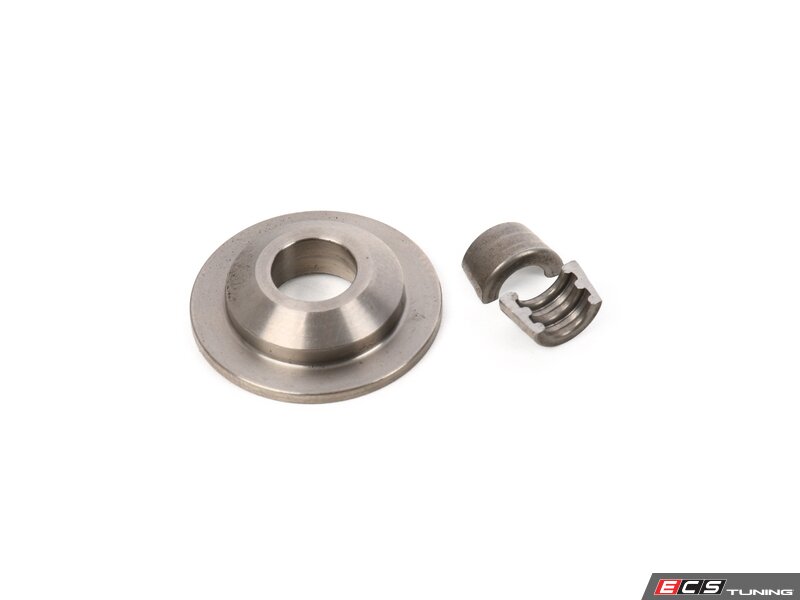

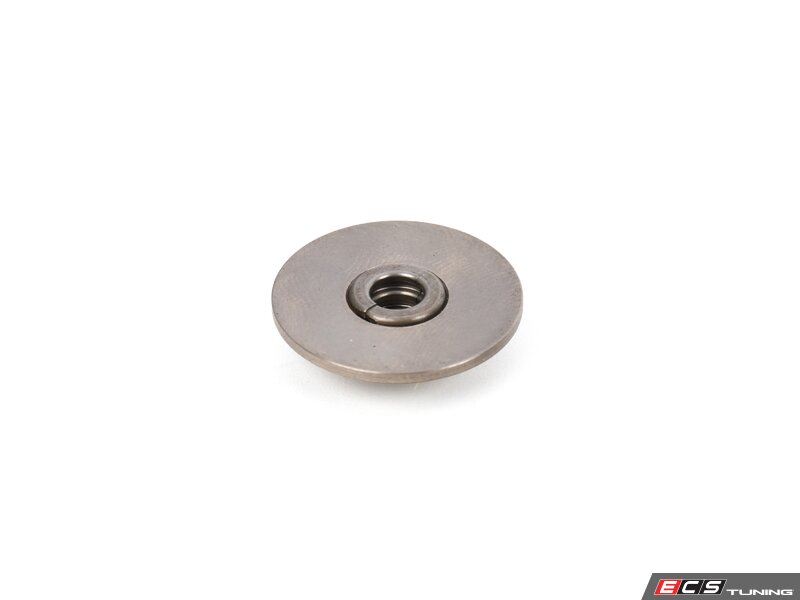

To ensure valvetrain stability at high engine speeds, the kit includes a ultra-lightweight titanium spring retainer. By shedding critical reciprocating mass, the upgraded assembly minimizes high-RPM valve float risk, ensuring crisp, reliable fuel delivery all the way to redline.

Key Features & Benefits

  • Increased Fuel Displacement: Upgades the factory 10.0mm piston diameter to an oversized 11.7mm piston, expanding effective stroke volume by ~37% to support aggressive ECU tunes, larger turbos, and E85 blends.

  • DLC (Diamond-Like Carbon) Coating: Applied to high-friction components to minimize wear, lower operating temperatures, and provide long service life under high-pressure conditions.

  • Precision-Ground Tolerances: Custom-matched piston and cylinder pairing guarantees absolute pressure sealing and zero blow-by.

  • Titanium Spring Retainer: Reduces overall reciprocating mass, improving high-RPM stability and preventing fuel pump float during aggressive driving.

  • Direct-Fit Upgrade: Replaces internal OEM components within your factory HPFP housing.

Cross Reference
  • 06L127027C
  • 06L127025M
  • 06L127025T
  • 06L127027C
  • 10127103K
  • 0341066057

This Part Fits the Following Vehicles

Make Model Submodel Engine Special Fitment Notes
Audi 8V S3 Quattro 2.0T Use vehicle selector to confirm fitment
Audi A3 8V FWD 2.0T Use vehicle selector to confirm fitment
Audi A3 8V Quattro 2.0T Use vehicle selector to confirm fitment
Audi C7 A6 FWD 2.0T Use vehicle selector to confirm fitment
Audi C7 A6 Quattro 2.0T Use vehicle selector to confirm fitment
Audi TT MKII FWD 2.0T Use vehicle selector to confirm fitment
Audi TT MKII Quattro 2.0T Use vehicle selector to confirm fitment
Audi TT MKII TTS 2.0T Use vehicle selector to confirm fitment
Audi TTS MK2 (2006-2013) 2.0T Use vehicle selector to confirm fitment
Audi TTS MK3 (2014+) 2.0T Use vehicle selector to confirm fitment
Volkswagen Atlas 4Motion 2.0T Gen3 Use vehicle selector to confirm fitment
Volkswagen Atlas FWD 2.0T Gen3 Use vehicle selector to confirm fitment
Volkswagen Golf VII Hatchback 2.0T Gen3 Use vehicle selector to confirm fitment
Volkswagen Golf VII Facelift FWD 2.0T Gen3 Use vehicle selector to confirm fitment
Volkswagen Golf VII R 4Motion 2.0T Gen3 Use vehicle selector to confirm fitment
Volkswagen Golf VII R Facelift 4Motion 2.0T Gen3 Use vehicle selector to confirm fitment
Volkswagen Jetta VII GLI 2.0T Gen3 Use vehicle selector to confirm fitment
Volkswagen Jetta VII GLI Facelift 2.0T Gen3 Use vehicle selector to confirm fitment
