B6 A4 1.8T Performance Baffled Oil Catch Can System - 8 oz.
- Mfg Part #
- 053538LA04KT
- ECS Part #
- ES#4906657
- Brand
-
This product was last offered at the strikethrough price on
06-13-2026
Free Shipping
Product Details
Say goodbye to oil-soaked intakes and carbon-clogged valves with the only plug-and-play catch can system on the market!
The Positive Crankcase Ventilation (PCV) system plays a vital role in managing engine blow-by gases, reducing emissions, and regulating crankcase pressure. On the B6 A4 1.8T, the factory PCV components are known to wear out over time, leading to cracked lines, stuck valves, and internal leaks. When this occurs, excess oil vapor from the crankcase ventilation system can accumulate inside your intake tract, coating the intake manifold and intake valves in sticky, oily residue. The result? Increased oil consumption, erratic idle, loss of boost, and reduced power.
The ECS Tuning Performance Baffled Oil Catch Can System is a performance-focused upgrade that addresses these issues at the source. Through intensive research, our engineers found two critical flaws in the 1.8T's factory PCV system—weak rubber and plastic construction used for plumbing, and poor oil separator circulation. To solve these issues, our kit incorporates high-quality silicone hoses for plumbing and a strategically positioned four-chamber baffled catch can. This precision-engineered system intercepts and traps oil vapor before it can enter the intake system, significantly reducing oil buildup on the back of intake valves, preserving your engine's performance, efficiency, and longevity.

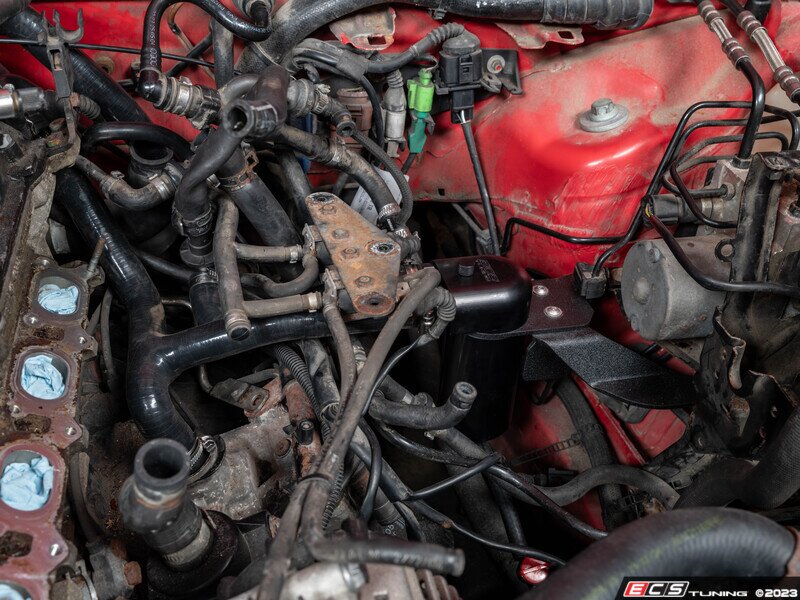

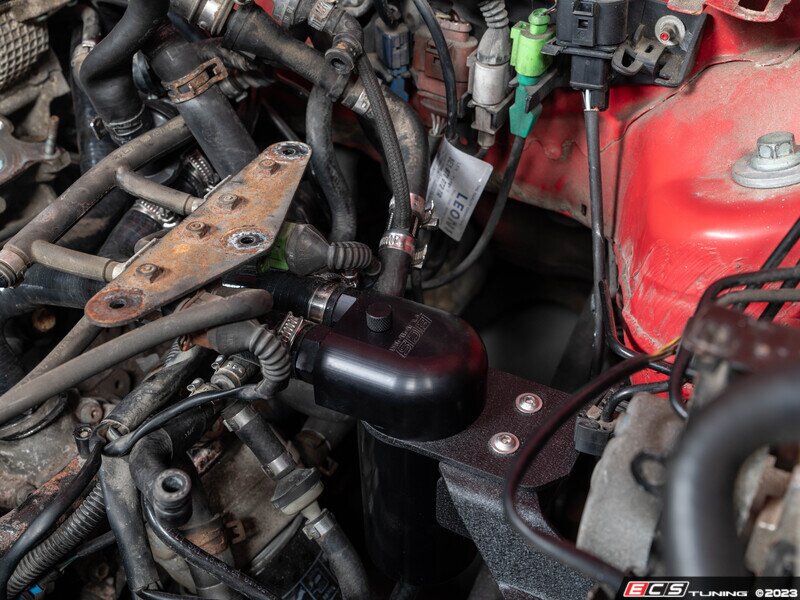

Constructed from black anodized 6061-T6 billet aluminum, our catch can is fully serviceable thanks to the included knurled dipstick and drain kit. Our plug-and-play kit includes a sheet metal bracket to tie the can to the left side frame horn, providing easy installation and even easier access. Easy to install, reversible, and built to last, this is the ultimate PCV upgrade for your turbocharged Audi!
FEATURES
- Strategically positioned 4-chamber baffle system maximizes oil/air separation
- The knurled and black anodized integrated oil dipstick makes inspecting the oil volume of the reservoir clean and simple
- Fully serviceable for routine cleaning and maintenance

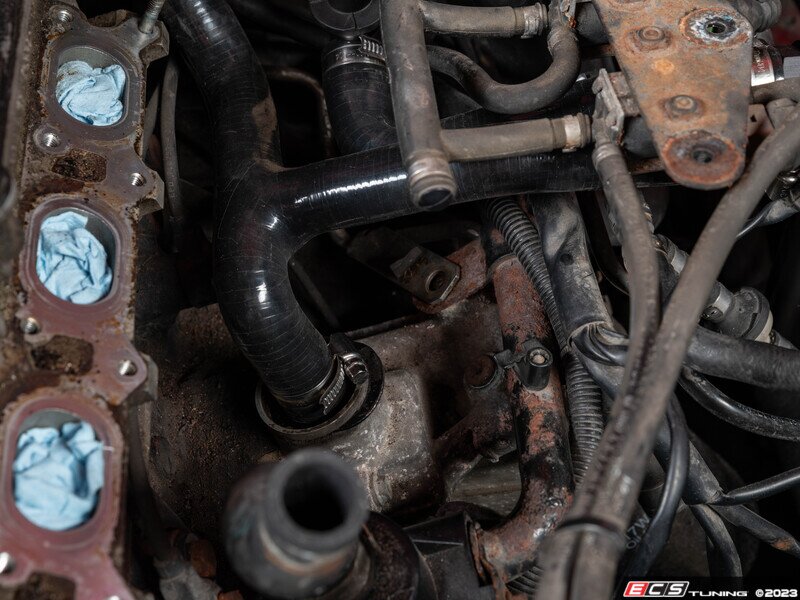

- Aluminum crankcase outlet bung and silicone hoses replace the brittle OEM PCV hoses, ensuring lasting durability
DESIGN
- Three-ply, fluorosilicone-lined catch can hoses provide superior corrosion resistance against fuel and oil vapors
- Our catch can features a 6061-T6 billet machined body, anodized black for lasting protection and appearance
- 5052 aluminum mounting brackets are powder-coated wrinkle black for enhanced appearance and lasting durability
- Completely reversible installation—no need to permanently modify OEM components!
INSTALLATION
Looking for installation tips? We put together a full installation tutorial from start to finish, including detailed instructions on removing your OEM parts! See our Installation PDF under the "INSTALLATION" tab for more information.
PRODUCT DEVELOPMENT
Our Performance Baffled Oil Catch Can System was designed, engineered, tested, and quality inspected by our Research and Development team in our Wadsworth, Ohio, facility. We strive for the highest level of precision and quality through leading-edge product development technology, including FARO laser scanning for reverse engineering and quality inspection, SolidWorks 3D CAD modeling, rapid prototyping utilizing our in-house 3D printer, and rigorous long-term product testing.
Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.
- 06B133783AT
- 058133784AF
- 058133394D
- 06A129101F
This Part Fits the Following Vehicles
| Make | Model | Submodel | Engine | Special Fitment Notes |
|---|---|---|---|---|
| Audi | B6 A4 | FWD | 1.8T | From VIN 8E-3-500001, split is in the 2003 model year. |
| Audi | B6 A4 | Quattro | 1.8T | From VIN 8E-3-500001, split is in the 2003 model year. |

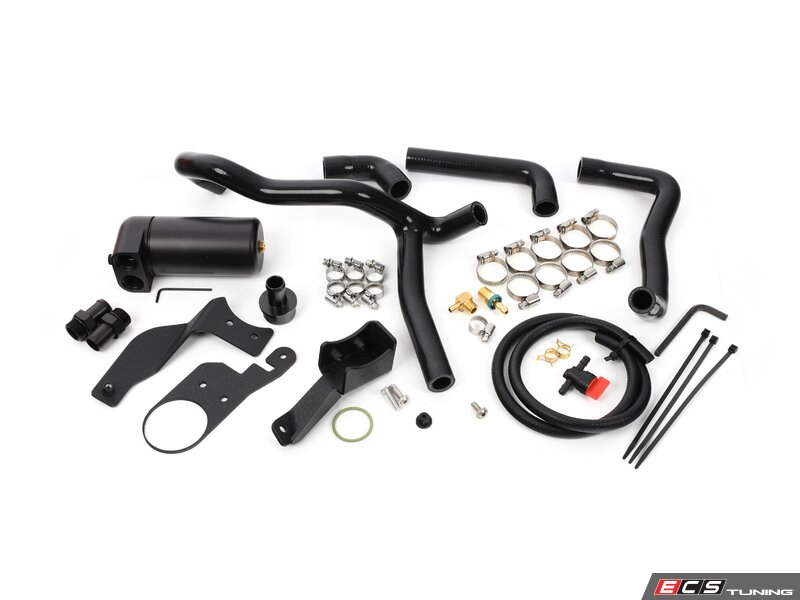

Kit Contents
| Description | Brand | Qty | Lifetime | |
|---|---|---|---|---|
| O-Ring - Priced Each |
|
1 | YES | |

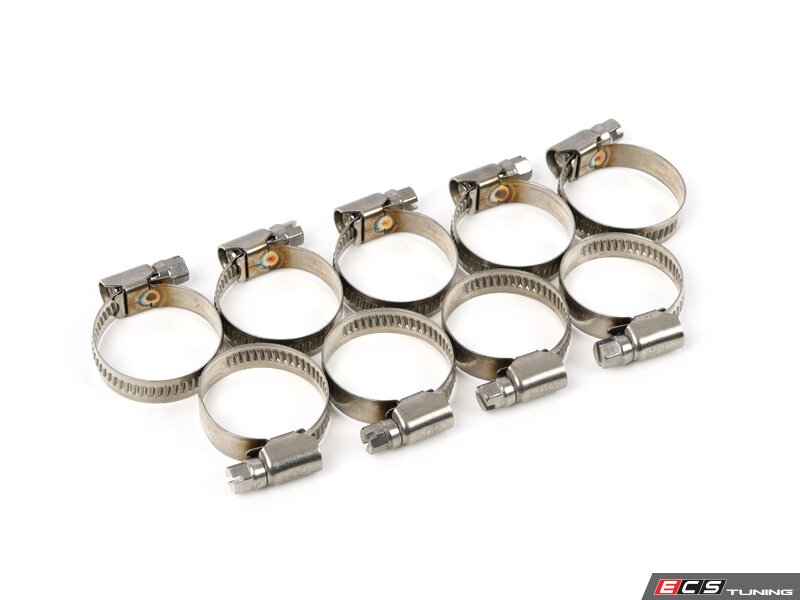

| 8-16mm Adjustable Hose Clamp - Priced Each |
|
6 | YES | |
| M6 x 1.0mm 16mm long stainless steel button head flange screw |
|
1 | YES | |
| -10AN ORB X 3/4" Hose Barb Fitting Assembly - Priced Each |
|
2 | YES | |
| ECS Tuning Universal Catch Can Drain System |
|
1 | YES | |
| 18-8 Stainless Steel Flanged Button Head Screw, M6 X 1 Mm Thread Size, 25 Mm Long |
|
2 | YES | |
| Plastic Nut - Priced Each |
|
1 | YES | |
| ECS Tuning Baffled Oil Catch Can - 8oz |
|
1 | YES | |
| Catch Can Bracket Package |
|
1 | YES | |
| Catch Can Hoses |
|
1 | YES |
