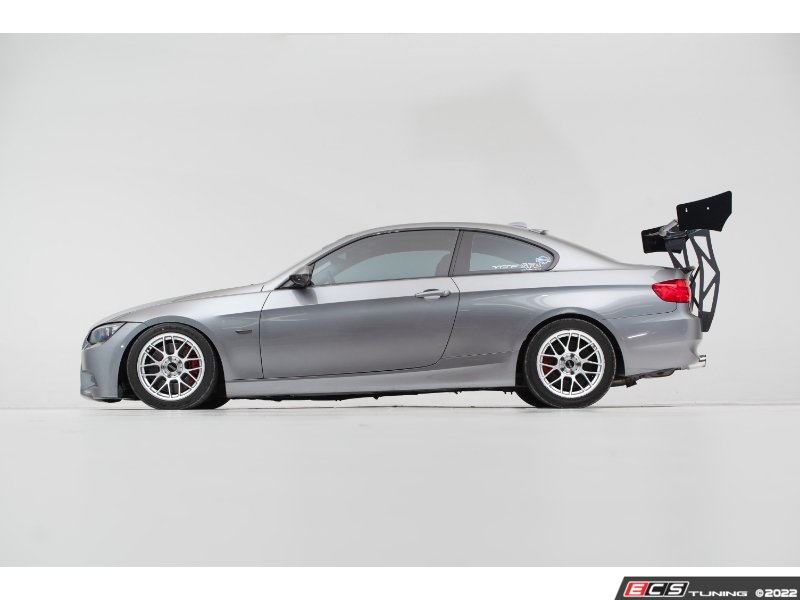

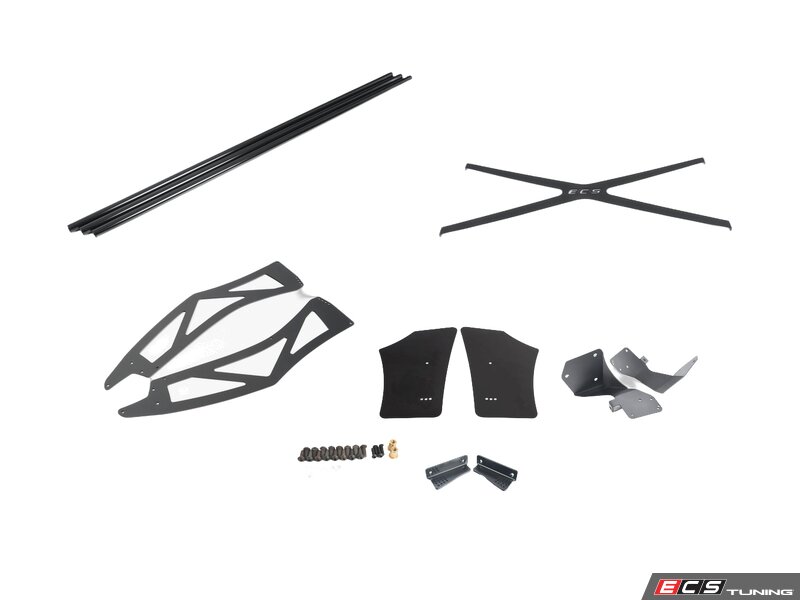

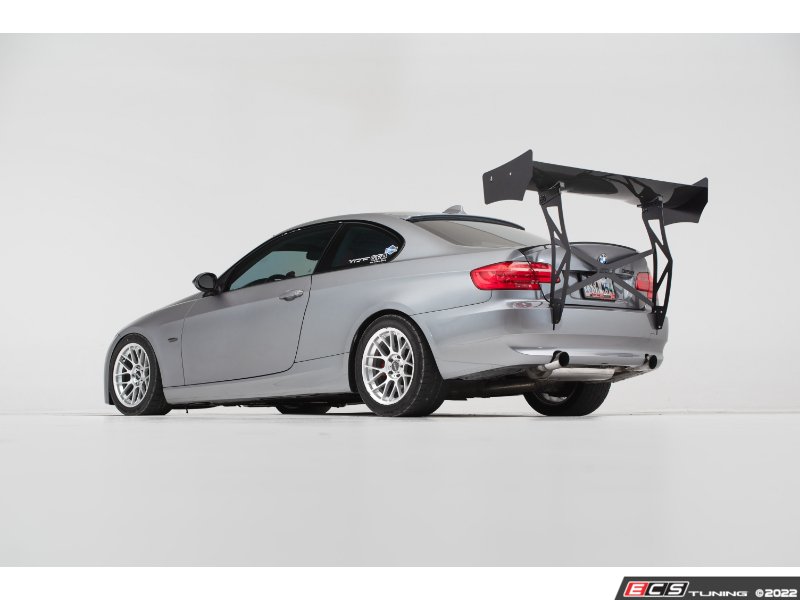

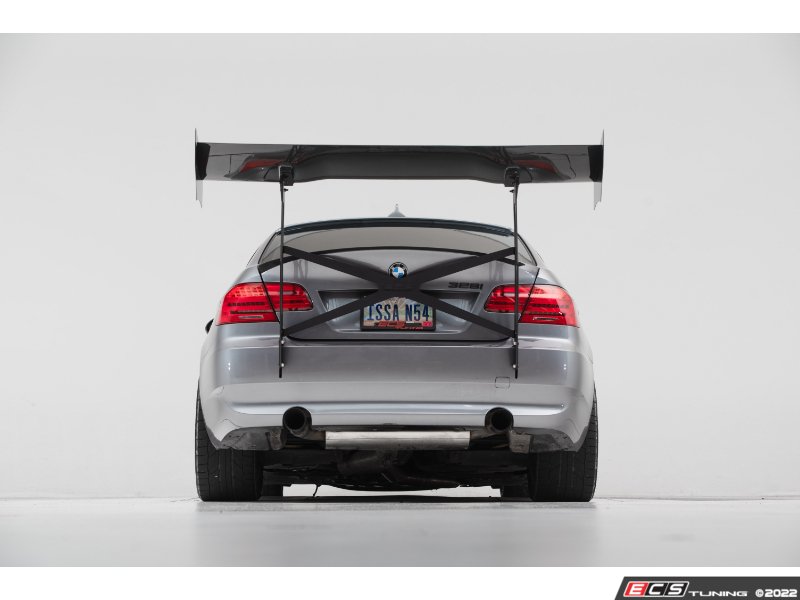

Our ECS Tuning in-house designed and engineered Functional Aero Chassis Mounted Rear Wing Kit is an all-in-one solution to providing your E92 with more downforce necessary to improve rear tire grip for improved handling. This kit was engineered for all E92 models and includes all of the components necessary for a comprehensive install and feature top-tier quality components for long term durability, such as the carbon fiber wing, billet aluminum mounting brackets, and powdercoated aluminum uprights with x brace.

The spoiler has an adjustable AoA (Angle of Attack) between approximately 0-20° to perfect downforce to drag ratio. The end plates are adjustable for aerodynamic needs, and the 5mm thick powdercoated aluminum uprights maintain wing position at track speeds.

PART DESIGN

• All components in-house designed and engineered to provide functional aerodynamic benefits, specific to the E92 body, using FARO ARM laser scanning technology and SolidWorks 3D CAD modeling for precision fitment along with FEA (Finite Element Analysis) to provide the best balance between downforce while minimizing drag.

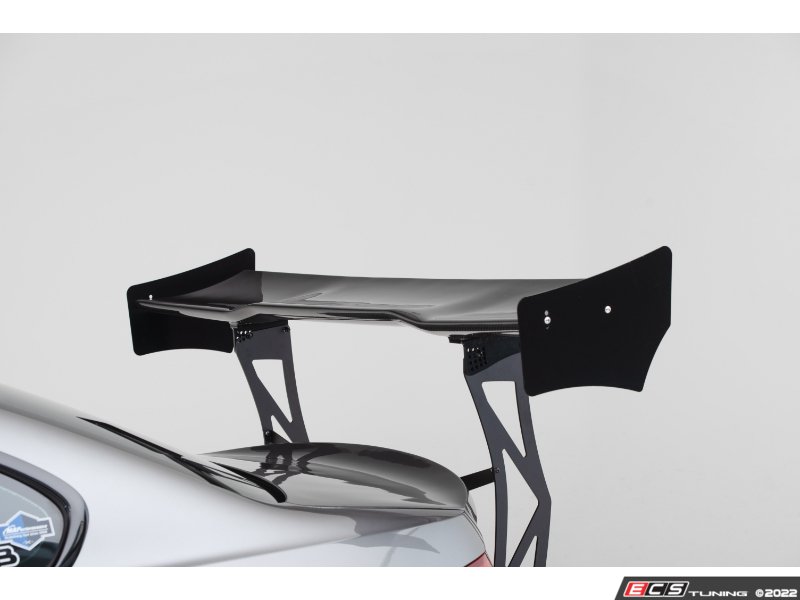

• Carbon Fiber Rear Wing:

  • Optional 60", 65", 70" widths

  • Made from lightweight, hand-laid carbon fiber material with pre-impregnated 2x2 twill weave carbon fiber cloth and epoxy resin, then autoclave cured and finished in a durable gloss clear coat for UV and heat protection

  • Lightweight aluminum uprights and x-brace

  • Upright brackets sandwich between the bumper crash beam and the chassis

  • Powder coated steel brackets to attach uprights to chassis

  • 3D wing profile with forward and upward curvature

  • Anodized aluminum threaded inserts at the wing ends and mounting bosses

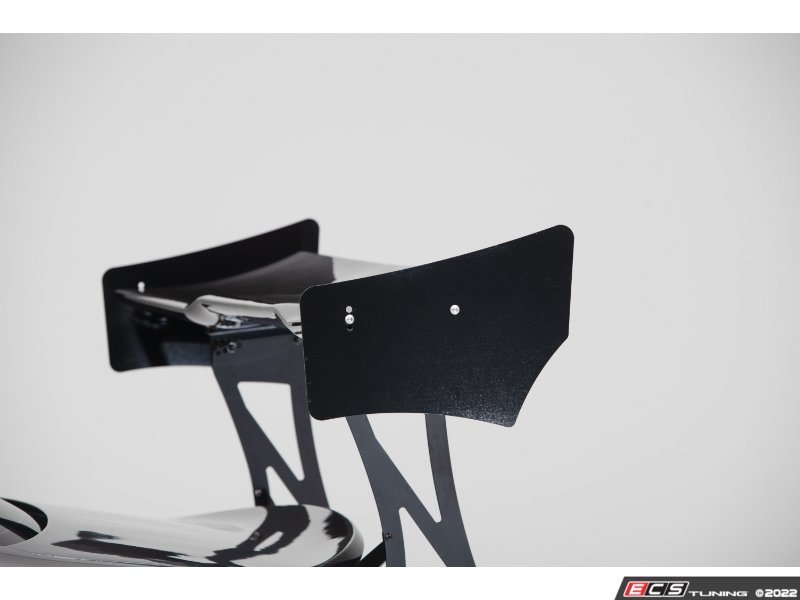

• Wing End Plates:

  • Aerodynamic profile, made from 12ga 5052 aluminum, then black anodized

  • Adjustable end plate angle

  • Includes stainless steel mounting hardware

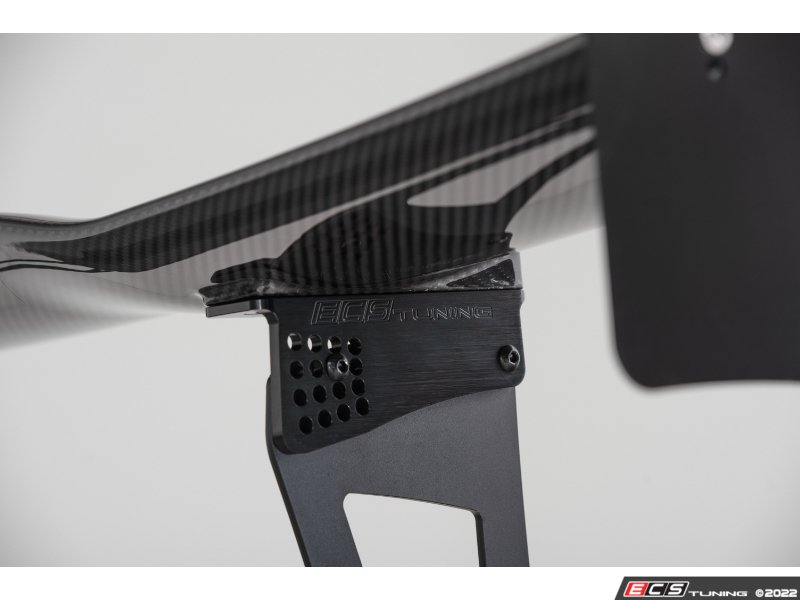

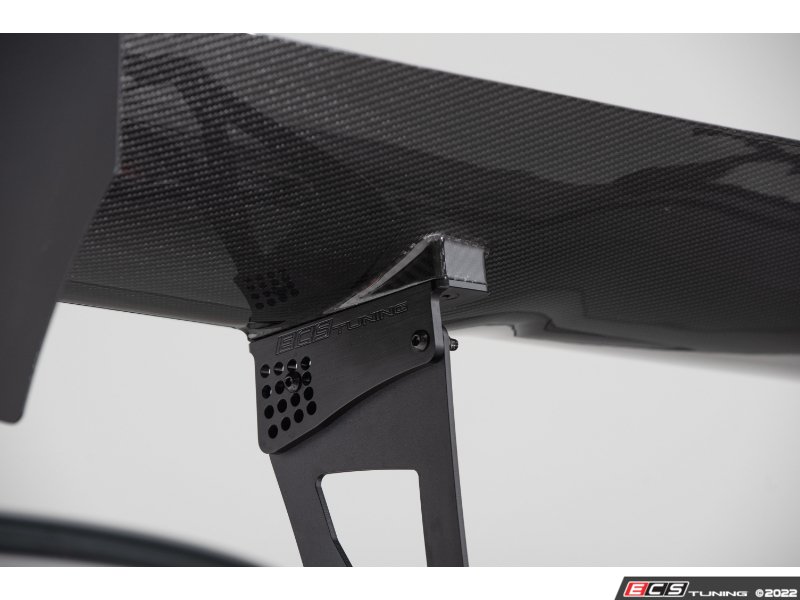

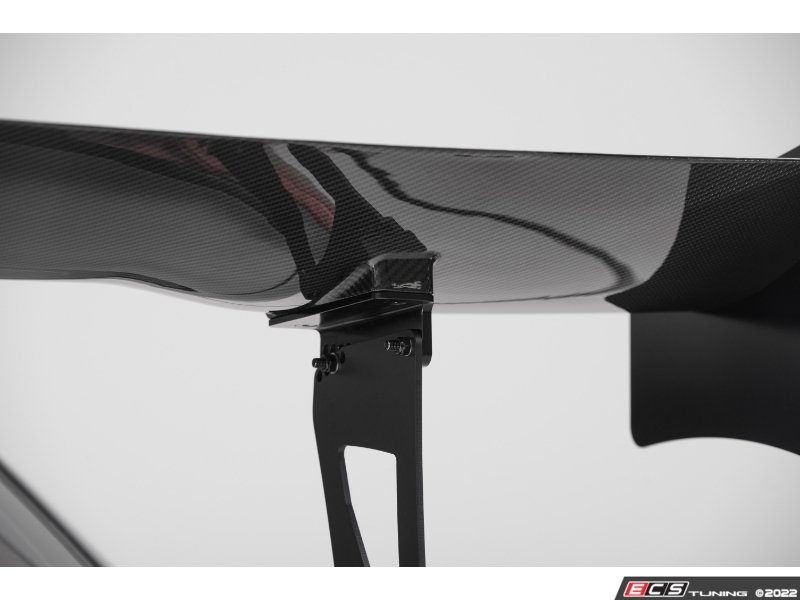

• Wing Mounting Brackets:

  • Made from 6061-T6 billet aluminum, then black anodized

  • Adjustable pitch to dial in the spoiler's angle of attack between approximately 0° and 20° ; each hole adjusts ~1.33° of AoA

  • Includes M8 stainless steel, black oxide hardware

  • Subtle, post-anodized engraved logo

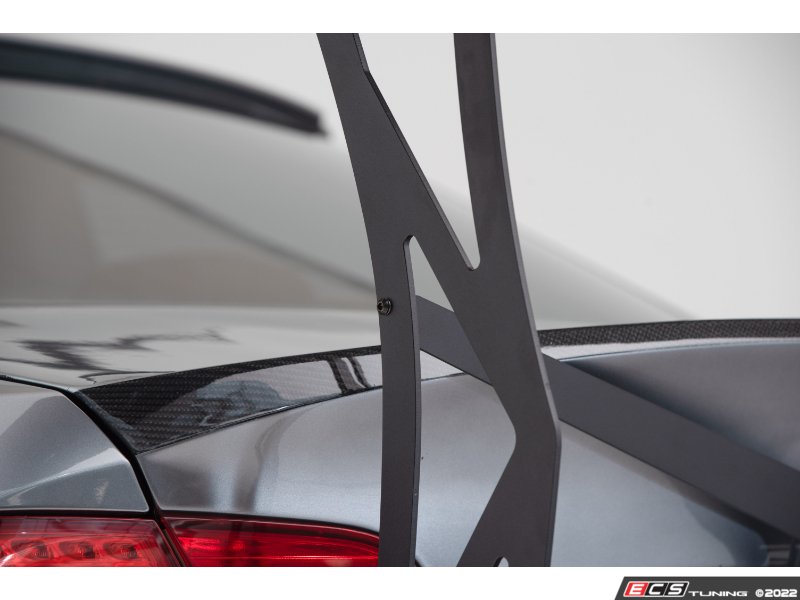

• Upright Brackets:

  • Made from 5mm thick 5052 aluminum, then powdercoated wrinkle black

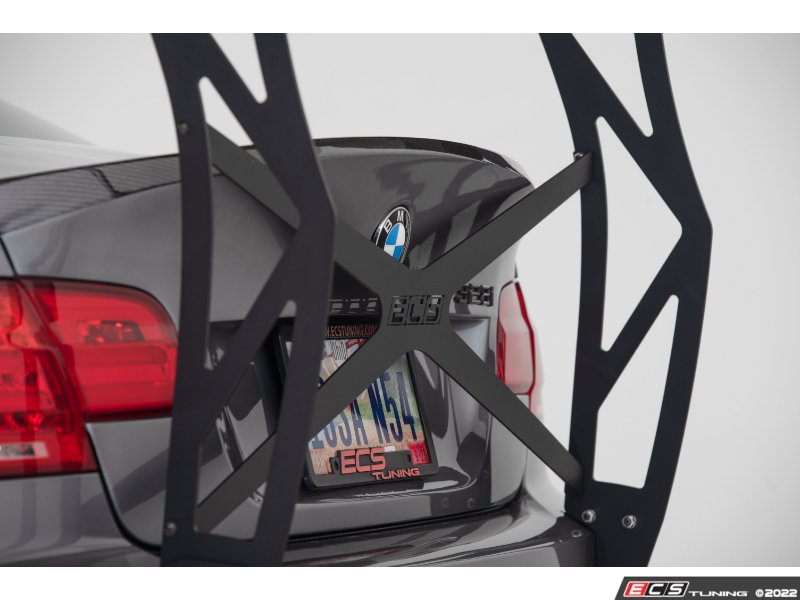

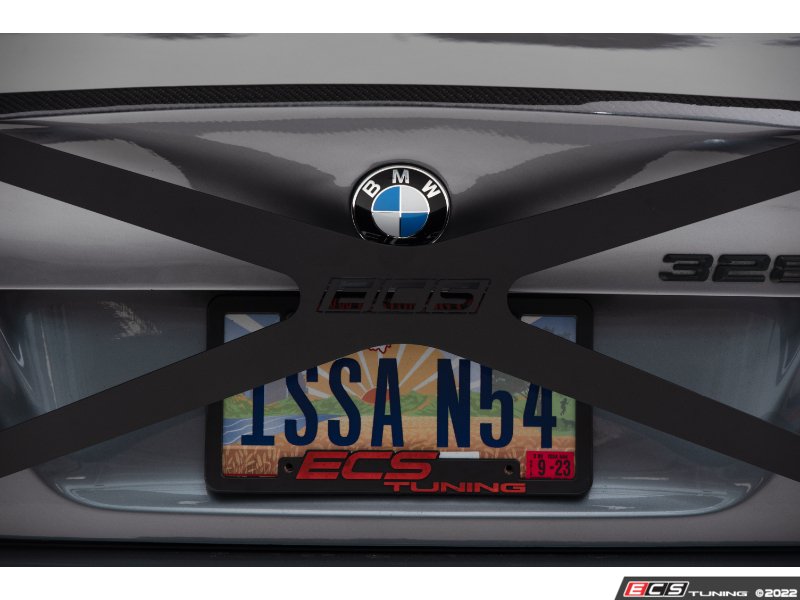

  • Reinforced with a matching x brace

  • Utilizes zinc-coated rivet nuts within the upper body shell (requires drilling into the shell and trimming of the factory hatch spoiler) and billet aluminum lower mounting brackets (requires drilling through the hatch shell)

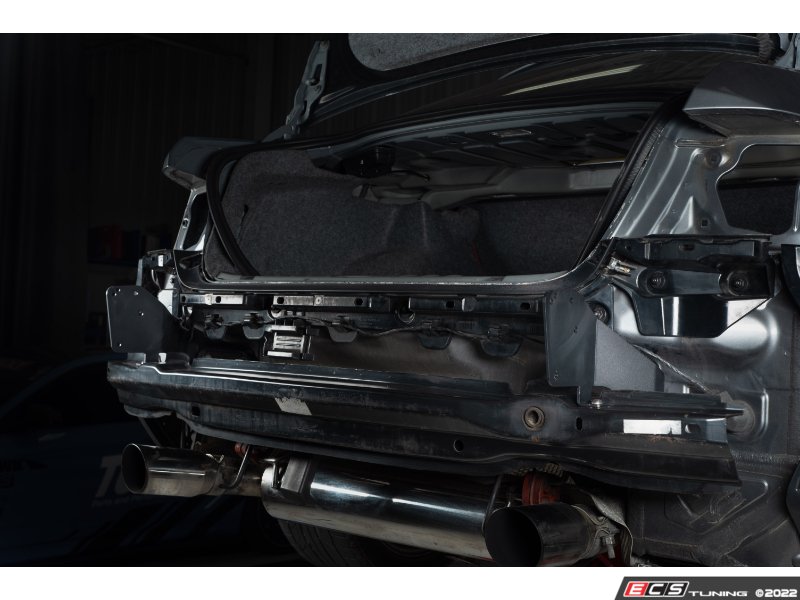

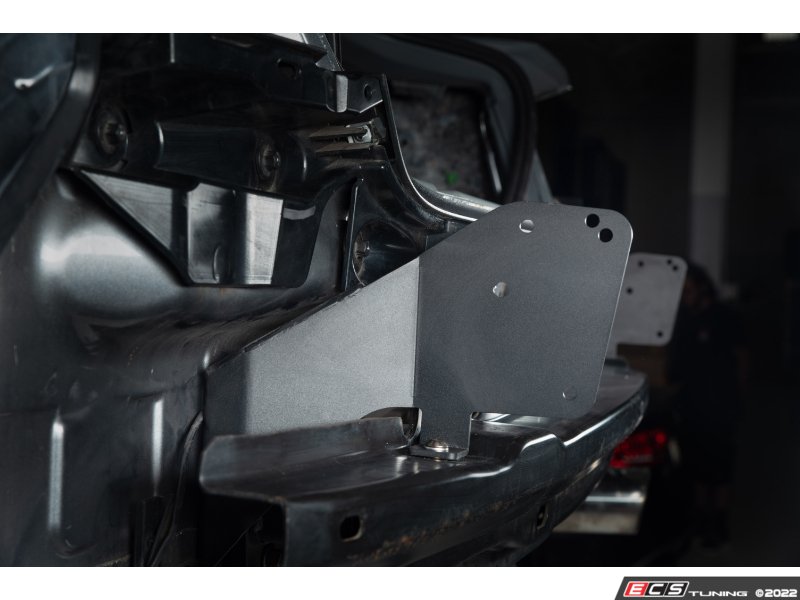

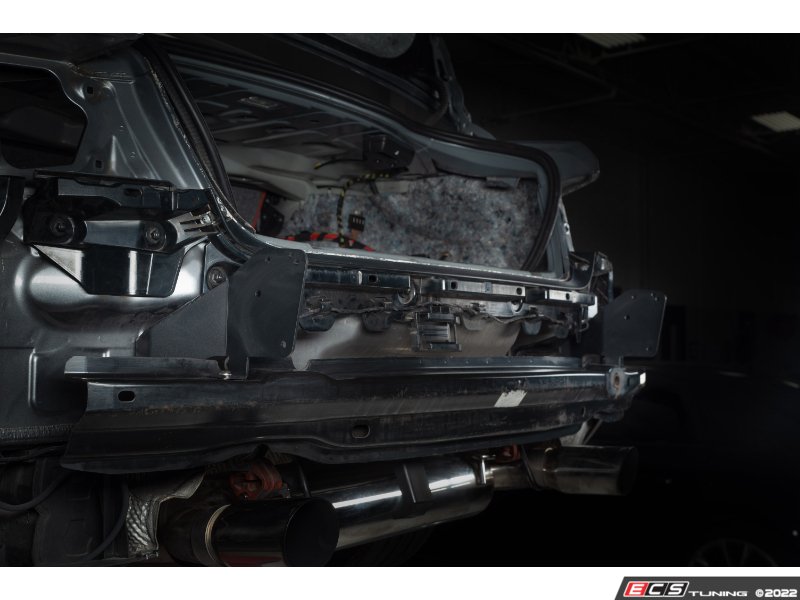

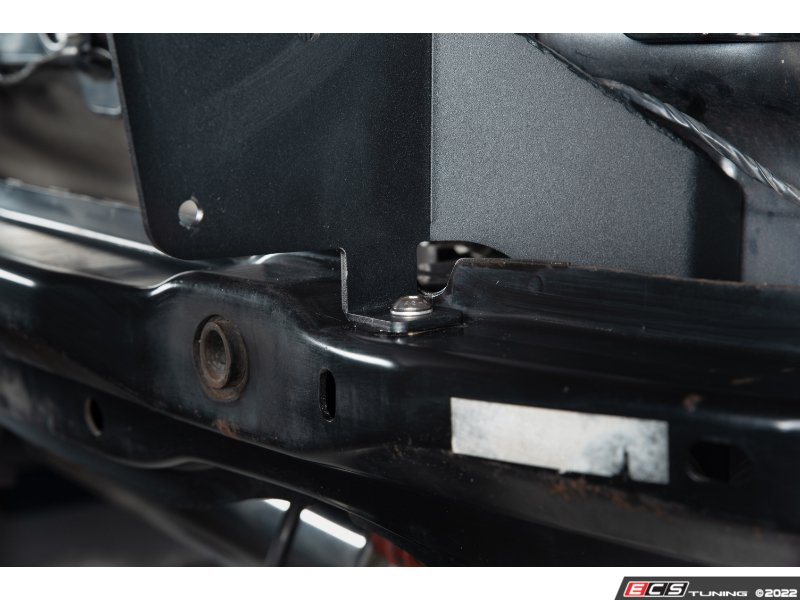

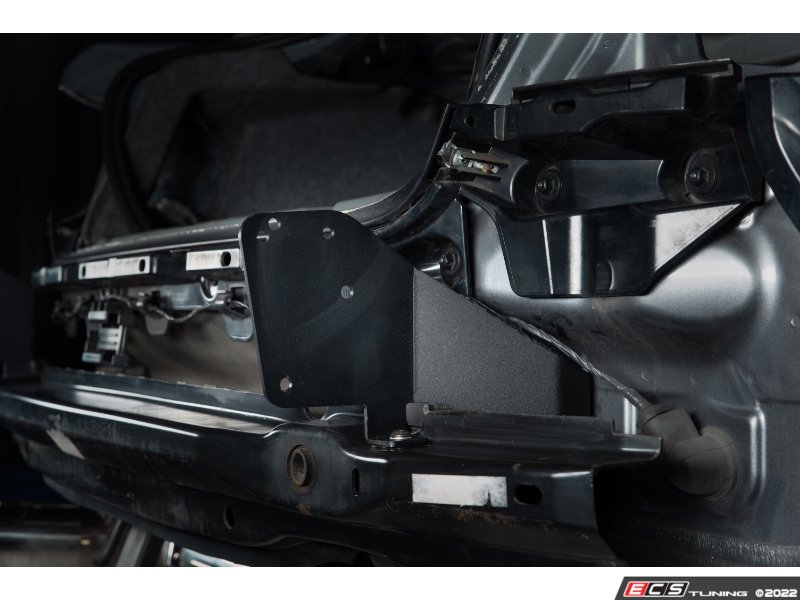

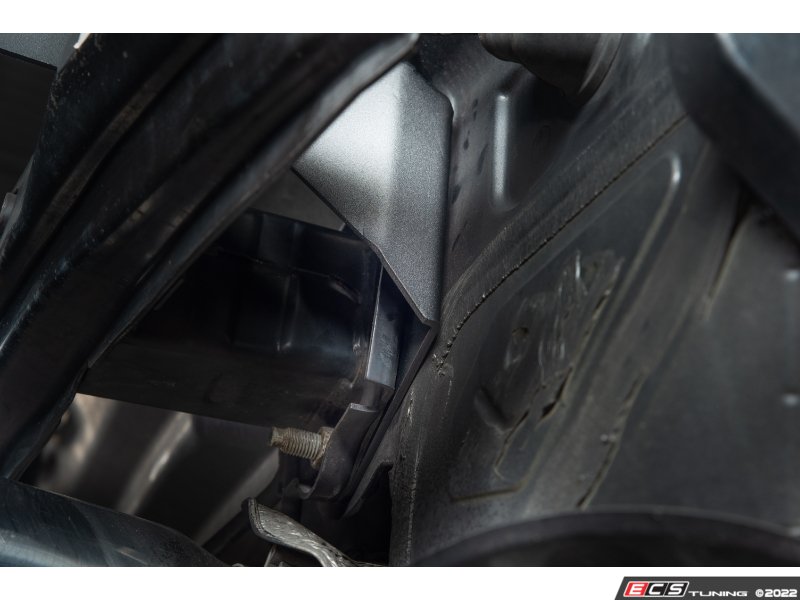

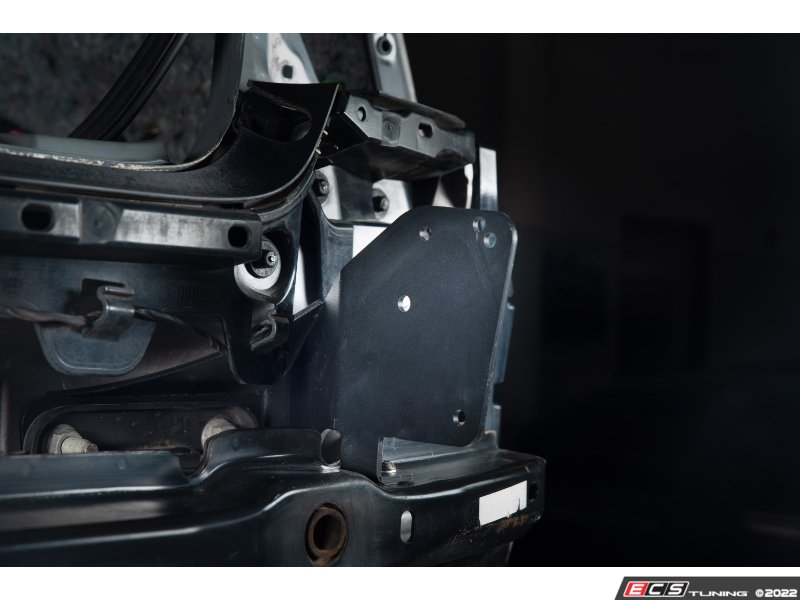

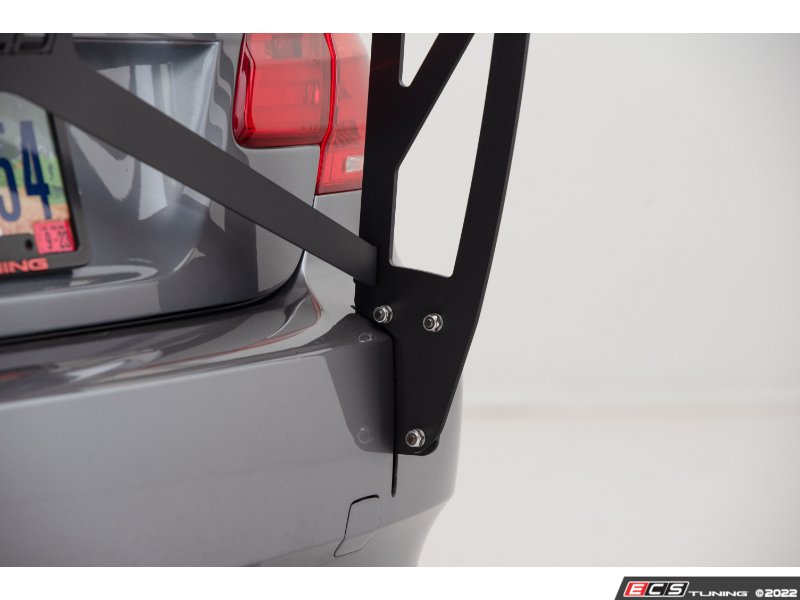

• Chassis Mounting Brackets:

  • Sandwiched between the bumper crash beam and the chassis

  • Powdercoated wrinkle black for strength and durability

INSTALLATION AND SUPPORT

• Need installation tips? We put together a full installation tutorial from start to finish in detail! See our Installation PDF under the INSTALLATION Tab for more information.

• Will require drilling / cutting into the body for permanent installation. Professional installation is highly advised.

PRODUCT DEVELOPMENT

• Our ECS Functional Aerodynamic Rear Wing Kit was designed, engineered, tested and quality inspected by our Research and Development team in our Wadsworth, Ohio facility. We strive for the highest level of precision and quality through leading-edge product development technology including FARO laser scanning for reverse engineering and quality inspection, SolidWorks 3D CAD modeling, rapid prototyping utilizing our in-house 3D printer, and rigorous long term product testing.

PERFORMANCE FEATURES

• Performance data metrics are collected utilizing FEA (Finite Element Analysis) software to validate our design

• Assists with rear tire contact by applying downforce over the rear axle. This is very beneficial on RWD vehicles where rear traction loss may occur at high speed cornering.

• Our wing produces up to 100 lbf of downforce when measured at 80mph, 220 lbf at 120mph and 300 lbf at 140mph
