ECS Front Subframe Locking Collar Kit
- Mfg Part #
- 007343ECS01-01KT
- ECS Part #
- ES#3170120
- Brand
-
This product was last offered at the strikethrough price on
06-13-2026
Free Shipping
Product Details
VW aluminum front subframes are notorious for "walking" or "shifting," creating clunks, squeaks, and groans while turning, starting and/or stopping. VW's repair to this was issued through a TSB (Tech Service Bulletin) whereby a set of shims and larger shank diameter bolts were installed to take up the space between the subframe and the body, limiting subframe motion and tightening the clamp load on the subframe. However, the noise and shifting subframe issue can still return with these shims installed.
If you notice signs of subframe shifting, identified by looking underneath the front suspension and inspecting where the front subframe meets the body and a separation line is observed, or if you hear knocking or clunking while making turns, starting and/or stopping you more than likely will need this ECS Front Subframe Locking Collar Kit.
The ECS Locking Collar Kit features precision CNC machined aluminum upper and lower locking inserts, anodized black for long-lasting corrosion protection, and includes larger shank diameter OEM inboard subframe bolts. Evaluated by our in-house R&D team, we do not believe the subframe shifting is a result of the larger shank diameter hardware stretching, but more as a result of loose tolerances between the bolts and subframe bolt holes.
Our collars take up the gap found in between the subframe bolts and subframe bolt holes, effectively eliminating any chances of the subframe to shift and move around. This creates a locked-down front subframe, eliminating any noises as a result of "subframe shift" and improves handling and front suspension feedback, maintaining intended suspension geometry.
Check out our detailed DIY YouTube video!

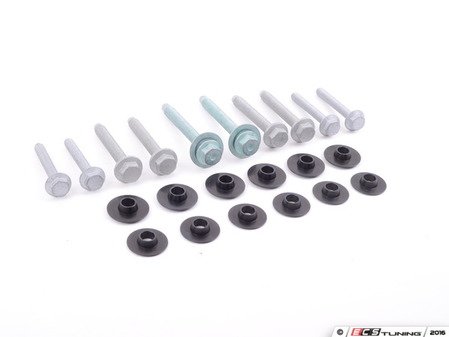

This ECS Front Subframe Locking Collar Kit includes the following:
- CNC Machined Aluminum Locking Collars, Upper - QTY 6
- CNC Machined Aluminum Locking Collars, Lower - QTY 6
- Larger Shank Diameter, Inboard Subframe Bolts - QTY 2
- Replacement Torque To Yield Fasteners - All needed for partial lowering of front subframe
- An available online installation PDF
- deadset
- TSDSKVW
- 1K0199313AL
This Part Fits the Following Vehicles
| Make | Model | Submodel | Engine | Special Fitment Notes |
|---|---|---|---|---|
| Volkswagen | EOS | All | 2.0T | Use vehicle selector to confirm fitment |
| Volkswagen | EOS | All | 3.2L | Use vehicle selector to confirm fitment |
| Volkswagen | Golf R | All | 2.0T | Use vehicle selector to confirm fitment |
| Volkswagen | Golf V | All | 2.0T | Use vehicle selector to confirm fitment |
| Volkswagen | Golf V | All | 2.5 | Use vehicle selector to confirm fitment |
| Volkswagen | Golf V | All | TDI | Use vehicle selector to confirm fitment |
| Volkswagen | Golf VI | All | 2.0T | Use vehicle selector to confirm fitment |
| Volkswagen | Golf VI | All | 2.5 | Use vehicle selector to confirm fitment |
| Volkswagen | Golf VI | All | TDI | Use vehicle selector to confirm fitment |
| Volkswagen | Jetta V | All | 2.0T | Use vehicle selector to confirm fitment |
| Volkswagen | Jetta V | All | 2.5 | Use vehicle selector to confirm fitment |
| Volkswagen | Jetta V | All | TDI | Use vehicle selector to confirm fitment |
| Volkswagen | R32 MKV | All | 3.2 | Use vehicle selector to confirm fitment |
Kit Contents
| Description | Brand | Qty | Lifetime | |
|---|---|---|---|---|
| Hex Bolt - Priced Each |
|
4 | YES | |
| Hex Bolt - Priced Each |
|
4 | YES | |
| ECS Front Subframe Locking Collar Kit |
|
1 | YES |
