ECS S54 Baffled Oil Catch Can System

Keep your intake tract clean and oil free, with our ECS Baffled Oil Catch Can System
Mfg Part #
ECS Part #
Free Shipping Free Shipping
Availability: On Order, ETA Jun 18, 2020
Auto Notify
Does this fit my vehicle?

Product Details

ECS Tuning now has the solution with our ECS Baffled Oil Catch Can System. In house engineered, our system is designed to collect toxic blow-by gasses, reduce carbon build up and reduce concentrations of acids, oxidants and water within the engine oil.

The M3 community has found a catch can to be very useful when it comes to oil separation . Our separator has proven results to not only catch oil from traveling back into the intake system, but also moisture. This allows for much cleaner valves as well as the oil being cycled through the engine, separating the moisture with the catch can avoids the notorious freezing.

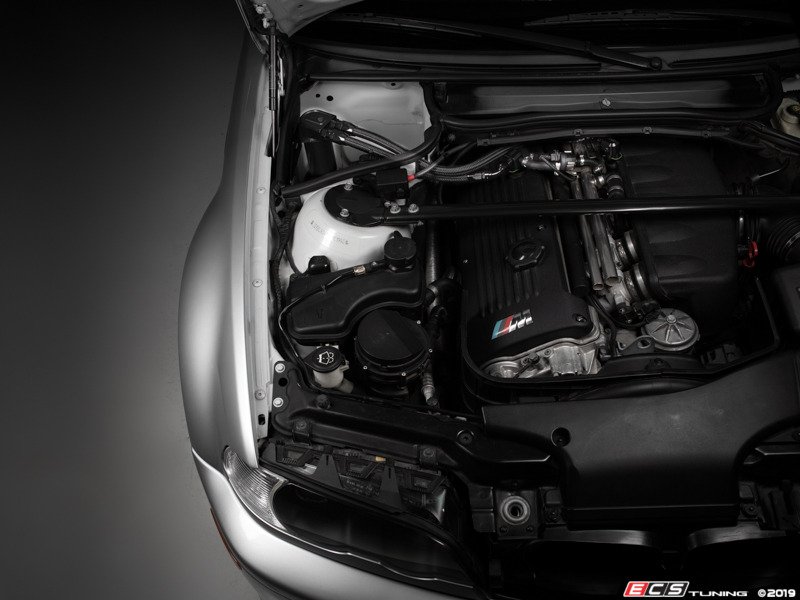

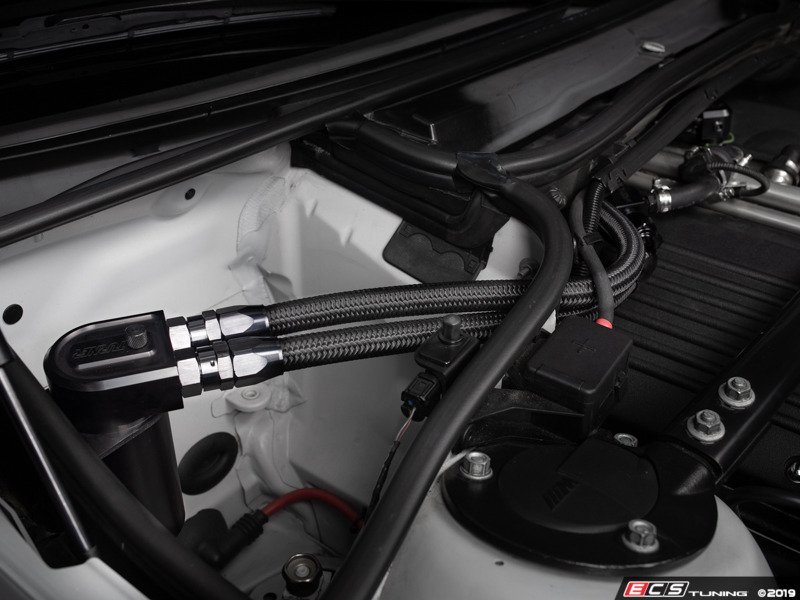

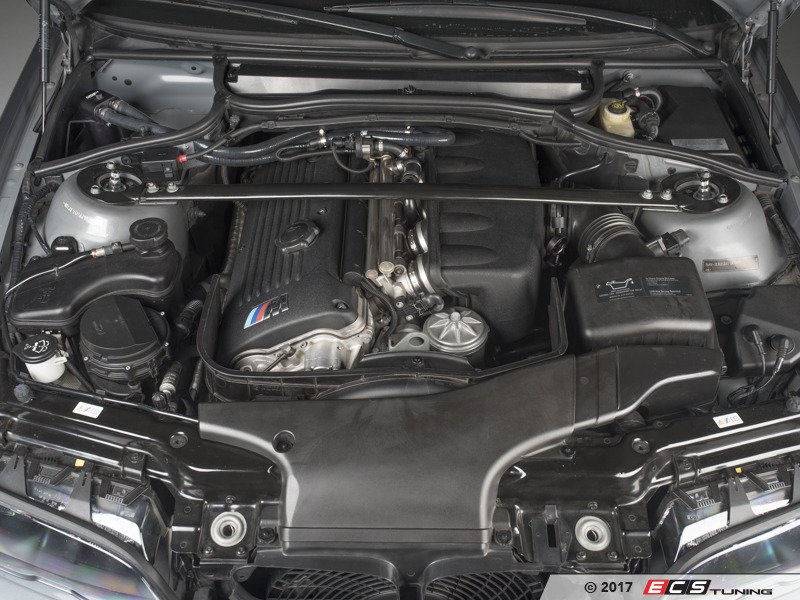

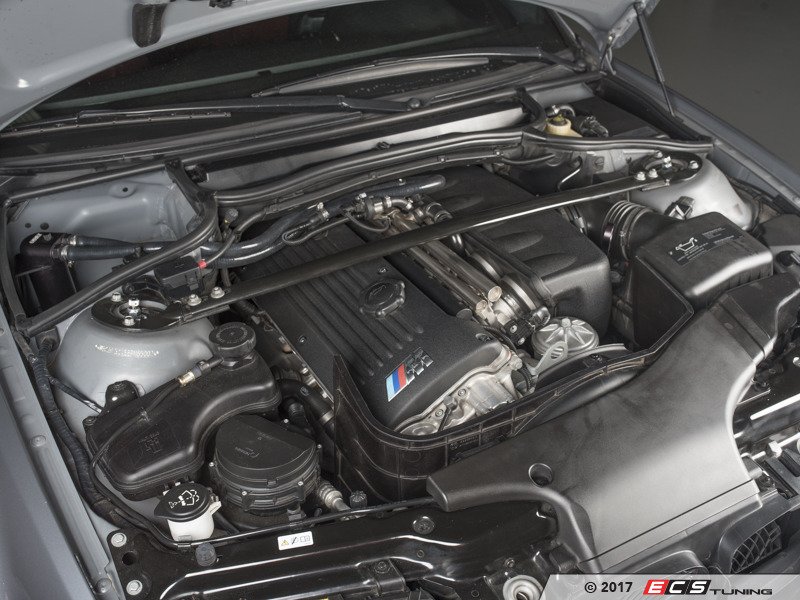

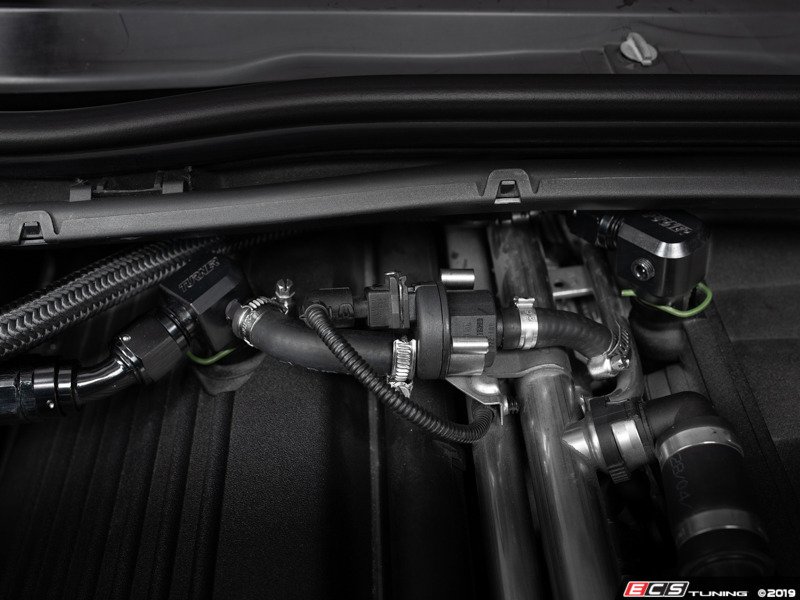

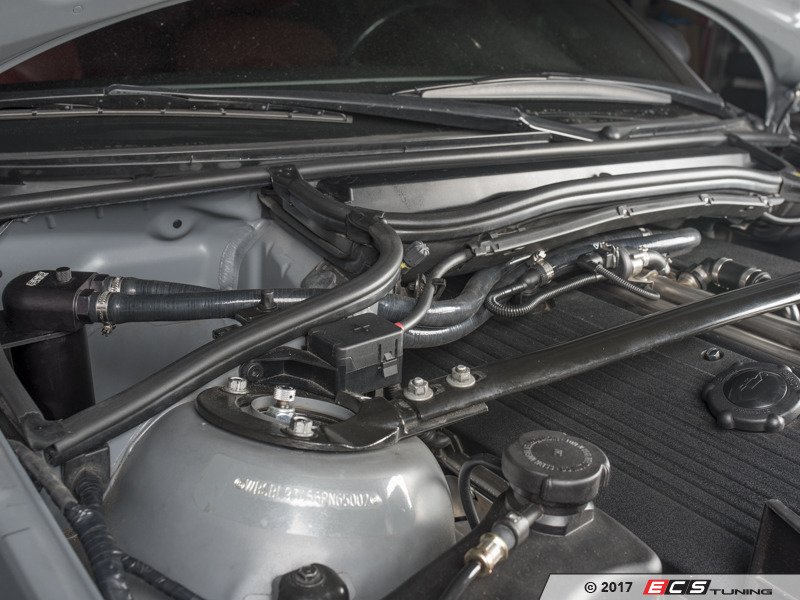

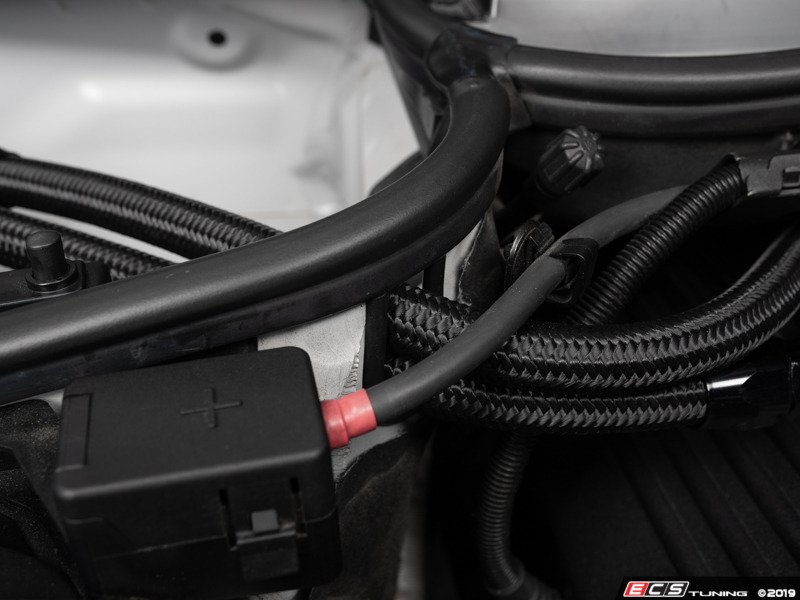

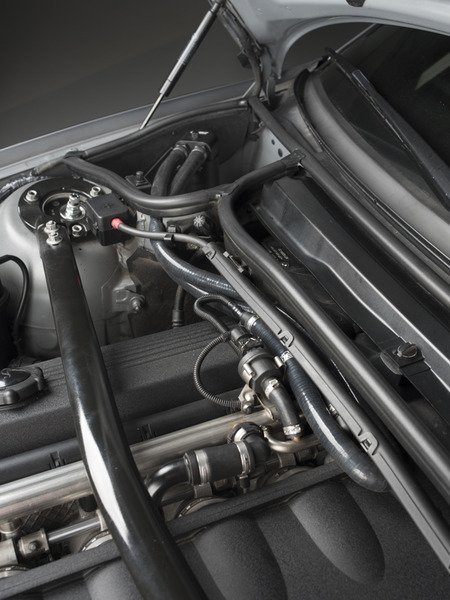

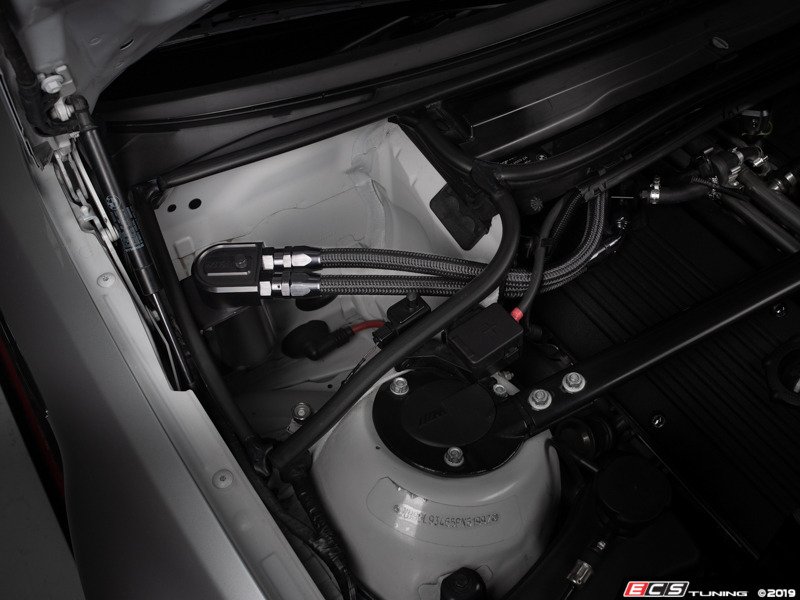

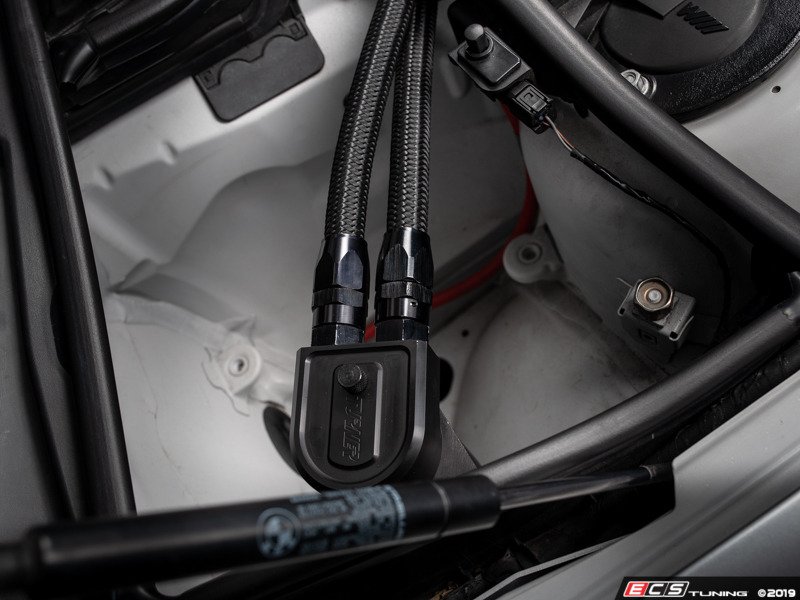

This kit is a direct fit making this an easy reversal if desired as well as maintaining a clean appearance by utilizing the open "smuggler's compartment" on the passenger side of the engine bay.

Key benefits of the ECS Baffled Oil Catch Can System:

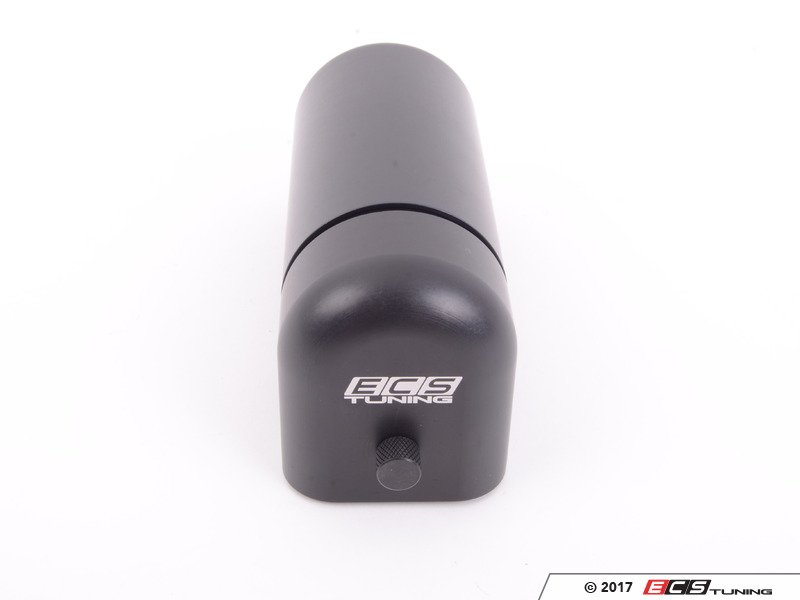

  • Highly Efficient Oil Separator (Catch Can):
    • Strategically positioned 4 chamber baffle system maximizes oil / air separation
    • Engineered to create multiple changes in the direction of airflow within the separator to cause oil droplets to fall out of suspension before exiting the catch can

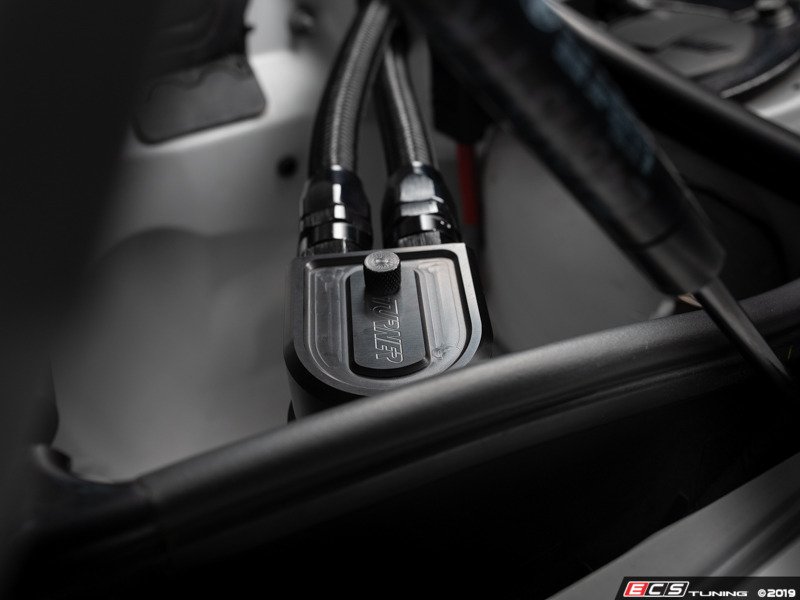

    • Knurled and black anodized integrated oil dipstick makes inspecting oil volume of the reservoir clean and simple

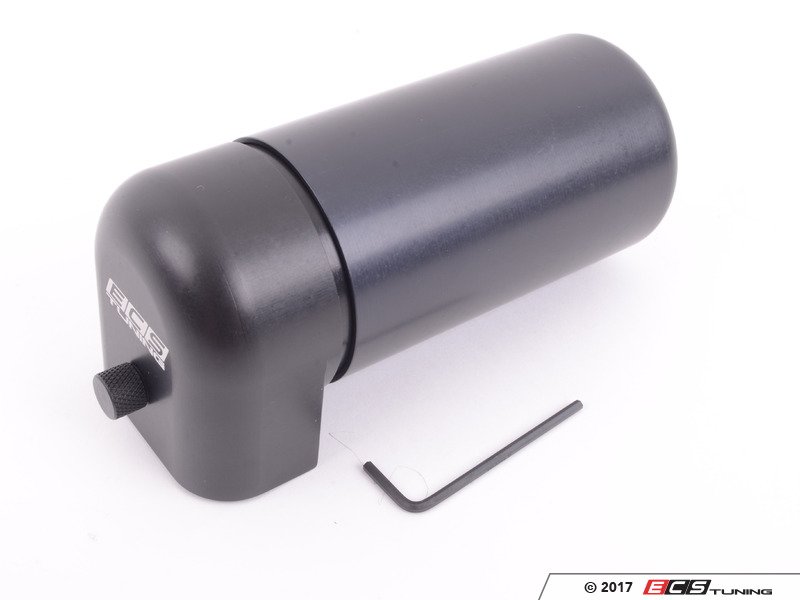

    •  Fully serviceable for routine cleaning and maintenance; Includes 2.5mm allen key to remove baffle plates for cleaning

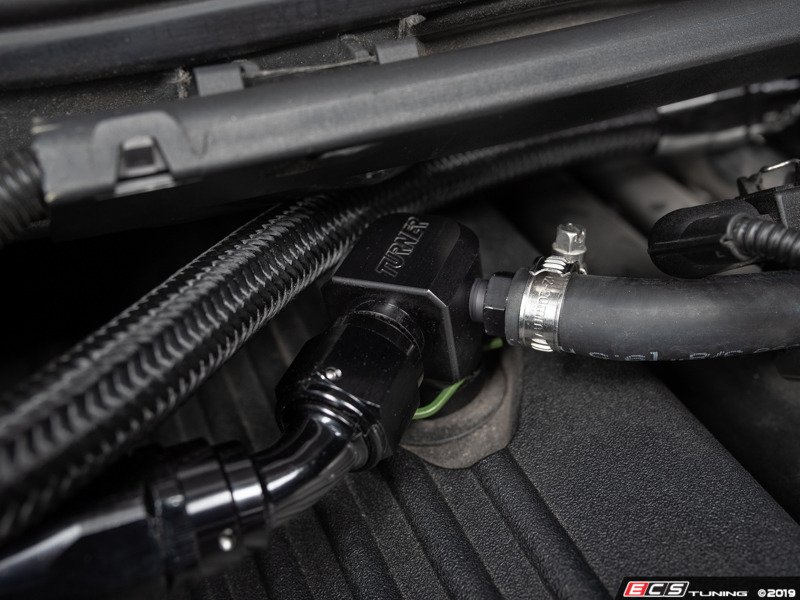

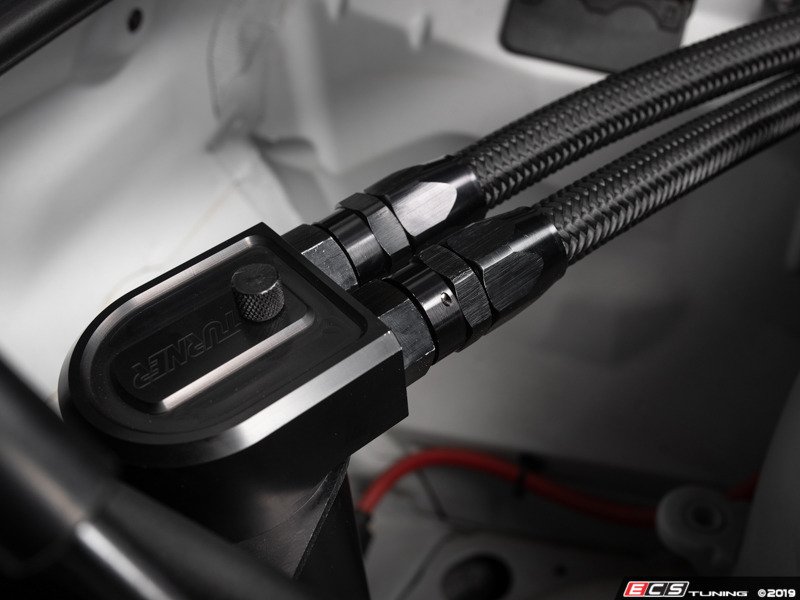

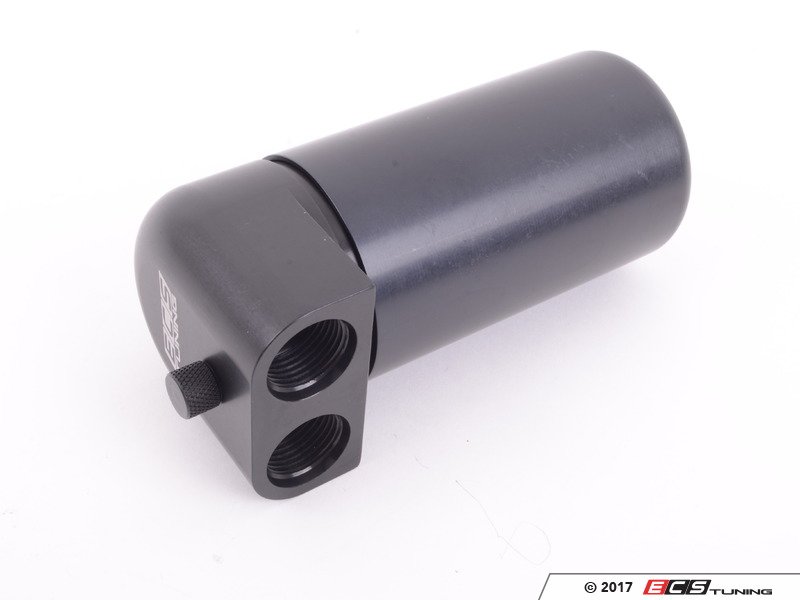

    • -10AN ORB (O-Ring Boss) fittings for leak-free fitting connections
    • 6061-T6 billet machined body, anodized black for lasting protection and appearance
    • Easy to drain reservoir, simply un-threads from the oil separator for quick draining or cleaning


Engineered and manufactured in the USA, you can expect the best performance and longevity with our superior Oil Catch Can System from ECS Tuning!

Previous Revisions
  • 015515TMS01-02KT

This Part Fits the Following Vehicles

Make Model Submodel Engine
BMW E46 M3 S54 3.2L
*The above product applications have been written by ECS Tuning. All warranties, product application, fitment, and performance are the responsibility of ECS Tuning. For additional information see the terms of use.

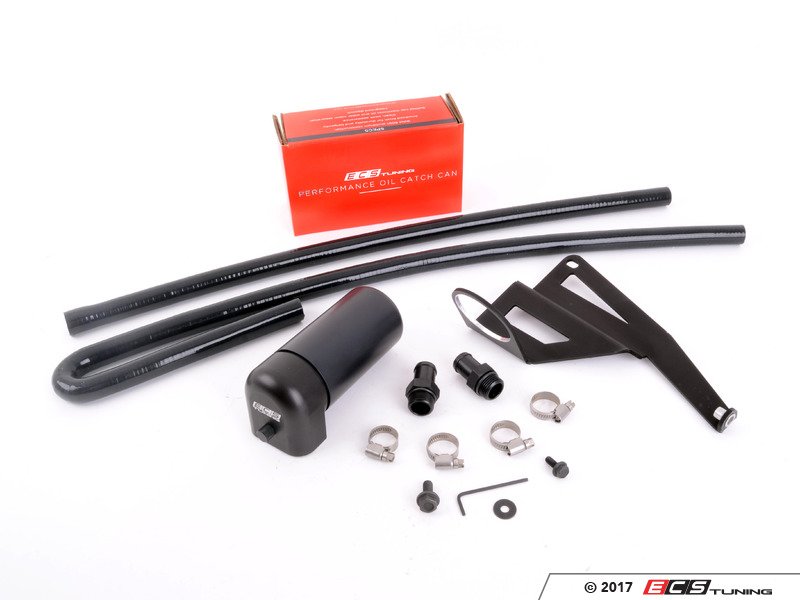

Kit Contents

Description Brand Qty
Caliper Guide Pin Bolt - Priced Each ECS - Corporate Logo 1

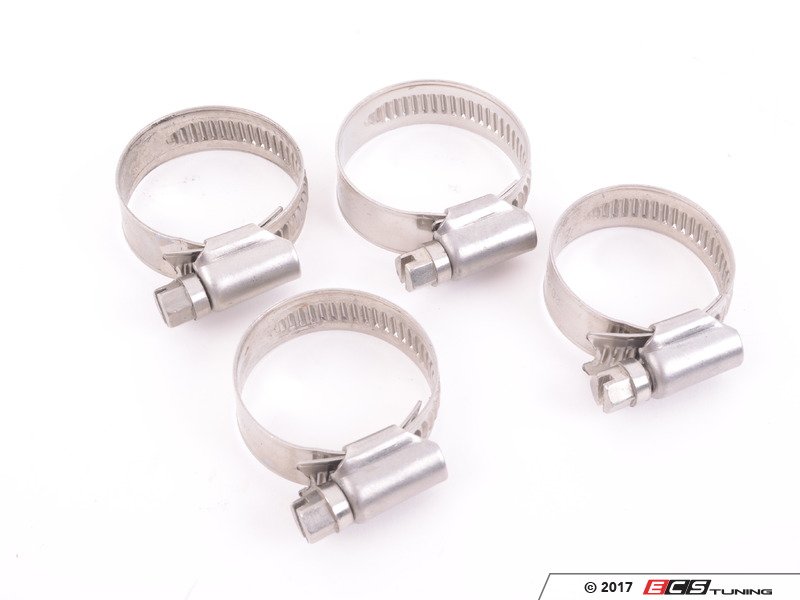

3/8"/9mm Band Hose Clamp - 12-20mm ECS - Corporate Logo 4

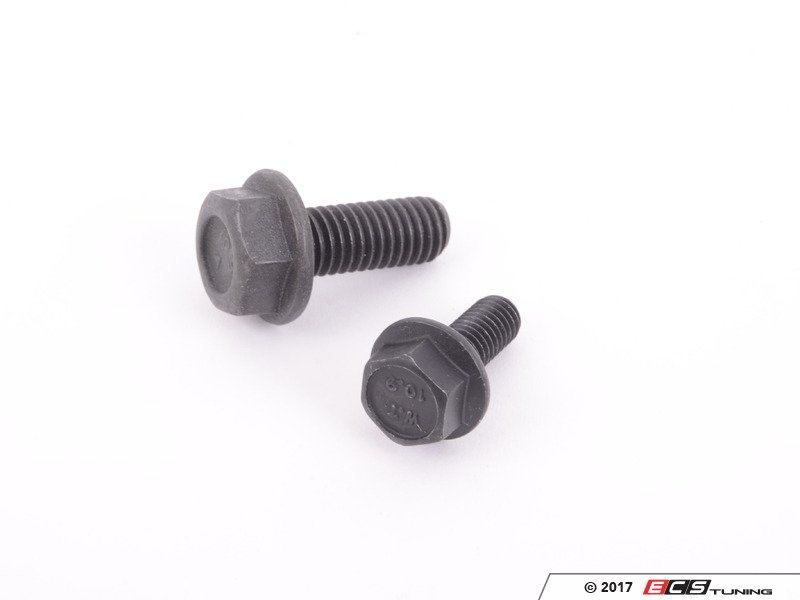

M6x16 Black Phosphate Flange Head Bolt ECS - Corporate Logo 1
-10AN ORB X 3/4" Hose Barb Fitting Assembly - Priced Each ECS - Corporate Logo 2
18-8 Stainless Steel Oversized Washer, Black-Oxide, M6 Screw Size, 6.4 Mm ID, 18 Mm OD ECS - Corporate Logo 1
ECS Tuning Baffled Oil Catch Can - 8oz ECS - Corporate Logo 1

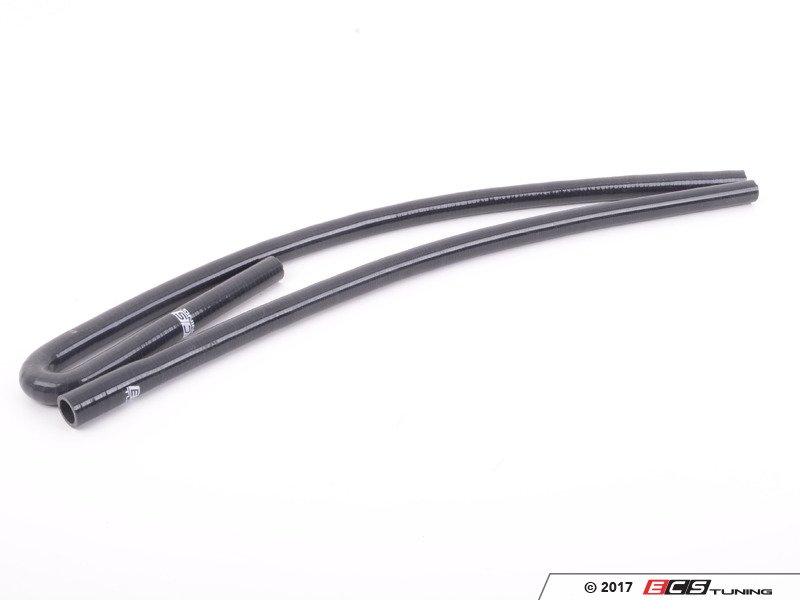

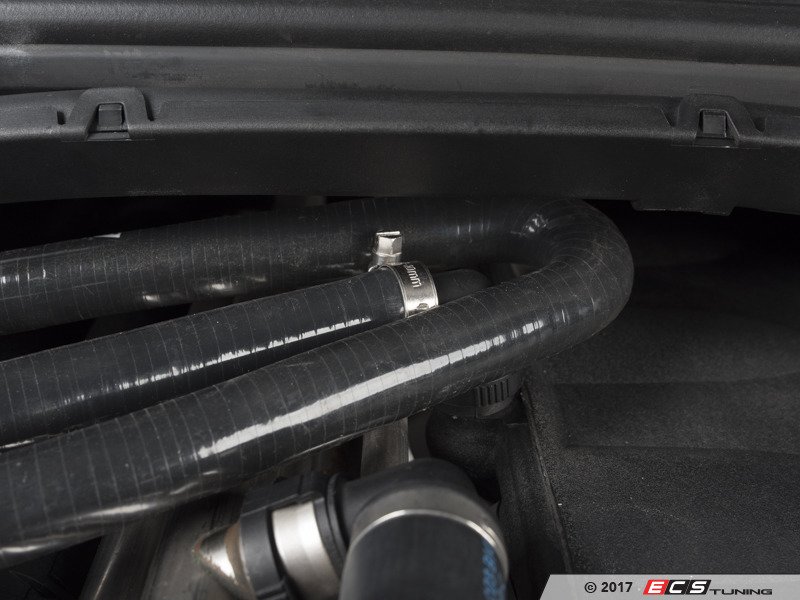

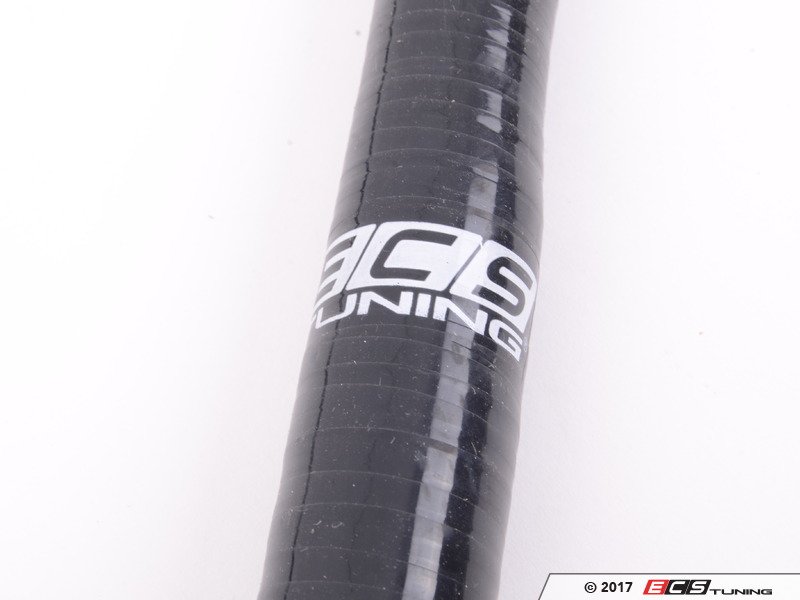

Silicone Hose Set Turner Motorsport - Corporate Logo 1
Bracket Turner Motorsport - Corporate Logo 1
