ECS Street Coilover System - With Installation Kit
This product was last offered at the strikethrough price on
06-13-2026
Product Details
The ECS Street Coilover System with Installation Kit provides a complete package with all the necessary TTY hardware and strut bearings along with our ECS Tuning World Premier HD Strut & Shock Mounts for a sport-tuned, long-lasting ride that provides confidence and precise control with a ride that is firm, yet compliant for the majority of enthusiasts.
- ECS Street Coilover System:
- The ECS Tuning Street Coilover System provides a sport-tuned, adjustable suspension with substantial performance benefits using high quality materials and coatings to replace your worn suspension, all while giving your vehicle that perfect ride height!
- Adjustable lowering from 1.38” - 2.16” Front & Rear
- The ECS Tuning Street Coilover System provides a sport-tuned, adjustable suspension with substantial performance benefits using high quality materials and coatings to replace your worn suspension, all while giving your vehicle that perfect ride height!
- ECS HD Front Strut Mounts:
- The ECS Heavy Duty Front Strut Mount offers significant performance to your vehicle's handling and long term durability as compared to stock strut mounts. With the increased durometer over stock, the 75A durometer rubber strut mounts will better resist deflection and premature wear that commonly plagues the OE strut mounts.
- ECS HD Rear Shock Mounts:
- With the increased durometer over the squishy, OEM 75A durometer shock mounts, the ECS void-free 85A durometer rubber shock mounts will better resist deflection and premature wear that commonly plagues the OE mounts without sacrificing ride comfort.
This kit includes all the necessary components to replace while removing your old suspension and installing coilovers. We've ensured that you have the highest quality components and the needed parts and hardware to service as most of these parts have either failed or become close to the end of their useful service life.
Don't get caught halfway through the job just to find out you needed this complete suspension package!

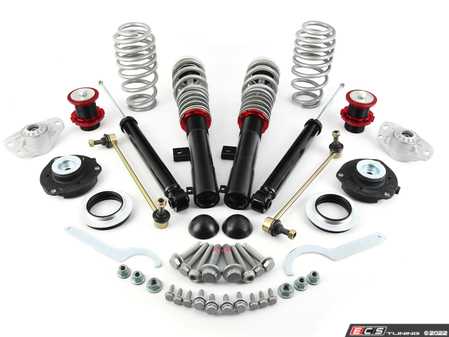

This Kit includes the following items:
FRONT
- ECS Front Coilover Strut Assemblies - QTY 2
- HD Shorter Length Front Sway Bar End Links - QTY 2
- Front Strut Mounts - QTY 2
- Front strut bearings - QTY 2
- Front strut mount nuts - QTY 2
- Front strut mount retaining bolts - QTY 6
- Front strut pinch bolt and nut - QTY 2
- Front axle bolts (outer) - QTY 2
REAR
- ECS Rear Coilover Mounting / Perches, Springs and Shock Absorbers - QTY 2
- Rear Shock Mounts - QTY 2
- Rear Shock Mount Dust Caps - QTY 2
- Lower Shock Mounting Bolts - QTY 2
- Upper Shock Mounting Bolts - QTY 4
- Lower Control Arm -to- Knuckle Securing Bolts and Nuts - QTY 2
**Please note: Rear shock bump stops are NOT included. You may reuse your original or purchase new units (ES2627636). However, trimming of the bump stops is required for a shorter length.
INSTALLATION AND SUPPORT
- Looking for installation tips? Look no further, we have a full installation PDF from start to finish including how to remove your suspension in detail! See our Installation PDF under the INSTALLATION Tab for more information.
- PLEASE NOTE: It's critical to check wheel offset for proper clearance to new suspension components before driving!! Wheel spacers may be required on higher offset wheels.
- This coilover set is for Front Wheel Drive (FWD) models ONLY!
- Front pinch bolt needs to be located ABOVE the small rectangular tab, not through it.
**Installation Photos depict installation with our upgraded ECS Adjustable Sway Bar End Links, which are available for additional purchase. Search ES3184741, ES3184747 to learn more.**
This Part Fits the Following Vehicles
| Make | Model | Submodel | Engine | Special Fitment Notes |
|---|---|---|---|---|
| Audi | A3 8P | FWD | 2.0T | Use vehicle selector to confirm fitment |
| Audi | A3 8P | FWD | TDI | Use vehicle selector to confirm fitment |
| Audi | A3 8P | Quattro | 2.0T | Use vehicle selector to confirm fitment |
| Audi | A3 8P | Quattro | 3.2L | Use vehicle selector to confirm fitment |
| Audi | A3 8P | Quattro | V6 3.2L | Use vehicle selector to confirm fitment |
| Audi | TT MKII | FWD | 2.0T | Use vehicle selector to confirm fitment |
| Volkswagen | Beetle | All | 1.8T Gen3 | Use vehicle selector to confirm fitment |
| Volkswagen | Beetle | All | 2.0T | For vehicles with independent rear suspension only (Adjustable lowering from 1.38” - 2.16” Front & Rear) |
| Volkswagen | Beetle | All | 2.0T Gen3 | Use vehicle selector to confirm fitment |
| Volkswagen | Beetle | All | 2.5L | Approximate lowering from (1.38” - 2.16” Front & Rear) |
| Volkswagen | Beetle | All | TDI | Use vehicle selector to confirm fitment |
| Volkswagen | Golf V | All | 2.0T | Use vehicle selector to confirm fitment |
| Volkswagen | Golf V | All | 2.5 | Use vehicle selector to confirm fitment |
| Volkswagen | Golf V | All | TDI | Use vehicle selector to confirm fitment |
| Volkswagen | Golf VI | All | 2.0T | Use vehicle selector to confirm fitment |
| Volkswagen | Golf VI | All | 2.5 | Use vehicle selector to confirm fitment |
| Volkswagen | Golf VI | All | TDI | Use vehicle selector to confirm fitment |
| Volkswagen | Jetta V | All | 2.0T | Use vehicle selector to confirm fitment |
| Volkswagen | Jetta V | All | 2.5 | Use vehicle selector to confirm fitment |
| Volkswagen | Jetta V | All | TDI | Use vehicle selector to confirm fitment |
| Volkswagen | Jetta VI | Sedan | 1.4T Hybrid | Approximate lowering from (1.38” - 2.16” Front & Rear) |
| Volkswagen | Jetta VI | Sedan | 1.8T Gen3 | Approximate lowering from (1.38” - 2.16” Front & Rear) |
| Volkswagen | Jetta VI | Sedan | 2.5 | For vehicles with independent rear suspension only (Adjustable lowering from 1.38” - 2.16” Front & Rear) |
| Volkswagen | Jetta VI | Sedan | TDI | For vehicles with independent rear suspension only (Adjustable lowering from 1.38” - 2.16” Front & Rear) |
| Volkswagen | Jetta VI | Sedan Facelift | 1.4T | Approximate lowering from (1.38” - 2.16” Front & Rear) |
| Volkswagen | Jetta VI | Sedan Facelift | 1.4T Hybrid | Approximate lowering from (1.38” - 2.16” Front & Rear) |
| Volkswagen | Jetta VI | Sedan Facelift | 1.8T Gen3 | Approximate lowering from (1.38” - 2.16” Front & Rear) |
| Volkswagen | Jetta VI | Sedan Facelift | 2.0T Gen3 GLI | Approximate lowering from (1.38” - 2.16” Front & Rear) |
| Volkswagen | Jetta VI | Sedan Facelift | TDI | Use vehicle selector to confirm fitment |
Kit Contents
| Description | Brand | Qty | Lifetime | |
|---|---|---|---|---|
| Heavy Duty Bolt - Priced Each |
|
2 | YES | |
| Hex Bolt - Priced Each |
|
4 | YES | |
| Rear Shock Mount Cap - Priced Each |
|
2 | YES | |
| Hex Bolt - Priced Each |
|
2 | YES | |
| 21mm Upper Strut Nut - Priced Each |
|
2 | YES | |
| Hex Bolt - Priced Each |
|
2 | YES | |
| Rear Shock Mount - Priced Each |
|
2 | YES | |
| Heavy Duty Hex Bolt - Priced Each |
|
6 | YES | |
| Front Upper Strut Mount With Bearing |
|
2 | YES | |
| Self-Locking Nut - Priced Each |
|
4 | YES | |
| Drive Axle Shoulder Bolt - Priced Each |
|
2 | YES | |
| ECS Street Coilover System - MK5 / MK6 / GTI / Jetta / 8P A3 |
|
1 | YES |
