ECS Tuning FSI Baffled Oil Catch Can System

Keep your intake tract clean and oil free, with our ECS Baffled Oil Catch Can System
Mfg Part #
006350ECS01-01KT
ECS Part #
ES#2954131
Brand
ECS
358.15
$397.95 (Sale - Save 10%)
Free Shipping Free Shipping
Availability: Ships in 3 Business Days
Qty
Does this fit my vehicle?

Product Details

Today's direct fuel injection systems have taken engine performance to a whole new level, but there is a drawback. With no fuel vapors to clean the intake valves, the oil particles that are drawn into the intake from the PCV system will deposit themselves onto the valves and intake ports. Over time this will result in an excessive carbon buildup, resulting in lost power and poor drivability.

ECS Tuning now has the solution with our ECS Baffled Oil Catch Can System. In house engineered, our system is designed to collect toxic blow-by gasses, reduce carbon build up and reduce concentrations of acids, oxidants and water within the engine oil.

Through multiple design iterations and several prototypes tested, and with the proper understanding of the FSI engine's PCV system, we can confidently give you the finest oil catch can system available on the market!

Key benefits of the ECS Baffled Oil Catch Can System:

  • Highly Efficient Oil Separator (Catch Can):
    • Strategically positioned 4 chamber baffle system maximizes oil / air separation
    • Engineered to create multiple changes in the direction of airflow within the separator to cause oil droplets to fall out of suspension before exiting the catch can
    • Knurled and black anodized integrated oil dipstick makes inspecting oil volume of the reservoir clean and simple
    •  Fully serviceable for routine cleaning and maintenance; Includes 2.5mm allen key to remove baffle plates for cleaning
    • -10AN ORB (O-Ring Boss) fittings for leak-free fitting connections
    • 6061-T6 billet machined body, anodized black for lasting protection and appearance
    • Easy to drain reservoir, simply un-threads from the oil separator for quick draining or cleaning
  • Billet machined FSI Adapter Plate integrates -10AN ORB (O-Ring Boss) fittings for leak-free fitting connections to the custom length -10AN braided nylon hose and connects the OEM PCV hose to a machined factory fitting connection
  • Completely reversible installation, as no OEM components are permanently modified. This is ideal for those who choose to remove their catch can during the cold winter months

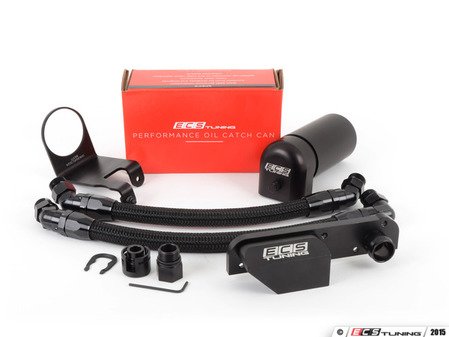

Each system includes the following:

  • 4 Chamber Baffled Oil Catch Can with integrated dipstick and service tool
  • CNC bent, black anodized, aluminum catch can bracket
  • Black zinc OEM fasteners to secure the bracket to the right side engine mount
  • -10AN black nylon braided hose
    • Cut to the perfect length -- This alone make's installation as easy as changing your own oil!
    • -10AN black anodized ORB (O-Ring Boss) fittings are pre-installed on each hose for a direct fit install
    • Oil and fuel resistant to chemical degradation
  • Oil and fuel resistant, high temperature viton O-Rings pre-installed on all adapters
  • Billet machined 6061-T6 aluminum components, anodized black:
    • PCV end cap fitting with OEM securing clip
    • -10AN ORB / Machined OEM PCV adapter plate

Engineered and manufactured in the USA, you can expect the best performance and longevity with our superior Oil Catch Can System from ECS Tuning!

This Part Fits the Following Vehicles

Make Model Submodel Engine
Audi A3 8P FWD 2.0T
Volkswagen EOS All 2.0T
Volkswagen Golf R All 2.0T
Volkswagen Golf V All 2.0T
Volkswagen Jetta V All 2.0T
Volkswagen Passat B6 FWD 2.0T
*The above product applications have been written by ECS Tuning. All warranties, product application, fitment, and performance are the responsibility of ECS Tuning. For additional information see the terms of use.

Kit Contents

Description Brand Qty
PCV / Intake Block Off Cap ECS - Corporate Logo 1
Catch Can Fitting Spacer (-10AN ORB) ECS - Corporate Logo 1
Catch Can Mounting Bracket with Hardware ECS - Corporate Logo 1
Valve Cover (Catch Can) PCV Adapter Plate ECS - Corporate Logo 1
FSI Catch Can Return Line - Stock Cover ECS - Corporate Logo 1
FSI Catch Can Feed Line - Stock Cover ECS - Corporate Logo 1
ECS Tuning Baffled Oil Catch Can - 8oz ECS - Corporate Logo 1
