The ECS Tuning Adjustable Sway Bar End Links provide up to 32mm (1.26") of adjustment ranging from stock height all the way down to slammed suspension setups, allowing you to eliminate sway bar preload or to fine tune sway bar preload for specific racing types and corner balancing. With our ECS Sway Bar End Links installed there is greater clearance between drivetrain components and improved sway bar reaction time by minimizing deflection within our heavy duty end links.
Having adjustable end links provides many benefits such as drivetrain clearance and preload adjustment. With changes in ride height resulting from lowering springs, coilover suspension and some air ride systems will alter the amount of suspension droop relative to sway bar end link mounting distances between control arm and sway bar. With an adjustable sway bar end link installed in a perfectly neutral position you can eliminate sway bar preload for proper handling in most driving scenarios.

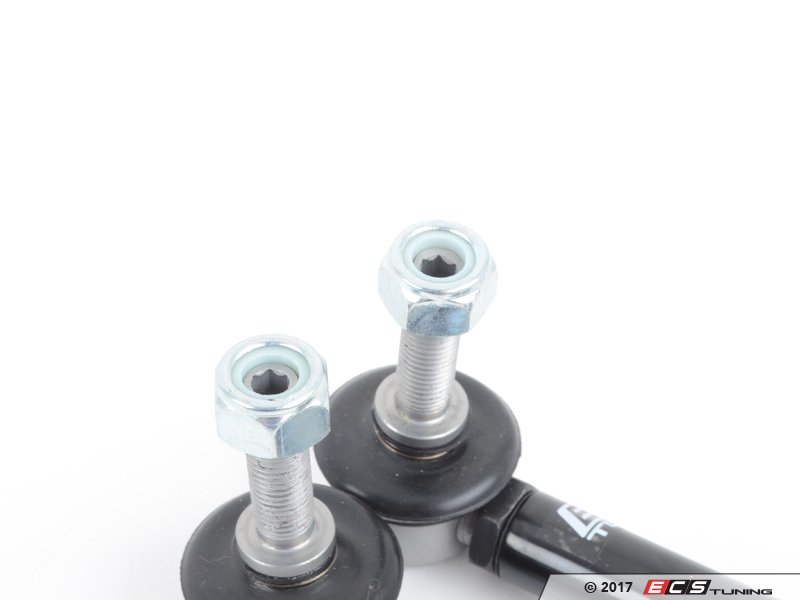

Gray zinc coated heavy duty ball joint ends complete the connection from the sway bar to the chassis. The ball joint ends include weather resistant rubber boots with stainless steel wire retainers for OE-like quality and extended durability against salt, rain and ozone impact. Each set includes zinc plated Nyloc nuts for final installation and hardened steel washers to be placed on either side of the sway bar to allow for greater contact surface.

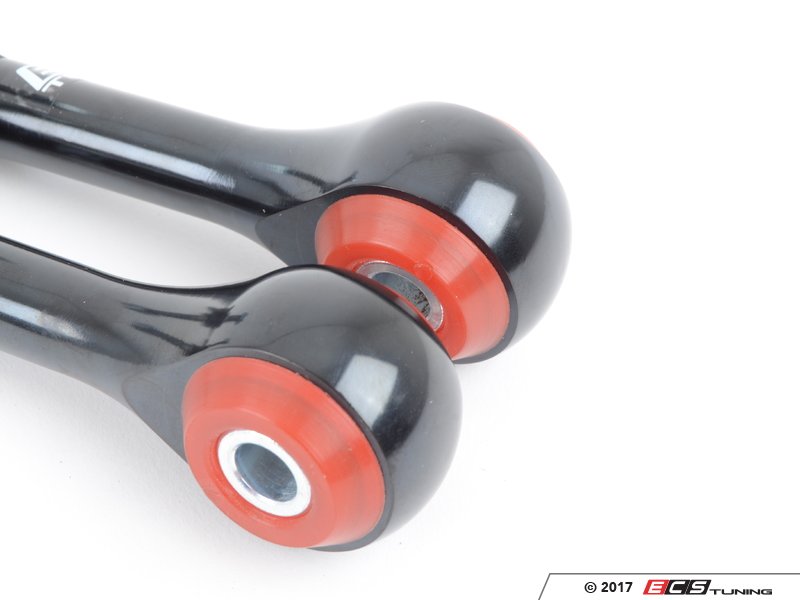

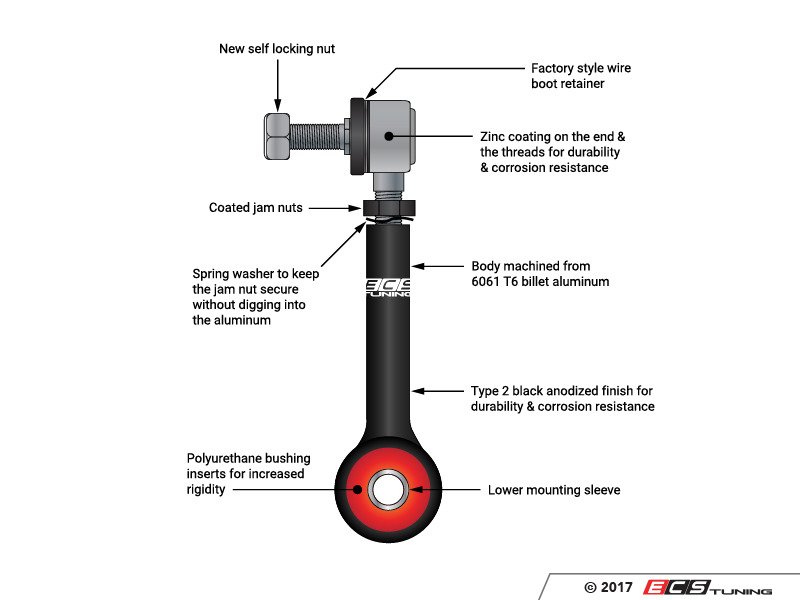

The main body is constructed from 6061-T6 billet aluminum and anodized black for corrosion protection. It features a polyurethane bushing insert along with a zinc coated sleeve. The end link assembly features zinc black chromate lock nuts and wave washers to secure the center body to the ball joint stud to maintain adjusted position and to prevent the end link joint from binding. Total range of adjustment is 106mm - 138mm.
Our ECS Sway Bar End Links were designed, engineered, tested and quality inspected by our Research and Development team in our Wadsworth, Ohio facility. We ensured the highest level of precision and quality is delivered throughout rigorous long term product testing, multiple prototype iterations and leading edge product development methods.
These are a must have for lowered suspensions or make for a high quality, heavy duty OE-replacement upgrade for stock suspensions. No matter if you're stock or lowered these can adjust to fit your needs.
NOTE: If equipped with the large, OEM internal hex drive lower mounting bolt, standard replacement bolts - ES2592574 will be required for install.
**Please note, once desired length is set please add a few drops of blue Loctite to the threads of the jam nut to maintain a secured position. See ES3647654 for purchase.
This Part Fits the Following Vehicles
|Volkswagen||Golf IV||All||VR6 12v|
|Volkswagen||Golf IV||All||VR6 24v|
|Volkswagen||Jetta IV||All||VR6 12v|
|Volkswagen||Jetta IV||All||VR6 24v|
|Volkswagen||Jetta IV GLI||All||1.8T|
