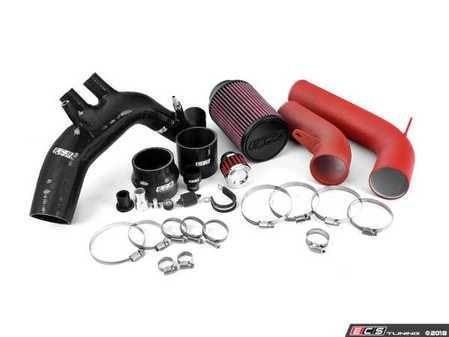

Luft-Technik Intake System - Includes Turbo Inlet Hose - Wrinkle Red

Engineered for extreme performance and show quality looks!
Mfg Part #
000593ECS1103AKT
ECS Part #
ES#2855159
Brand
ECS
Does this fit my vehicle?

Product Details

Cold Air Intakes are an excellent modification for any vehicle, as they bring in cooler air, instead of air that has been heat soaked by the engine. The putative principle behind a cold air intake is that cooler air has a higher density, thus containing more oxygen per volume unit than warmer air. Increased air density and reduced temperatures are accurately measured by the car's computer through the use of a highly sensitive mass airflow sensor. The computer can then add more fuel to achieve the proper air/fuel mixture resulting in a bigger, more powerful burn, creating additional power.

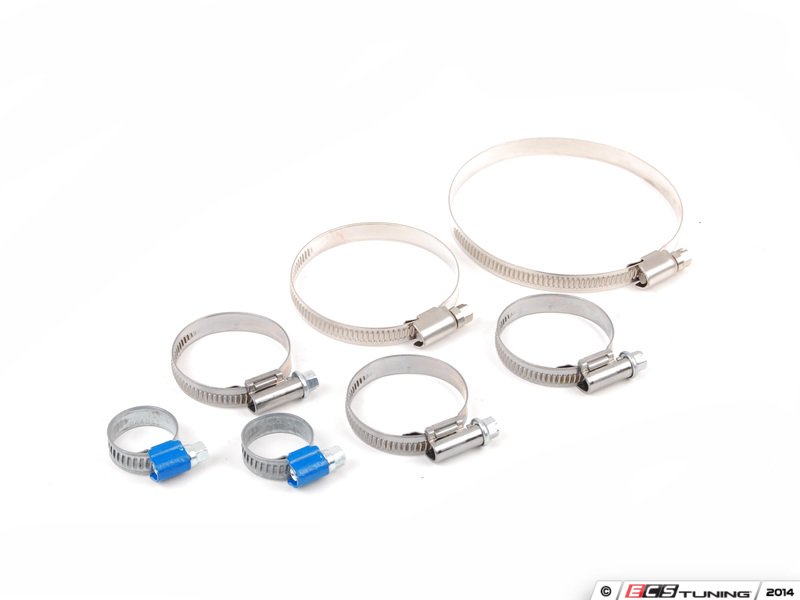

The location of the high flow, serviceable conical air filter is located behind the driver's front bumper skin for collection of the coolest air charge possible. Computerized mandrel bent aluminum tubing routes the cold air to the factory MAF housing where high quality silicone couplers and stainless steel hose clamps secure the tubes to their adjoining components.

The aluminum tubes are joined to the vehicle's body by means of high quality hardware and rubber isolating grommets to provide countless years of performance.

Our ECS Silicone Turbo Inlet Hose completes the induction passage all the way to the turbocharger compressor inlet for a smooth, high flowing and powerful induction system!

For vehicles with secondary air injection, a CNC machined adapter flange, a serviceable air filter with hose clamp and mounting hardware are included for proper system operation.

*Please note: Installed photos represent gloss red powdercoated tubes. These have since been updated to wrinkle red powdercoat finish. Please reference product photos for accurate reference.

This Part Fits the Following Vehicles

Make Model Submodel Engine
Volkswagen 337/20AE All 1.8T
Volkswagen Golf IV All 1.8T
Volkswagen Jetta IV All 1.8T
Volkswagen Jetta IV GLI All 1.8T
*The above product applications have been written by ECS Tuning. All warranties, product application, fitment, and performance are the responsibility of ECS Tuning. For additional information see the terms of use.

Kit Contents

Description Brand Qty

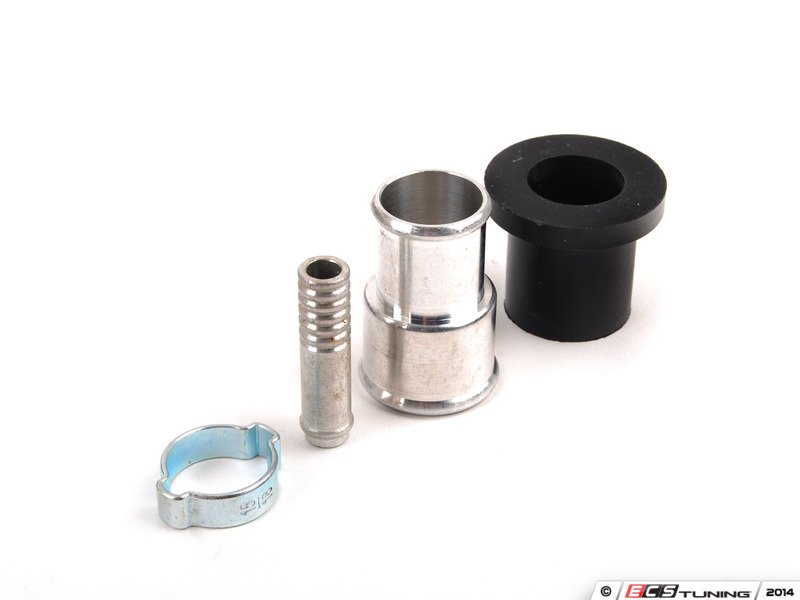

Secondary Air Filter Adapter ECS - Corporate Logo 1
Silicone Coupler - Hump Reducer 3" (76.20mm)To 2.75" (69.9mm) ECS - Corporate Logo 1
Silicone Coupler - Straight 3" ID (76.20mm) x 3" L ECS - Corporate Logo 1
3" Air Filter 4.5in Top X 7in Long X 5in Base ECS - Corporate Logo 1
Silicone Turbo inlet hose - with clamps ECS - Corporate Logo 1
MKIV XAS Intake Hardware Assembly - 4 Cyl. Assembled By ECS - Corporate Logo 1
Upper Intake Tube - Wrinkle Red ECS - Corporate Logo 1
Lower Intake Tube - Wrinkle Red ECS - Corporate Logo 1
Breather Filter - Priced Each ECS - Corporate Logo 1

ECS Tuning is not affiliated with any automobile manufacturers.
Manufacturer names and/or part numbers are used only for identification purposes.
