MK7 Jetta Quad Exit Axle-Back Exhaust System - With Gloss Black Rear Diffuser & 3.5" Chrome Tips
Requires R-Line or SEL Premium rear bumper
- Mfg Part #
- 027366ECS01-01KT
- ECS Part #
- ES#3675312
- Brand
-
This product was last offered at the strikethrough price on
06-13-2026
Free Shipping
Product Details
Requires R-Line or SEL Premium rear bumper

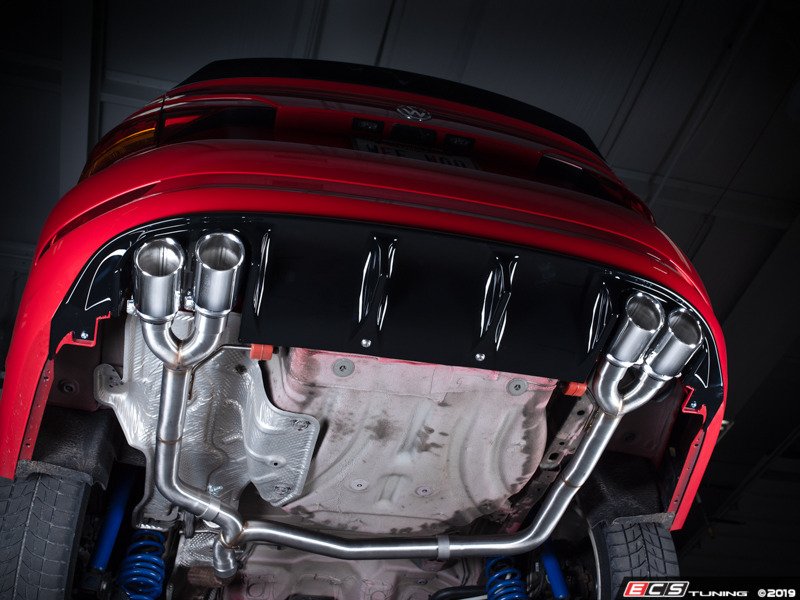

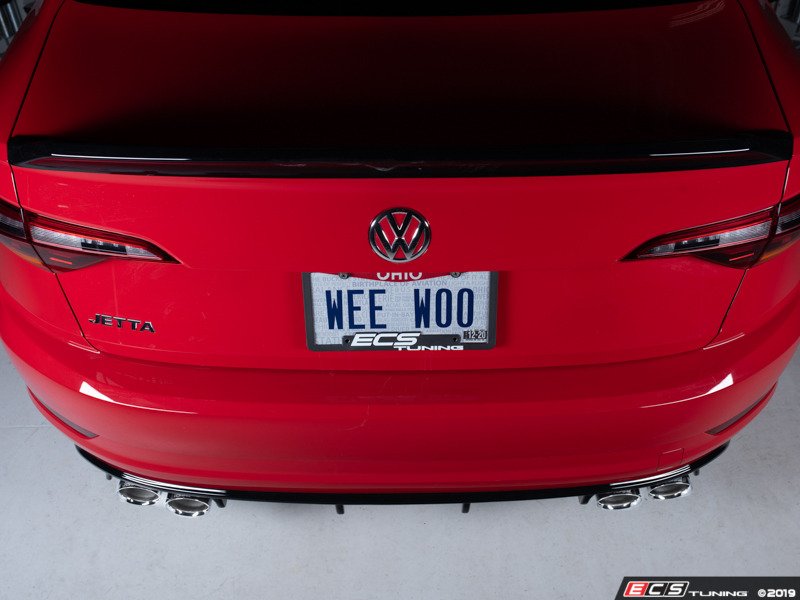

Looking to add an aggressive appearance upgrade while enhancing the exhaust note on your MK7 Jetta 1.4T? Our ECS Tuning In-House Designed & Engineered Quad Tip Axle-Back Exhaust System gives your VW the enhanced performance upgrade you've been looking for! Our Axle-Back system locates four of our ECS Tuning Swivel Exhaust Tips within our ECS Rear Diffuser for a sporty Euro appearance upgrade that's found nowhere else! Not only does our exhaust system add a German sports car look, but we bump up the volume by deleting the OEM muffler, which adds a smooth exhaust note that allows you to enhance your driving experience with your 1.4 liter turbocharged engine!

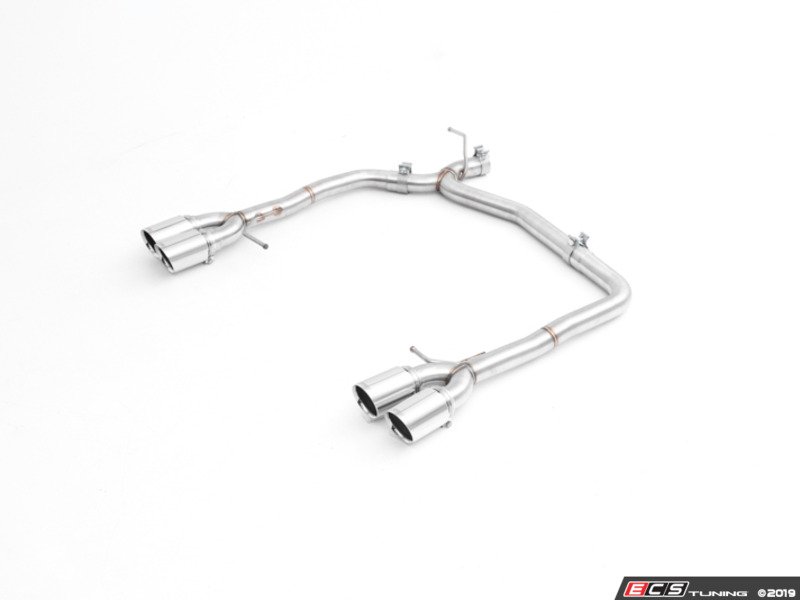

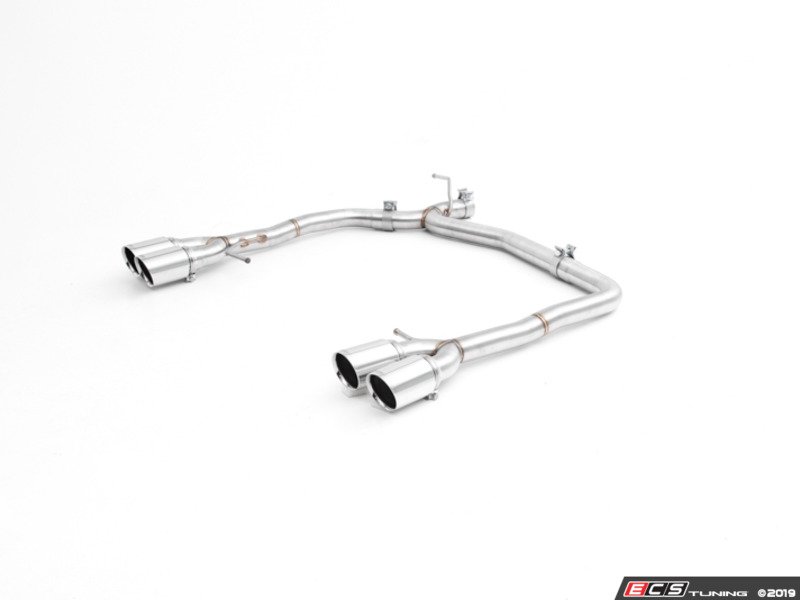

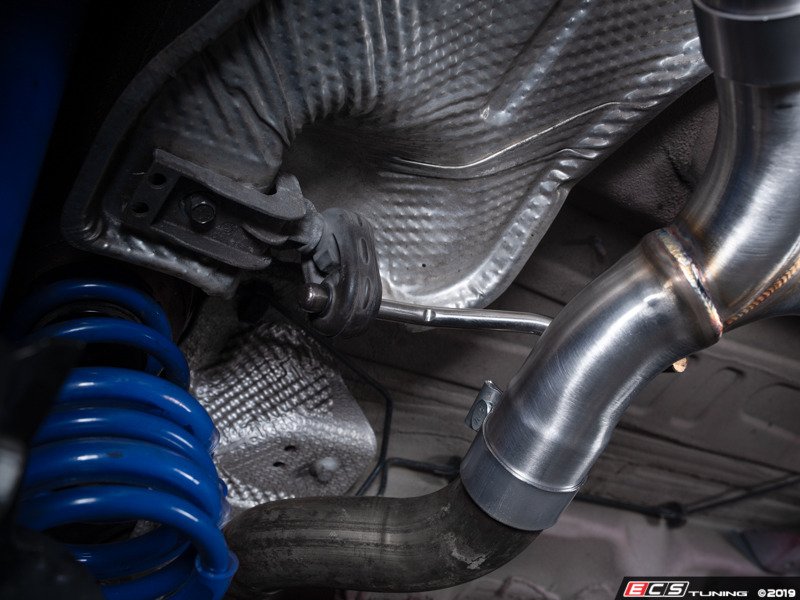

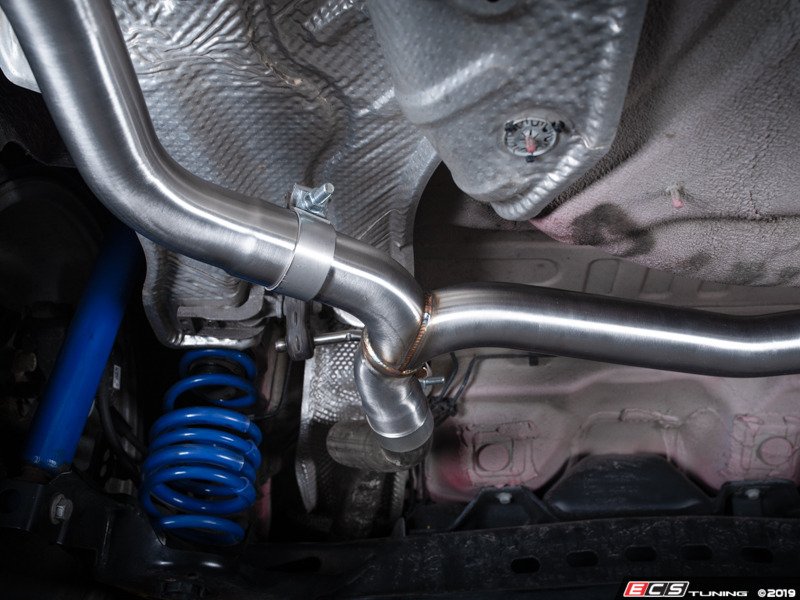

Our exhaust system is made from high quality brushed T304 stainless steel with Tig-welded joints for an exceptional look and durability. Our exhaust connects to your stock exhaust system with 1 simple cut and then routes spent exhaust gases to a pair of our CNC-mandrel bent 57mm tailpipes before splitting into a quad-pack of slant-cut 3.5" swivel exhaust tips. Extremely durable, stainless steel, barbed exhaust hangers are Tig-welded in place and an additional exhaust hanger is included for the passenger's side tailpipe.

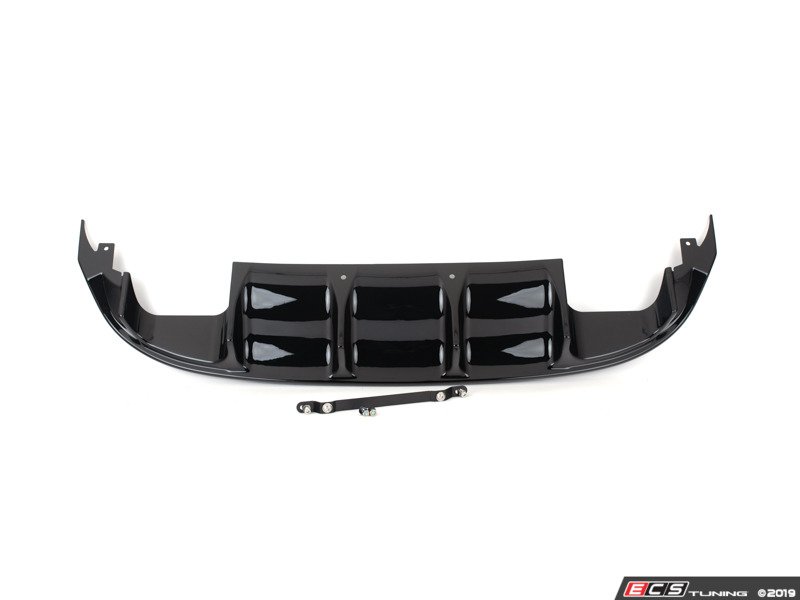

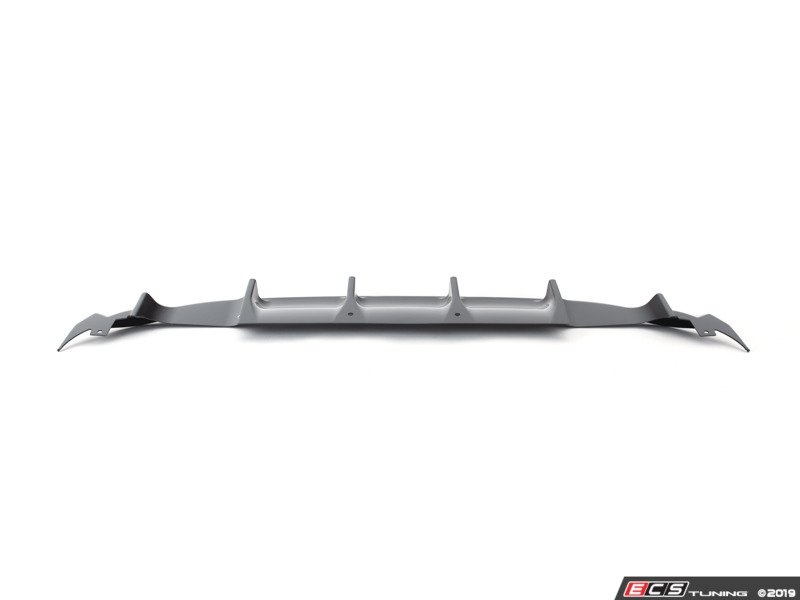

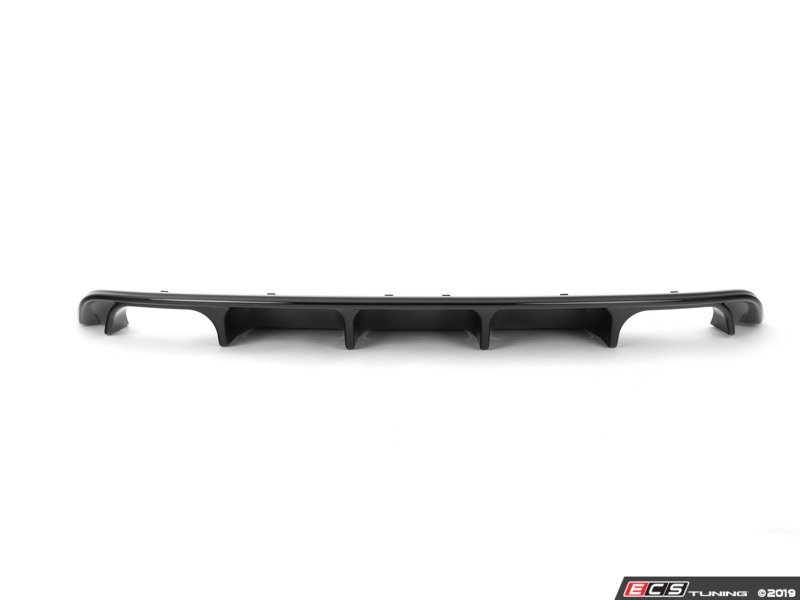

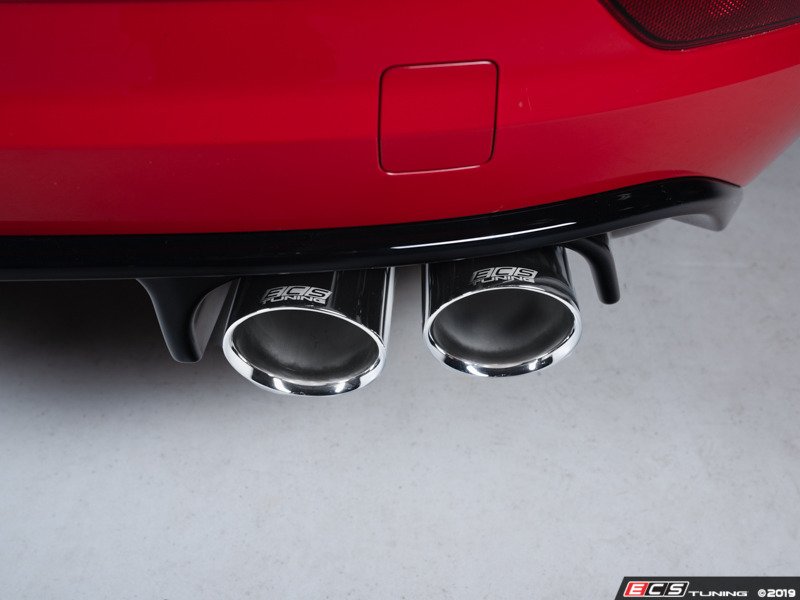

Our included ECS Tuning Quad Tip Rear Diffuser features a deep profile, an aggressive blade design and exposed tip openings to house our ECS Tuning 3.5" swivel exhaust tips. The diffuser was designed and engineered in-house to add an aggressive appearance upgrade while supporting our quad tip exhaust system.
** NOTE: The rear valance is only serviceable on R-Line and SEL Premium models, other trim levels will need to convert to the aforementioned trim model rear bumper to use our diffuser (see ES#4040412 instead).
PART DESIGN
- Rear Diffuser
Designed and engineered in-house using state of the art 3D laser scanning and CAD technology for precision fitment. Mimics the design of our carbon fiber version as closely as possible for similar styling.
Featured on Jamie Orr's MK7 Jetta 2018 SEMA build and tested on the Nürburgring and the Autobahn

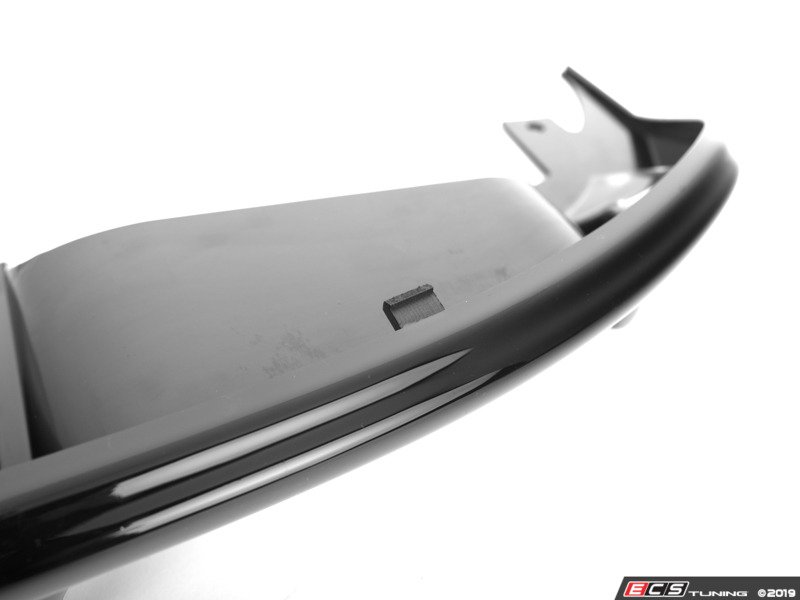

Made from lightweight, vacuum formed gloss black ABS polymer that is enhanced with UV-stabilizer
CNC-Machined tabs for perfect engagement
Mimics the lower section of the bumper & OE valance lines to accentuate OEM features
Utilizes the dead space behind the OE valance to simulate a functional diffuser with great depth
Outer blades blend into quad exhaust housings that accommodate up to 3.5" OD exhaust tips, on either side of the diffuser, and will work in tandem with our ECS Quad Tip Axle-Back Exhaust System or Borla Quad Tip Catback.
Mounts to OE clip locations and OE holes on the outer edges of the bumper with our supplied, stainless and corrosive resistant zinc hardware.
Includes a wrinkle black powdercoated, 5052 aluminum bracket to add rigid mounting to the center of the diffuser.

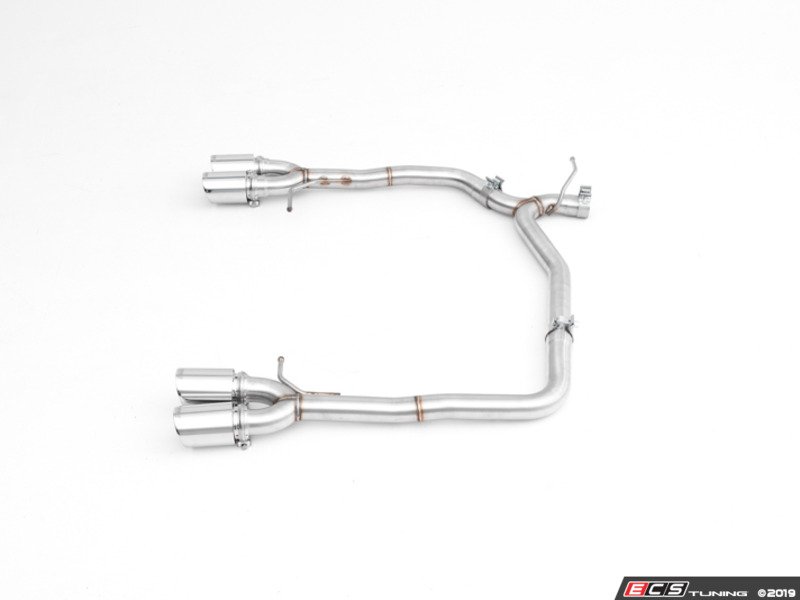

- Axle-Back Exhaust System
In-house designed and engineered using FARO ARM laser scanning technology for precise fitment
T304 Stainless Steel Mandrel Bent, Brushed Tubing with 1.25mm wall thickness

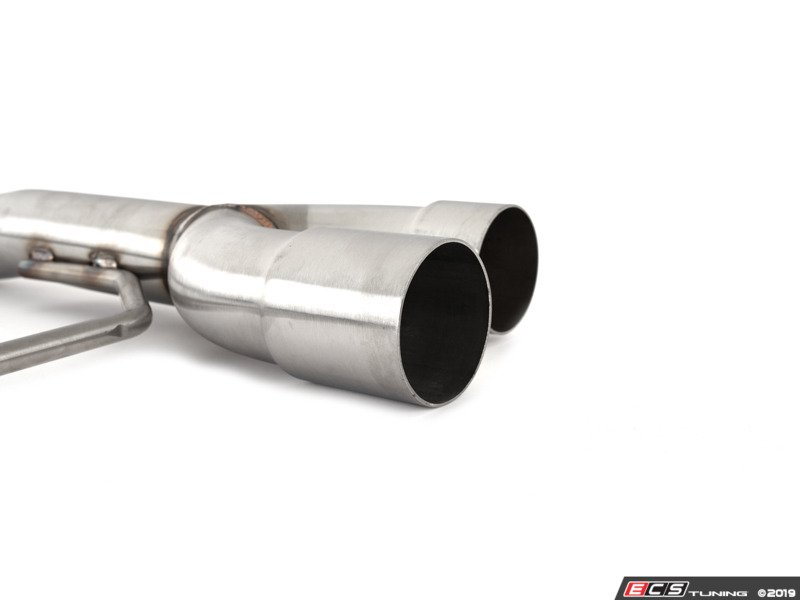

Dual 57mm Tailpipes with Tig-Welded connections
Over double the cross sectional area to free up the restriction from the large, rear muffler
Minor increase in weight over OEM muffler (ECS Axle-Back Exhaust - 23 lbs VS OEM Muffler - 18 lbs)

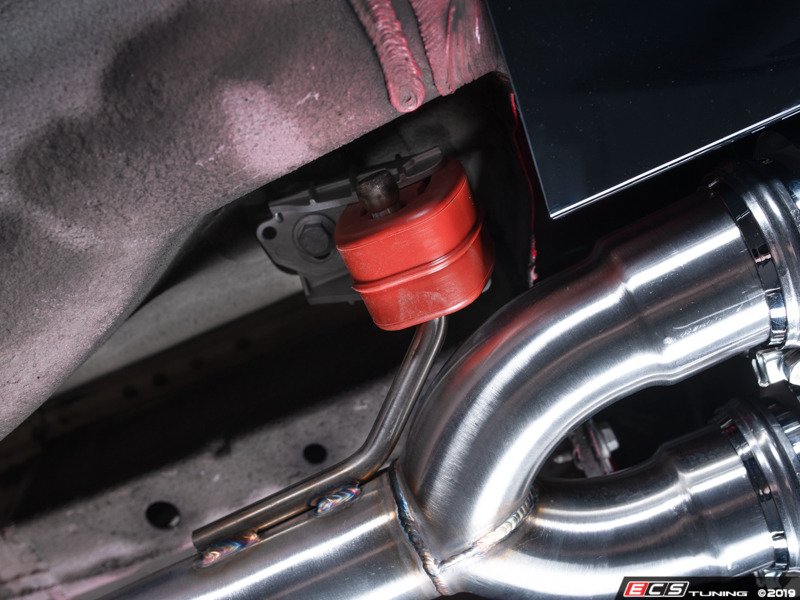

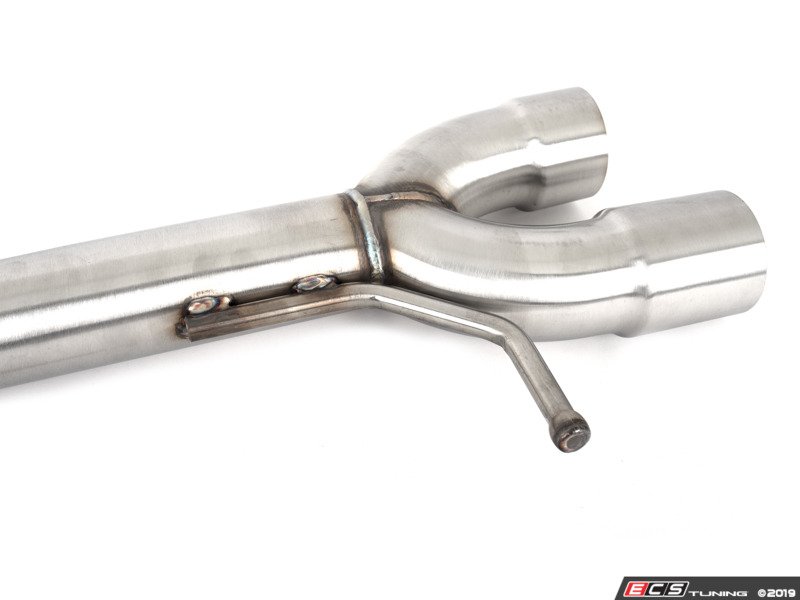

T304 Stainless Steel 12mm barbed round stock exhaust hangers Tig-Welded in OE locations for precise fitment. An additional exhaust hanger with mounting bolt is included for the passenger-side tailpipe.
Strategically placed slip joints provide the most adjustability to obtain perfect fitment

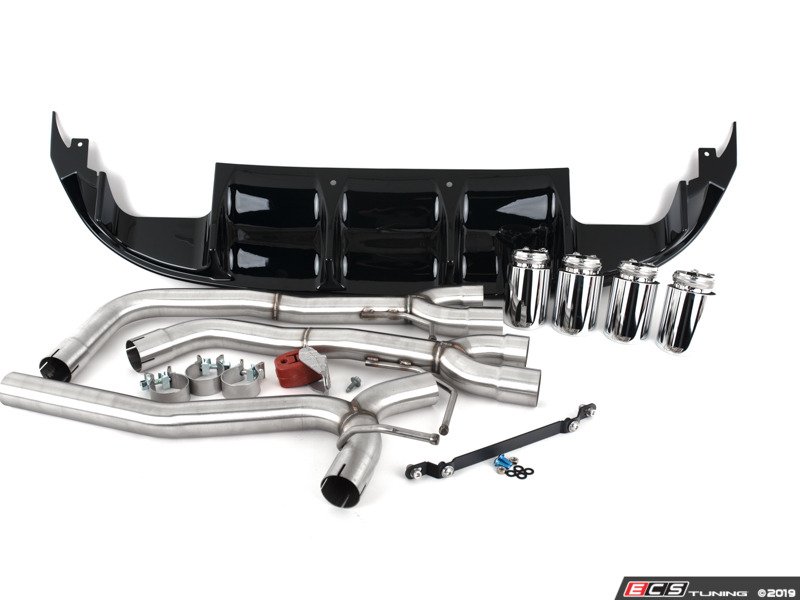

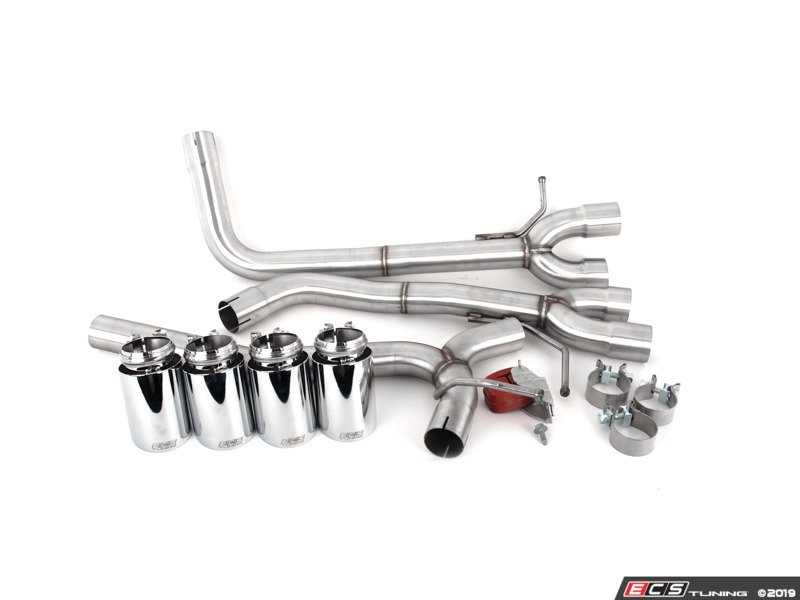

KIT CONTENTS
Rear Diffuser
Vacuum Formed, Gloss Black, Rear Diffuser
Center Mounting Bracket and mounting hardware

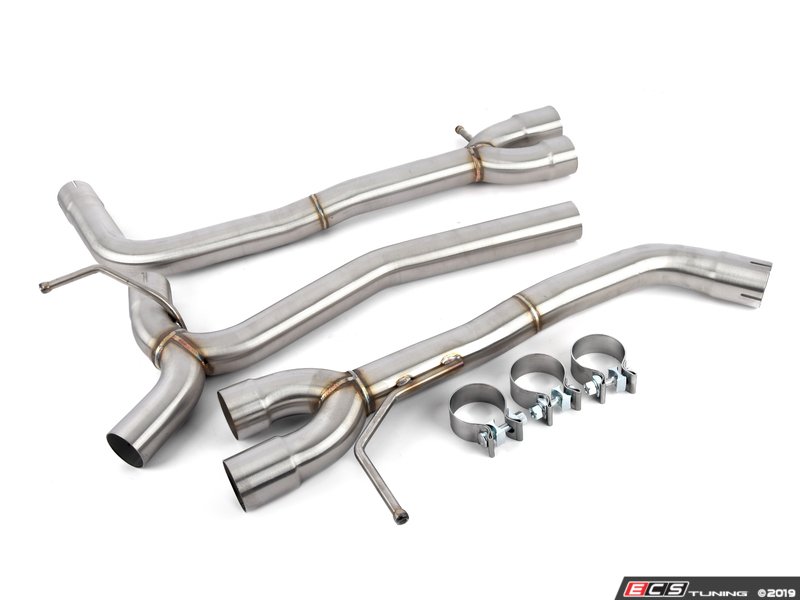

Axle-Back Exhaust System

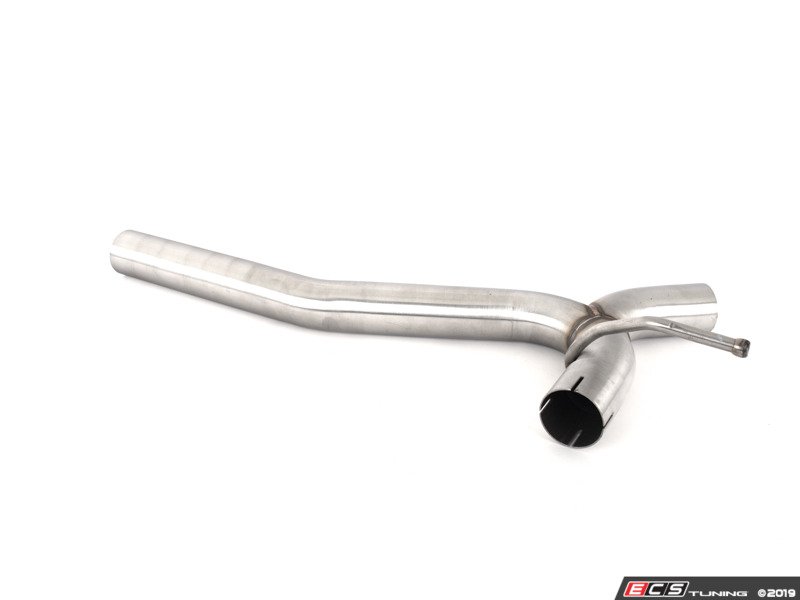

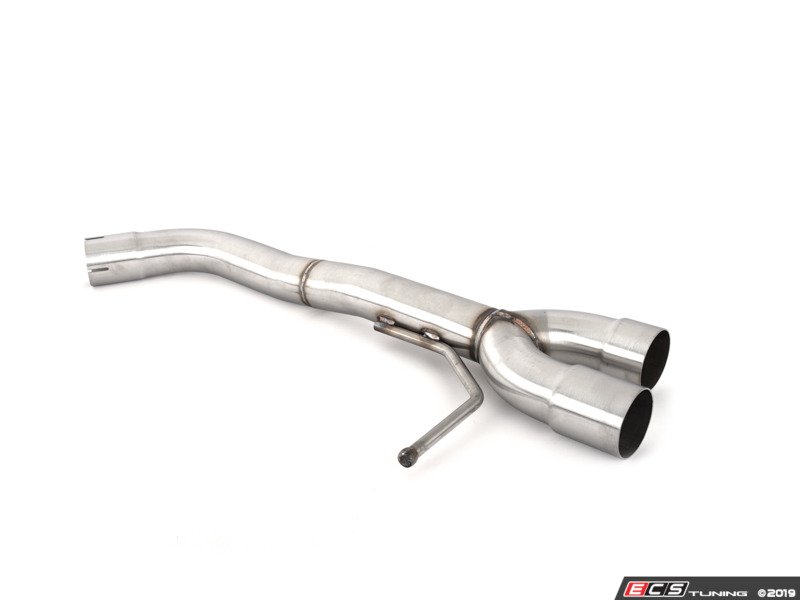

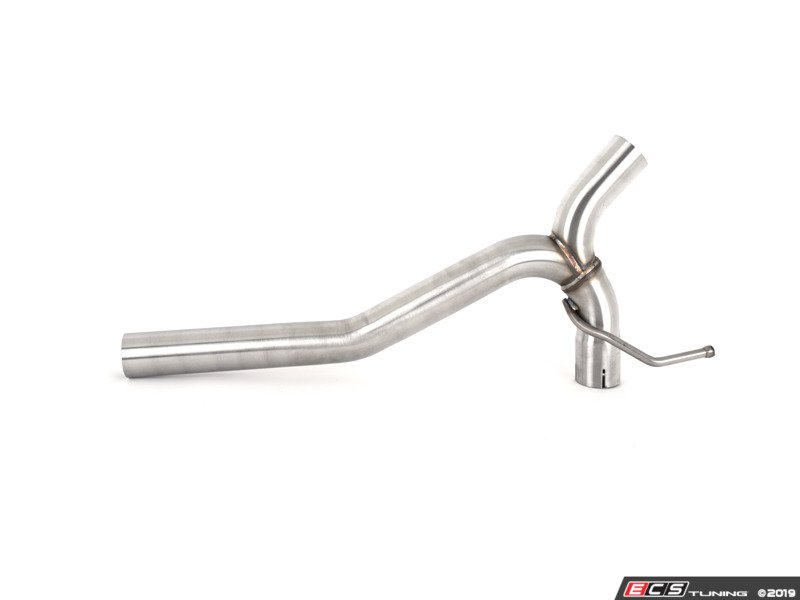

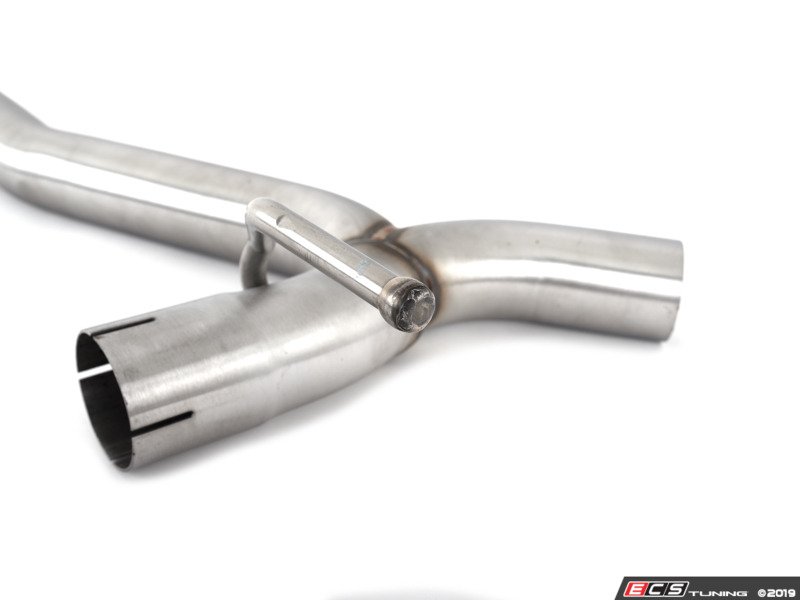

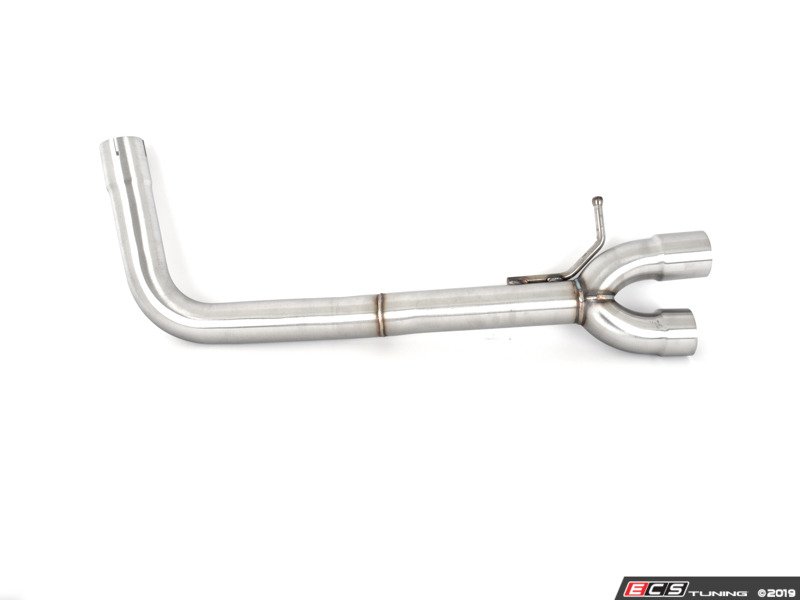

Merge pipe with dual tailpipe sections

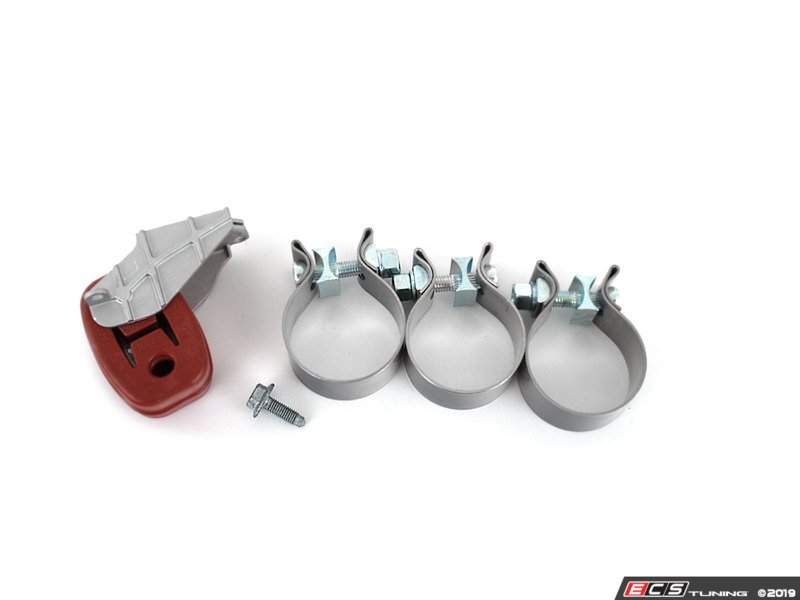

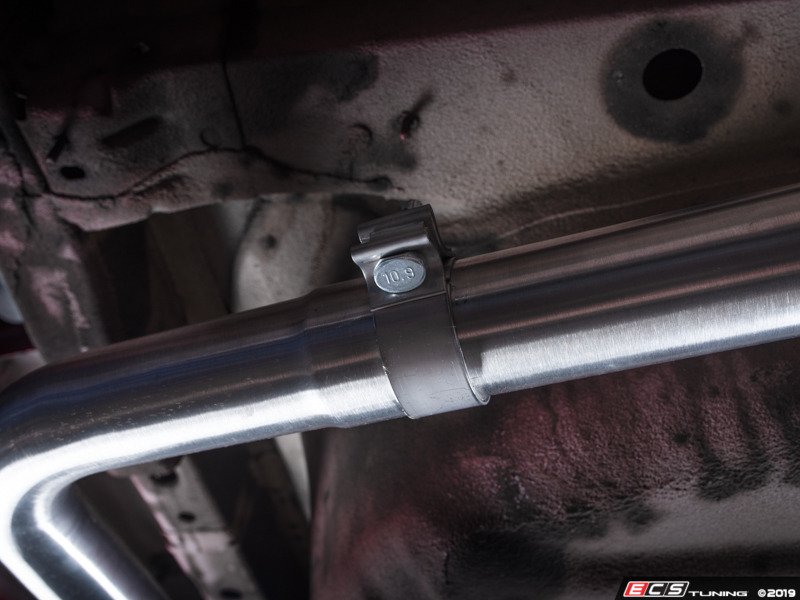

Stainless Steel Accuseal exhaust clamps (3)
Passenger-side exhaust hanger with rubber bushing and mounting bolt

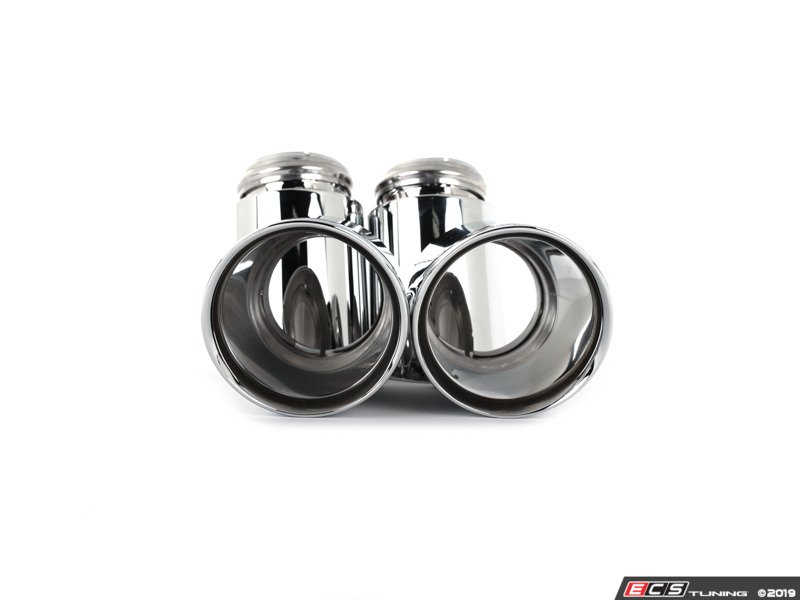

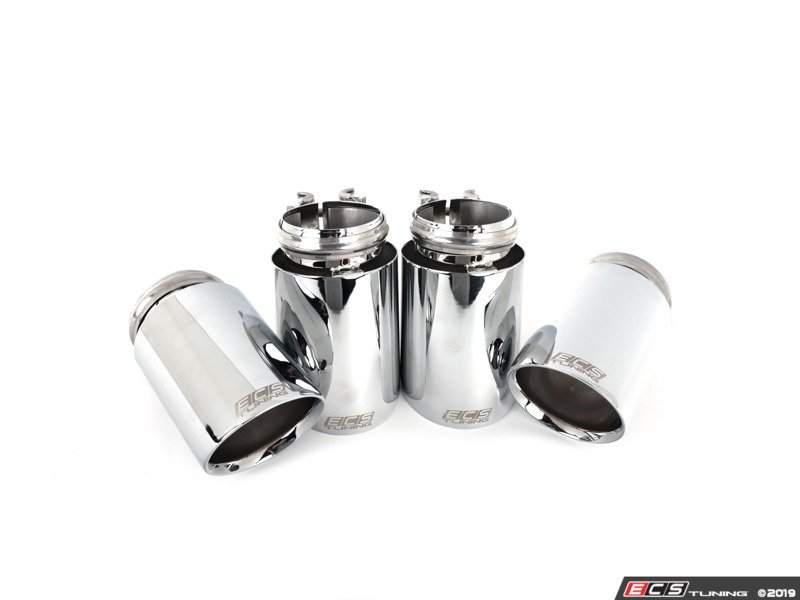

ECS 3.5" Chrome Swivel Tips (4)
PRODUCT DEVELOPMENT
Our ECS Tuning Quad Exit Axle-Back Exhaust and Gloss Black Rear Diffuser were designed, engineered, tested and quality inspected by our Research and Development team in our Wadsworth, Ohio facility. We strive for the highest level of precision and quality through leading-edge product development technology including FARO laser scanning for reverse engineering and quality inspection, SolidWorks 3D CAD modeling, rapid prototyping utilizing our in-house 3D printer, and rigorous long term product testing.
INSTALLATION AND SUPPORT
- Looking for installation tips? Look no further, we put together a full installation tutorial from start to finish including how to remove your OEM parts in detail! See our Installation PDF under the INSTALLATION Tab for more information.
This Part Fits the Following Vehicles
| Make | Model | Submodel | Engine | Special Fitment Notes |
|---|---|---|---|---|
| Volkswagen | Jetta VII | Sedan | 1.4T | Use vehicle selector to confirm fitment |
Kit Contents
| Description | Brand | Qty | Lifetime | |
|---|---|---|---|---|
| HEX-HEAD BOLT 8X25 |
|
1 | YES | |
| ECS UNIVERSAL Swivel Exhaust Tip - 3.5" Chrome - Priced Each |
|
4 | YES | |
| Exhaust Hanger Assembly - Each |
|
1 | YES | |
| Mounting Bracket - Assembly |
|
1 | YES | |
| Alloy Steel Button Head Hex Drive Screws Blue-Dyed Zinc-Plated, M8 X 1.25 Mm Thread, 20 Mm Long - EACH |
|
2 | YES | |
| Black Ultra-Corrosion-Resistant Coated Steel Washer For M8 Screw Size, 8.4 Mm ID, 16 Mm OD - EACH |
|
4 | YES | |
| High-Strength Steel Hex Nut Class 10, Zinc Yellow-Chromate Plated, M8 X 1.25 Mm Thread - EACH |
|
2 | YES | |
| Quad Tip Rear Exhaust Section |
|
1 | YES | |
| Quad Tip Rear Diffuser |
|
1 | YES |
