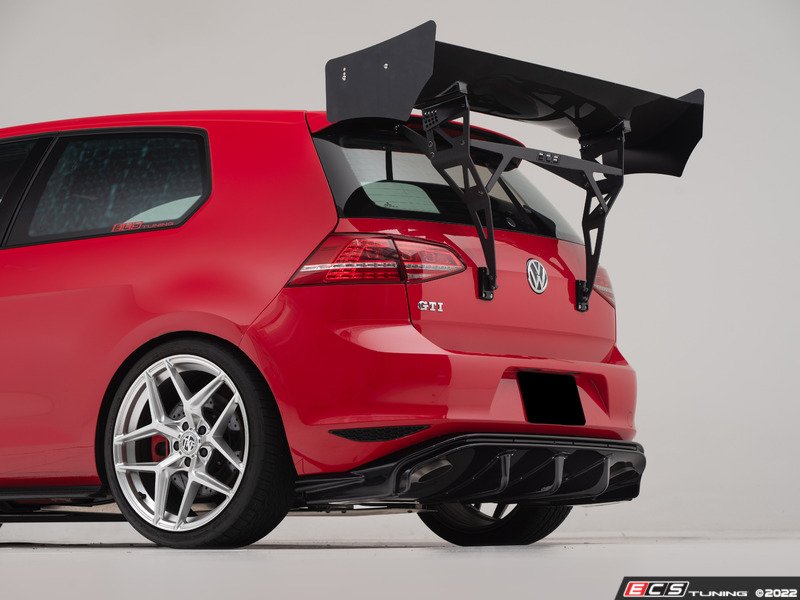

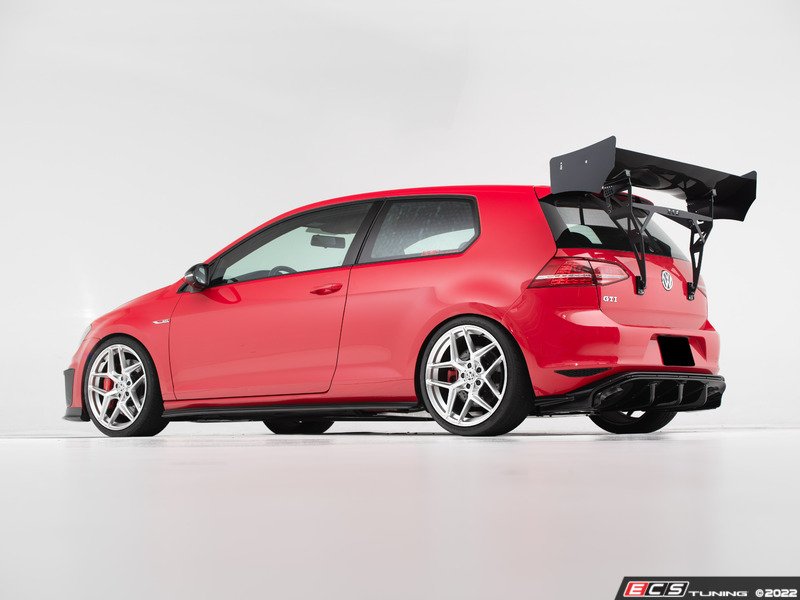

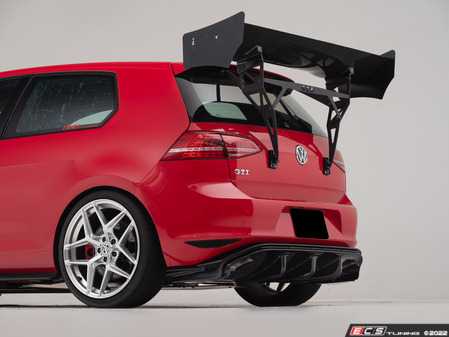

MK7/MK7.5 GTI & Golf R Functional Aerodynamic Rear Wing Kit
- Mfg Part #
- 014509LAKT 014509LAKT
- ECS Part #
- ES#4616085
- Brand
-
This product was last offered at the strikethrough price on
06-13-2026
Free Shipping
Product Details

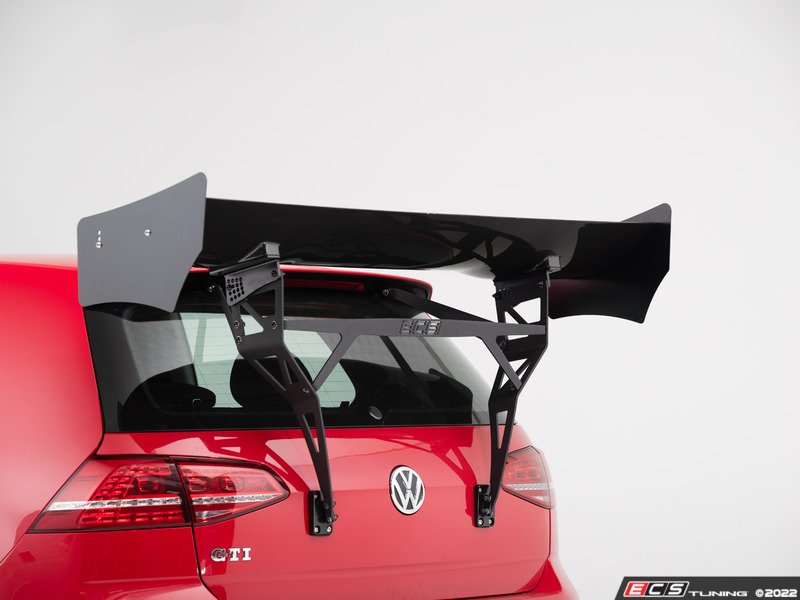

Our ECS Tuning in-house designed and engineered Functional Aero Rear Wing Kit is an all-in-one solution to providing your Volkswagen MK7/MK7.5 GTI or Golf R with more downforce necessary to improve rear tire grip for improved handling. This kit was specifically engineered for the MK7 GTI and Golf R and includes all of the components necessary for a comprehensive install and feature top-tier quality components for long term durability, such as the carbon fiber wing, billet aluminum mounting brackets, and 5052 aluminum uprights, water proof gaskets and black oxide stainless steel hardware.
The spoiler has an adjustable AoA (Angle of Attack) between 1.3°, 6.8°, 12.3° and 17.8° to perfect downforce to drag ratio. The end plates are adjustable for aerodynamic needs and the 5mm thick powdercoated aluminum uprights maintain wing position at track speeds.
PART DESIGN

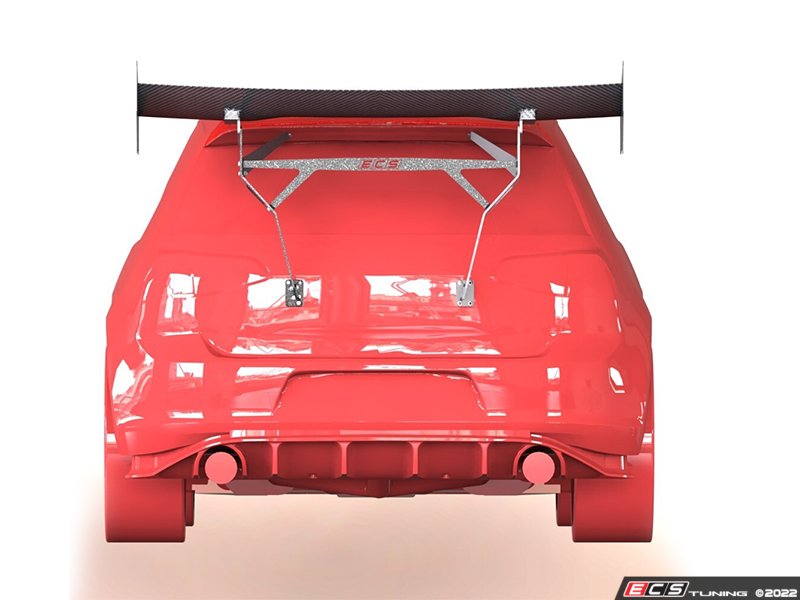

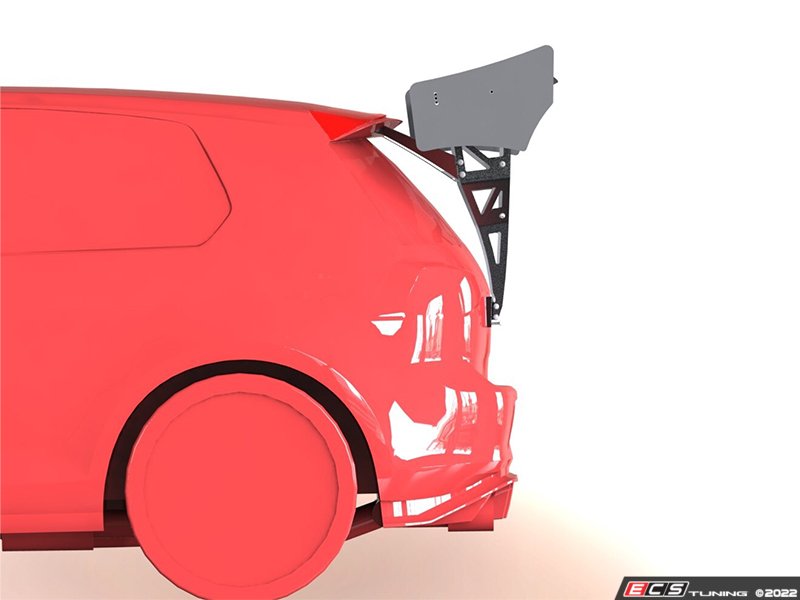

All components in-house designed and engineered to provide functional aerodynamic benefits, specific to the MK7 GTI/Golf R body, using FARO ARM laser scanning technology and SolidWorks 3D CAD modeling for precision fitment along with FEA (Finite Element Analysis) to provide the best balance between downforce while minimizing drag.
Carbon Fiber Rear Wing:
Specifically engineered 60" width
Made from lightweight, hand-laid carbon fiber material with pre-impregnated 2x2 twill weave carbon fiber cloth and epoxy resin, then autoclave cured and finished in a durable gloss clear coat for UV and heat protection
Eppler 423 high lift airfoil profile

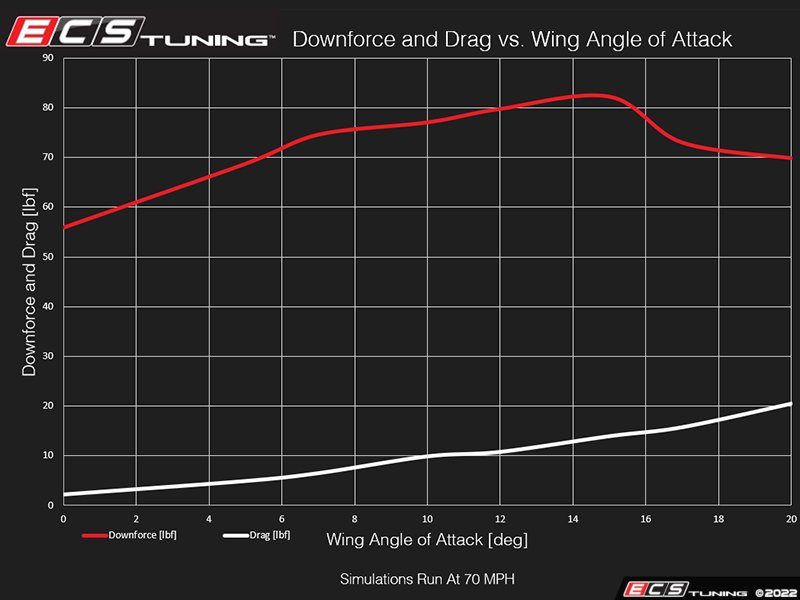

Peak Lift to drag ratio is at 5 degrees angle of attack
Downforce peaks and begins dropping at 14 degrees angle of attack
3D wing profile with forward and upward curvature
Anodized aluminum threaded inserts at the wing ends and mounting bosses
Wing End Plates:
Aerodynamic profile, made from 12ga 5052 aluminum, then black anodized
Adjustable end plate angle

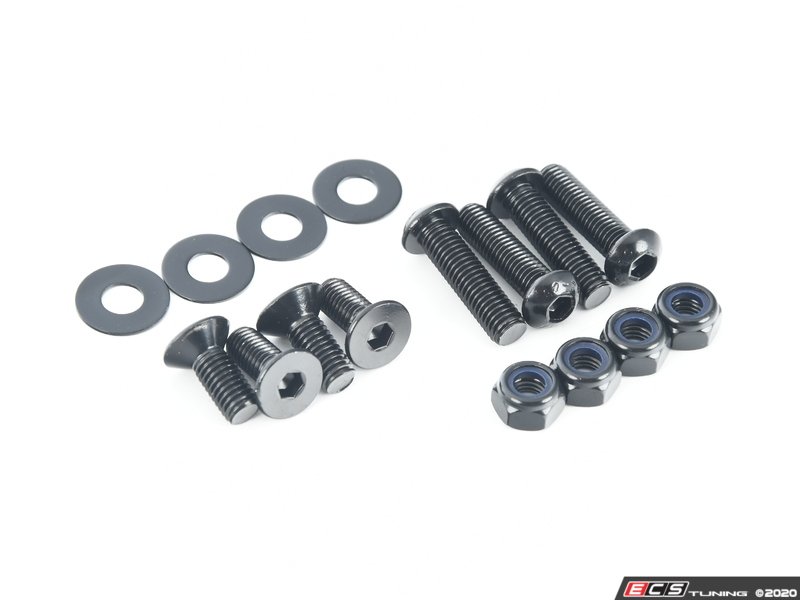

Includes stainless steel mounting hardware

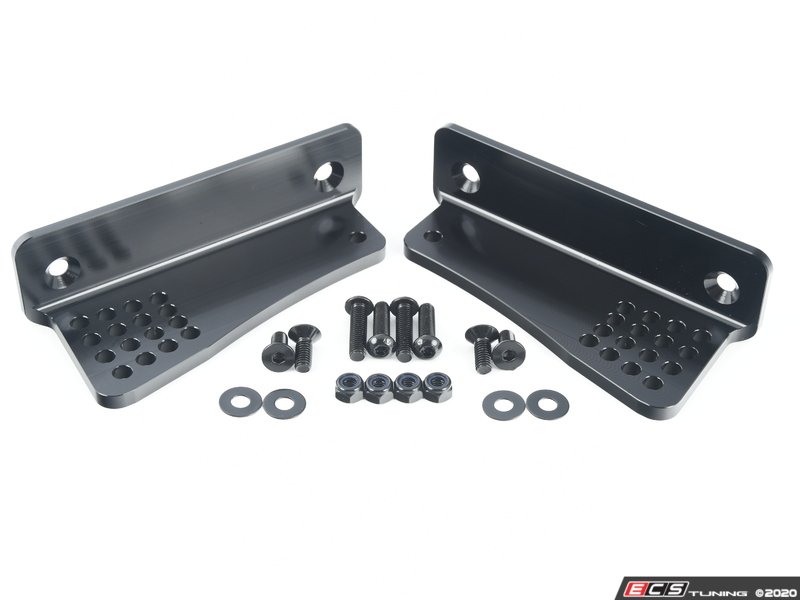

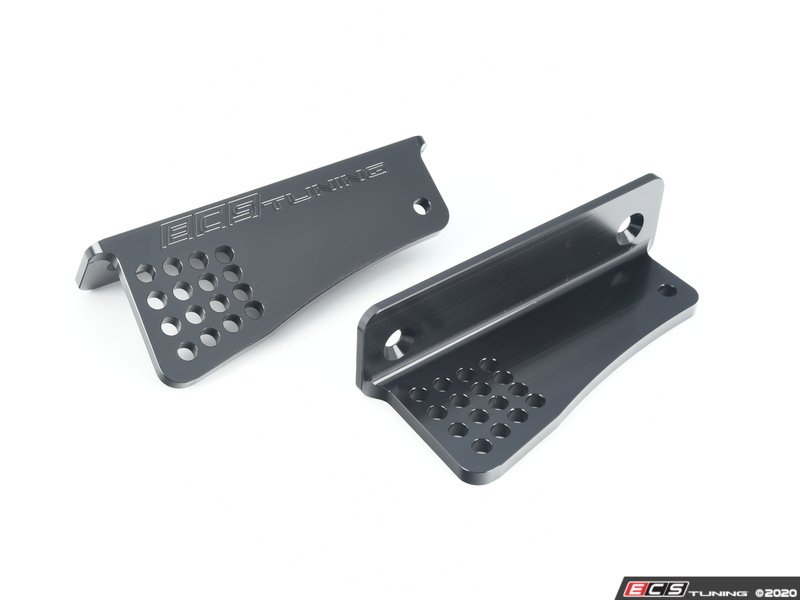

Wing Mounting Brackets:
Made from 6061-T6 billet aluminum, then black anodized
Adjustable pitch to dial in the spoiler's angle of attack between 1.3° and 17.8° ; each hole adjusts ~5.5° of AoA
Includes M8 stainless steel, black oxide hardware
Subtle, post-anodized engraved logo

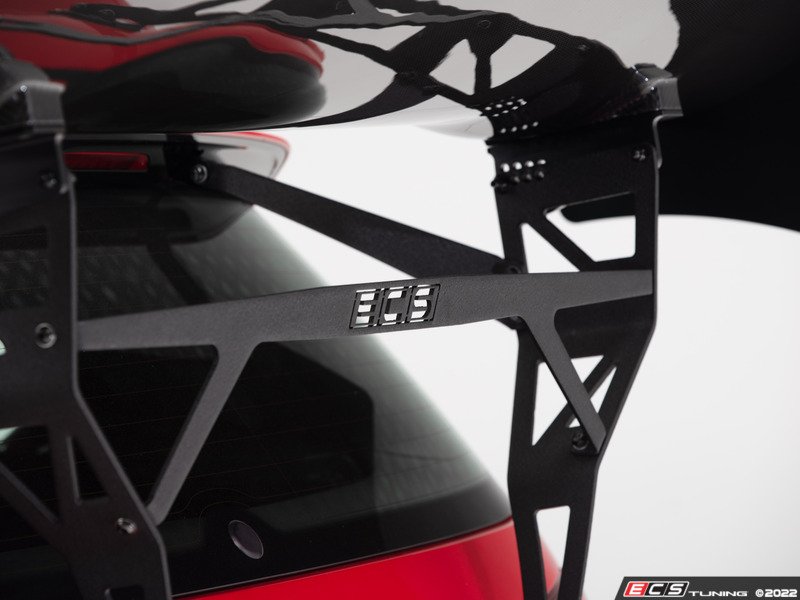

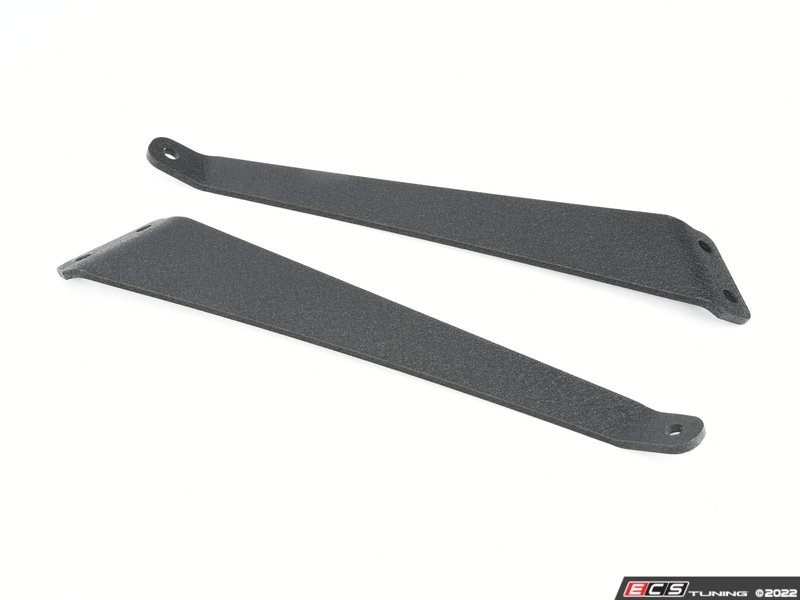

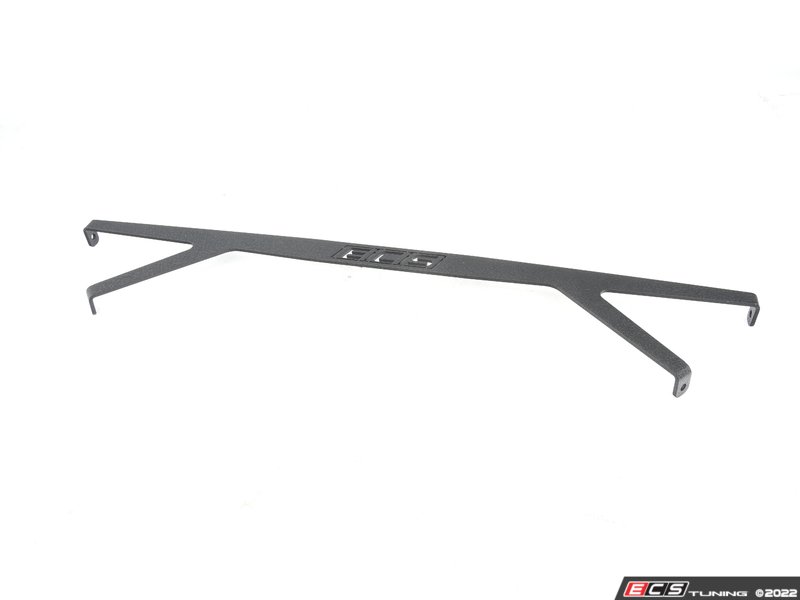

Upright Brackets:
Made from 5mm thick 5052 aluminum, then powdercoated wrinkle black
Utilizes zinc-coated rivet nuts within the upper body shell (requires drilling into the shell and trimming of the factory hatch spoiler) and billet aluminum lower mounting brackets (requires drilling through the hatch shell)

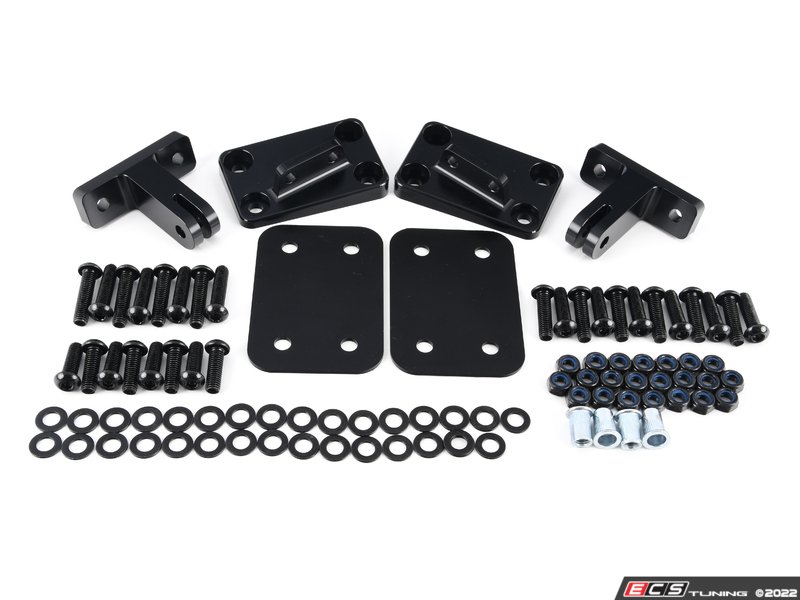

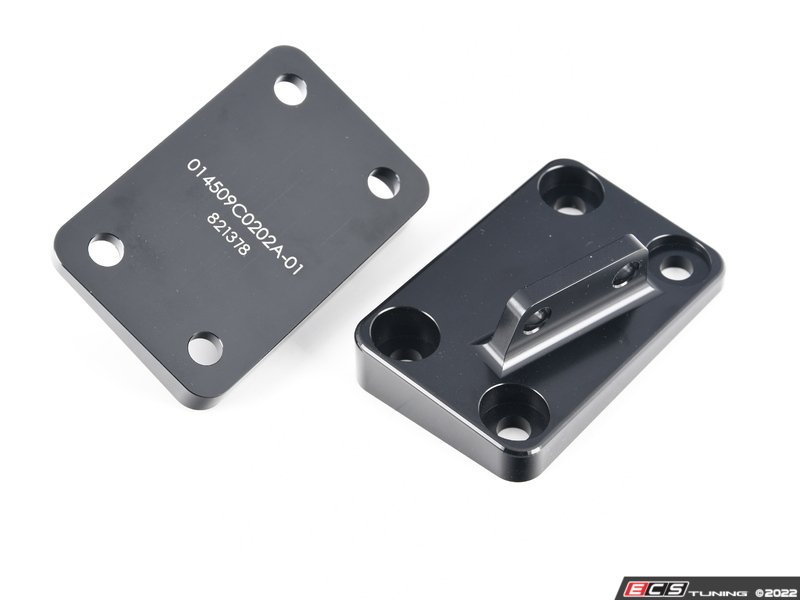

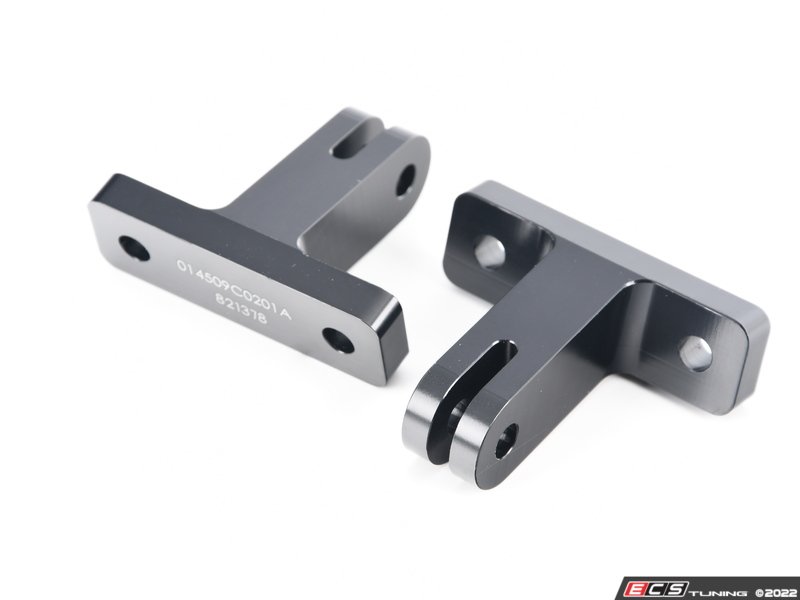

Lower Mounting Brackets:
CNC-Machined from 6061-T6 billet aluminum then black anodized

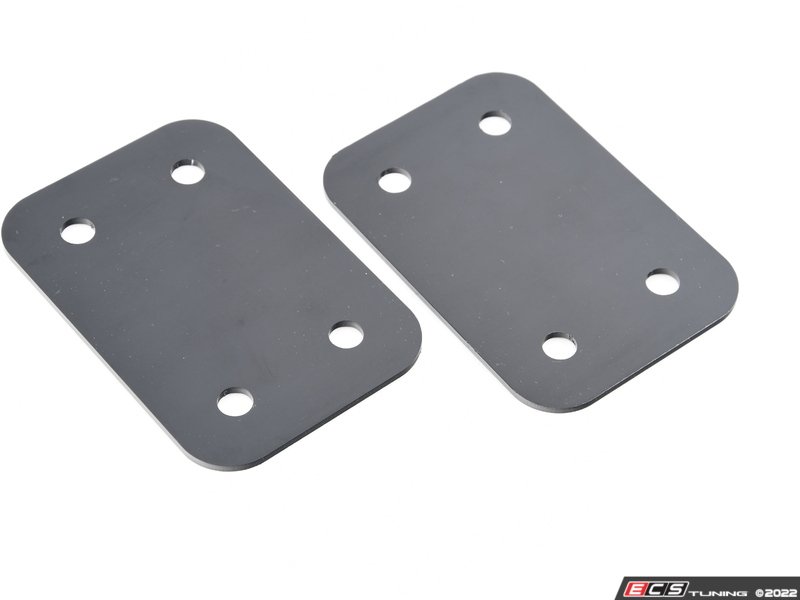

Lower-interior backing plate ensures the hatch shell resists deformation and properly supports downward forces
Rubber Mounting Gaskets
Water-proof rubber gaskets ensure a leak-free seal at the upper and lower hatch shell mounting brackets
PERFORMANCE FEATURES
Assists with rear tire contact by applying downforce over the rear axle. This is very beneficial on FWD vehicles where rear traction loss may occur at high speed cornering.

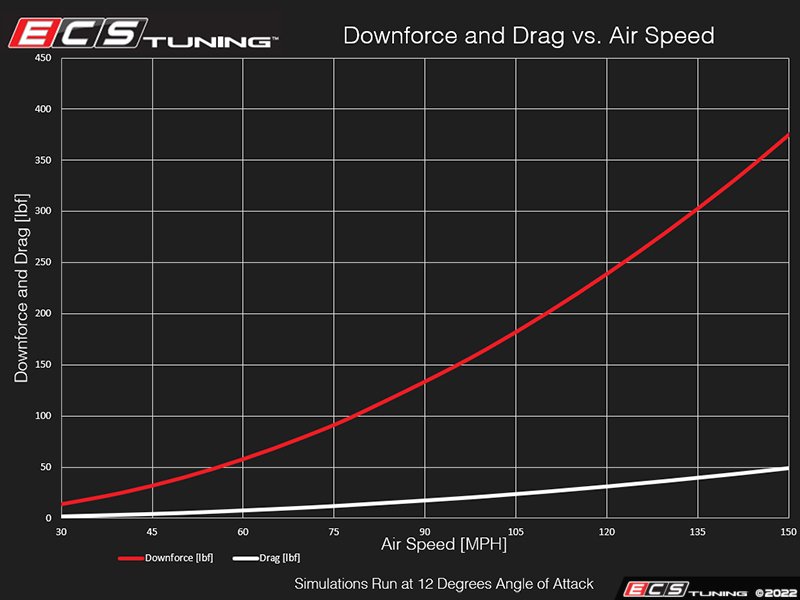

Our wing produces up to 100 lbf of downforce when measured at 80mph, 220 lbf at 120mph and 300 lbf at 140mph

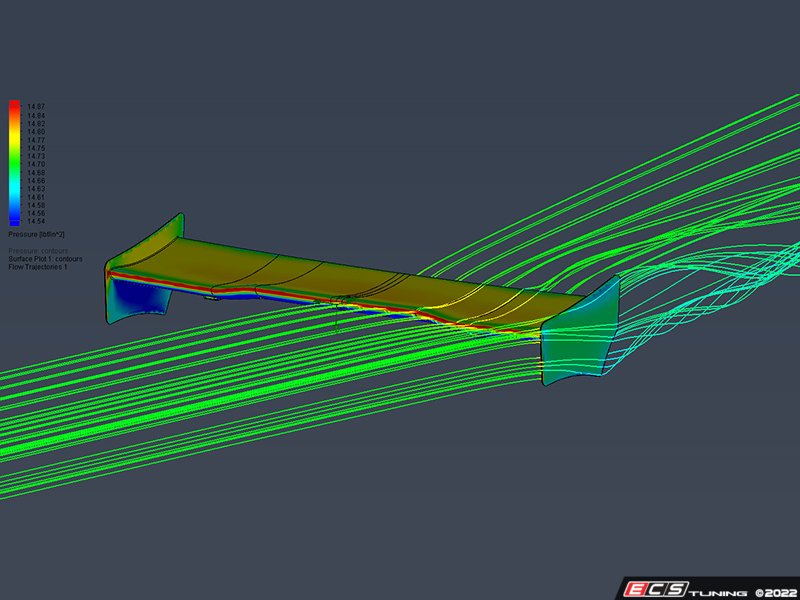

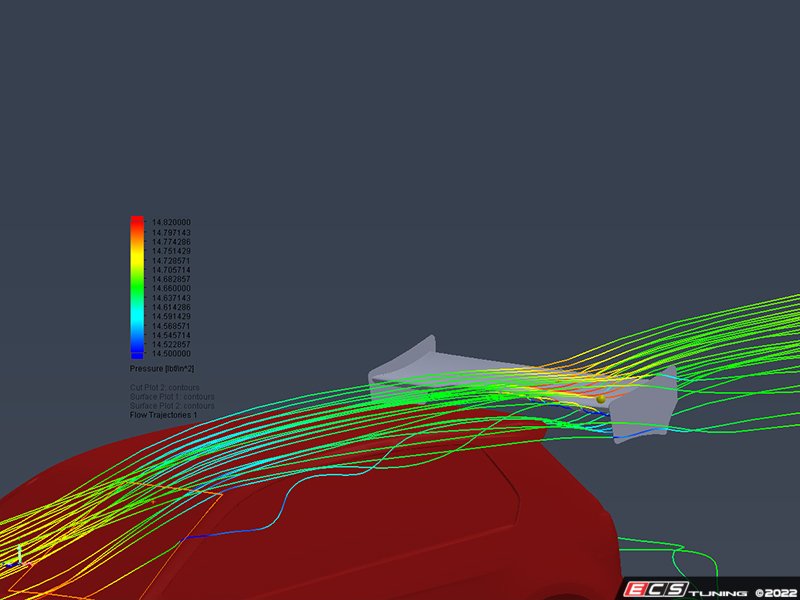

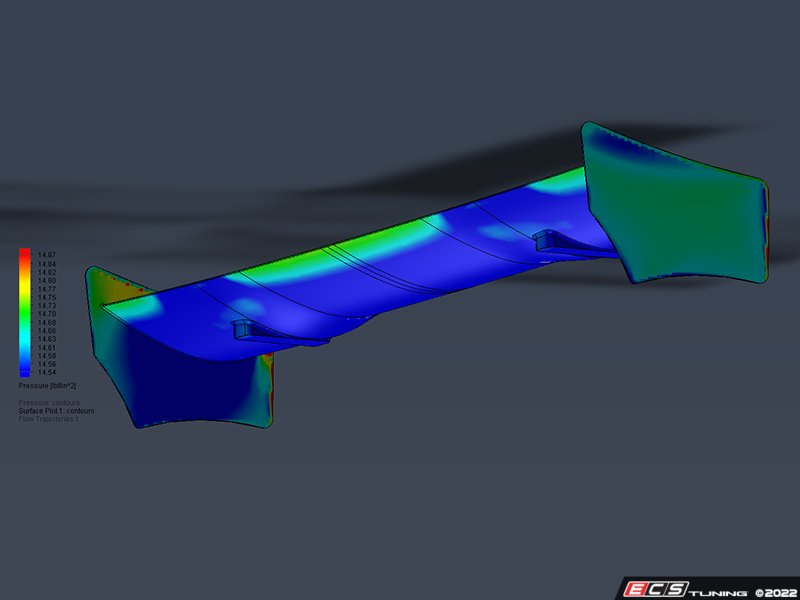

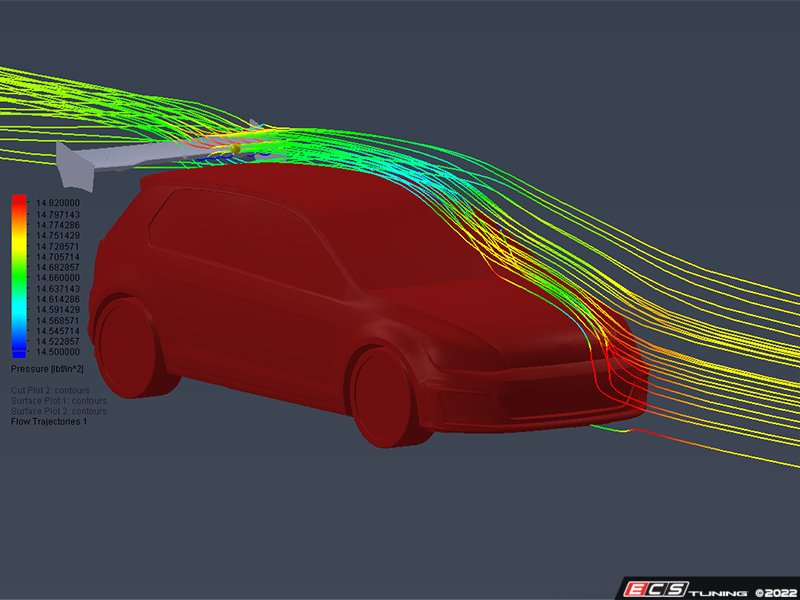

Performance data metrics are collected utilizing FEA (Finite Element Analysis) software to validate our design
PRODUCT DEVELOPMENT
Our ECS Functional Aerodynamic Rear Wing Kit was designed, engineered, tested and quality inspected by our Research and Development team in our Wadsworth, Ohio facility. We strive for the highest level of precision and quality through leading-edge product development technology including FARO laser scanning for reverse engineering and quality inspection, SolidWorks 3D CAD modeling, rapid prototyping utilizing our in-house 3D printer, and rigorous long term product testing.
INSTALLATION AND SUPPORT
Need installation tips? We put together a full installation tutorial from start to finish in detail! See our Installation PDF under the INSTALLATION Tab for more information.
Will require drilling / cutting into the body for permanent installation. Professional installation is highly advised.
- spoiler
- wang
This Part Fits the Following Vehicles
| Make | Model | Submodel | Engine | Special Fitment Notes |
|---|---|---|---|---|
| Volkswagen | Golf VII | Hatchback | 2.0T Gen3 | Use vehicle selector to confirm fitment |
| Volkswagen | Golf VII Facelift | FWD | 2.0T Gen3 | Use vehicle selector to confirm fitment |
| Volkswagen | Golf VII R | 4Motion | 2.0T Gen3 | Use vehicle selector to confirm fitment |
| Volkswagen | Golf VII R Facelift | 4Motion | 2.0T Gen3 | Use vehicle selector to confirm fitment |
Kit Contents
| Description | Brand | Qty | Lifetime | |
|---|---|---|---|---|
| Universal Rear Wing Upper Brackets |
|
1 | YES | |
| Universal Rear Wing End Plates |
|
1 | YES | |
| Carbon Fiber Rear Wing - 60" Wide |
|
1 | YES | |
| Aero Hatch Spoiler Upright Mounting Bracket Kit |
|
1 | YES | |
| Aero Hatch Spoiler Lower Brackets & Backing Plates |
|
1 | YES | |
| Aero Hatch Spoiler Lower Bracket & Backing Plate Isolators |
|
1 | YES |
