MK8 GTI Intercooler Charge Pipe Kit - Wrinkle Red
- Mfg Part #
- 036632LA02-02KT
- ECS Part #
- ES#4620665
- Brand
-
This product was last offered at the strikethrough price on
06-13-2026
Free Shipping
Product Details
The factory charge pipes and rubber couplers on your MK8 GTI's 2.0T evo4 engine were never designed to handle the stress and abuse of higher boost levels much beyond stock. When combined with power-robbing abrupt and sharp bends, inferior rubber material, and small diameter tubing, it's easy to see why your intercooler pipes and couplers should be replaced, even on stock engines.

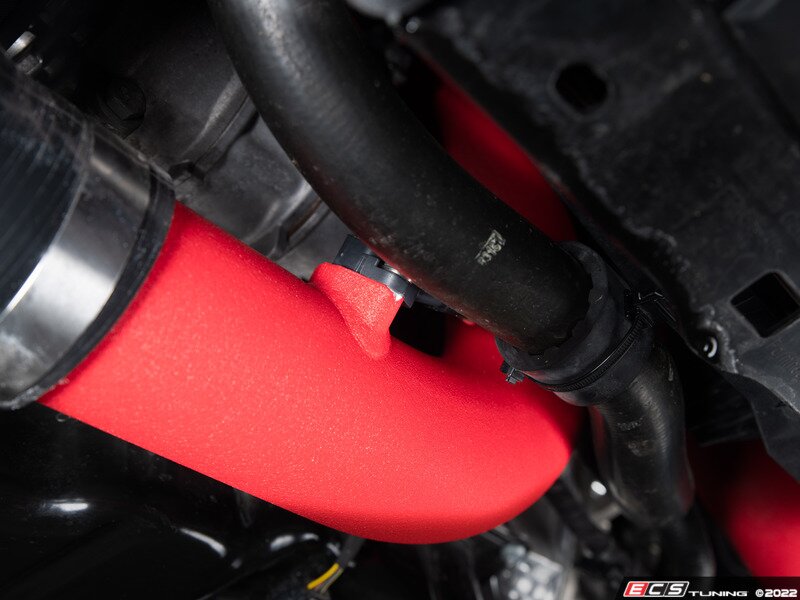

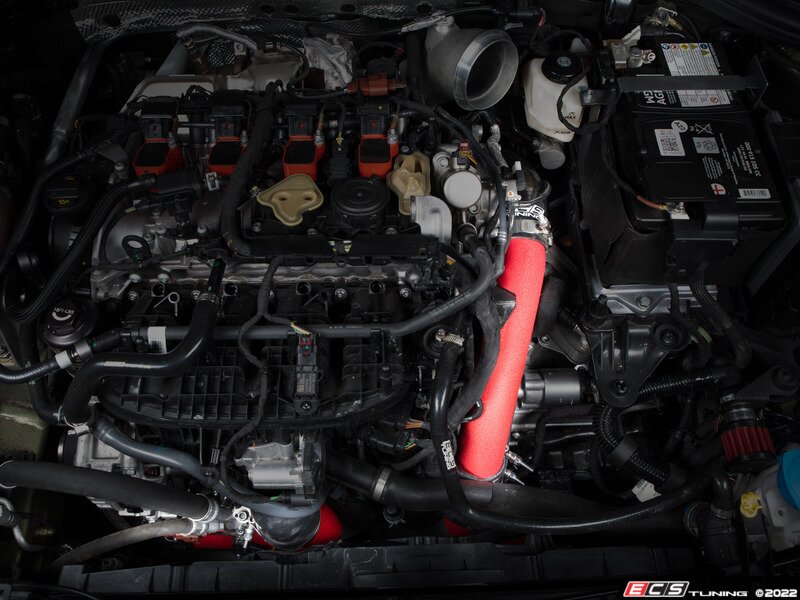

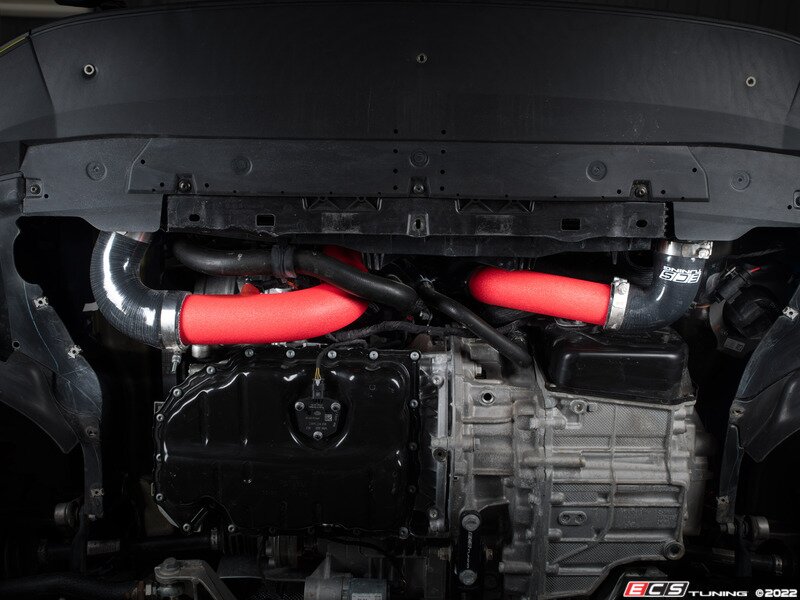

Our in-house designed and engineered High Flow Intercooler Charge Pipe Kit features mandrel bent, bead rolled, powdercoated aluminum plumbing from the outlet of the turbo muffler delete pipe directly to the throttle body, along with smoother flowing silicone couplers, stainless steel T-Bolt clamps and all new installation hardware for an easy, direct bolt on installation.
PART DESIGN

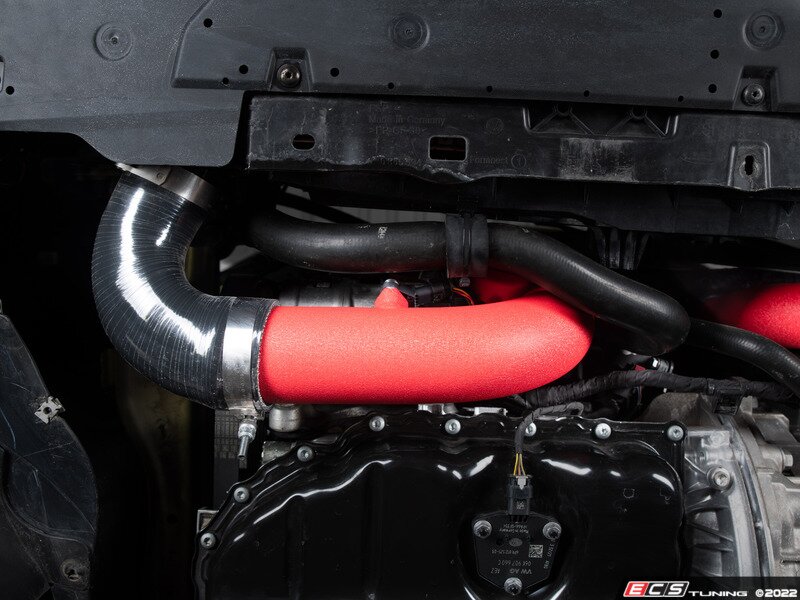

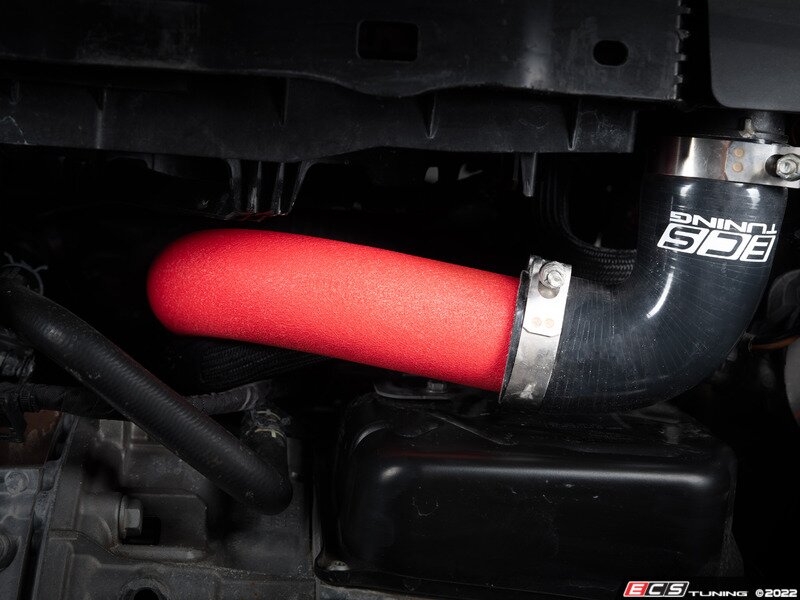

TURBO OUTLET PIPE KIT

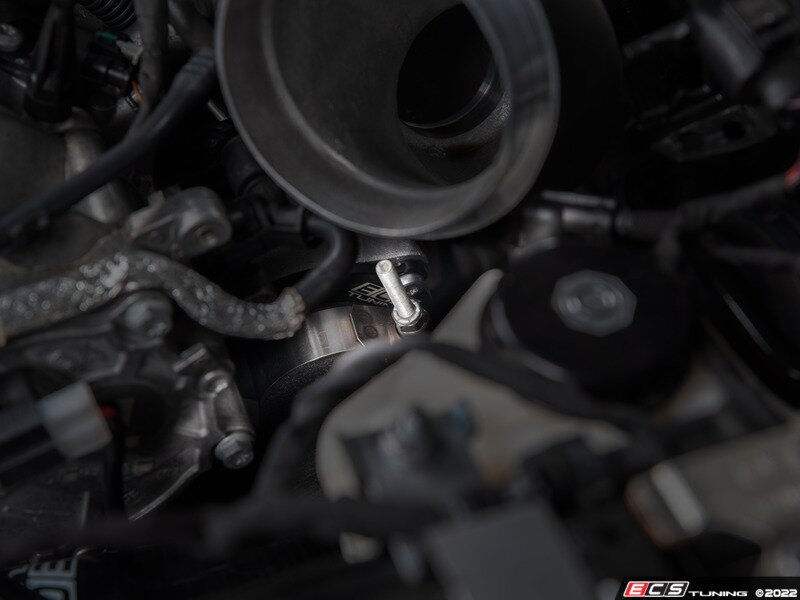

Turbo Muffler Delete Pipe - creates a smooth connection from the compressor outlet, directly to our silicone outlet elbow. In addition to smoother airflow it increases turbocharger working sound for glorious turbo noises!

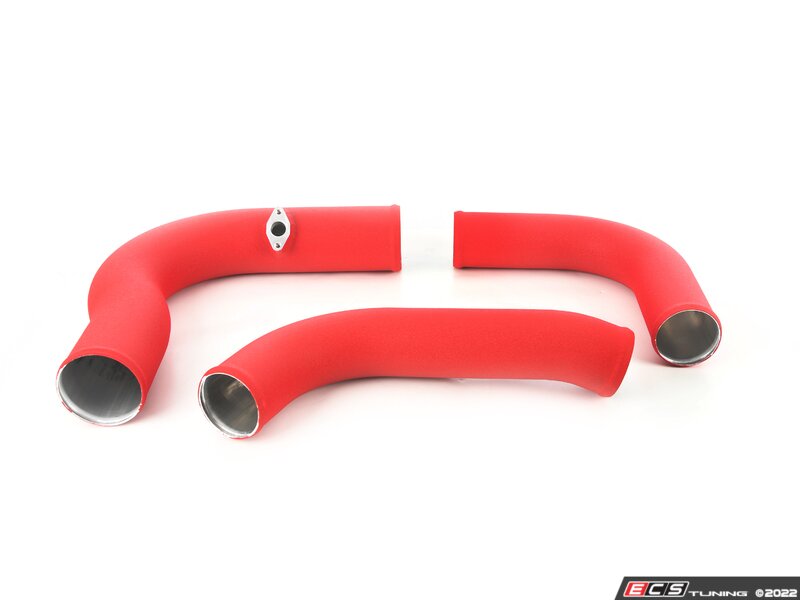

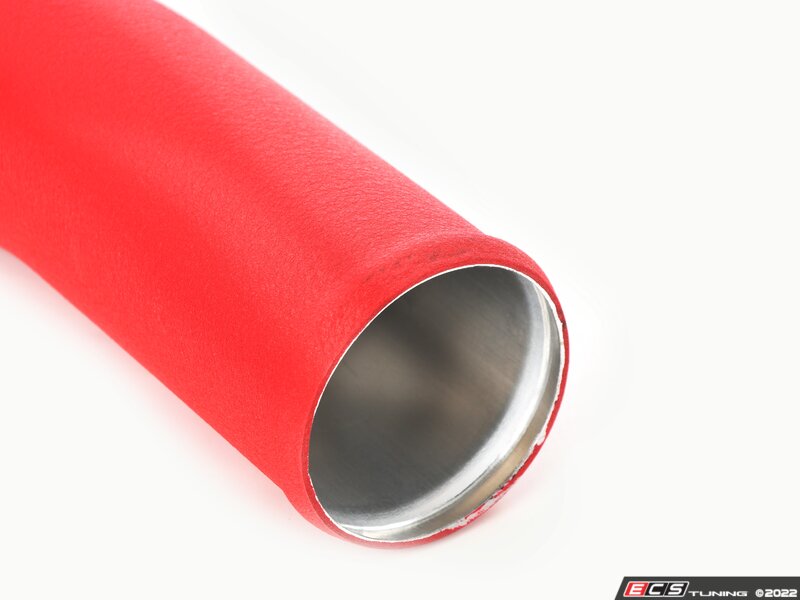

Tubing - 2 3/8" (60mm) OD CNC-mandrel bent aluminum with bead rolled ends and Tig-welded factory-location mounting bracketry. Finished in a durable black powdercoat for long lasting great looks.

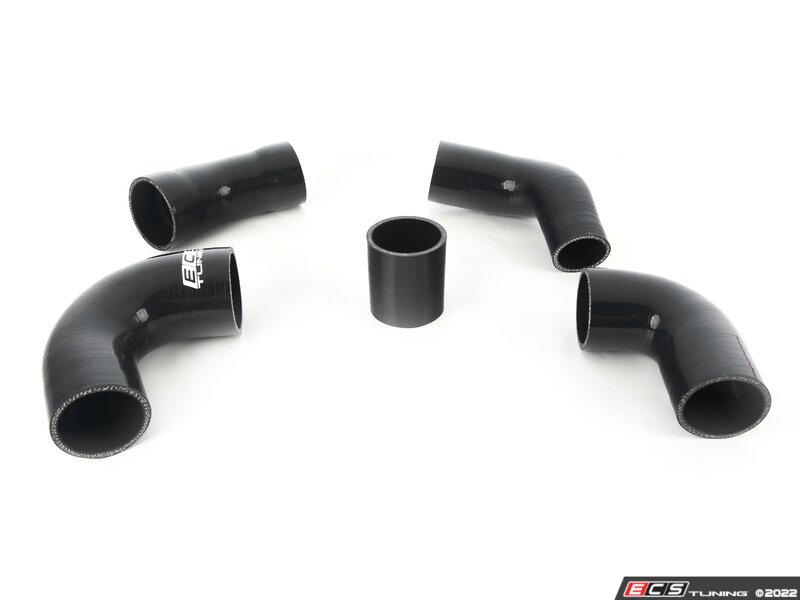

Couplers - Fiberglass-reinforced silicone hoses provide the necessary connections while optimizing airflow. Rated to withstand up to 250° F. and 45psi of boost pressure.

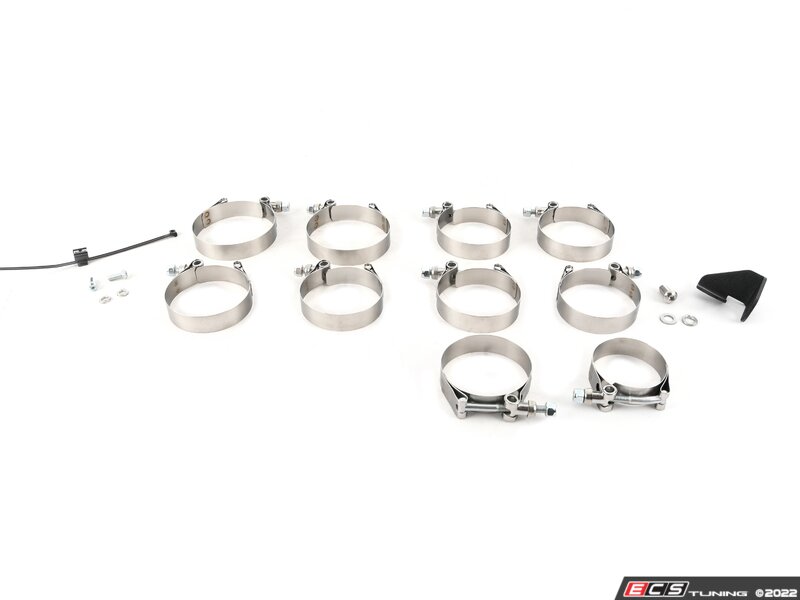

Hose Clamps - T-bolt hose clamps provide a strong, secure connection to prevent hose couplers from blowing off.

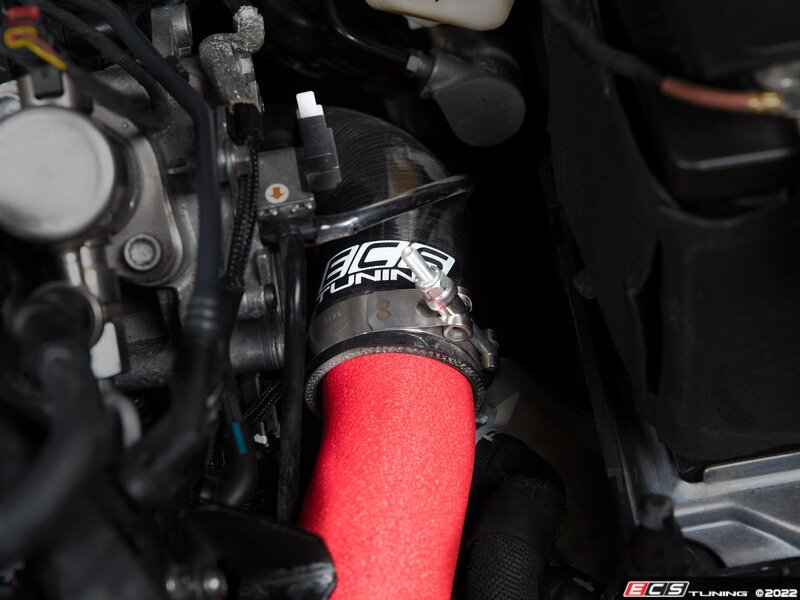

THROTTLE PIPE KIT

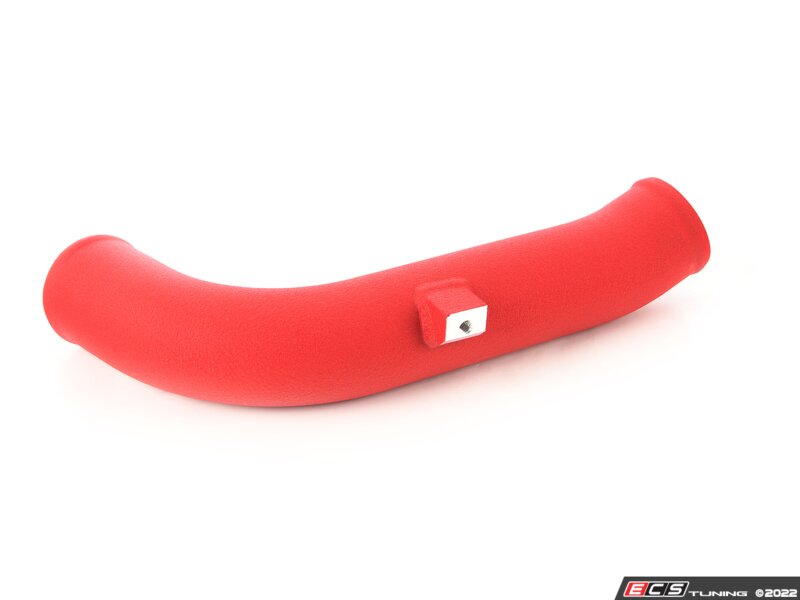

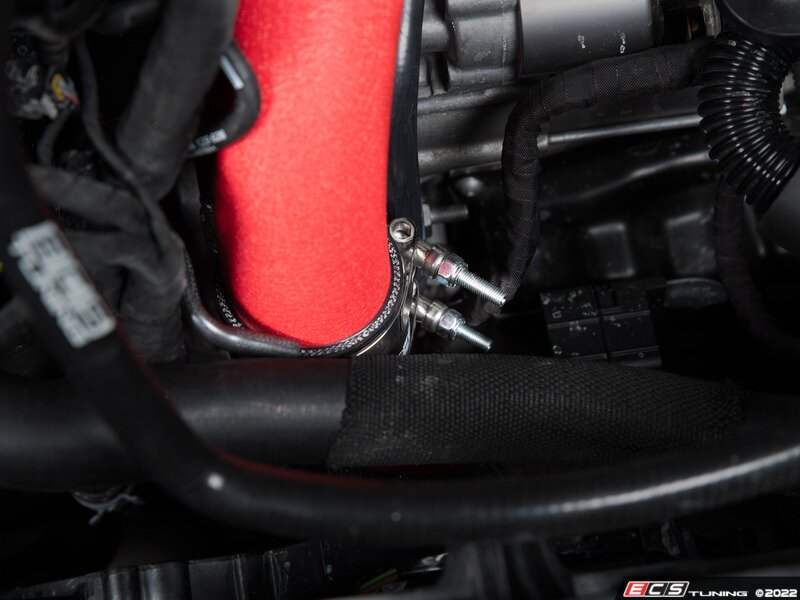

Tubing - 70mm OD CNC-mandrel bent aluminum with bead rolled ends and Tig-welded factory-location MAP sensor flange.
Couplers - Fiberglass-reinforced silicone hoses provide the necessary connections while optimizing airflow. Rated to withstand up to 250° F. and 45psi of boost pressure.
Hose Clamps - T-bolt hose clamps provide a strong, secure connection to prevent hose couplers from blowing off.

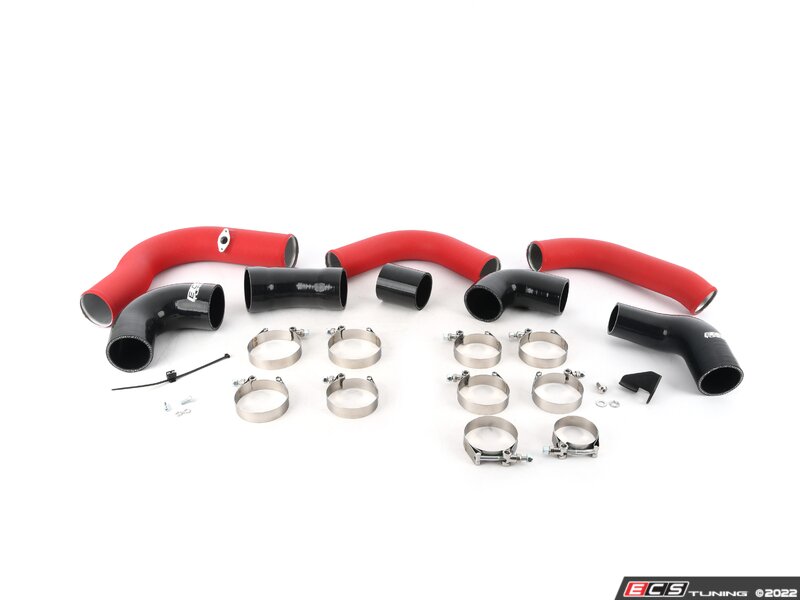

KIT CONTENTS
TURBO OUTLET PIPE KIT
- Turbo Muffler Delete Pipe
- Silicone Turbo Outlet Coupler
- 60mm Upper Turbo Outlet Pipe, with CNC-Bent Mounting Bracket and Hardware
- Silicone Upper-to-Lower Turbo Outlet Pipe Coupler
- 60mm Lower Intercooler Pipe
- Silicone Intercooler Inlet Coupler
- Stainless Steel T-bolt Hose Clamps
THROTTLE PIPE KIT
- Silicone Intercooler Outlet Hose Coupler w/ T-bolt Clamps
- Throttle Body Pipe Assembly w/ MAP sensor hardware

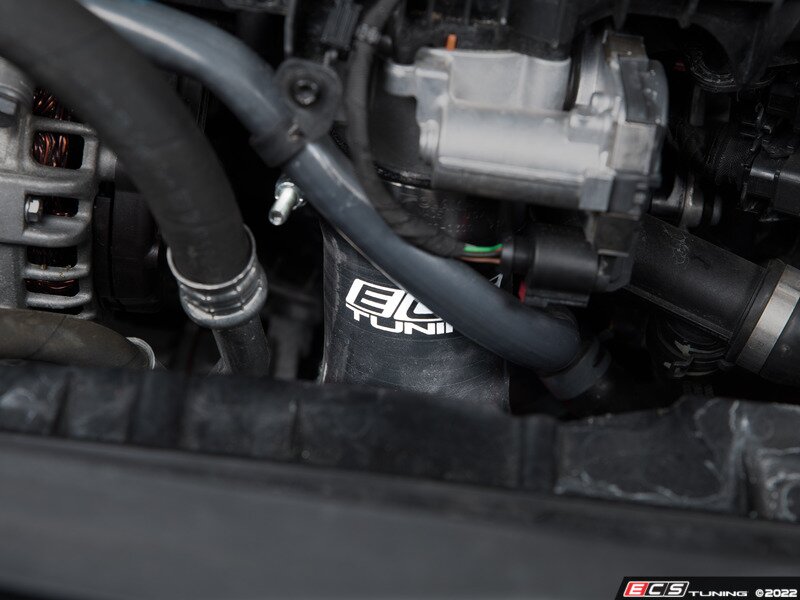

- Silicone Throttle Body Hose Coupler w/ T-bolt Clamps
PERFORMANCE FEATURES
Dyno tested on our in-ground Mustang "AWD 500 SE" Dyno on our shop MK8 GTI comparing ECS Turbo Outlet and Throttle Body charge pipes against OEM charge pipes. Our test MK8 GTI was equipped with our ECS Luft-Technik Intake, ECS Big Bore Turbo Inlet, and ECS Tuning Cat Back Exhaust.
OEM Charge Pipes - 252WHP @ 6,400 RPM & 272WTQ @ 4,500 RPM
ECS Charge Pipe Kit - 260WHP @ 6,400 RPM (+8 WHP) & 279 WTQ @ 4,500 RPM (+7 WTQ)
PRODUCT DEVELOPMENT
Our ECS High Flow Intercooler Charge Pipe Kit was designed, engineered, tested and quality inspected by our Research and Development team in our Wadsworth, Ohio facility. We strive for the highest level of precision and quality through leading-edge product development technology including FARO laser scanning for reverse engineering and quality inspection, SolidWorks 3D CAD modeling, rapid prototyping utilizing our in-house 3D printer, and rigorous long term product testing.
Performance data metrics are collected utilizing our in-house Mustang AWD 500 SE in ground dyno.
INSTALLATION AND SUPPORT
Need installation tips? We put together a full installation tutorial from start to finish including how to remove your OEM parts in detail! See our Installation PDF under the INSTALLATION Tab for more information.
Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.
This Part Fits the Following Vehicles
| Make | Model | Submodel | Engine | Special Fitment Notes |
|---|---|---|---|---|
| Audi | 8Y A3 | FWD | 2.0T | Use vehicle selector to confirm fitment |
| Audi | 8Y A3 | Quattro | 2.0T | Use vehicle selector to confirm fitment |
| Volkswagen | Golf VIII | FWD | 2.0T Evo4 | Use vehicle selector to confirm fitment |
Kit Contents
| Description | Brand | Qty | Lifetime | |
|---|---|---|---|---|
| Cable Strap With Bracket |
|
1 | YES | |
| High Flow Turbo Outlet Pipe Kit - Wrinkle Red |
|
1 | YES | |
| Throttle Body Pipe Installation Pack |
|
1 | YES | |
| Silicone Throttle Body Coupler |
|
1 | YES | |
| Intercooler Outlet Silicone Coupler |
|
1 | YES | |
| Throttle Pipe - Wrinkle Red Powdercoat |
|
1 | YES | |
| MK8 GTI / 8Y A3 Turbo Muffler Delete Pipe |
|
1 | YES |
