MK8 Golf R Charge Pipe Kit - Wrinkle Black
- Mfg Part #
- 043938LA06KT
- ECS Part #
- ES#5395854
- Brand
-
This product was last offered at the strikethrough price on
06-13-2026
Free Shipping
Product Details
The factory EVO4 charge pipes and rubber couplers were never designed to handle the stress and abuse of higher boost levels much beyond stock. When combined with power-robbing abrupt and sharp bends, inferior rubber material, and small diameter tubing, it's easy to see why your intercooler pipes and couplers should be replaced - even on stock vehicles.

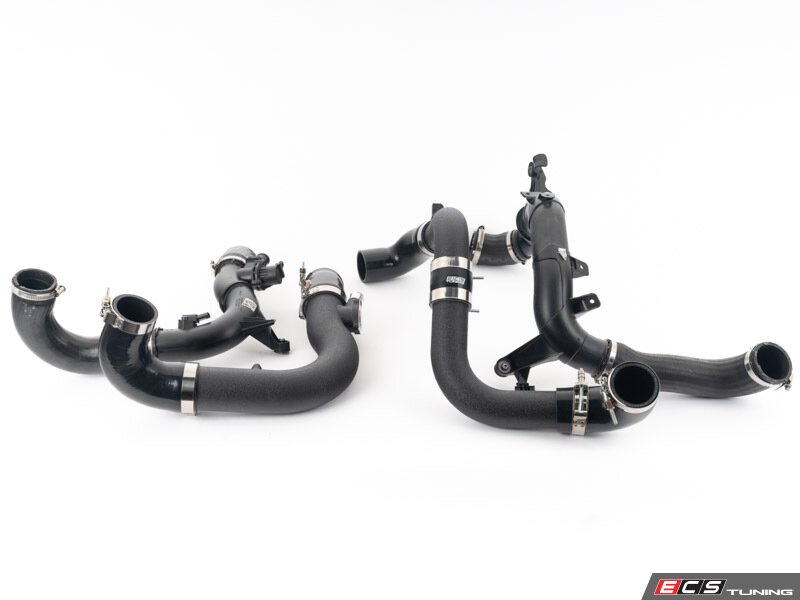

At ECS Tuning, we're proud to release our in-house designed and engineered High Flow Intercooler Pipe Kit! Each kit comes standard with mandrel bent, powder coated aluminum plumbing from the turbocharger to the throttle body, as well as upgraded silicone couplers, stainless steel T-Bolt clamps, and all installation accessories for an easy, direct bolt-on installation.

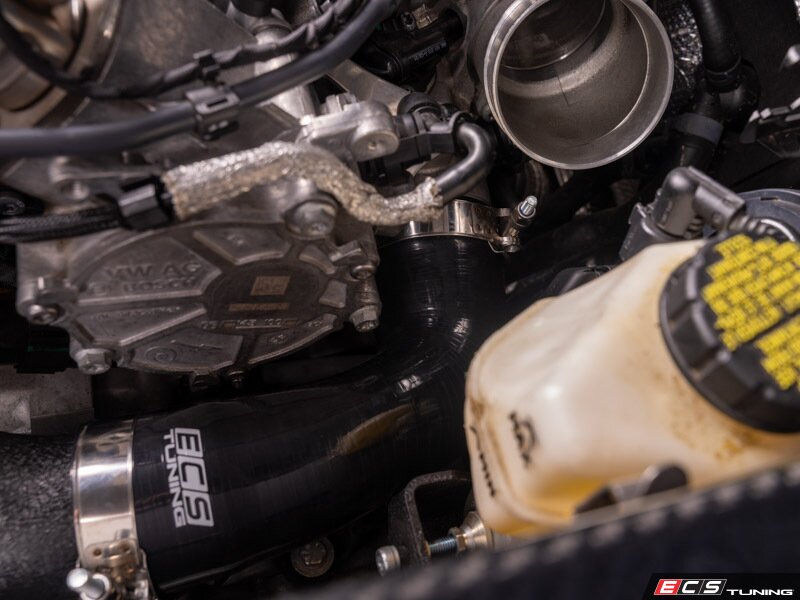

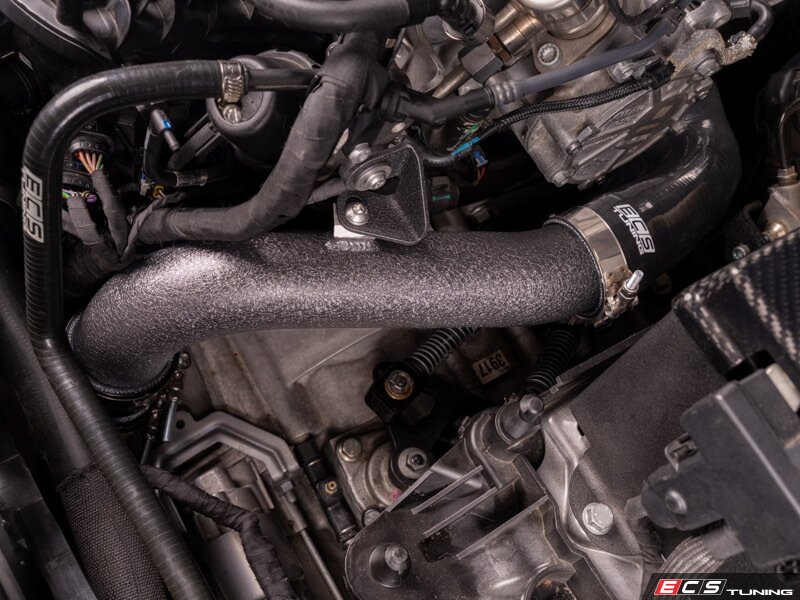

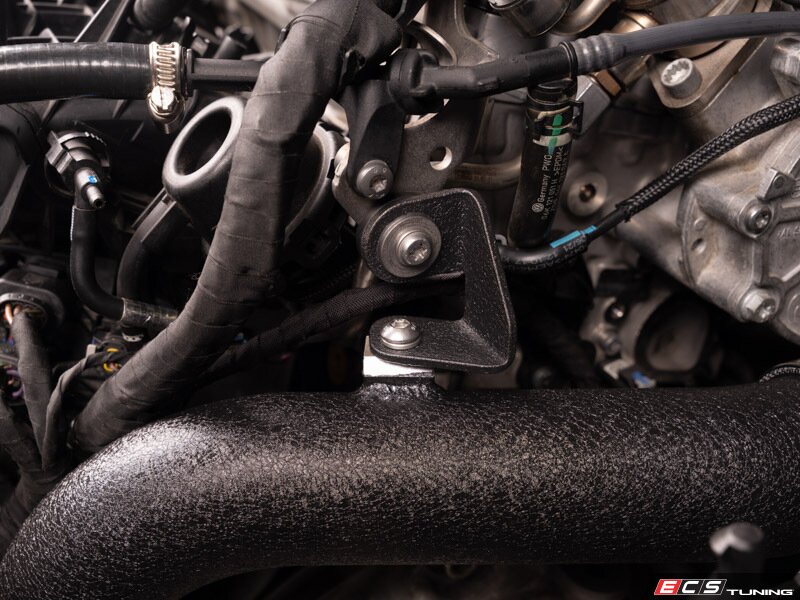

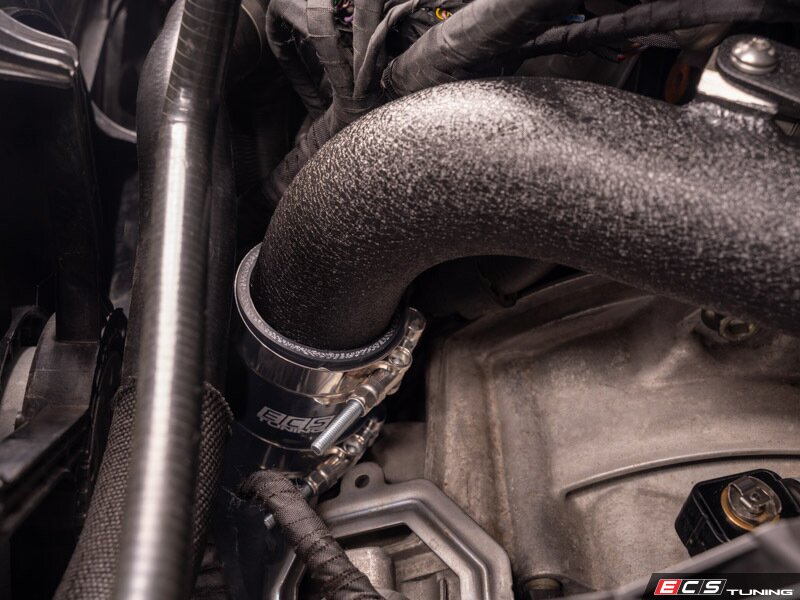

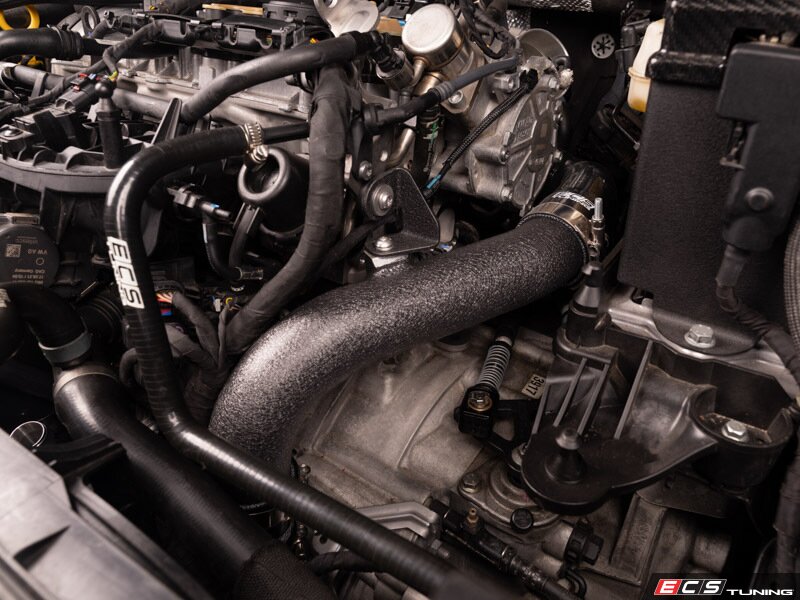

The factory turbocharger outlet pipe has serious restriction right out of the compressor outlet due to it's small diameter tubing and irregular obstructions. We've improved this charge pipe by providing a smooth transitioning silicone coupler right off the turbo outlet, which carries boost pressure to our carefully evaluated larger diameter intercooler pipes. The upper intercooler pipe features a CNC-machined and TIG welded mounting flange for the aluminum mounting bracket to allow for OE-like fitment.

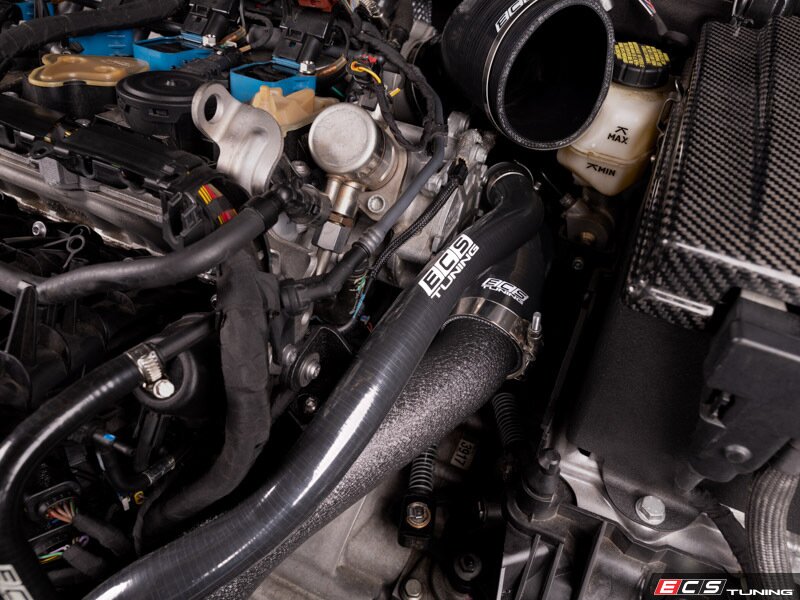

Similar to the turbo outlet pipe, the factory intercooler outlet pipe leaves much to be desired. We've improved this charge pipe by providing a silicone coupler off of the intercooler outlet, which carries boost pressure to our larger diameter tubing throttle body pipe. The ECS intercooler outlet pipe features a CNC-machined and TIG welded MAP sensor mounting flange to allow for direct fitment. We've also included a smooth flowing silicone throttle body hose coupler to complete the transition from stock to our upgraded kit.

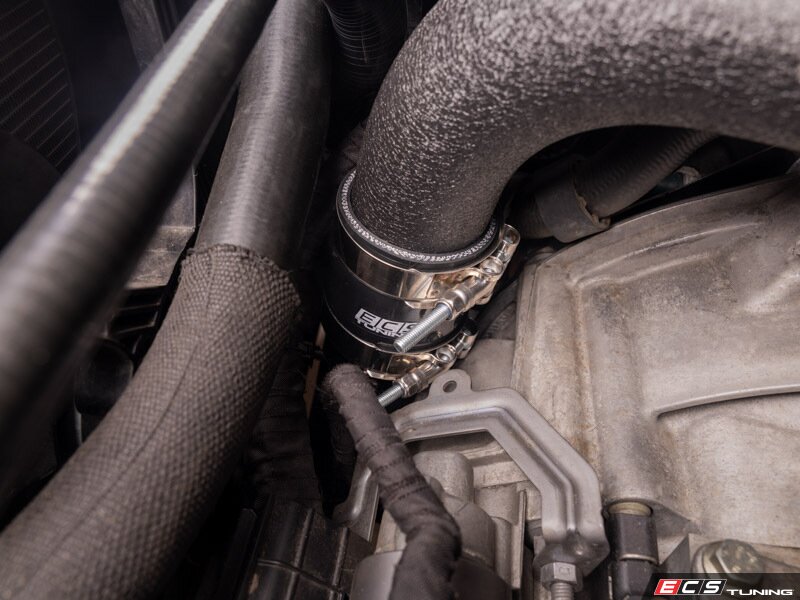

Capable of withstanding greater heat and higher boost pressure than stock, you can expect to achieve greater reliability, less turbulence, and less restriction! Never worry about blowing couplers off of our tubes, as each tube is bead rolled and secured with stainless T-bolt clamp over our 4-ply reinforced silicone couplers.

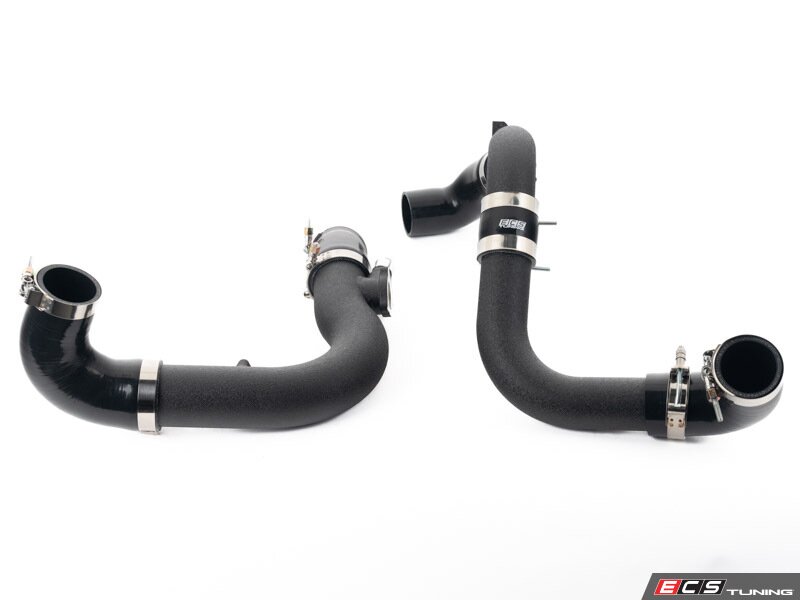

KIT CONTENTS
Silicone Turbo Outlet Coupler
60mm Upper Turbo Outlet Pipe w/ CNC-Bent Mounting Bracket & Hardware
Silicone Upper-to-Lower Turbo Outlet Pipe Coupler

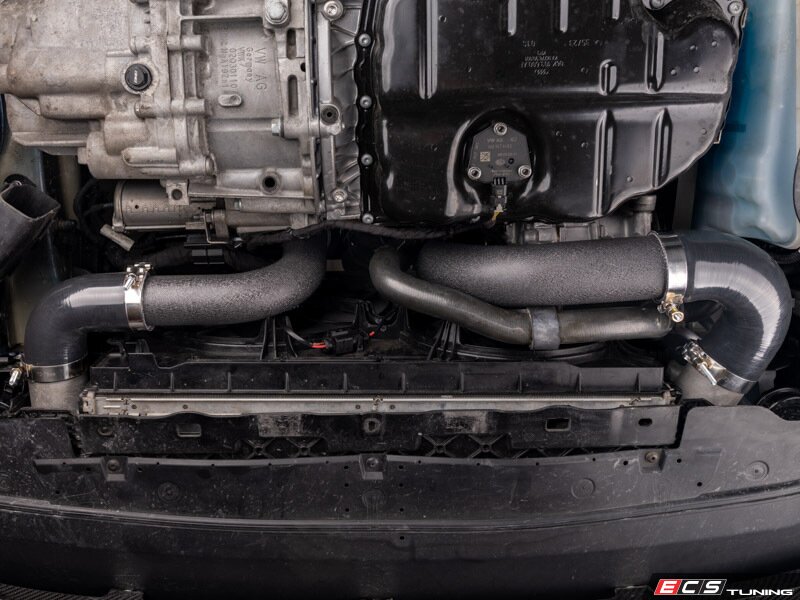

60mm Lower Intercooler Pipe
Silicone Intercooler Inlet Coupler

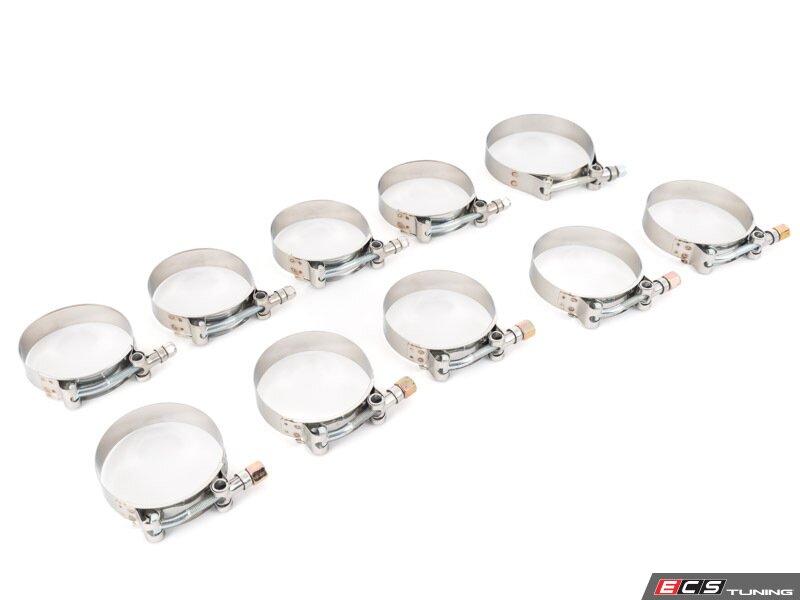

Stainless Steel T-bolt Hose Clamps
- Silicone Intercooler Outlet Coupler

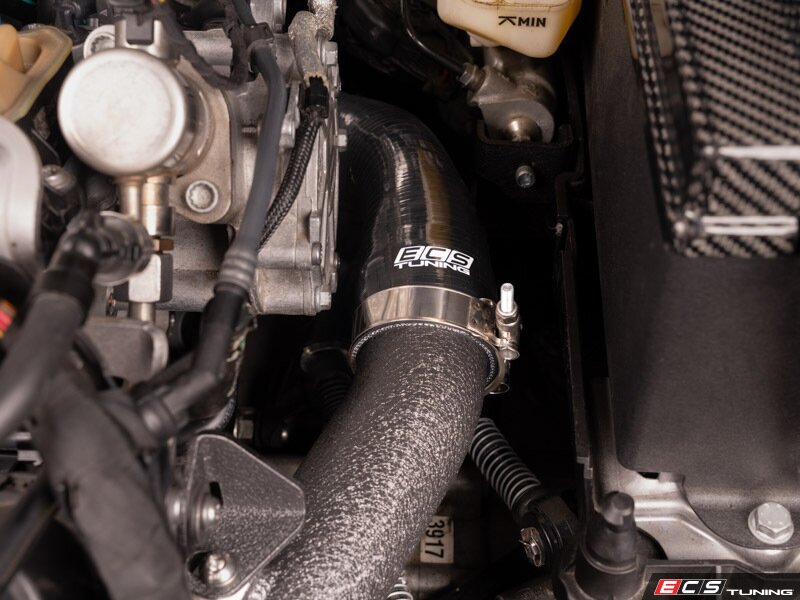

70mm Throttle Body Intercooler Pipe w/ MAP sensor flange & mounting hardware
Silicone Throttle Body Hose
Stainless Steel T-bolt Clamps
KEY FEATURES
Reduces turbulence and increases air flow capacity

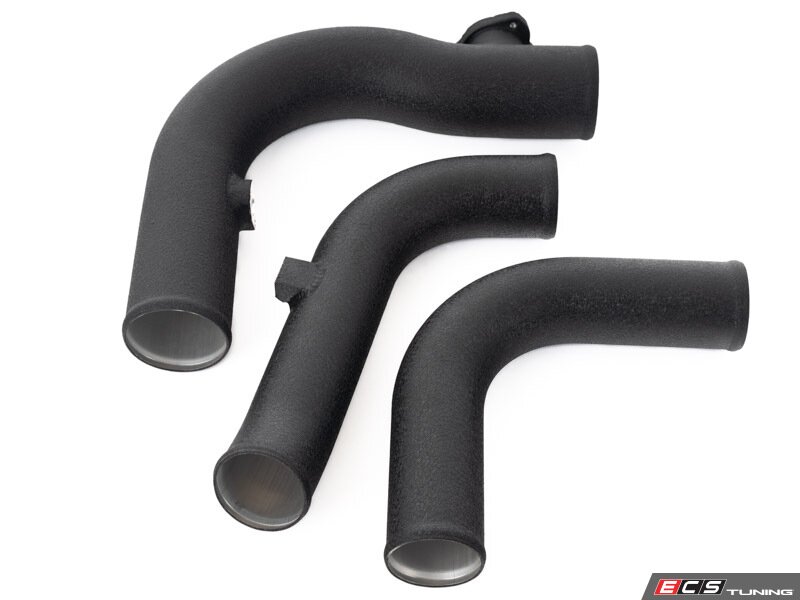

Mandrel bent and bead rolled aluminum tubing, powder coated in tough wrinkle black or wrinkle red finishes

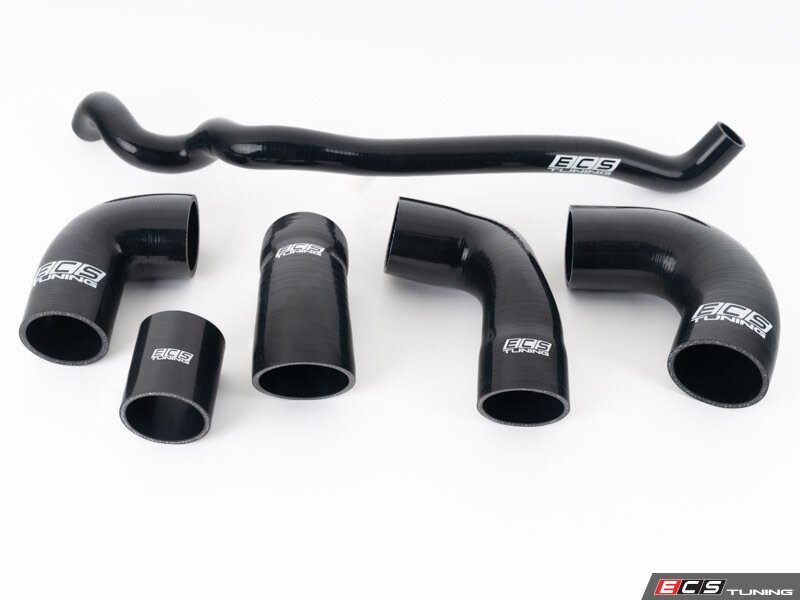

Replaces all rubber hoses from turbocharger-to-intercooler and intercooler-to-throttle body with 4-ply silicone upgrades
CNC machined MAP flange TIG welded to intercooler pipe
Easy, direct replacement upgraded part
**Fits 60mm intercooler inlet/outlet tubes in OE locations only
PRODUCT DEVELOPMENT
Our ECS Tuning MK8 Golf R charge pipe kit was designed, engineered, tested and quality inspected by our Research and Development team in our Wadsworth, Ohio facility. We strive for the highest level of precision and quality through leading-edge product development technology including FARO laser scanning for reverse engineering and quality inspection, SolidWorks 3D CAD modeling, rapid prototyping utilizing our in-house 3D printer, and rigorous long term product testing.
INSTALLATION AND SUPPORT
Looking for installation tips? Look no further, we put together a full installation tutorial from start to finish! See our Installation PDF under the INSTALLATION Tab for more information.
- 5WA145832
- 5WA145840D
- 5WA145828E
- 5WA145834
- 5WA145770E
- 5WA145838
- 5WA145693C
This Part Fits the Following Vehicles
| Make | Model | Submodel | Engine | Special Fitment Notes |
|---|---|---|---|---|
| Volkswagen | Golf VIII R | 4Motion | 2.0T Evo4 | Use vehicle selector to confirm fitment |
Kit Contents
| Description | Brand | Qty | Lifetime | |
|---|---|---|---|---|
| Heavy Duty T-Bolt Clamp - Priced Each |
|
5 | YES | |
| rounded head slim bolt |
|
3 | YES | |
| Silicone Coupler - Straight 2.38" ID (60.3mm) x 3" L |
|
1 | YES | |
| 18-8 Stainless Steel Button-Head Socket Cap Screw, M6 Size, 14 Mm Length, 1 Mm Pitch |
|
1 | YES | |
| T-Bolt Hose Clamp - 67-75mm - priced each |
|
2 | YES | |
| T-Bolt Hose Clamp - 70-78mm - Priced each |
|
3 | YES | |
| Turbo Outlet Pipe Hardware Pack |
|
1 | YES | |
| Turbo Outlet Pipe - Upper - Wrinkle Black Powdercoat |
|
1 | YES | |
| Turbo Outlet Pipe - Lower - Wrinkle Black Powdercoat |
|
1 | YES | |
| Intercooler Outlet Silicone Coupler |
|
1 | YES | |
| Intercooler Inlet Silicone Coupler |
|
1 | YES | |
| Silicone Diverter Valve Hose |
|
1 | YES | |

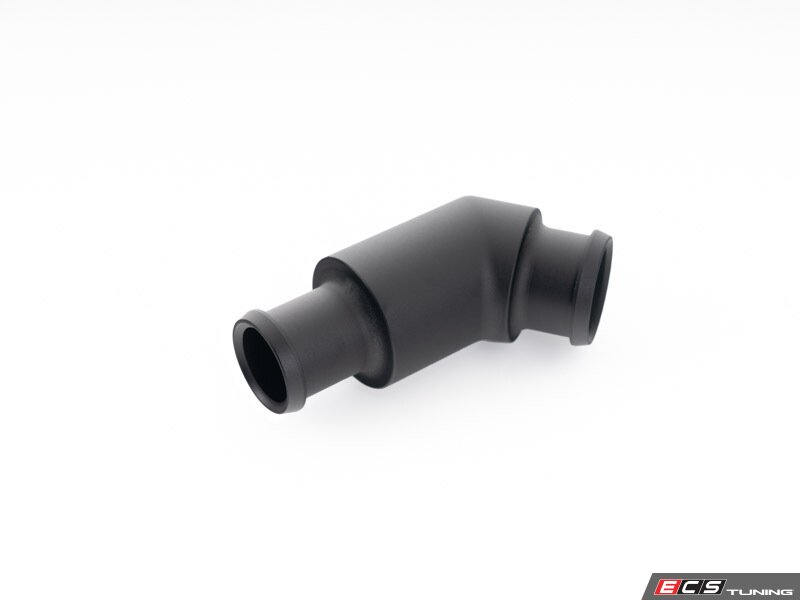

| Diverter Valve Adapter Fitting |
|
1 | YES | |
| Turbo Outlet Silicone |
|
1 | YES | |
| Throttle Pipe - Black |
|
1 | YES | |
| Throttle Body Silicone Hose |
|
1 | YES |
