Performance Baffled Oil Catch Can System - Audi B7 A4 2.0T
- Mfg Part #
- 010371ECS01KT
- ECS Part #
- ES#2966735
- Brand
-
This product was last offered at the strikethrough price on
06-13-2026
Free Shipping
Product Details
Introducing ECS Tuning's newest release, the Performance Baffled Oil Catch Can System, engineered in-house and manufactured in the USA. Our system was designed with the consumer in mind to provide effortless installation with no necessary modifications to be a perfect fit for your 2.0T. With no required modification, this performance system is also fully reversible and even fits beneath the factory engine cover!
Today's direct fuel injection systems have taken engine performance to a whole new level, but there is a drawback. Without fuel vapor to help clean the intake valves, the oil particles that are drawn into the intake from the PCV system will deposit themselves onto the valves and intake ports. Over time this will result in increased levels of carbon buildup, reducing fuel octane and resulting in lost power and poor drivability.
Key benefits of the ECS Baffled Oil Catch Can System:
- Highly Efficient Oil Separator (Catch Can):

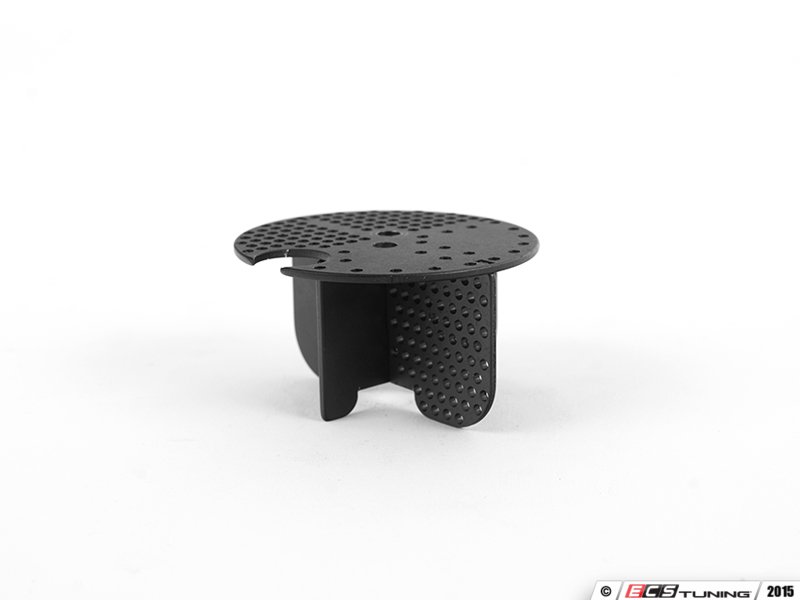

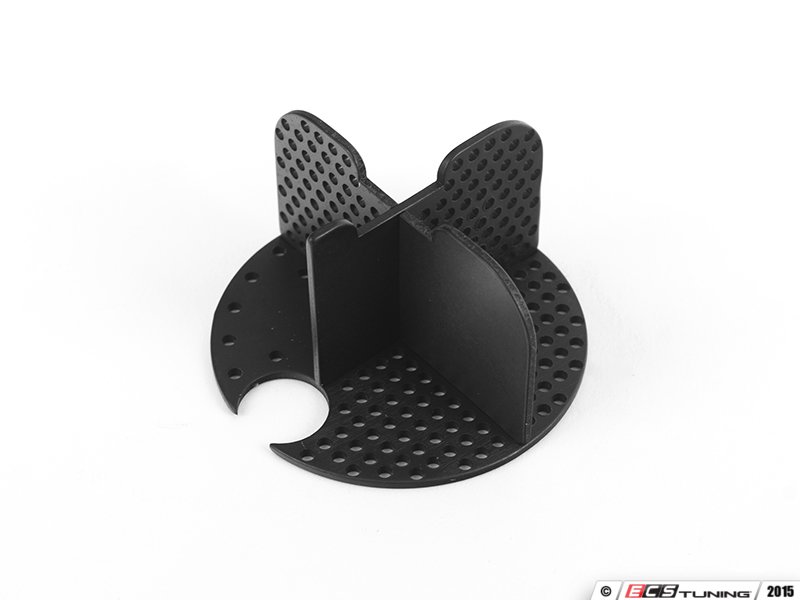

- Strategically positioned 4 chamber baffle system maximizes oil / air separation
- Engineered to create multiple changes in the direction of airflow within the separator to cause oil droplets to fall out of suspension before exiting the catch can
- Knurled and black anodized integrated oil dipstick makes inspecting oil volume of the reservoir clean and simple

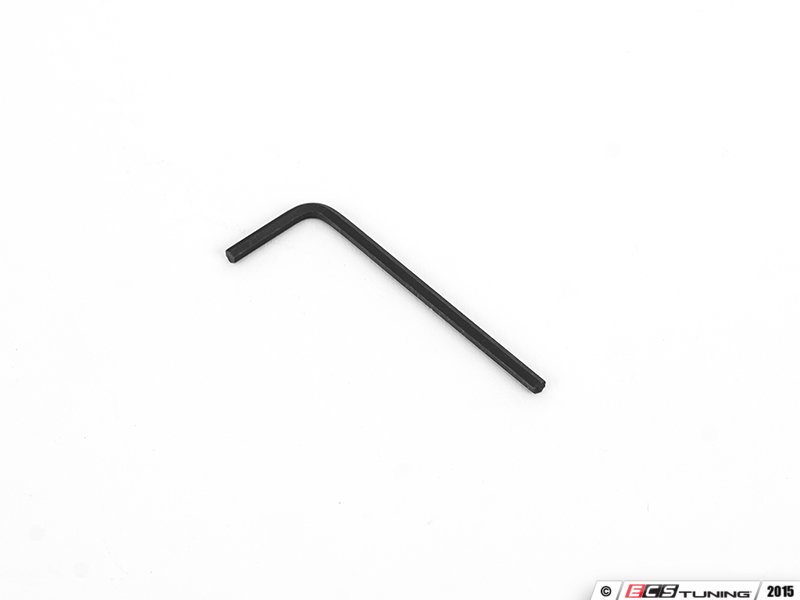

- Fully serviceable for routine cleaning and maintenance; Includes 2.5mm allen key to remove baffle plates for cleaning
- -10AN fittings for leak-free fitting connections
- 6061-T6 billet machined body, anodized black for lasting protection and appearance
- Easy to drain reservoir, simply un-threads from the oil separator for quick draining or cleaning
- Billet machined FSI Adapter Plate integrates -10AN fittings for leak-free fitting connections to the custom length -10AN braided nylon hose and connects the OEM PCV hose to a machined factory fitting connection
- Completely reversible installation, as no OEM components are permanently modified. This is ideal for those who choose to remove their catch can during the cold winter months
Most catch cans replace of the factory PCV (positive crankcase ventilation) system, however the ECS Tuning Performance Baffled Oil Catch Can System utilizes key components of the OEM PCV system to expand on it's efficiency by retaining ultra-fine oil vapor that has already passed through the factory fine oil separator. This also provides the benefit of not having to empty the oil can catch as often as other systems on the market, since the oil vapor will be filtered through two components before reaching the intake tract. Although the OEM PCV system performs well and meets emissions standards, installing ECS Tuning's Performance Baffled Oil Catch Can System will increase efficiency of the PCV system and keep the ultra-fine oil vapor contained in the blow-by gases from entering your intake system and causing excessive power loss and carbon buildup.

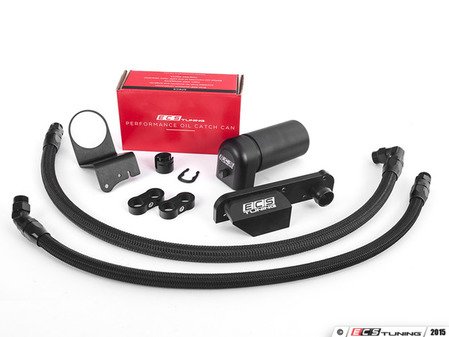

Each system includes the following:
- 4 Chamber Baffled Oil Catch Can with integrated dipstick and service tool
- CNC bent, black anodized, aluminum catch can bracket
- Fasteners for securing the bracket to the coolant reservoir bracket
- -10AN black nylon braided hose
- Cut to the perfect length -- This alone makes installation as easy as changing your own oil!
- -10AN black anodized fittings are pre-installed on each hose for a direct fit install
- Oil and fuel resistant to chemical degradation
- -10AN black anodized line separators
- Oil and fuel resistant, high temperature viton o-rings pre-installed on all adapters
- Billet machined 6061-T6 aluminum components, anodized black:
- PCV end cap fitting with securing clip
- -10AN machined PCV adapter plate
Engineered and manufactured in the USA, you can expect the best performance and longevity with our superior Baffled Oil Catch Can System from ECS Tuning!
Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.
This Part Fits the Following Vehicles
| Make | Model | Submodel | Engine | Special Fitment Notes |
|---|---|---|---|---|
| Audi | B7 A4 | FWD | 2.0T | Use vehicle selector to confirm fitment |
| Audi | B7 A4 | Quattro | 2.0T | Use vehicle selector to confirm fitment |
Kit Contents
| Description | Brand | Qty | Lifetime | |
|---|---|---|---|---|
| 6mm Stainless Washer, Priced Each |
|
2 | YES | |
| Stainless Allen Head Bolt - Priced Each |
|
1 | YES | |
| Zinc Plated Steel Hex Nut, Class 8, M6x1 Thread Size, 10mm Wide, 5mm High |
|
2 | YES | |
| 8oz Catch Can Assy - Reverse Flow, Black Anodized |
|
1 | YES | |
| M5x0.8x25 18-8 SS Button-Head Socket Cap Screw |
|
1 | YES | |
| M5x0.8 Zinc Plated Steel Hex Nut |
|
1 | YES | |
| M5 Type 18-8 Stainless Steel Washer (5.3mm ID, 15.0mm OD) |
|
1 | YES | |
| 8mm Spacer |
|
1 | YES | |
| Longitudinal 2.0T FSI Catch Can Feed Line |
|
1 | YES | |
| Longitudinal 2.0T FSI Catch Can Return Line |
|
1 | YES | |
| PCV / Intake Block Off Cap |
|
1 | YES | |
| -10AN Feed/Return Hose Line Separator |
|
2 | YES | |
| M6x16 |
|
1 | YES | |
| Valve Cover (Catch Can) PCV Adapter Plate |
|
1 | YES | |
| B7 Catch Can Bracket |
|
1 | YES |
