Performance Baffled Oil Catch Can System

Keep your B8 S4/S5 3.0T intake tract clean and carbon free
Mfg Part #
016632ECS01KT
ECS Part #
ES#3142968
Brand
ECS
525.95
Free Shipping Free Shipping
Availability: Ships by Jan 31, 2022
Qty
Does this fit my vehicle?

Product Details

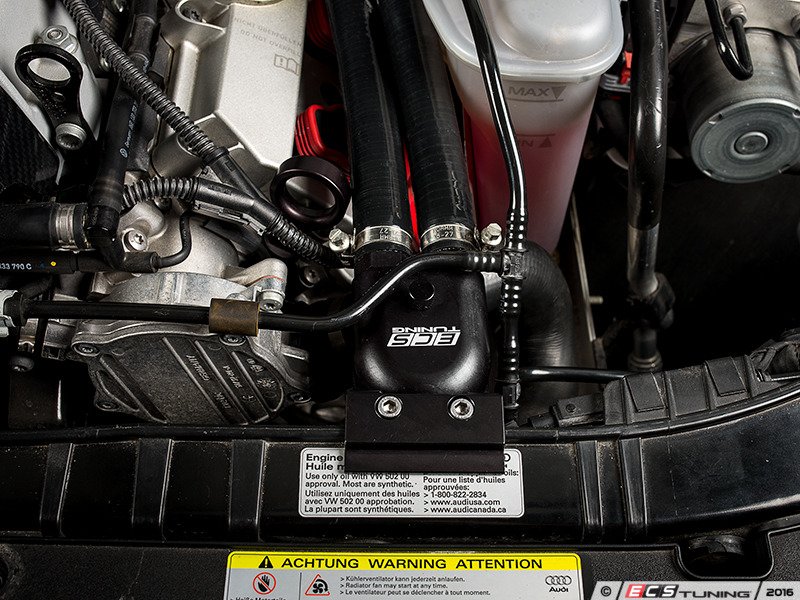

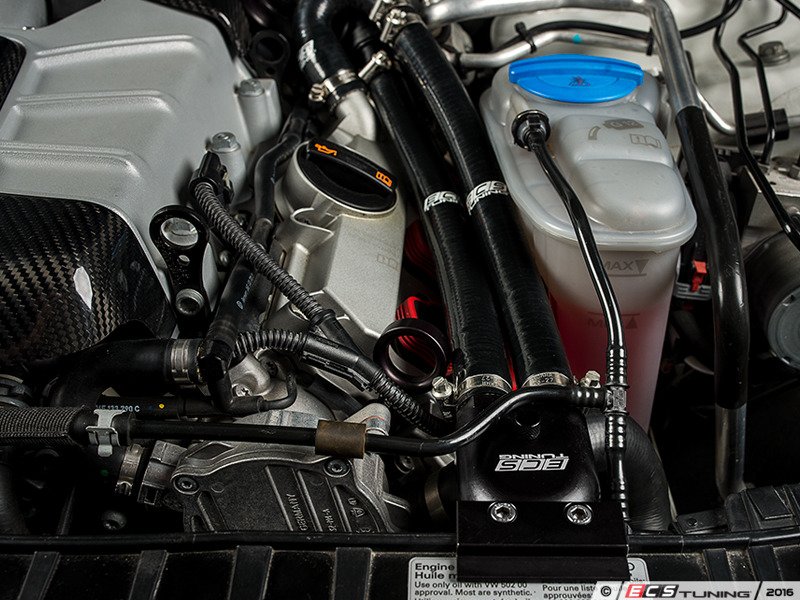

Introducing ECS Tuning's Performance Baffled Oil Catch Can System for the B8 3.0T, engineered and tested in-house. Our system was designed with the consumer in mind to provide effortless installation with no necessary modifications to be a perfect fit for your 3.0T. With no required modification, this performance system is also fully reversible!

Today's direct fuel injection systems have taken engine performance to a whole new level, but there is a drawback. Without fuel vapor to help clean the intake valves, the oil particles that are drawn into the intake from the PCV system will deposit themselves onto the valves and intake ports. Over time this will result in increased levels of carbon buildup, reducing fuel octane and resulting in lost power and poor drivability.

Key benefits of the ECS Baffled Oil Catch Can System:

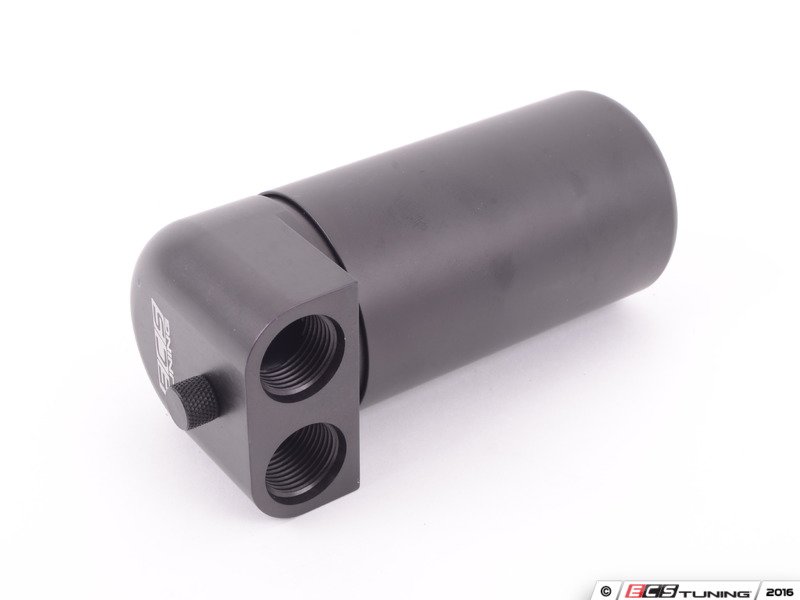

  • Highly Efficient Oil Separator (Catch Can):
    • Strategically positioned 4 chamber baffle system maximizes oil / air separation
    • Engineered to create multiple changes in the direction of airflow within the separator to cause oil droplets to fall out of suspension before exiting the catch can
    • Knurled and black anodized integrated oil dipstick makes inspecting oil volume of reservoir clean and simple
    • Fully serviceable for routine cleaning and maintenance; Includes 2.5mm allen key to remove baffle plates for cleaning
    • -10AN ORB (O-Ring Boss) fittings for leak-free fitting connections
    • 6061-T6 billet machined body, anodized black for lasting protection and appearance
    • Easy to drain reservoir, simply un-threads from the oil separator for quick draining or cleaning
  • The OEM fine oil (cyclonic) separator is retained. Due to the retention of this component, the catch can will not have to be emptied as often, as its focus will be on capturing the ultra-fine oil vapor
  • Completely reversible installation, as no OEM components are permanently modified. This is ideal for those who choose to remove their catch can during the cold winter months

Most catch cans replace of the factory PCV (positive crankcase ventilation) system, however the ECS Tuning Performance Baffled Oil Catch Can System utilizes key components of the OEM PCV system to expand on it's efficiency by retaining ultra-fine oil vapor that has already passed through the factory fine oil separator. This also provides the benefit of not having to empty the oil can catch as often as other systems on the market, since the oil vapor will be filtered through two components before reaching the intake tract. Although the OEM PCV system performs well and meets emissions standards, installing ECS Tuning's Performance Baffled Oil Catch Can System will increase efficiency of the PCV system and keep the ultra-fine oil vapor contained in the blow-by gases from entering your intake system and causing excessive power loss and carbon buildup.

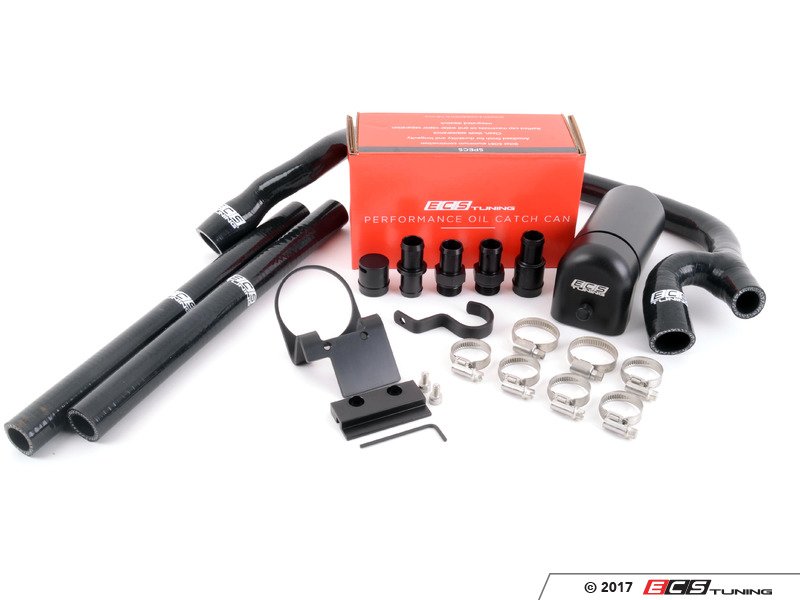

Each system includes the following:

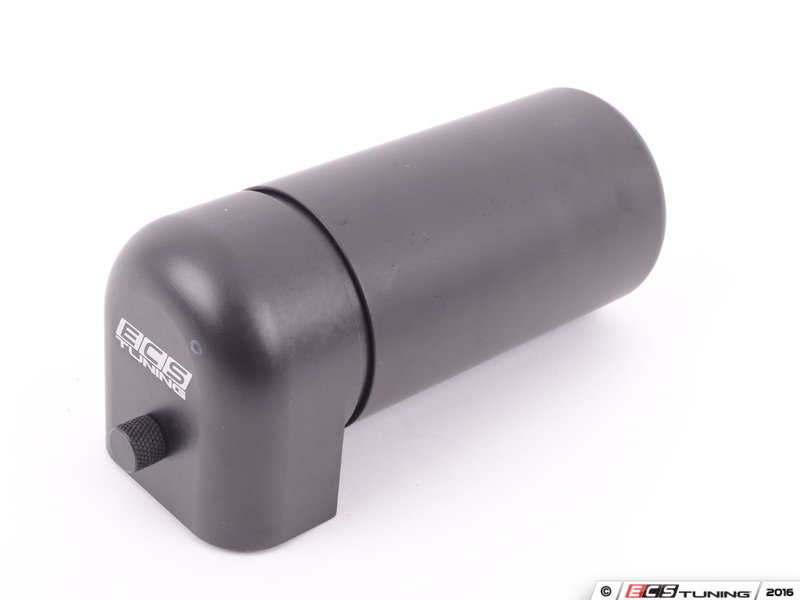

  • 4 Chamber Baffled Oil Catch Can with integrated dipstick and service tool

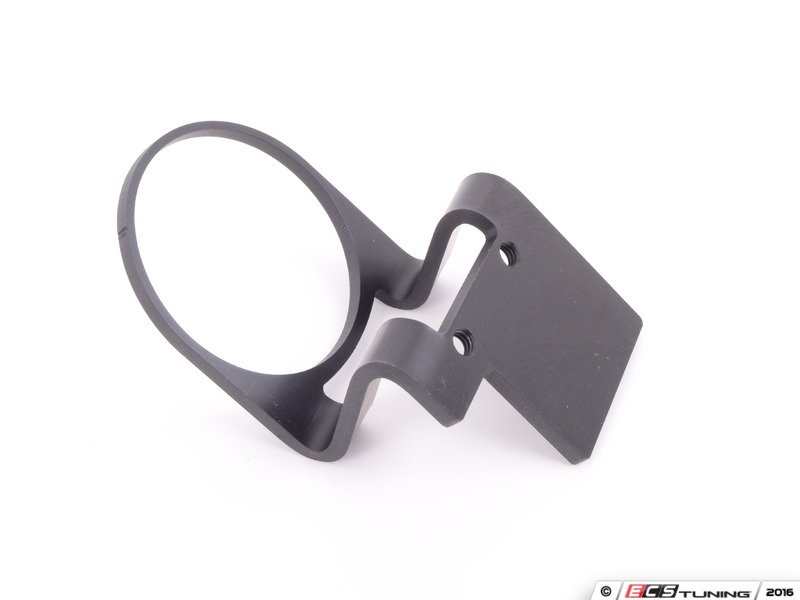

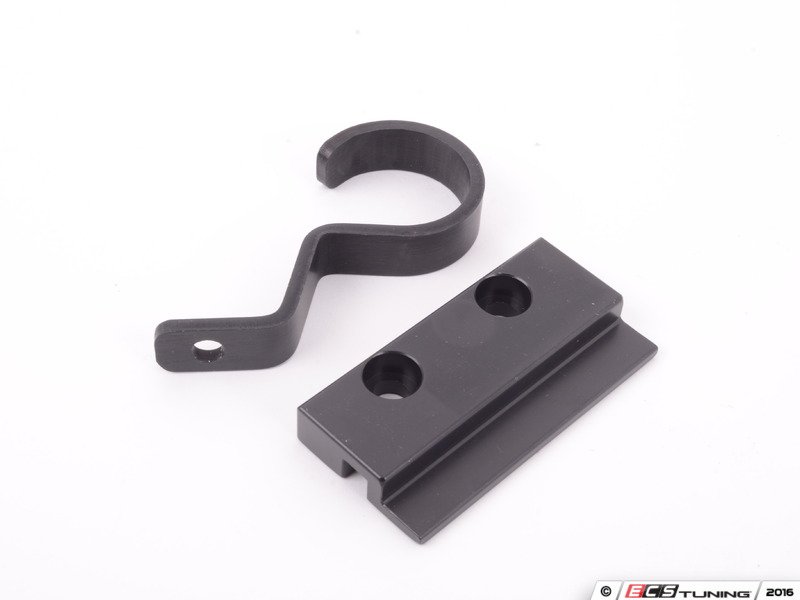

  • CNC bent, black anodized, aluminum catch can and hose brackets

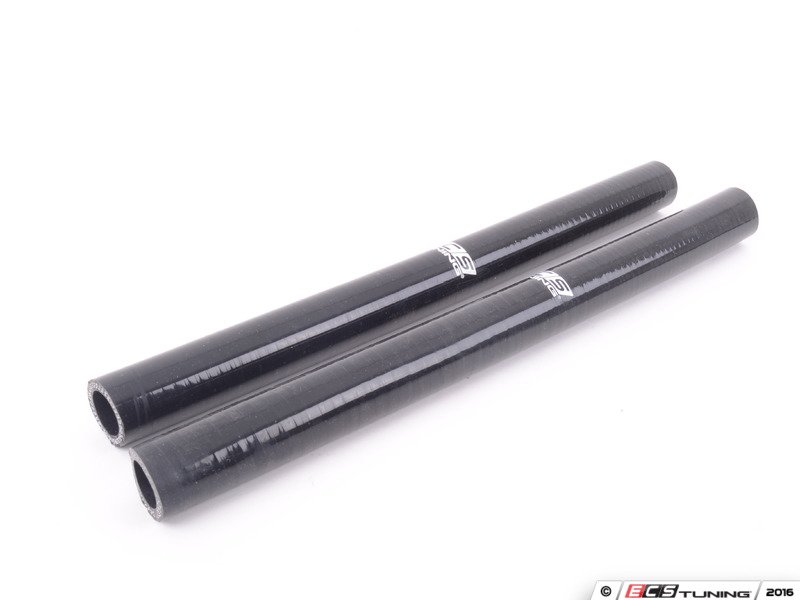

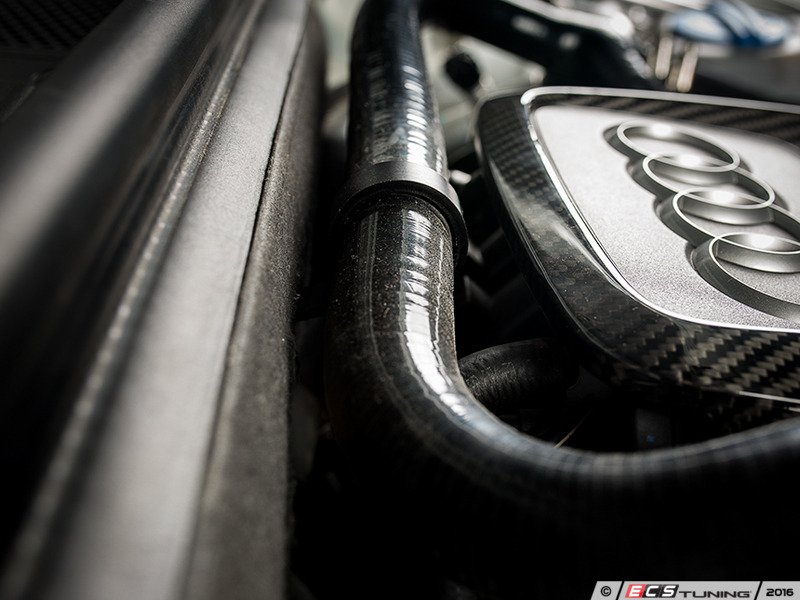

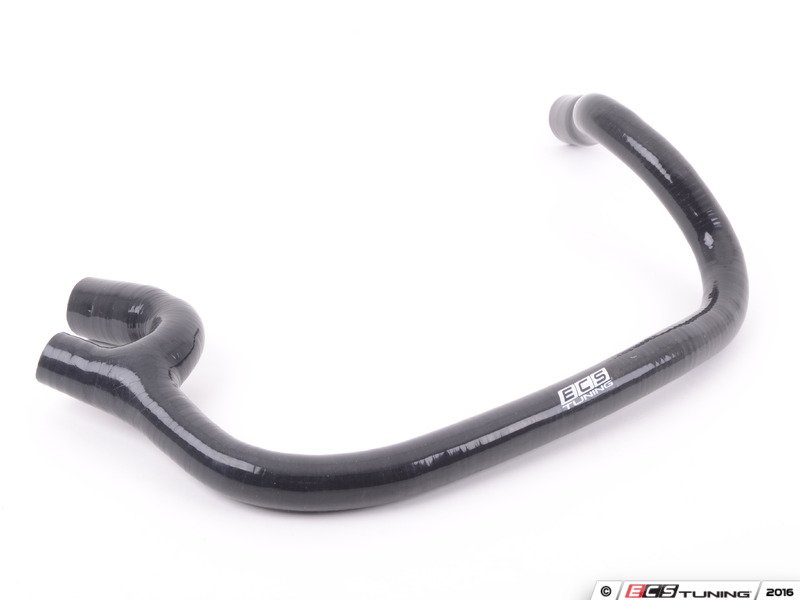

  • Custom tailored 3-ply silicone hosing

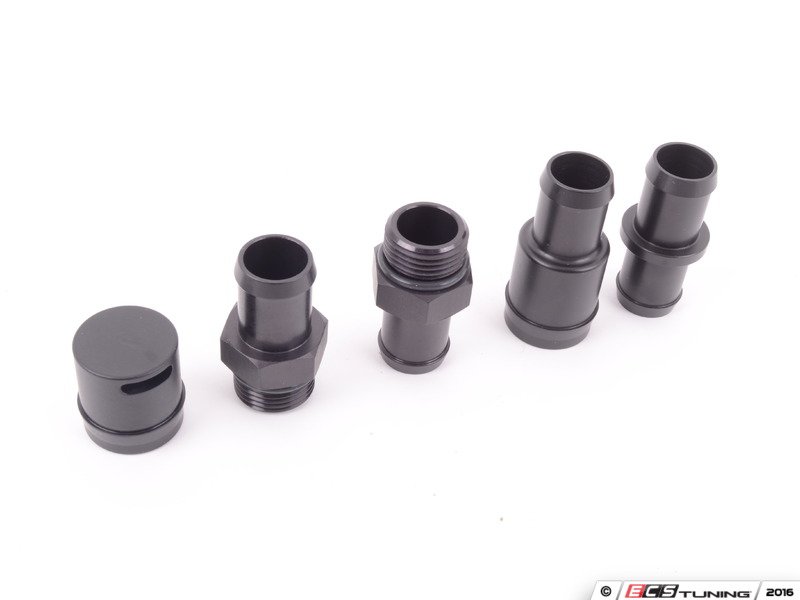

  • Billet machined 6061-T6 aluminum fittings
    • PCV end cap fittings with OEM securing clips
    • Finished in a black anodize for a clean look and corrosion resistance

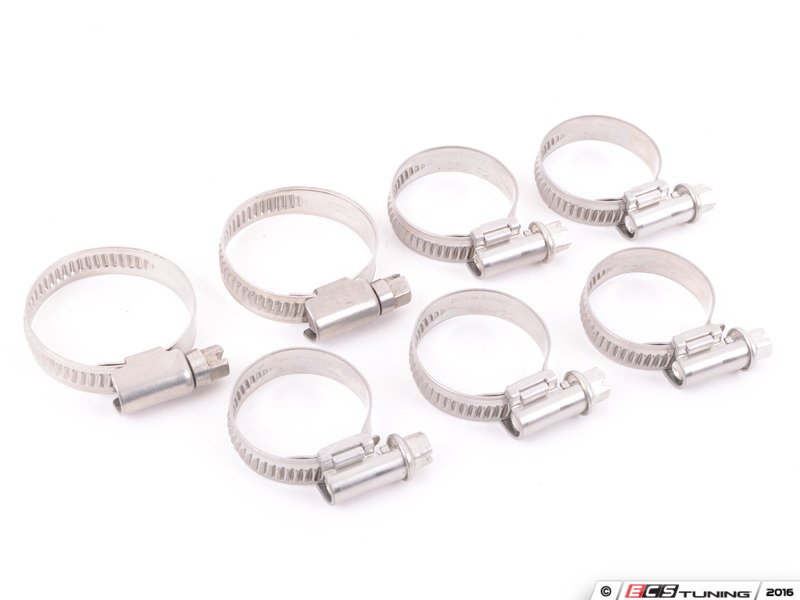

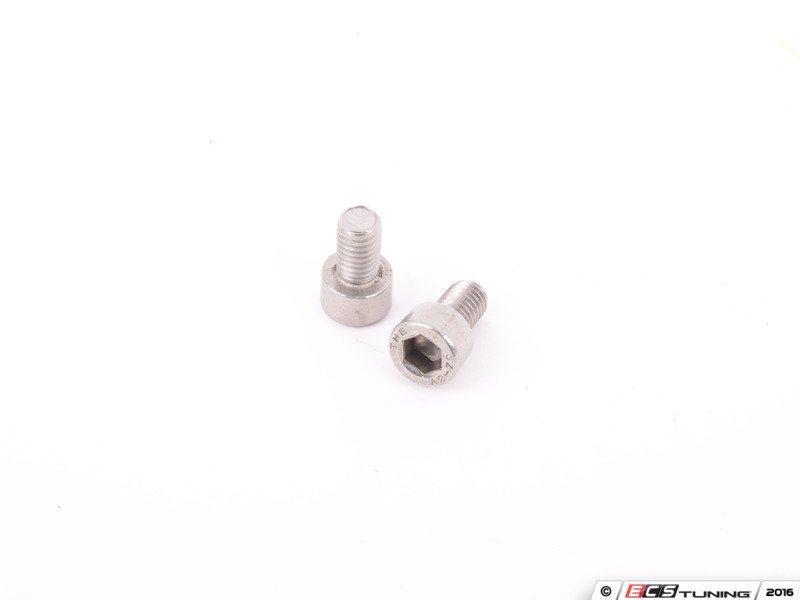

  • Stainless steel hardware and hose clamps

Engineered and manufactured in the USA, you can expect the best performance and longevity with our superior Baffled Oil Catch Can System from ECS Tuning!

This Part Fits the Following Vehicles

Make Model Submodel Engine
Audi B8 S4 Quattro 3.0T
Audi B8 S5 Quattro 3.0T Coupe
*The above product applications have been written by ECS Tuning. All warranties, product application, fitment, and performance are the responsibility of ECS Tuning. For additional information see the terms of use.

Kit Contents

Description Brand Qty
B8 3.0T Catch Can Bracket ECS - Corporate Logo 1
B8 3.0T Catch Can Fittings ECS - Corporate Logo 1
Catch Can Hose Set ECS - Corporate Logo 1
ECS Tuning Baffled Oil Catch Can - 8oz ECS - Corporate Logo 1
