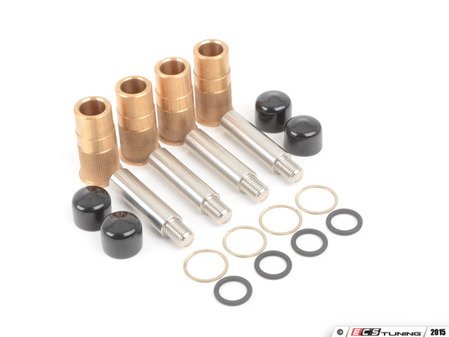

Performance Caliper Guide Bushing Set

Reduced caliper deflection, enhanced pedal feel, and improved pad wear. An excellent way to improve braking performance. Priced per axle.
Industry leading design for maximum performance with minimal maintenance!
Mfg Part #
003326ECS01
ECS Part #
ES#2723829
Brand
ECS
111.95
Free Shipping Free Shipping
In Stock
Qty
Does this fit my vehicle?

Product Details

Industry leading design for maximum performance with minimal maintenance!

Ever perform a brake service and realize that your pads are wearing unevenly? Maybe your brake pedal is starting to feel sloppy and inconsistent. You could be experiencing issues that are derived from the stock rubber caliper guide bushings. The stock rubber bushings allow for deflection - even more so when they are worn, which leads to uneven pad wear and rotor deposits when pushed to the limits. Enter ECS Tuning, with new Performance Caliper Guide Bushings.

With guide pins constructed of precision ground 304 Stainless Steel and bushings made of C544 bronze, ECS Tuning has crafted these out of materials ideally suited for long-lasting performance. C544 Bronze was selected due to its exceptional durability, wear resistance, and low friction material properties which is complimented by caliper grease lubrication.  ECS has incorporated an internal o-ring and durable rubber dust cap to further protect against the elements. This small touch single handedly extends the life of the product by reducing lubricant contamination, which will allow for longer lubricant life, and longer bushing/pin life.  To top it off, the bushing OD's are knurled to promote easier installation with a light press fit across a broad range of calipers, maximizing the improvement in braking response, pedal feel and pad wear.  Also incorporated in the design is a Spirolox® retaining ring to ensure full retention in the caliper*.  ECS Tuning's Performance Caliper Guide Bushings, a small price to pay, for a BIG brake upgrade!

* On some model BMWs / MINIs there will be a small gap between the caliper body and retaining ring.  This is normal as there are variations in calipers and does not impede the function of the bushing.

Features:

  • Precision machined C544 bronze caliper guide bushings for long life
  • Unique knurling offering a tight press fit for superior fitment in a wide range of brake calipers
  • 304 Stainless Steel Guide Pins - precision ground for tight pin-to-bushing clearance
  • Rubber dust cap and O-ring for maximum protection against lubricant contamination - Rated to 600F!!
  • Guide pins are sealed from both ends for superior performance in all weather conditions
  • Improved braking response for enhanced overall braking performance
  • Enhanced pedal feel
  • Reduces uneven pad wear
  • Lessens caliper deflection

For best results, use tool kit ES3154107 to install. See DIY PDF below for additional information.

Previous Revisions
  • 003326ecs01KT

This Part Fits the Following Vehicles

Make Model Submodel Engine
BMW E23 733i M30 3.2L
BMW E23 735i M30 3.4L
BMW E24 633CSi M30 3.2L
BMW E24 635CSi M30 3.4L
BMW E24 M6 S38 3.5L
BMW E28 524td M21 2.4L
BMW E28 528e M20 2.7L
BMW E28 533i M30 3.2L
BMW E28 535i M30 3.4L
BMW E28 535is M30 3.4L
BMW E28 M5 S38 3.5L
BMW E30 318i M10 1.8L
BMW E30 318i M42 1.8L
BMW E30 318is M42 1.8L
BMW E30 325 M20 2.7L
BMW E30 325e M20 2.7L
BMW E30 325es M20 2.7L
BMW E30 325i M20 2.5L
BMW E30 325is M20 2.5L
BMW E30 325ix M20 2.5L
BMW E30 M3 S14 2.3L
BMW E30 318i M10 1.8L
BMW E30 318i M42 1.8L
BMW E30 318is M42 1.8L
BMW E30 325 M20 2.7L
BMW E30 325e M20 2.7L
BMW E30 325es M20 2.7L
BMW E30 325i M20 2.5L
BMW E30 325is M20 2.5L
BMW E30 325ix M20 2.5L
BMW E30 M3 S14 2.3L
BMW E31 840Ci M60 4.0L
BMW E31 840Ci M62 4.4L
BMW E31 850Ci M70 5.0L
BMW E31 850Ci M73 5.4L
BMW E31 850CSi S70 5.6L
BMW E32 730i M60 3.0L
BMW E32 735i M30 3.4L
BMW E32 735iL M30 3.4L
BMW E32 740i M60 4.0L
BMW E32 740iL M60 4.0L
BMW E32 750i M70 5.0L
BMW E32 750iL M70 5.0L
BMW E34 525i M20 2.5L
BMW E34 525i M50 2.5L
BMW E34 530i M60 3.0L
BMW E34 535i M30 3.4L
BMW E34 540i M60 4.0L
BMW E34 M5 S38 3.5L
BMW E36 318i M42 1.8L
BMW E36 318i M44 1.9L
BMW E36 318ic M42 1.8L
BMW E36 318ic M44 1.9L
BMW E36 318is M42 1.8L
BMW E36 318is M44 1.9L
BMW E36 318ti M42 1.8L
BMW E36 318ti M44 1.9L
BMW E36 320i M50 2.0L
BMW E36 323i M52 2.5L
BMW E36 323ic M52 2.5L
BMW E36 323is M52 2.5L
BMW E36 325i M50 2.5L
BMW E36 325ic M50 2.5L
BMW E36 325is M50 2.5L
BMW E36 328i M52 2.8L
BMW E36 328ic M52 2.8L
BMW E36 328is M52 2.8L
BMW E36 M3 S50 3.0L
BMW E36 M3 S52 3.2L
BMW E38 740i M60 4.0L
BMW E38 740i M62 4.4L
BMW E38 740iL M60 4.0L
BMW E38 740iL M62 4.4L
BMW E38 750i M73 5.4L
BMW E38 750iL M73 5.4L
BMW E39 525i M54 2.5L
BMW E39 528i M52 2.8L
BMW E39 530i M54 3.0L
BMW E39 540i M62 4.4L
BMW E39 M5 S62 5.0L
BMW E46 323Ci M52 2.5L
BMW E46 323i M52 2.5L
BMW E46 325Ci M54 2.5L
BMW E46 325i M54 2.5L
BMW E46 325xi M54 2.5L
BMW E46 328Ci M52 2.8L
BMW E46 328i M52 2.8L
BMW E46 330Ci M54 3.0L
BMW E46 330i M54 3.0L
BMW E46 330xi M54 3.0L
BMW E46 M3 S54 3.2L
BMW E52 Z8 S62 5.0L
BMW E52 Z8 Alpina M62 4.8L
BMW E53 X5 M54 3.0L
BMW E53 X5 M62 4.4L
BMW E53 X5 M62 4.6L
BMW E53 X5 N62 4.4L
BMW E53 X5 N62 4.8L
BMW E53 X5 M54 3.0L
BMW E53 X5 M62 4.4L
BMW E53 X5 N62 4.4L
BMW E60 525i M54 2.5L
BMW E60 525i N52 3.0L
BMW E60 525xi N52 3.0L
BMW E60 528i N52 3.0L
BMW E60 528xi N52 3.0L
BMW E60 530i M54 3.0L
BMW E60 530i N52 3.0L
BMW E60 530xi N52 3.0L
BMW E60 535i N54 3.0L
BMW E60 535i N55 3.0L
BMW E60 535xi N54 3.0L
BMW E60 545i N62 4.4L
BMW E60 550i N62 4.8L
BMW E60 M5 S85 5.0L
BMW E61 525i M54 2.5L
BMW E61 530xi N52 3.0L
BMW E61 535xi N54 3.0L
BMW E63 645Ci N62 4.4L
BMW E63 650i N62 4.8L
BMW E63 M6 S85 5.0L
BMW E64 645Ci N62 4.4L
BMW E64 650i N62 4.8L
BMW E64 M6 S85 5.0L
BMW E65 745i N62 4.4L
BMW E65 750i N62 4.8L
BMW E65 760i N73 6.0L
BMW E65 760Li N73 6.0L
BMW E65 B7 Alpina N62 4.4L
BMW E66 745Li N62 4.4L
BMW E66 750Li N62 4.8L
BMW E66 760Li N73 6.0L
BMW E70 X5 M57 3.0L
BMW E70 X5 N52 3.0L
BMW E70 X5 N55 3.0L
BMW E70 X5 N62 4.8L
BMW E70 X5 S63 4.4L
BMW E70 X5 M S63 4.4L
BMW E70 X5 xDrive30i N52 3.0L
BMW E70 X5 xDrive35d M57 3.0L
BMW E70 X5 xDrive35i N55 3.0L
BMW E70 X5 xDrive48i N62 4.8L
BMW E70 X5 xDrive50i N63 4.4L
BMW E71 X6 S63 4.4L
BMW E71 X6 35iX N54 3.0L
BMW E71 X6 50iX N63 4.4L
BMW E71 X6 50iX S63 4.4L
BMW E71 X6 ActiveHybrid N63 4.4L
BMW E71 X6 M S63 4.4L
BMW E71 X6 xDrive35i N54 3.0L
BMW E71 X6 xDrive35i N55 3.0L
BMW E71 X6 xDrive50i N63 4.4L
BMW E82 1 M Coupe N54 3.0L
BMW E82 128i N52 3.0L
BMW E82 135i N54 3.0L
BMW E82 135i N55 3.0L
BMW E82 128i N52 3.0L
BMW E83 X3 M54 2.5L
BMW E83 X3 M54 3.0L
BMW E83 X3 N52 3.0L
BMW E84 X1 sDrive28i N20 2.0L
BMW E84 X1 xDrive28i N20 2.0L
BMW E84 X1 xDrive35i N55 3.0L
BMW E88 128i N52 3.0L
BMW E90 325i N52 3.0L
BMW E90 325xi N52 3.0L
BMW E90 328i N52 3.0L
BMW E90 328xi N52 3.0L
BMW E90 330i N52 3.0L
BMW E90 330xi N52 3.0L
BMW E90 335d M57 3.0L
BMW E90 335i N54 3.0L
BMW E90 335i N55 3.0L
BMW E90 335xi N54 3.0L
BMW E90 335xi N55 3.0L
BMW E90 M3 S65 4.0L
BMW E90 325i N52 3.0L
BMW E90 325xi N52 3.0L
BMW E90 328i N52 3.0L
BMW E90 328xi N52 3.0L
BMW E90 330i N52 3.0L
BMW E90 330xi N52 3.0L
BMW E90 335d M57 3.0L
BMW E90 335i N54 3.0L
BMW E90 335i N55 3.0L
BMW E90 335xi N54 3.0L
BMW E90 335xi N55 3.0L
BMW E90 M3 S65 4.0L
BMW E91 325i N52 3.0L
BMW E91 325xi N52 3.0L
BMW E91 328i N52 3.0L
BMW E91 328xi N52 3.0L
BMW E92 328i N52 3.0L
BMW E92 328xi N52 3.0L
BMW E92 335i N54 3.0L
BMW E92 335i N55 3.0L
BMW E92 335is N54 3.0L
BMW E92 335xi N54 3.0L
BMW E92 335xi N55 3.0L
BMW E92 M3 S65 4.0L
BMW E92 328i N52 3.0L
BMW E92 328xi N52 3.0L
BMW E92 335i N54 3.0L
BMW E92 335i N55 3.0L
BMW E92 335is N54 3.0L
BMW E92 335xi N54 3.0L
BMW E92 335xi N55 3.0L
BMW E92 M3 S65 4.0L
BMW E93 328i N52 3.0L
BMW E93 335i N54 3.0L
BMW E93 335i N55 3.0L
BMW E93 335is N54 3.0L
BMW E93 M3 S65 4.0L
BMW E93 328Ci All
BMW E93 328i N52 3.0L
BMW E93 335i N54 3.0L
BMW E93 335i N55 3.0L
BMW E93 335is N54 3.0L
BMW E93 M3 S65 4.0L
BMW F01 740i N54 3.0L
BMW F01 750i N63 4.4L
BMW F01 750i xDrive N63 4.4L
BMW F01 Alpina B7 N63 4.4L
BMW F02 740Ld xDrive N57 3.0L
BMW F02 740Li N54 3.0L
BMW F02 740Li xDrive N55 3.0L
BMW F02 750Li N63 4.4L
BMW F02 750Li xDrive N63 4.4L
BMW F02 760Li N74 6.0L
BMW F02 ActiveHybrid 7 N55 3.0L
BMW F06 640i N55 3.0L
BMW F06 640i xDrive N55 3.0L
BMW F07 535i N55 3.0L
BMW F07 535i xDrive N55 3.0L
BMW F07 550i N63 4.4L
BMW F07 550i xDrive N63 4.4L
BMW F10 528i N20 2.0L
BMW F10 528i N52 3.0L
BMW F10 528i xDrive N20 2.0L
BMW F10 535d N57 3.0L
BMW F10 535d xDrive N57 3.0L
BMW F10 535i N55 3.0L
BMW F10 535i xDrive N55 3.0L
BMW F10 ActiveHybrid 5 N55 3.0L
BMW F12 640i N55 3.0L
BMW F12 640i xDrive N55 3.0L
BMW F13 640i N55 3.0L
BMW F13 640i xDrive N55 3.0L
BMW F15 X5 sDrive35i N55 3.0L
BMW F15 X5 xDrive35d N57 3.0L
BMW F15 X5 xDrive35i N55 3.0L
BMW F15 X5 xDrive50i N63 4.4L
BMW F16 X6 sDrive35i N55 3.0L
BMW F16 X6 xDrive35i N55 3.0L
BMW F16 X6 xDrive50i N63 4.4L
BMW I01 i3 IB3
BMW Z3 1.9 M44 1.9L
BMW Z3 2.3 M52 2.5L
BMW Z3 2.5 M52 2.5L
BMW Z3 2.5i M54 2.5L
BMW Z3 2.8 M52 2.8L
BMW Z3 3.0i M54 3.0L
BMW Z3 M Coupe S52 3.2L
BMW Z3 M Coupe S54 3.2L
BMW Z3 M Roadster S52 3.2L
BMW Z3 M Roadster S54 3.2L
BMW Z4 2.5i M54 2.5L
BMW Z4 3.0i M54 3.0L
BMW Z4 3.0i N52 3.0L
BMW Z4 3.0Si N52 3.0L
BMW Z4 M Coupe S54 3.2L
BMW Z4 M Roadster S54 3.2L
BMW Z4 sDrive28i N20 2.0L
BMW Z4 sDrive30i N52 3.0L
BMW Z4 sDrive35i N54 3.0L
BMW Z4 sDrive35is N54 3.0L
MINI All All All
