Ultimate Performance Rear Shock Mount Kit

Polyurethane-isolated monoball design offers street comfort with race performance while eliminating blowouts!! Includes ECS heavy duty E46 convertible-specific reinforcement plates.
Mfg Part #
002542ECS01KT1
ECS Part #
ES#2765978
Brand
ECS
209.95
Free Shipping Free Shipping
In Stock
Qty
Does this fit my vehicle?

Product Details

BMW has long suffered issues with rear shock mount blowout on M3 and non-M 3 Series models dating back to 1984 with the E30 chassis. Little changed over the following two decades, and E36, E46, and Z3/Z4 models are also prone to this style of failure. After striking a pothole or another seemingly innocuous obstacle, a clunking from the rear emerges and handling becomes sloppy. Your shocks have blown through their mounts.

Enter the Ultimate Performance Rear Shock Mount Kit from ECS Tuning. Not only does our industry-first design alleviate the blowout problem once and for all, but allows rear dampers to fully articulate, for the best possible damper performance and longevity. We accomplish this with no noticeable increase in noise, vibration, or harshness (NVH) thanks to our unique rebuildable polyurethane isolation. The poly bushings not only keep NVH to a minimum, but they also reduce impact loading on the bearing, improving bearing life over full solid mounted monoball designs.  To further improve bearing life and longevity, our design incorporates a lower dust seal to keep road debris, grit and other contaminates out of the bearing.  Combined with our Heavy Duty Shock Mount Reinforcement Plates designed exclusively for the E46 convertible, these are the best rear shock mounts available, and the last you will ever need.

Features:

  • Maintenance free, PTFE lined, stainless steel monoball spherical bearing for full shaft articulation
  • Lower dust seal for improved bearing life
  • 80A polyurethane isolation bushings for NVH control and improved bearing life
  • Accommodates 10mm, 12mm, or 14mm damper shafts*
  • Fully constrained shaft mount makes blowouts impossible
  • Hard anodized 6061-T6 construction
  • Class 10 black zinc plated studs
  • New OEM lock nuts included
  • Fully rebuildable design
  • Included Reinforcement Plates are CNC machined from 4mm thick steel and black zinc plated for beautiful finish and excellent corrosion resistance.

*For use with factory-style 10mm damper shafts. If you have factory-style mounts presently, you have 10mm damper shafts. Upgraded your suspension and now need spacers for a different size shaft? Also available for use with less-common 12mm (ES2770131) and 14mm (ES2770132) shafts, which can be found on certain high performance dampers.

*During installation a 17ft-lb torque spec is required to avoid damage to the mounts.

This Part Fits the Following Vehicles

Make Model Submodel Engine
BMW E46 323Ci M52 2.5L
BMW E46 325Ci M54 2.5L
BMW E46 330Ci M54 3.0L
BMW E46 M3 S54 3.2L
BMW Z4 2.5i M54 2.5L
BMW Z4 3.0i M54 3.0L
BMW Z4 3.0i N52 3.0L
BMW Z4 3.0Si N52 3.0L
BMW Z4 M Roadster S54 3.2L
*The above product applications have been written by ECS Tuning. All warranties, product application, fitment, and performance are the responsibility of ECS Tuning. For additional information see the terms of use.

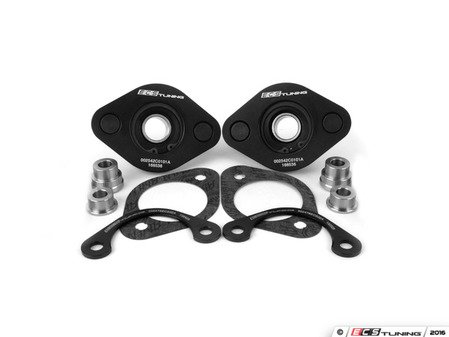

Kit Contents

Description Brand Qty
Rear Reinforcement Plate ECS - Corporate Logo 2
Shock Mount Gasket - Priced Each Elring - Corporate Logo 2
Ultimate Performance Rear Shock Mount Kit ECS - Corporate Logo 1
