Wheel Spacer/Hub Adapter & Bolt Kit - 15mm

Expand your wheel options by dialing in fitment of 72.6mm centerbore wheels on your 74.1mm hub
Includes extended wheel bolt set
Mfg Part #
003990ECS03KT
ECS Part #
ES#2876914
Brand
ECS
117.95
Free Shipping Free Shipping
In Stock
Qty
Does this fit my vehicle?

Product Details

Includes extended wheel bolt set

While most BMWs utilize wheels with a smaller 72.6mm centerbore and higher offset (ET35-ET50), only a few (such as the E70/71) use a larger 74.1mm centerbore and a lower offset (ET20-ET26). As a result, wheel options for 74.1CB hubs can prove to be somewhat limited.  Our 74.1 to 72.6 wheel adapters allow you to safely install OEM or aftermarket 72.6 CB wheels on your 74.1 CB BMW, vastly expanding your wheel options. For these cars, conventional 72.6mm wheel spacers aren't a viable option. Enter ECS Tuning.

ECS Tuning engineers have designed conventional and bolt-on style hub centric center-bore adapter wheel spacers in offset adjustments ranging from 13mm to 30mm. Constructed of 6061-T6 aircraft grade aluminum, ECS spacers are designed in-house and precision CNC machined to exacting standards.  We have carefully evaluated the tolerances of the OEM hub flange and wheel bore dimensions to achieve precise fitment with minimal clearance between wheel and hub mating surfaces, ensuring stock like vibration free operation.

Our larger thickness options (25mm and 30mm) are bolt-on designs constructed with press in nut inserts constructed of high strength carbon steel to meet ISO class 10 hardware specification. ECS also includes low profile ISO 898 class 10.9 wheel bolts to bolt the adapters to the hub.  Our adapters have been subjected to FEA simulation analysis to ensure worry free operation when pushed to the limit.

If you’re looking for increased wheel options while getting fitment dialed in, ECS Tuning has the ideal solution for you.

Not sure what size you need? Watch our informative video on measuring for spacers. Our sales department can assist you to a point however the measurements need to be made on the vehicle at ride height to be sure of fitments.

This Part Fits the Following Vehicles

Make Model Submodel Engine
BMW E70 X5 M57 3.0L
BMW E70 X5 N52 3.0L
BMW E70 X5 N55 3.0L
BMW E70 X5 N62 4.8L
BMW E70 X5 S63 4.4L
BMW E70 X5 M S63 4.4L
BMW E70 X5 xDrive30i N52 3.0L
BMW E70 X5 xDrive35d M57 3.0L
BMW E70 X5 xDrive35i N55 3.0L
BMW E70 X5 xDrive48i N62 4.8L
BMW E70 X5 xDrive50i N63 4.4L
BMW E71 X6 S63 4.4L
BMW E71 X6 35iX N54 3.0L
BMW E71 X6 50iX N63 4.4L
BMW E71 X6 50iX S63 4.4L
BMW E71 X6 ActiveHybrid N63 4.4L
BMW E71 X6 M S63 4.4L
BMW E71 X6 xDrive35i N54 3.0L
BMW E71 X6 xDrive35i N55 3.0L
BMW E71 X6 xDrive50i N63 4.4L
BMW F15 X5 sDrive35i N55 3.0L
BMW F15 X5 xDrive35d N57 3.0L
BMW F15 X5 xDrive35i N55 3.0L
BMW F15 X5 xDrive50i N63 4.4L
BMW F16 X6 sDrive35i N55 3.0L
BMW F16 X6 xDrive35i N55 3.0L
BMW F16 X6 xDrive50i N63 4.4L
*The above product applications have been written by ECS Tuning. All warranties, product application, fitment, and performance are the responsibility of ECS Tuning. For additional information see the terms of use.

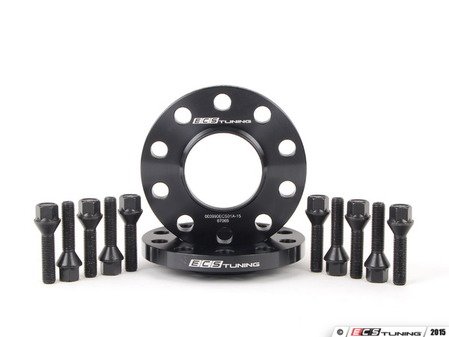

Kit Contents

Description Brand Qty
Conical Seat Wheel Bolt - 14x1.25x43mm - Priced Each ECS - Corporate Logo 10
15MM 74.1 TO 72.5 HUB ADAPTER ECS - Corporate Logo 2
