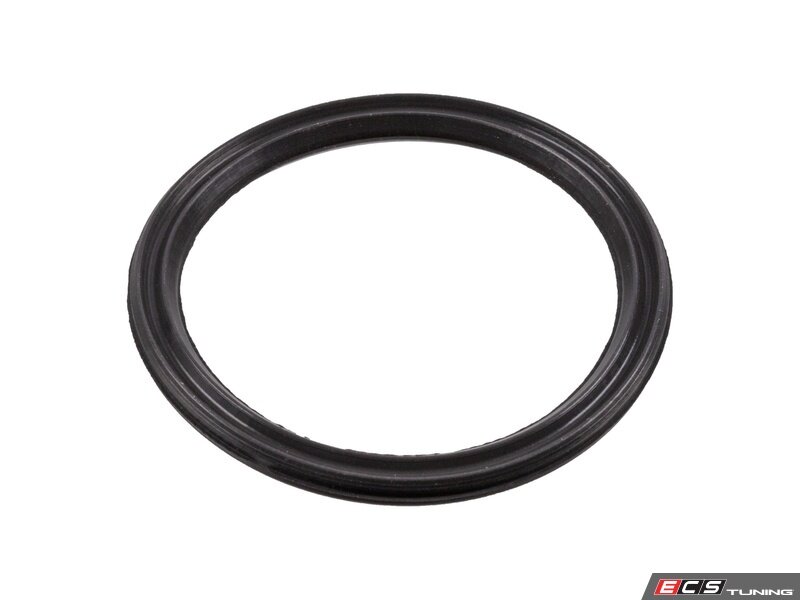

Oil Level Sensor O-Ring
- Mfg Part #
- 038103196B
- ECS Part #
- ES#5492942
- Brand
-
Product Details
On almost all modern Volkswagen and Audi engines, the electronic oil level and temperature sensor (often referred to as the TOG sensor) is bolted squarely to the very bottom of the engine's oil pan. Because of its location, it sits submerged in hot engine oil 100% of the time. The only component preventing that oil from escaping onto the ground is this single, specially molded rubber sealing ring.
Over years of severe heat cycling and constant chemical exposure to synthetic engine oil, the factory rubber seal slowly flattens out, shrinks, and becomes brittle. The most obvious symptom of this failure is a slow, messy oil leak originating from the bottom center of the oil pan, which eventually coats the vehicle's plastic underbody belly pan in sludge. Additionally, if you are removing the oil level sensor for any reason—whether replacing a failed sensor, dropping the oil pan for a timing chain job, or upgrading to a baffled pan—you can never reuse the old, flattened seal without guaranteeing a massive leak.
Replacing the hardened factory gasket with this premium FPM (fluoride rubber) sealing ring from Febi Bilstein provides a fresh, highly durable seal, keeping your oil capacity secure and your driveway clean.
Features:
Precision-molded from high-grade FPM (fluoride rubber) to aggressively withstand constant submersion in extremely hot engine oil
Essential new-hardware component anytime the oil level sensor is unbolted from the oil pan
Cures slow, persistent oil weeping from the bottom of the engine block
Engineered to match the exact compression and thickness requirements for both cast aluminum and composite plastic VAG oil pans
- 184584
This Part Fits the Following Vehicles
| Make | Model | Submodel | Engine | Special Fitment Notes |
|---|---|---|---|---|
| Audi | 8Y RS 3 | Quattro | 2.5T | Use vehicle selector to confirm fitment |
| Audi | A3 8P | FWD | TDI | Use vehicle selector to confirm fitment |
| Audi | A7 | C7 | 3.0 TDI | Use vehicle selector to confirm fitment |
| Audi | A7 | C7 | 3.0T | Use vehicle selector to confirm fitment |
| Audi | B8 A4 | FWD | 2.0T | Use vehicle selector to confirm fitment |
| Audi | B8 A4 | Quattro | 2.0T | Use vehicle selector to confirm fitment |
| Audi | B8 A5 | Quattro | 2.0T | Use vehicle selector to confirm fitment |
| Audi | B8 S4 | Quattro | 3.0T | Use vehicle selector to confirm fitment |
| Audi | Q5 | Quattro | 2.0T | Use vehicle selector to confirm fitment |
| Audi | Q5 | Quattro | 3.0 TDI | Use vehicle selector to confirm fitment |
| Audi | Q5 | Quattro | 3.0T | Use vehicle selector to confirm fitment |
| Audi | Q5 | Quattro | 3.2L | Use vehicle selector to confirm fitment |
| Audi | Q7 | All | 3.0T | Use vehicle selector to confirm fitment |
| Audi | Q7 | All | V6 | Use vehicle selector to confirm fitment |
| Audi | TT MKII | FWD | 2.0T | Use vehicle selector to confirm fitment |
| Audi | TT MKII | Quattro | 2.0T | Use vehicle selector to confirm fitment |
| Volkswagen | Jetta VI | Sedan Facelift | 1.4T | Use vehicle selector to confirm fitment |
