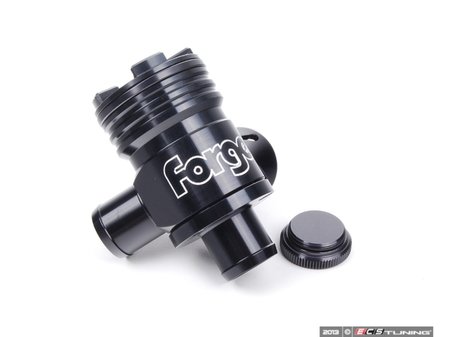

Splitter Valve - Black

Recirculation & blow off valve all in one for customers that want both styles
Mfg Part #
FMDVSPLTR
ECS Part #
ES#8288
Brand
Forge
199.00
Free Shipping Free Shipping
In Stock
Qty
Does this fit my vehicle?

Product Details

The Splitter is a truly remarkable valve that gives a combination of blow off and recirculation valve operation, all at the same time, and has been specifically designed for the many turbo engined applications that operate metered airflow management systems. This means you get all the noise of the blow off valve whilst retaining the compatibility with the recirculation requirements of the engine management system. As a bonus we also offer the ability to convert the valve to recirculation only mode for those times when stealth running is required.

This valve uses a Brass piston which utilises new sealing technology along with a variable spring preload, incorporating a ratchet type top adjuster that will allow for the positive and precise adjustment to match the valve to your engine. This is achieved by using a unique single, conical, progressive rate spring, that can allow for the retention of boost pressure over a wide adjustment range. This unique spring design also allows for unrestricted piston travel and flow volume regardless of the amount of pre-load adjustment added to the spring.

Other manufacturers' valves use cylindrical springs with adjustable pre-load, which often experience restricted piston travel and a reduction in flow volume. When we say our products are Engineered For Performance, it's not a catchy sales phrase, it's the truth. and we prove it with every product we manufacture.

Note: This valve requires installing the opposite way to the original Bosch Valve. This means that the side pipe is fitted into the Turbo Intake Hose, and the base pipe connects to the hose that runs to the boost side of the turbo.



In The Box:
1 x FMDVSPLTR Valve

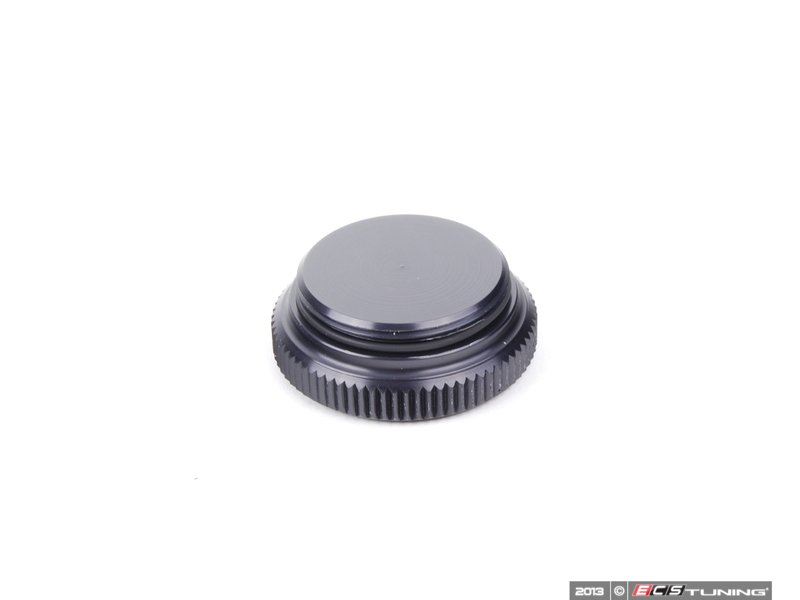

1 x Valve Blanking Cap
1 x Instruction Booklet
1 x Forge Sticker

This Part Fits the Following Vehicles

Make Model Submodel Engine
Audi B5 A4 FWD 1.8T
Audi B5 A4 Quattro 1.8T
Audi B6 A4 FWD 1.8T
Audi B6 A4 Quattro 1.8T
Volkswagen 337/20AE All 1.8T
Volkswagen Golf IV All 1.8T
Volkswagen Jetta IV All 1.8T
Volkswagen Jetta IV GLI All 1.8T
Volkswagen New Beetle All 1.8T
Volkswagen Passat B5 4 Motion 1.8T
Volkswagen Passat B5 FWD 1.8T
*The above product applications have been written by ECS Tuning. All warranties, product application, fitment, and performance are the responsibility of ECS Tuning. For additional information see the terms of use.
