JCW GP2 Belly Pan Kit

Belly pan install kit to cover the underside of your MINI. Includes attachment hardware. Fits Automatic & Manual Transmissions.
Mfg Part #
51757330566KT
ECS Part #
ES#2642513
Brand
Genuine MINI
363.72
Free Shipping Free Shipping
Availability: Inventory On Order, ETA Jan 29, 2021
Qty
Does this fit my vehicle?

Product Details

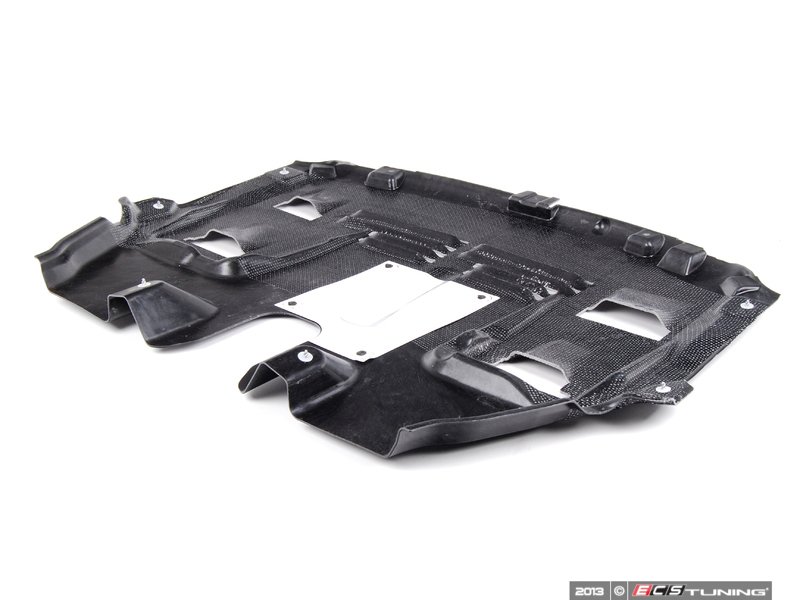

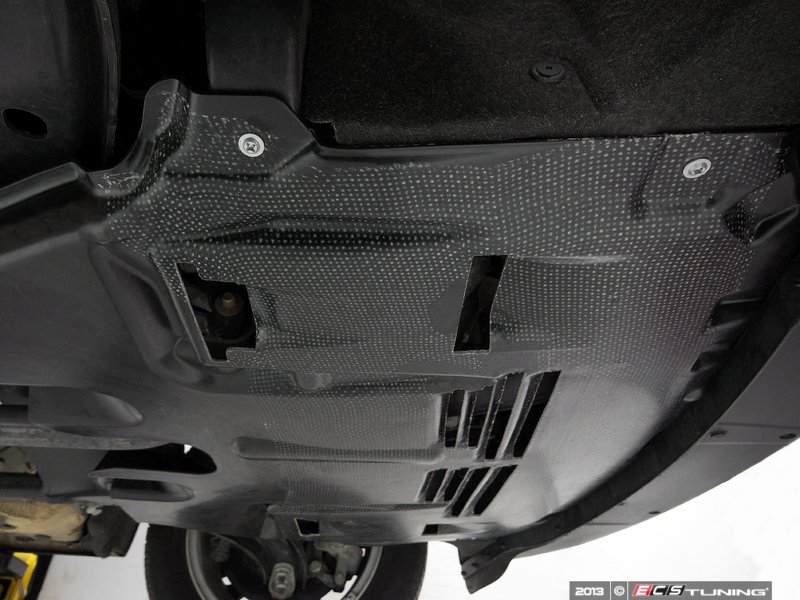

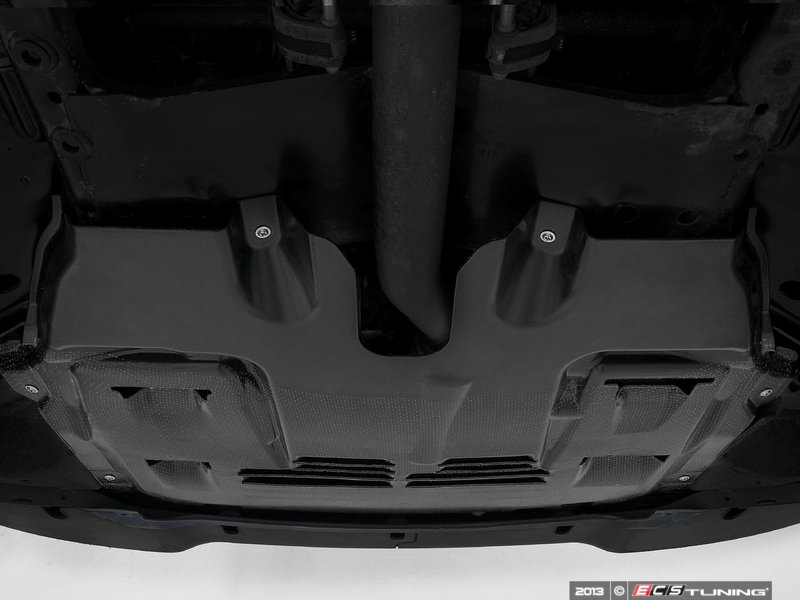

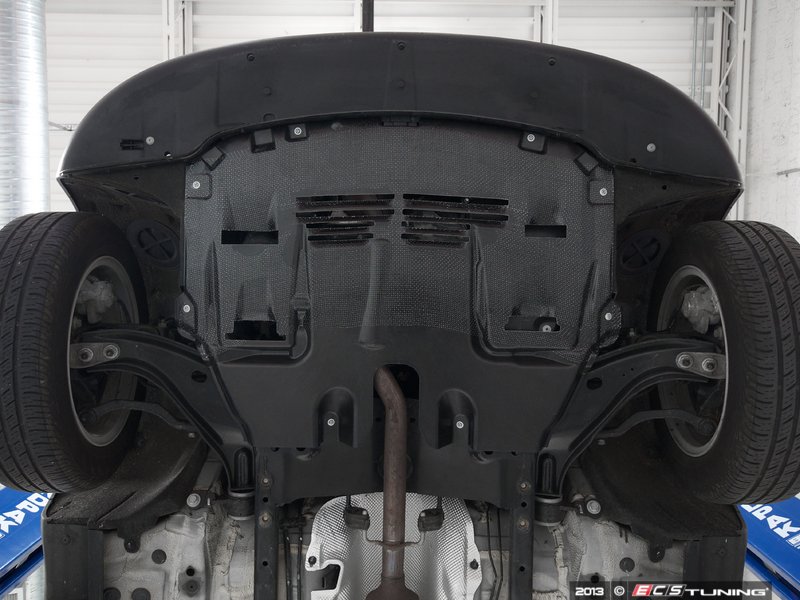

Designed for the MINI JCW GP 2 this aerodynamic belly pan, also referred to as splash guard or undertray, mounts right below the engine and lower sub-frame. This is used to funnel air for a smooth surface underneath.

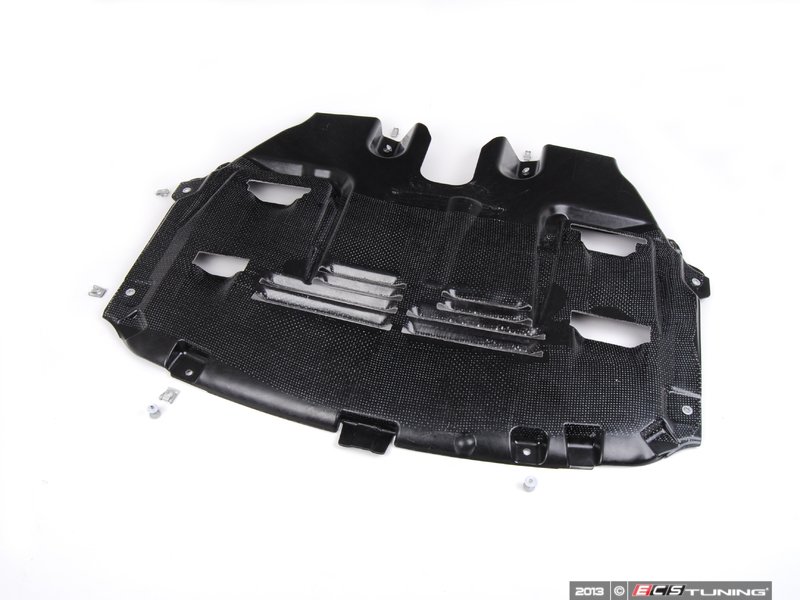

Contains pre installed speed screws & holding washers. Additional speed screws and hardware included for installation. Once installed pan can be removed with the turn of the speed screws for oil changes or service.

** Removal of small plastic side tray ( splash cover ) with speed screw is needed before installing GP 2 Belly Pan Kit. This side tray is located right near the engine oil pan.

  • Great looks and completes the flat underbody look for the front end.
  • Made of plastic with a structural fiber weave embedded into the most of the panel. Contains heat dispersion material for the exhaust.

*MINIs with Automatics Transmissions , rear driver side vent lightly touches bottom of transmission oil pan when installed. Minor trimming of the pan might be needed for rubbing.

Previous Revisions
  • R56BELLYPAN

This Part Fits the Following Vehicles

Make Model Submodel Engine Year Chasis
MINI All All All All R55
MINI All All All All R56
MINI All All All All R57
MINI All All All All R58
MINI All All All All R59
