2008CC Engine Stroker Kit - Wiseco Pistons (9.0:1CR) - (NO LONGER AVAILABLE)
- Mfg Part #
- IESKVA2
- ECS Part #
- ES#2794051
- Brand
-
Product Details

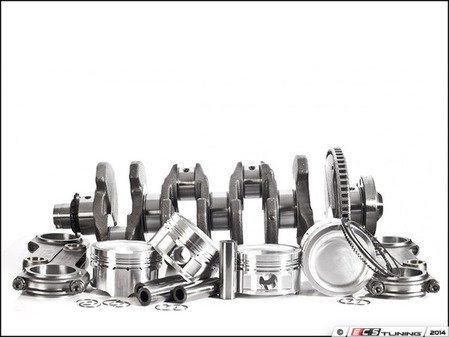

Integrated Engineering 2008CC Stroker Kits
IE's 1.8T 20V 2008cc stroker engine kits will increase your displacement from 1.8L to 2.0L by increasing the bore and stroke of your engine block. This increased displacement yields more horsepower and torque on the same boost pressure, less chance of detonation due to lower peak cylinder pressures, faster spool, and produces more power on low octane fuel. Each kit includes high-perfomance matched components tested on our own in-house engine dyno ensuring peak power and reliable performance.
Install requires boring and honing of the cylinder walls performed at a machine shop. IE billet torque plate highly recommended for exact roundness and clearance tolerances.
Included with kit
- Drop-in modified OEM FSI forged crankshaft
- Wiseco 83mm bore 9.0:1 compression ratio forged stroker pistons
- Integrated Engineering 144X20 H beam Rods
Included Performance Matched Components
Every included component for Integrated Engineering's stroker kits have been performance matched to work in harmony and strenuously tested for long term reliability and peak power.

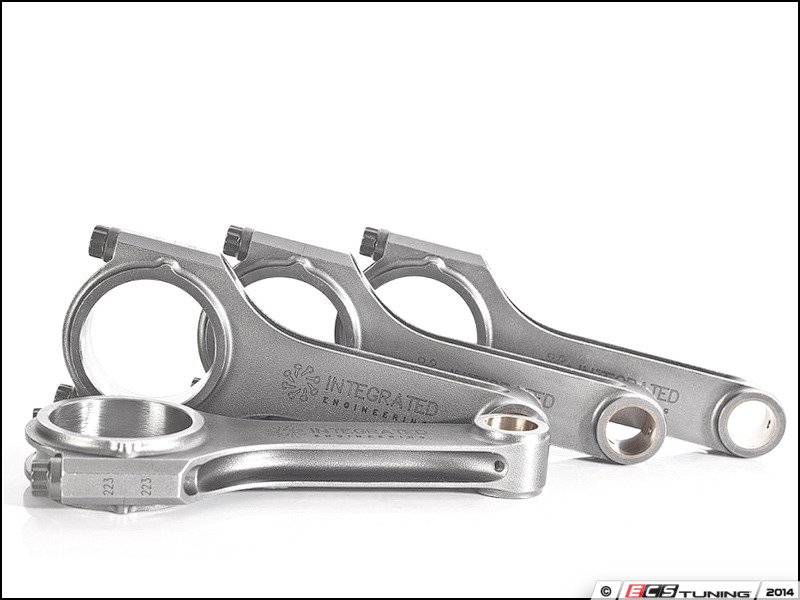

Integrated Engineering Forged H beam Connecting Rods
The H beam rod provides high reliability even in extreme applications. Extra attention has been paid to even the smallest details such as the bearing tangs, wrist pin fit, and big end side clearance, providing a level of fit and finish not found elsewhere. Each and every set is honed in the USA for perfectly round and on size big-end bores, resulting in extremely low failure rates and maximum optimization.
Connecting Rod Features:
- 2 Piece Forgings from 4340 Chrome Moly Steel
- Multi Stage Heat Treat for maximum strength
- High dimensional stability, and fatigue life.
- Multi stage inspected tolerances as tight as .0003
- Standard ARP2000 Rod Bolts
- Magnaflux Inspected
- Dimensionally Inspected
- Combination tested to over 700HP+

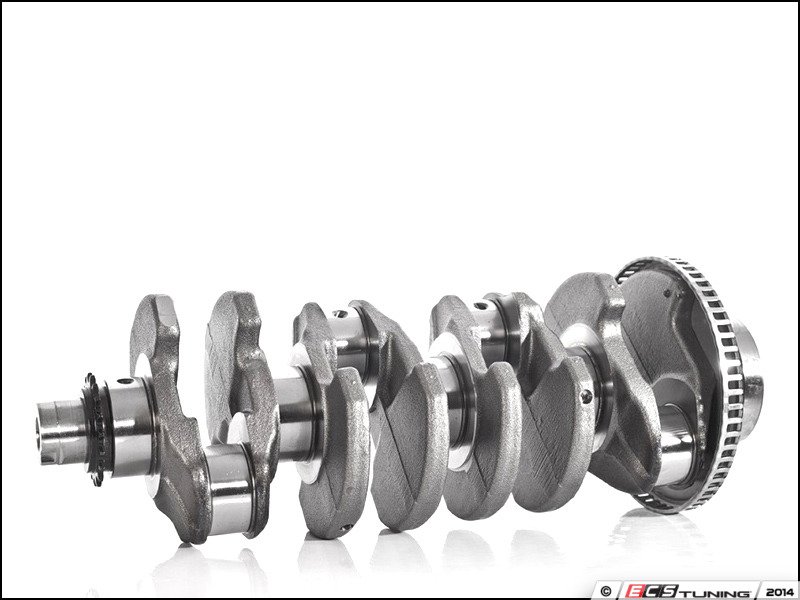

2.0L Stroker Forged Crankshaft
Our stroker cranks begin with brand new VW/Audi factory forged 2.0T FSI crankshafts, then modified with a specialty oil pump drive gear. The forged crank is matched with Wiseco stroker pistons for increased displacement and stroke increasing over all power and torque, reducing turbo lag, and strengthening the over all rotating assembly.
Crankshaft features:
- Factory new OEM 2.0T FSI crankshaft
- Modified with appropriate 1.8T oil pump drive gear
- Drop-in for 06A 1.8T blocks, no block modifications needed
- Forged crankshaft for increased strength over cast 1.8T crank

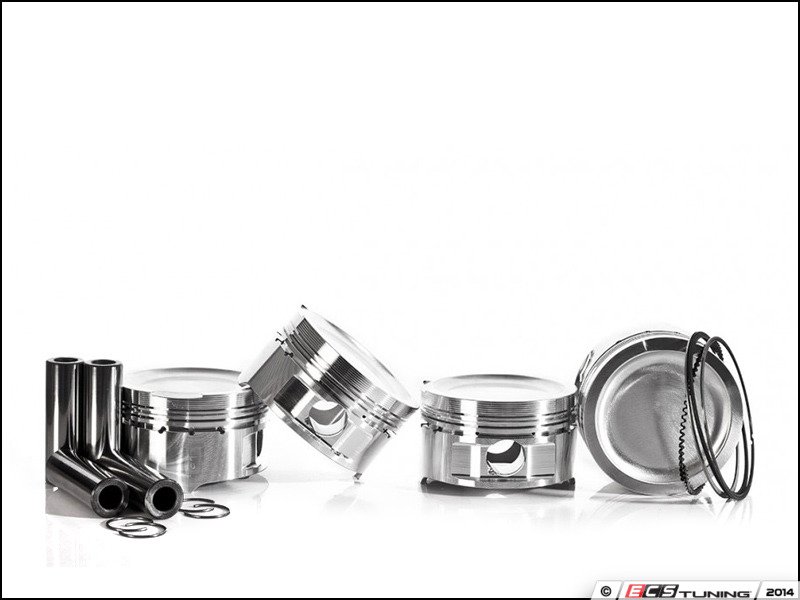

Wiseco Forged Stroker Pistons
The included set of 1.8T 20V turbo Wiseco stroker pistons are produced in USA from dedicated forgings. Wiseco forgings provide a very light weight piston that retains high strength attributes. This optimal design features specially designed valve pockets, complex dome and crown shapes, steel nitride/napier rings and optimized skirt profiles.
Wiseco Piston Features:
- Included Wiseco wire locks and wrist pins
- Included steel nitride/napier piston rings
- No dish deburring or preperation needed
- Individually prepared and inspected
- Manufactured in the USA
