FDS Performance Intercooler
- Mfg Part #
- IETPCB1
- ECS Part #
- ES#2793937
- Brand
-
This product was last offered at the strikethrough price on
06-25-2026
Free Shipping
Product Details

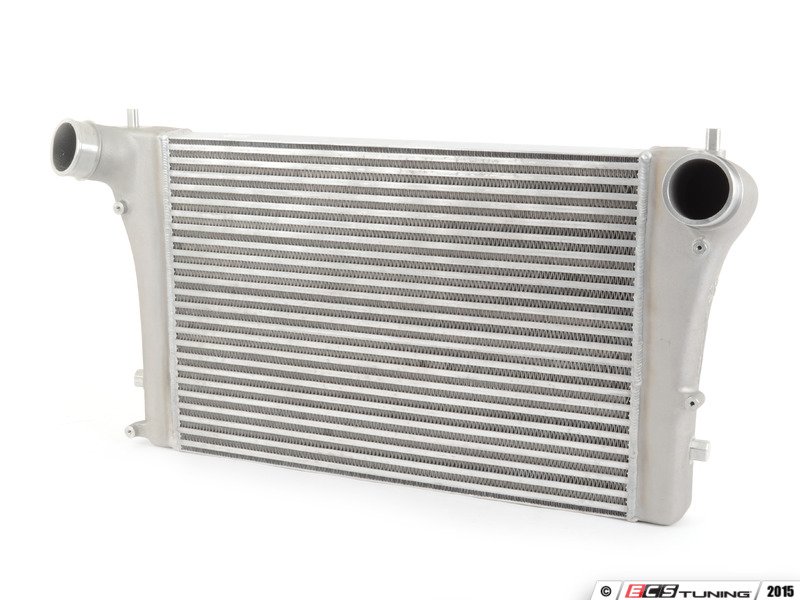

The Integrated Engineering MK5/MK6 FDS intercooler system was built from the ground up to offer the ultimate in performance for your vehicle. When increasing the power output of your engine it is extremely important to ensure it has the proper cooling to match. It packs a very large intercooler core into the space available, a full 54% larger than the OEM core. This large core delivers cool air to the engine under all circumstances, increasing power and torque and simultaneously reducing heat soak.
IE FDS system

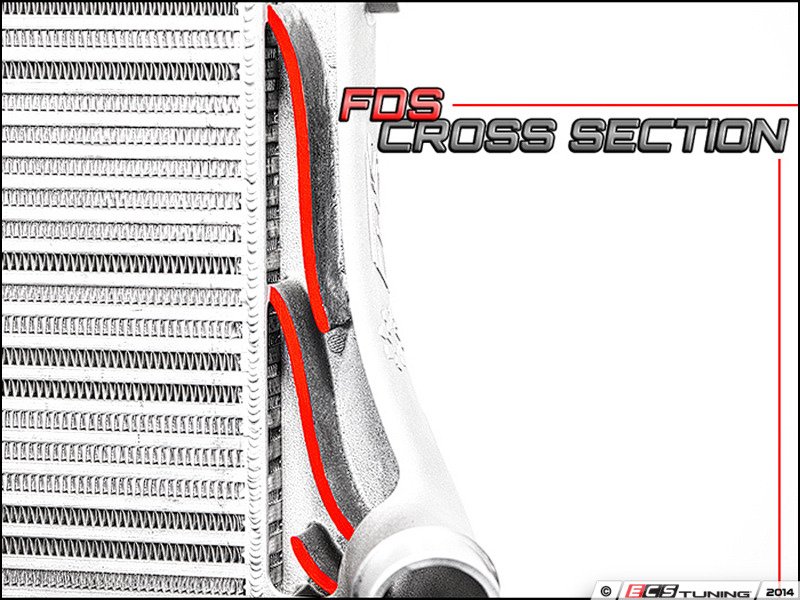

Our end tanks feature the FDS (flow distribution system), which is totally unique to our intercooler. By incorporating flow distribution channels into the inlet side end tank, air is evenly distributed from the top to bottom of the core, maximizing cooling efficiency. Other intercoolers on the market only allow natural airflow through the core, which is primarily on the bottom side near the inlet, making for poorly distributed cooling. In lab tests, temperatures across the IE FDS core were 65% more even than the nearest competitor. This proves more effective use of the core, resisting heat soak more so than any competitor and consistently delivering a cool charge.
REDUCING HEAT SOAK

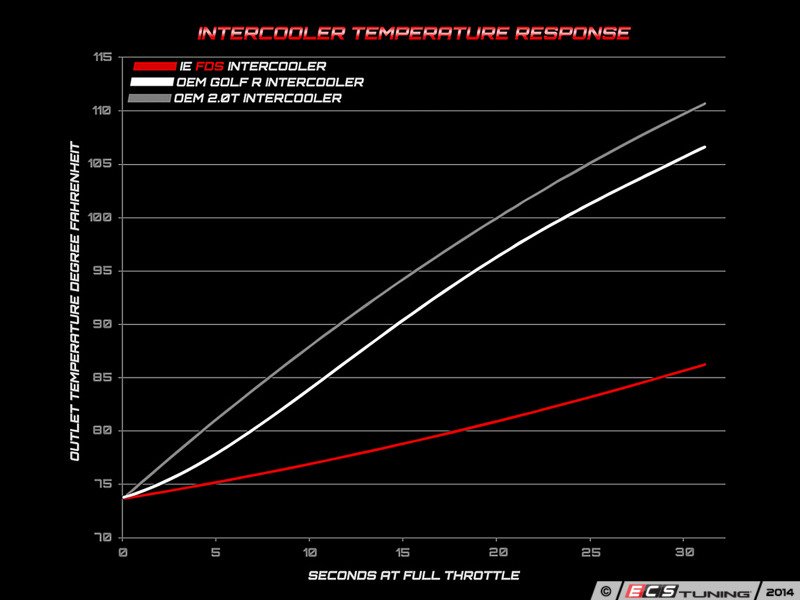

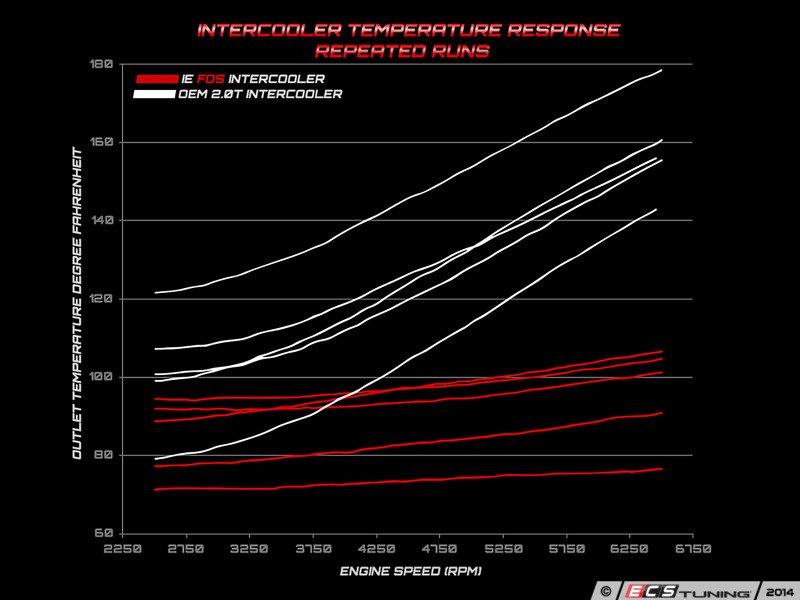

Heat soak occurs when the heat generated exceeds the cooling capacity of the intercooler. The most common symptom is the noticeable loss of power after long term acceleration or several back to back power pulls. By greatly increasing the core size and useable area of the core with FDS technology, we have eliminated the heat soak. The following charts are 30 second apart power pulls showing how the intake air temperature remains consistently lower than the OEM intercooler.

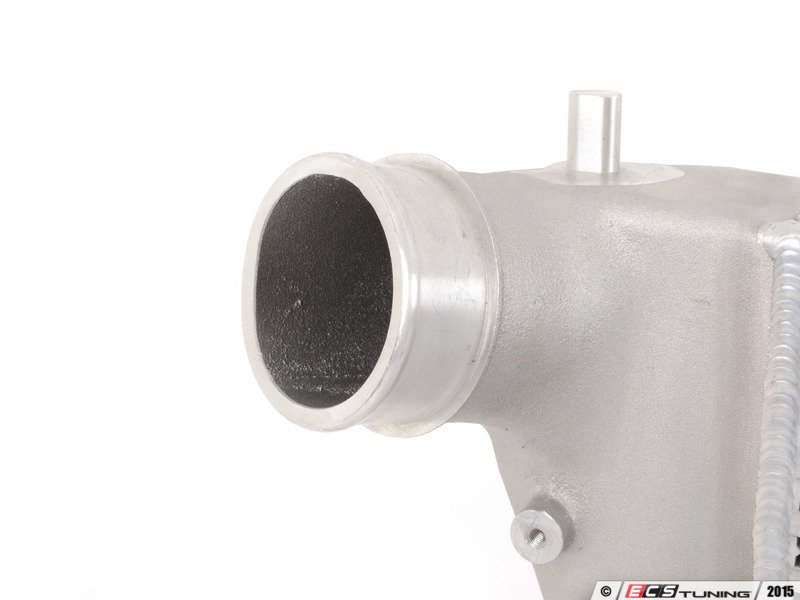

HIGH QUALITY USA CAST END TANKS
High quality American castings for the intercooler end tanks have perfect surface finish and absolutely none of the casting flaws commonly seen in import intercoolers which can destroy your engine. This attention to detail in the design process means that our intercooler is actually lighter than many import intercoolers, while simultaneously having a much larger core volume. These features provide an intercooler with perfect OE fitment and the utmost highest level of performance available today.
IE FDS INTERCOOLER FEATURES
- Charge air temperatures lowered drastically
- Largest core volume of any drop-in intercooler at 885.06 inches.
- Horsepower and torque increased
- Horsepower loss from heat soak removed
- FDS Flow Distribution System spreads the heat over the intercooler core 65% more evenly than competitors

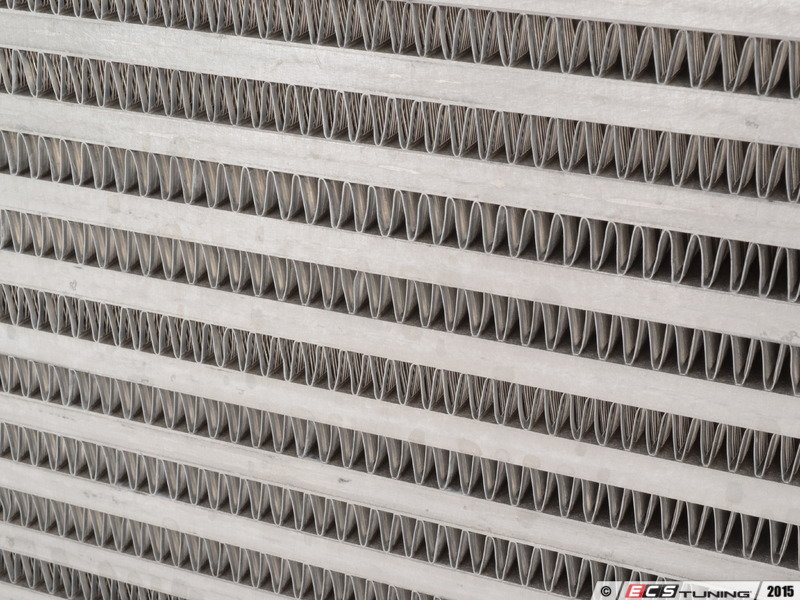

- Large bar and fin core measures 16.39" x 24" x 2.25"
- 54% more core volume than OE
- Beautiful end tanks are cast and machined in USA
- Fully machined mounting bosses for a perfect fit
- Fully machined inlet/outlet connections for a leak free seal
- Perfect OEM fitment, no trimming required
- Large 2.75" inlet and outlet connections

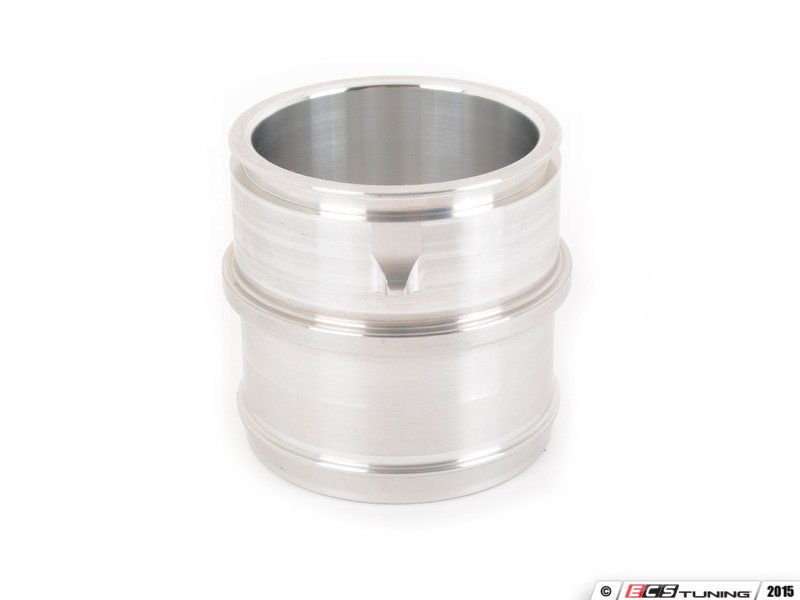

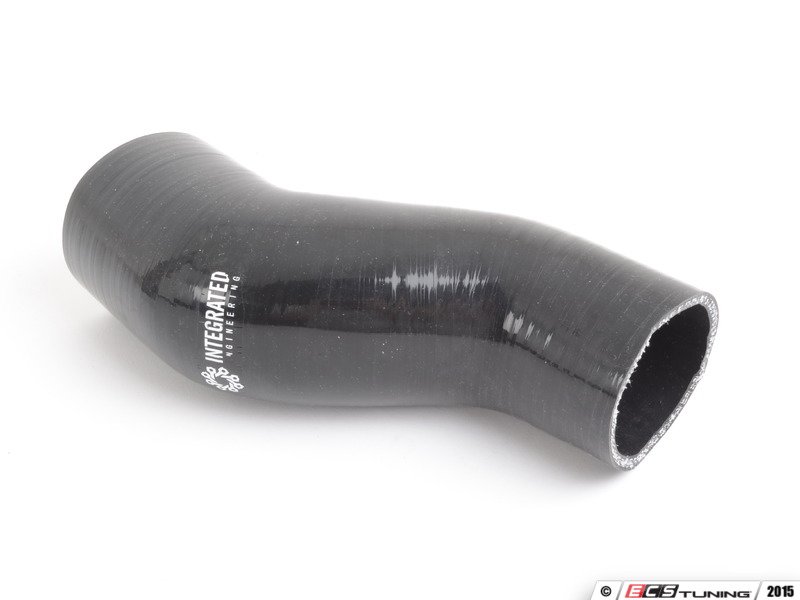

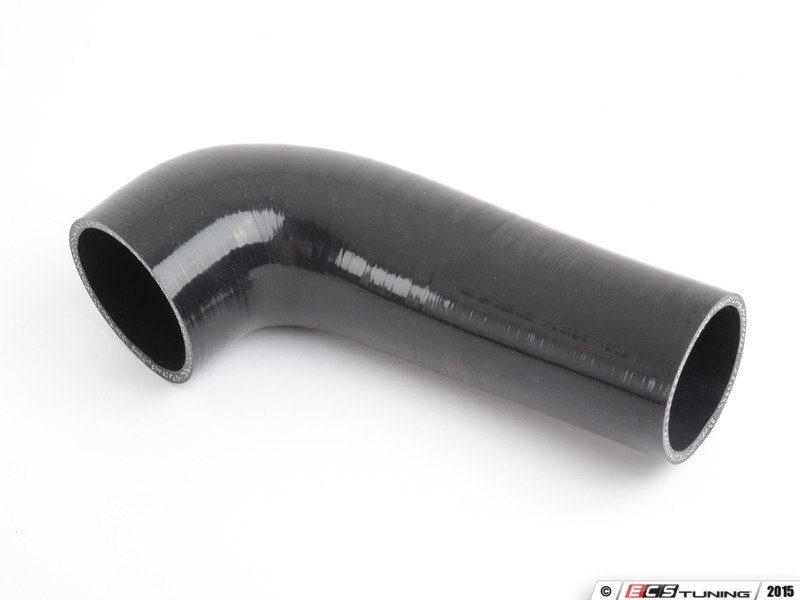

- 5 ply silicone hoses and a billet adapter ensure reliability

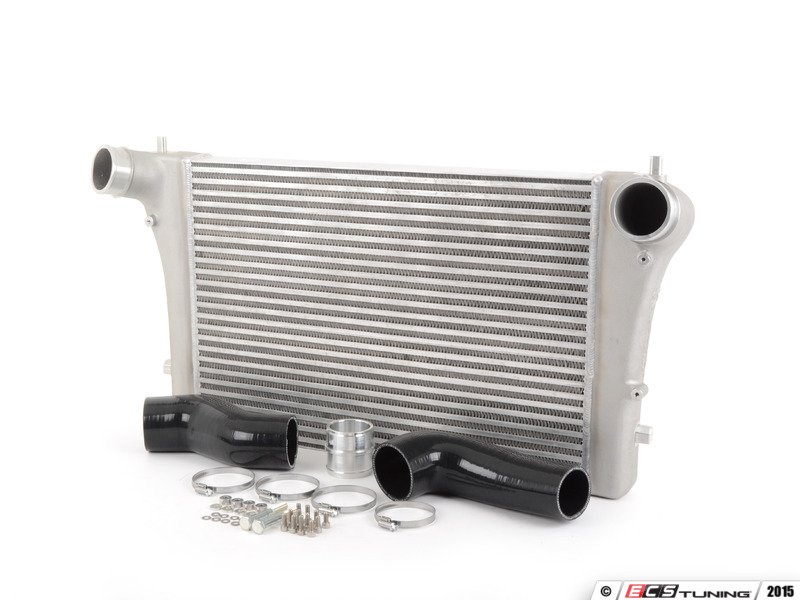

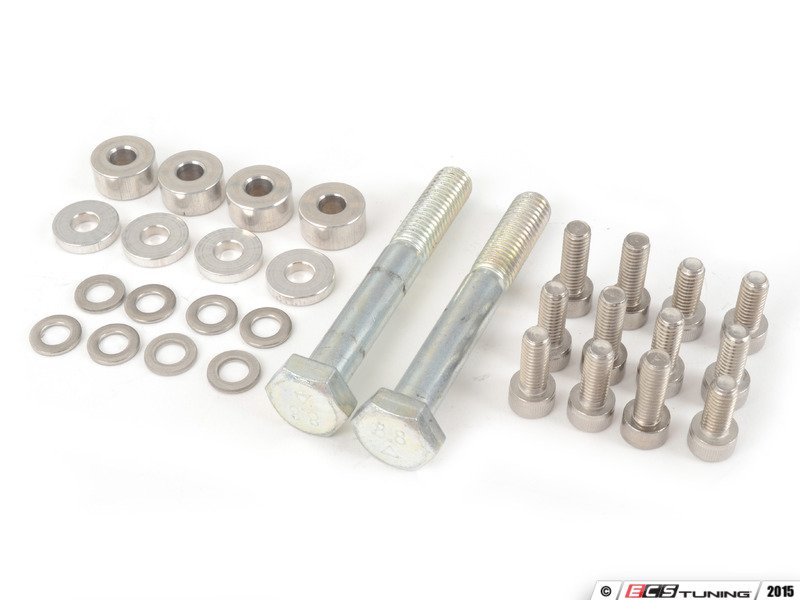

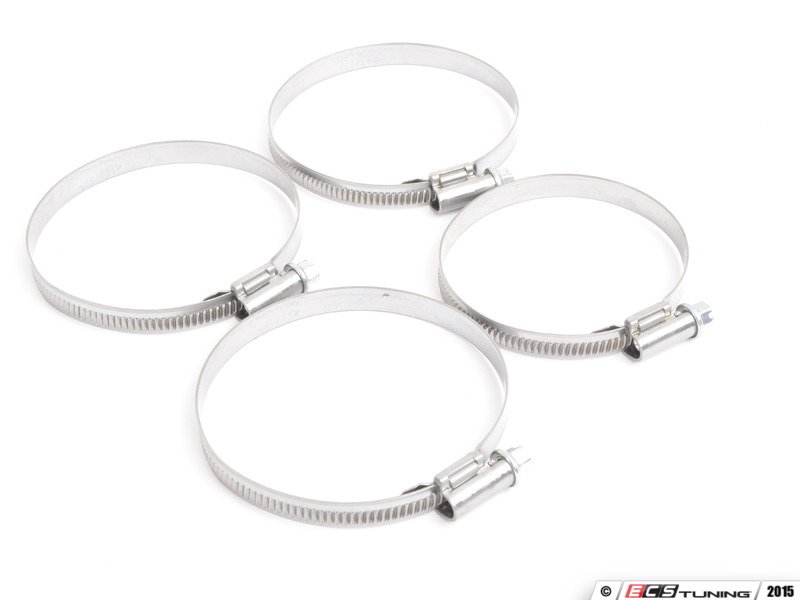

- Includes all necessary hardware and hose clamps
This Part Fits the Following Vehicles
| Make | Model | Submodel | Engine | Special Fitment Notes |
|---|---|---|---|---|
| Audi | A3 8P | FWD | 2.0T | Use vehicle selector to confirm fitment |
| Audi | A3 8P | Quattro | 2.0T | Use vehicle selector to confirm fitment |
| Audi | TT MKII | FWD | 2.0T | Use vehicle selector to confirm fitment |
| Audi | TT MKII | Quattro | 2.0T | Use vehicle selector to confirm fitment |
| Audi | TT MKII | TTS | 2.0T | Use vehicle selector to confirm fitment |
| Audi | TTS | MK2 (2006-2013) | 2.0T | Use vehicle selector to confirm fitment |
| Volkswagen | Beetle | All | 2.0T | Use vehicle selector to confirm fitment |
| Volkswagen | Beetle | All | 2.0T Gen3 | Use vehicle selector to confirm fitment |
| Volkswagen | CC | FWD | 2.0T | Use vehicle selector to confirm fitment |
| Volkswagen | EOS | All | 2.0T | Use vehicle selector to confirm fitment |
| Volkswagen | Golf R | All | 2.0T | Use vehicle selector to confirm fitment |
| Volkswagen | Golf V | All | 2.0T | Use vehicle selector to confirm fitment |
| Volkswagen | Golf VI | All | 2.0T | Use vehicle selector to confirm fitment |
| Volkswagen | Jetta V | All | 2.0T | Use vehicle selector to confirm fitment |
| Volkswagen | Jetta VI | Sportwagen | 2.0T | Use vehicle selector to confirm fitment |
| Volkswagen | Jetta VI | Sedan | 2.0T Gen3 GLI | Use vehicle selector to confirm fitment |
| Volkswagen | Jetta VI | Sedan Facelift | 2.0T Gen3 GLI | Use vehicle selector to confirm fitment |
| Volkswagen | Jetta VI | Sedan | GLI | Use vehicle selector to confirm fitment |
| Volkswagen | Passat B6 | FWD | 2.0T | Use vehicle selector to confirm fitment |
| Volkswagen | Tiguan 1 | 4 Motion | 2.0T | Use vehicle selector to confirm fitment |
| Volkswagen | Tiguan 1 | FWD | 2.0T | Use vehicle selector to confirm fitment |
| Volkswagen | Tiguan 2 | 4 Motion | 2.0T | Use vehicle selector to confirm fitment |
| Volkswagen | Tiguan 2 | FWD | 2.0T | Use vehicle selector to confirm fitment |
