Integrated Engineering 3.0T "Dual Pulley" Power Kit
- Mfg Part #
- IEPPCGJ2
- ECS Part #
- ES#4351842
- Brand
-
Free Shipping
Product Details
Turn your sporty Audi S4 or S5 into an all-out street monster with IE's complete Dual Pulley kit. Get the most out of your 3.0T supercharged engine delivering a massive jump in power up to 534bhp & 520btq! This kit includes all matching hardware and ECU software tune needed to transform your Audi S4 or S5 into a true performance machine.
B8/B8.5 S4 & S5 DOUBLE PULLEY KIT OVERVIEW:
This Audi S4 & S5 Power Kit offers a complete all-inclusive power upgrade by combining IE's top of the line performance hardware with the matching IE motorsport-inspired engine and transmission tunes. You will enjoy track-ready performance while retaining factory comfort and reliability. At the core of this kit is the IE Powerlink cable, providing an easy interface to upload your new tunes and maximize the performance of your 3.0T engine. To take full advantage of the supercharger, boost is increased with a smaller diameter supercharger pulley and larger diameter crank pulley. These modifications combine and release the true monster hidden in your bay.
INCLUDES MULTIPLE OCTANES:
IE's Double Pulley Tune is Available in 91, 93, 100, and 104 octanes along with a specialty E40 (pump plus E85 mixed) blend. A heat exchanger is required for this modification. If you intend to use the E40 blend, a high-pressure fuel pump upgrade is also required.
INCLUDED IN KIT:
IE Dual Pulley Tune:
- Ready to unleash serious power? IE's Stage 2 Double Pulley ECU calibration is for owners running both the smaller supercharger charger pulley along with an additional larger crank pulley. These two pulley's combined create the optimal supercharger ratio resulting in up to 534HP and 520TQ
Available Launch Control RPMs:
- 3400 RPM
- 3600 RPM
- 3800 RPM
- 4000 RPM

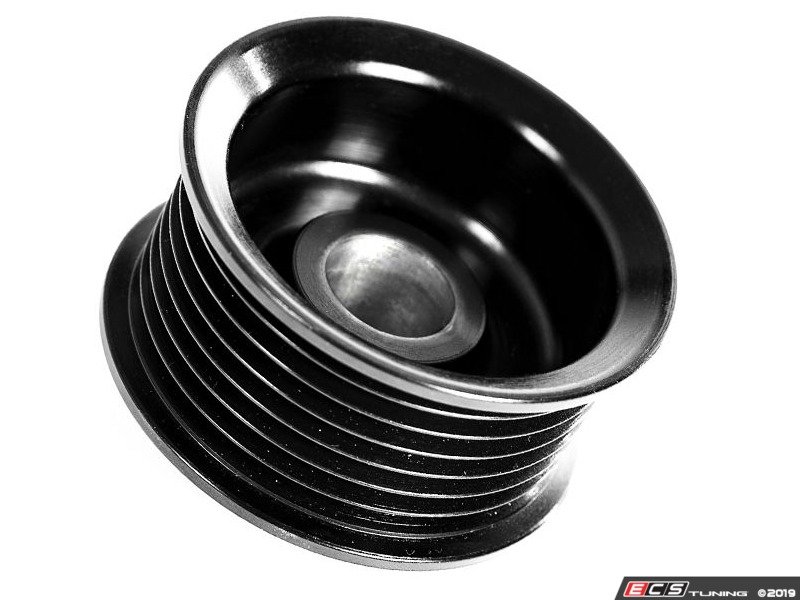

IE Supercharger Pulley Upgrade:
- The pulley functions by increasing the supercharger RPM throughout the full powerband. At redline supercharger speed is increased by 1800 RPM. The IE pulley is 207mm in diameter, making it one of most aggressive and powerful on the market

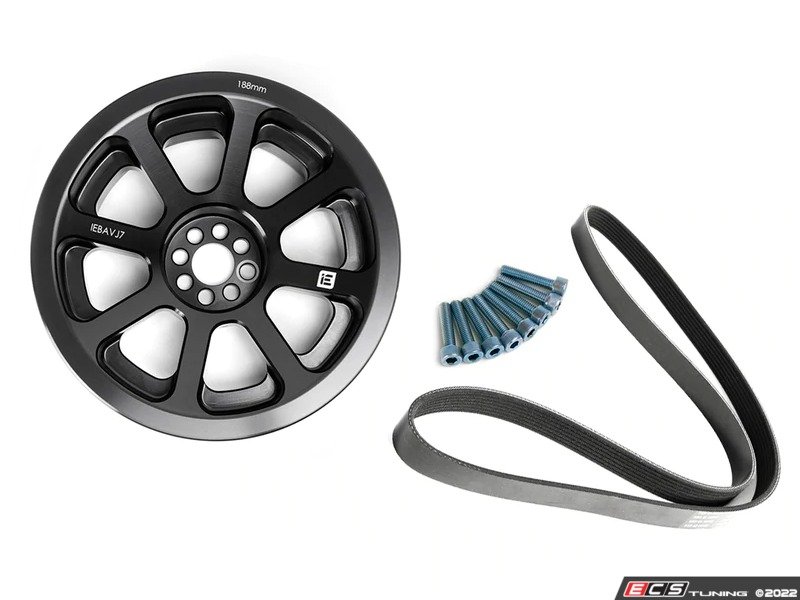

IE Crank Pulley Upgrade:
- The IE Overdrive Crank Pulley Upgrade is designed to work in-hand with the IE Overdrive Superchager Pulley Upgrade Kit. When installed together the charger speed will increase by 26% resulting in higher boost levels and more power. Also required for proper operation is a stage 3 tune and intercooler upgrade. Healthy power gains will be realized from running a dual pulley setup, however, gains will vary depending on the ECU tune used. This pulley also removes all supercharger torque from the OEM Damper unit, greatly decreasing the chances of damper failure.
*Additional Required Hardware:*
- Heat exchanger upgrade required for Stage 2 Dual Pulley
- High Pressure Fuel Pump Upgrade required for E40 (E85 and 91/93 octane blend) use
Other Recommended Hardware:
- IE Audi (B8 & B8.5) S4 Cold Air Intake - IE Part Number IEINCG2
- IE Audi (B8 & B8.5) S4 Downpipes - IE Part Number IEEXCG2
*For 2009-2016 models with press-fit supercharger pulleys only*
Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.
- IEPPCGJ2
This Part Fits the Following Vehicles
| Make | Model | Submodel | Engine | Special Fitment Notes |
|---|---|---|---|---|
| Audi | B8 S4 | Quattro | 3.0T | Use vehicle selector to confirm fitment |
| Audi | B8 S5 | Quattro | 3.0T Cabriolet | Use vehicle selector to confirm fitment |
| Audi | B8 S5 | Quattro | 3.0T Coupe | Use vehicle selector to confirm fitment |

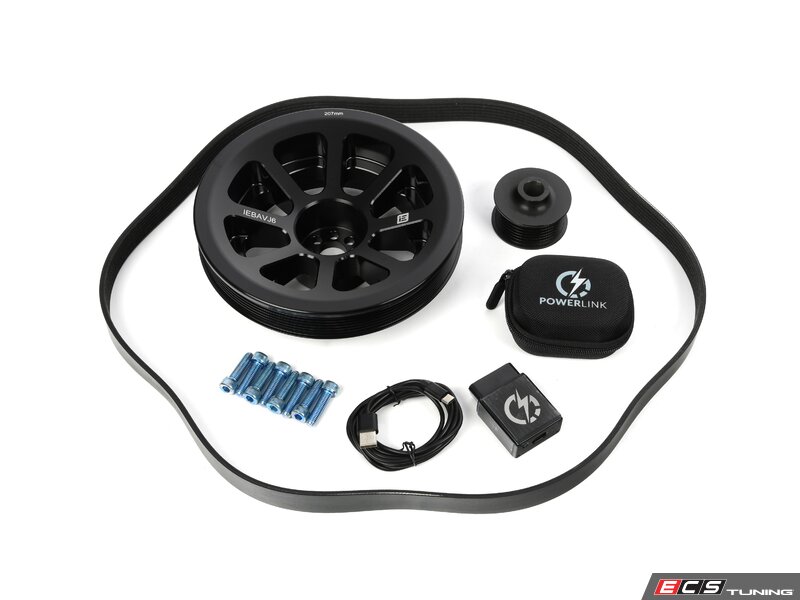

Kit Contents
| Description | Brand | Qty | Lifetime | |
|---|---|---|---|---|

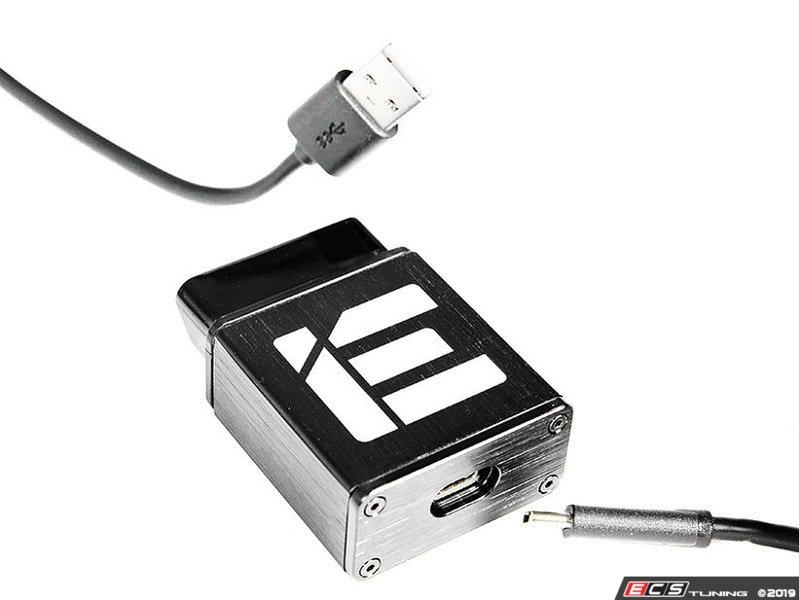

| Integrated Engineering PowerLink V4 Cable - 1099 Tune Credits |
|
1 | YES | |
| IE Audi 3.0T Crank Pulley Upgrade Kit - 207mm |
|
1 | YES |
